Lenoxx CD-87 Operating Instructions Manual

Lenoxx CD-87 Operating Instructions Manual

45 second esp plus electronic shock protection programmable compact disc player
Hide thumbs Also See for CD-87:
Table of Contents

Advertisement

Quick Links

See also: Quick Instructions

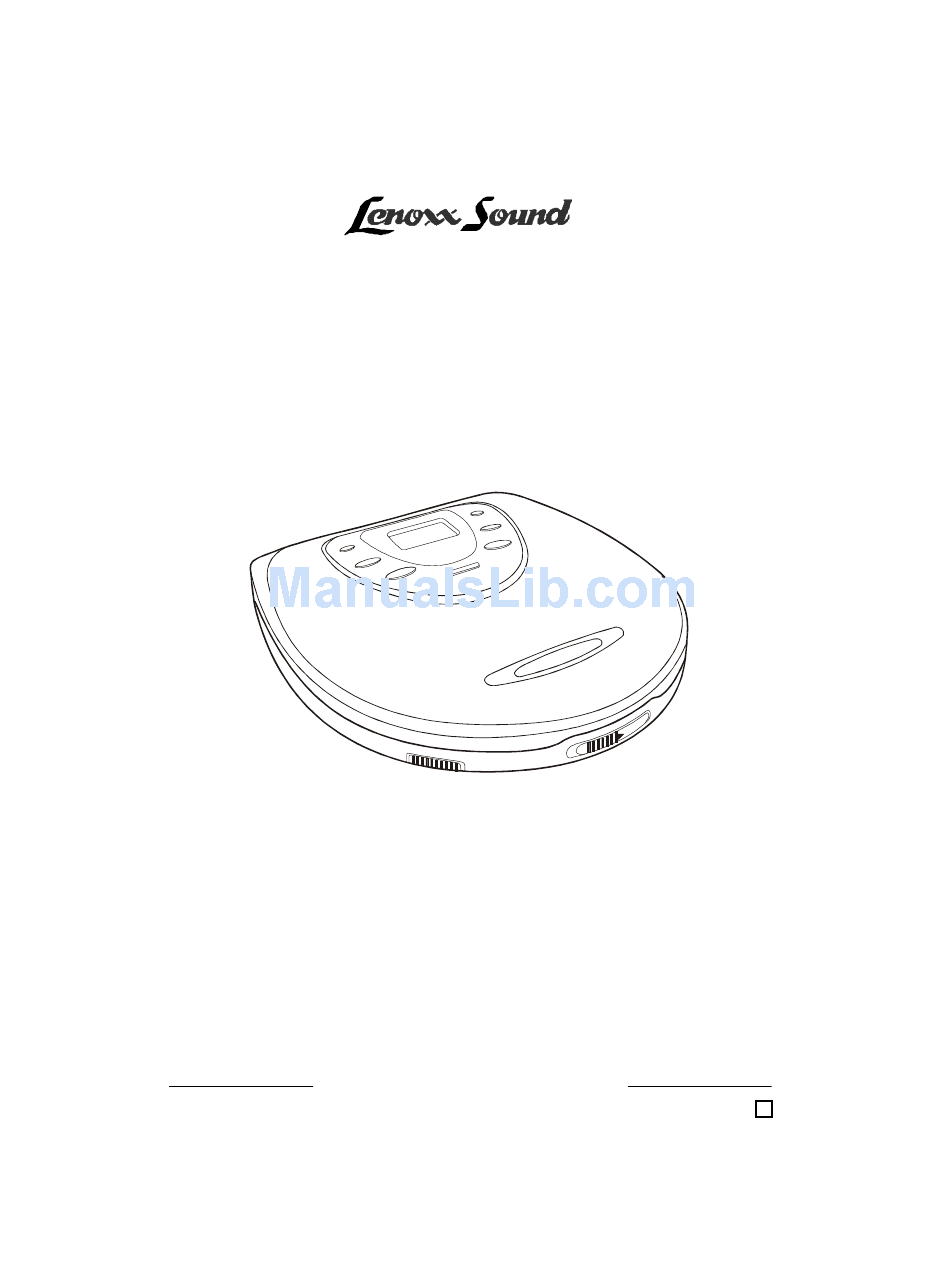

45 SECOND ESP PLUS
ELECTRONIC SHOCK PROTECTION
PROGRAMMABLE COMPACT DISC PLAYER
OPERATING INSTRUCTIONS
•
PLAYS ALL MUSIC COMPACT DISCS
•
BASS BOOST SYSTEM
•
6 DIGIT LCD VISUAL DISPLAY
•
TRACK REPEAT & DISC REPEAT
•
45 SECOND ESP
•
DELUXE STEREO HEADPHONES INCLUDED
•
AC ADAPTOR INCLUDED
•
USES 2 SIZE "AA" BATTERIES
•
AUX OUT JACK - CONNECTS TO YOUR STEREO SYSTEM
PLEASE READ CAREFULLY BEFORE USE
MODEL CD-87
(ELECTRONIC SHOCK PROTECTION)
(NOT INCLUDED)
®
TM
TM
PLUS
SYSTEM
CD87(12A-45J2)010801 NL v.1 E

Advertisement

Table of Contents
loading

Related Manuals for Lenoxx CD-87

Summary of Contents for Lenoxx CD-87

  • Page 1 45 SECOND ESP PLUS ELECTRONIC SHOCK PROTECTION PROGRAMMABLE COMPACT DISC PLAYER MODEL CD-87 OPERATING INSTRUCTIONS • PLAYS ALL MUSIC COMPACT DISCS • BASS BOOST SYSTEM • 6 DIGIT LCD VISUAL DISPLAY • TRACK REPEAT & DISC REPEAT • 45 SECOND ESP (ELECTRONIC SHOCK PROTECTION) •...
  • Page 2 INTRODUCTION Your new Lenoxx Sound model CD-87 portable compact disc player, uses the latest technology to give you crisp clean sound from all your compact discs. Please read these operating instructions completely to take advantage of all the features of this set.

  • Page 3: Location Of Controls

    LOCATION OF CONTROLS 1. CD DOOR OPEN BUTTON (slide to open) 2. CD DOOR 3. ESP (electronic shock protection) BUTTON 4. STOP AND POWER OFF BUTTON 5. BACKWARD SKIP/SEARCH BUTTON ( 6. REPEAT/RANDOM BUTTON 7. LCD DISPLAY 8. PROGRAM BUTTON 9.

  • Page 4: Power Sources

    POWER SOURCES 1. Using with Batteries Insert two size “AA” alkaline batteries according to the + and - markings in the BATTERY COMPARTMENT. TIPS ON BATTERY USE • Reversing polarities will damage the batteries and possibly your set. Be sure to follow polarity ( + and - ) as indicated.

  • Page 5: Using Ac Power

    The AUX OUT jack is made to accept a stereo mini plug (3.5mm). Simply connect the cable’s mini plug to the AUX OUT jack on your player, and the other appropriate end usually RCA JACKS to the CD/AUX INPUTS of your home stereo. YOUR CD PLAYER TO AUX OUT JACK OPTIONAL CABLE (3.5mm)

  • Page 6: Connect The Headphones

    CD PLAYING Load the Disc. Push here Disc 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 Connect the Headphones. To PHONES jack Press the PLAY/PAUSE button. PLAY/PAUSE button NOTE: The ESP PLUS function will turn on automatically when the PLAY/PAUSE button is pressed.

  • Page 7: Other Operations

    Other Operations Operation Press To pause play PLAY/PAUSE button To release pause PLAY/PAUSE and resume play button To stop STOP button STOP button once and wait 30 seconds, or press To turn off the power STOP button twice To skip to the next track(s) To skip to the previous track(s) To go ahead at high speed Keep...
  • Page 8 1. During play, press REPEAT/RANDOM button four times the word SHUFF will flash. 2. Press the PLAY button, this will play all of the songs in random order selected by the CD player. The word SHUFF will stop flashing. 3. Press the SKIP/SEARCH button next random song.

  • Page 9: Program Play

    PROGRAM PLAY The tracks (songs) on the disc can be programmed (arranged in advance) to play in any order you prefer (up to 20 tracks can be programmed). Programming Example: Program Number Track Number (song number) During programming, the word PROG flashes in the display. To program songs to play in your preferred order, follow steps below: 1.During play, press the PROGRAM button.
  • Page 10 45 SECOND ESP PLUS This set is designed with 45 second ESP (Electronic Shock Protection) PLUS allows virtually unlimited gentle skip protection, and 45 second normal shock protection. The ESP PLUS function prevents the sound from skipping by using a buffer memory that stores music data.

  • Page 11: Maintenance

    MAINTENANCE Cleaning the lens A dirty lens will cause sound skipping. If the lens is very dirty, the player may not work. We suggest using a special cleaning disk (not included) available in most music and Hi-Fi stores. However, if you do not have one, you may use a cotton swab very slightly dampened with alcohol to clean the lens.

  • Page 12: Safety Precautions

    Replace both batteries at the same time (see Using with Batteries). Your CD-87 is identified by a serial number located in the BATTERY COMPARTMENT. Record this number in the space provided below.

  • Page 13: Safety Certification

    IMPORTANT REQUIREMENT BY THE FCC Since the CD circuitry may cause interference to other radios nearby, switch this set off when not in use or move it away from the affected radios. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.

  • Page 14: Troubleshooting Guide

    OK on tester but they are weak for CD does not play operation). normally. Dead or weak batteries. CD Player will not AC ADAPTOR not turn on. connected properly. Disc inserted incorrectly. Defective compact disc. CD DOOR not closed.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS CD Player Section Frequency response ... Wow and flutter ... Sampling frequency ... D/A converter ... Error correction method ... Pickup ... Laser diode material GaAIAs Laser output less than 44.6 w General Maximum output (stereo headphones) ...

  • Page 16: Limited Warranty

    During the initial 90 day period after original purchase, we will service or exchange, at no charge, the set that is returned to LENOXX ELECTRONICS CORP. After the initial 90 day period expires, and for a period of 12 months from original purchase, we will repair the unit covering any part(s) that need to be replaced at no charge, but will charge for the cost of labor, return postage paid by Lenoxx.
