Summary of Contents for COMFILE CPCi3-150WF

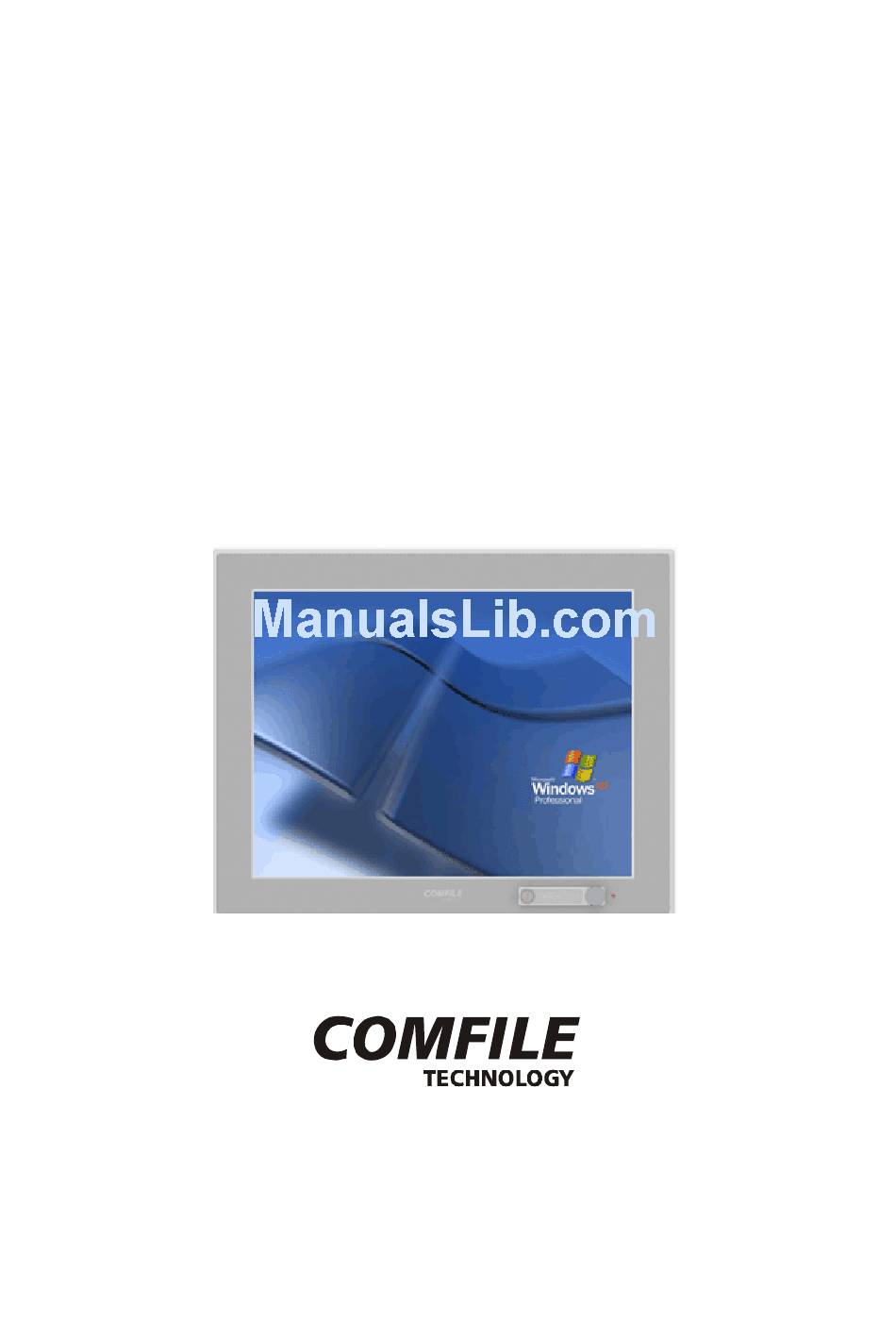

- Page 1 CPCi3-150WF Hardware Manual [Version 1.0]...
-
Page 2: Hardware Specification
CPCi3-150WF Hardware Manual CUPC Manual 1. Hardware Specification Model Item CPCi3-150WF Intel Core i3-3225 3.3GHz Dual Core Processor Chipset Intel H61 Express Chipset Memory 4GB SO-DIMM DDR3/PC3-10600(1333MHz) Intel HD Graphics 4000 Graphic & Display 1xDVI Output Port 1xHDMI Port 15inch,16.7M Colors, XGA(1024x768), 300cd/m... -
Page 3: Input/Output Ports
CPCi3-150WF Hardware Manual CUPC Manual 2. Input/Output Ports Name Description ATX Power Switch Press to power on. Press and hold to power off. Front USB Ports USB2.0 Port Green when powered on. Red when hard disk is being Power/HDD LED read or written. - Page 4 CPCi3-150WF Hardware Manual CUPC Manual USB Port USB 3.0 Port(Use after installing driver) DVI Port DVI output for connecting an external monitor. eSATA eSATA port for connecting an external HDD HDMI Port HDMI port for connecting an external monitor. LAN Port...
- Page 5 CPCi3-150WF Hardware Manual CUPC Manual 3. Dimensions Avoid using long bolts when assembling VESA mounts or add-on board. The inner maximum length is about 10mm. Front USB port cover Back Cover www.ComfileTech.com • page Comfile Technology , Inc...
-
Page 6: Panel Cutout
CPCi3-150WF Hardware Manual CUPC Manual 4. Panel Cutout ▌ Recommended Clearance ▌ Recommended Paneling Dimensions X: Panel Cutout Width, Y: Panel Cutout Height, T: Panel Thickness Unit: mm[inch] CUPC 1.6 to 12.0 CPCi3-150WF [13.98] [10.99] [0.06 to 0.47] www.ComfileTech.com • page... - Page 7 CPCi3-150WF Hardware Manual CUPC Manual 5. Mounting Brackets and Front Cover ▌ Mounting Brackets Panel mounting brackets are supplied to mount the CUPC to an upright panel (upper/lower/left/right 2ea.). 1. Insert the product into the panel’s cutout. Insert the bracket’s hook into the product’s bracket mounting slot.
- Page 8 CPCi3-150WF Hardware Manual CUPC Manual 4. Fasten the bolts to secure the product to the panel. (Warning! To avoid damage or deformation, be careful not applying too much torque when fastening the bolts) 5. Repeat steps 2 ~ 4 until product is mounted as shown in the image below.
- Page 9 CPCi3-150WF Hardware Manual CUPC Manual ▌ Front Cover 1. Loosen the thumb-wheel on the right of the cover and rotate the cover downward to reveal the front USB ports and ATX power switch. – Loosen the cover’s thumb-wheel – – Rotate cover downward –...
-
Page 10: Power Connectors
CPCi3-150WF Hardware Manual CUPC Manual 6. Power Connectors ▌ Power Input Connector * ø 2.5 Adaptor Jack www.ComfileTech.com • page Comfile Technology , Inc... -
Page 11: Warranty Policy
CPCi3-150WF Hardware Manual CUPC Manual 7. Warranty Policy ▌ Warranty Period The products are warranted to be free of defects in materials and workmanship for 1 year from the date of purchase. ▌ Warranty Exclusions The warranty does not cover abrasion and is considered void if the product is opened by unauthorized personnel, damaged by abnormal use, heat or humidity, or used against recommendations in the product manual. - Page 12 CUPC Manual CUPC Hardware Manual (CPCi3-150WF) Contact Information Should you need any additional information or assistance about CPCi3-150WF, please feel free to contact us. Comfile Technology Inc. 14 Pidgeon Hill Drive, Suite 310, Sterling, VA 20165, USA Telephone Toll-Free : (888) 9CUBLOC, (888) 928 2562...
