Summary of Contents for Avalon Bay AB8K

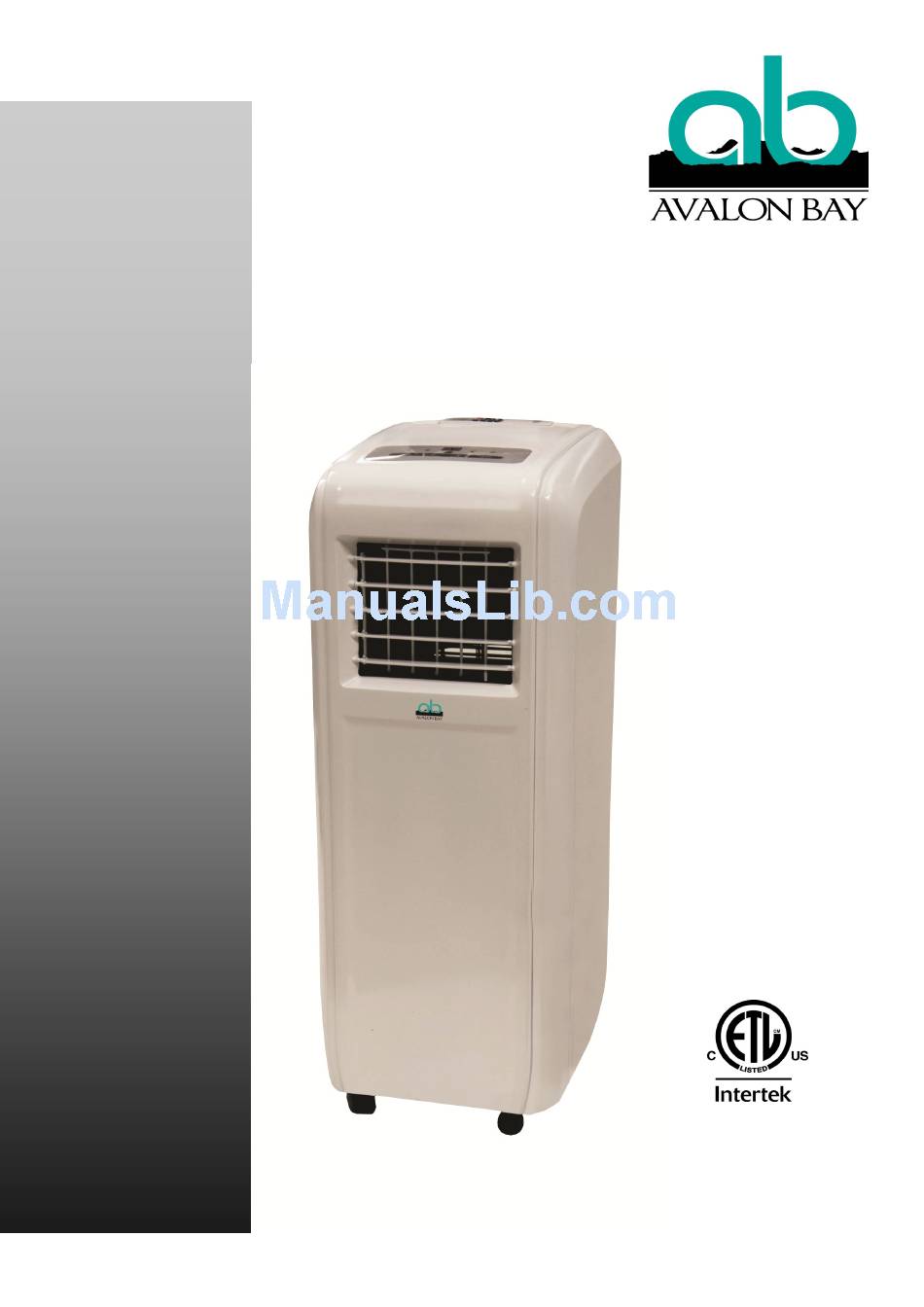

- Page 1 8,000 BTU Portable Air Conditioner Operating Instructions Model Number: AB8K 3092402 V.130509...
-
Page 2: Important Instructions
Thank you for choosing a Avalon Bay Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the op- erational aspects of your new Avalon Bay Portable Air Conditioner. -
Page 3: Package Contents
These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. MODEL NUMBER AB8K COOLING CAPACITY 8,000 BTU/H DEHUMIDIFYING CAPACITY 38 pts per Day COOLING POWER USAGE 760 Watts, 6.7 Amps... -
Page 4: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side. -
Page 5: Product Diagram
PRODUCT DIAGRAM Remote Control Control Panel (on top) Louvers Remote Control Signal Receptor Casters Filter Compartment Condenser Air Outlet Evaporator Air Intake Condenser Air Intake Drain Hole Drain Port Rubber Plug... -
Page 6: Parts & Assembly
PARTS & ASSEMBLY PARTS EXHAUST HOSE Window Kit Adapter WINDOW KIT ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the unit draws in fresh outdoor air and exhausts hot air out of the room to complete the air exchange. When the unit is operating in fan mode no outdoor air exchange takes place. -
Page 7: Window Kit Installation
WINDOW KIT INSTALLATION NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for Avalon Bay hose portable air conditioners. -
Page 8: Window Kit Assembly
WINDOW KIT ASSEMBLY 1.Parts: A) 2 Track Screws B) 2 Wing Nuts C1 & C2) 2 Hose Panels, one Exhaust Hose Openings D) 1 Sliding Track Panel 5. Next, take the other Hose Panel (C2) and connect it to Hose Panel (C1) by placing the Sliding Track Panel (D) over the Track Screw (A) on Hose Panel (C2). -
Page 9: Control Panel Buttons
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL TEMPERATURE AND TIMER INDICATOR AIR CONDITIONER MODE DEHUMIDIFIER MODE BUCKET FULL FAN MODE MODE BUTTON POWER BUTTON TIMER/TEMP DECREASE TIMER/TEMP INCREASE OPERATING INSTRUCTIONS CONTROL PANEL BUTTONS 1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off. -
Page 10: Operating The Unit Using The Remote Control
OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL LCD DISPLAY MODE BUTTON POWER BUTTON FAN SPEED TEMP SETTING TIMER ON SLEEP BUTTON TIMER OFF MINUTE SELECTER HOUR SELECTER * Remote Colors may differ from the image above. - Page 11 REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - If the unit is already on, press the POWER (I/O) button on the remote while point- ing the remote away from the unit. This will turn the remote on. If the unit is off, now press the POWER (I/O) button once to manually turn the unit on.
-
Page 12: Operating The Unit
change the clock to the desired time for the unit to automatically turn on. The minutes will increase by 10 with each press of the MIN button and the hours will increase by 1 with each press of the HOUR button. Press the T-OFF button and the remote control display will flash the desired auto-off timer. -
Page 13: Auto Mode
4) Select the fan speed by pressing the FAN button by using the Remote control. NOTE: It is not necessary for the exhaust hose and window kit to be installed to operate the unit in fan mode. Auto Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8 ). 2) Plug the Power Cord into an electrical outlet. -
Page 14: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 15: This Warranty Does Not Cover
One Year Limited Warranty Air and Water Inc. warrants the accompanying Avalon Bay Portable Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
