Door Camera - VDT591 User Manual
Parts and functions

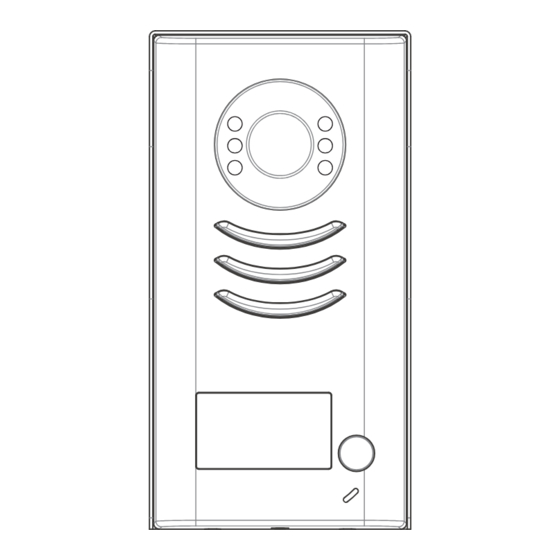

The 591 is a special design for the 2-wire system:
•
Full matel cover with backlight nameplate
•
4 Door cameras connection
•
Directly connect 2 separate electronic locks, unlock time controlled by Monitor
Name
Terminal Descriptions
Camera Lens
Night View LED
Speaker
Nameplate
Call Button
Microphone
90 mm
23 mm
1 2 3
MIC adjustment
SPK adjustment
S 2 + S -
P L S 1 +
L 1 L 2
Lock Control Jumper
Camera Code DIP
Main Connect Port
1
Advertisement
Related Manuals for Futura Digital VDT591
Summary of Contents for Futura Digital VDT591
-
Page 1: Parts And Functions
Door Camera - VDT591 User Manual Parts and functions The 591 is a special design for the 2-wire system: • Full matel cover with backlight nameplate • 4 Door cameras connection • Directly connect 2 separate electronic locks, unlock time controlled by Monitor... - Page 2 • To configure the electronic lock safety type; set the jumper in 1-2 position for Power- Lock Control Jumper: to-Unlock type(pulse activated electronic lock), set the jumper in 2-3 position for the Power-Off-to-Unlock type(electromagnetic lock). Remove the jumper if using external power supply for the lock.(the power+ will be connected to the PL on the Main Connect Port) •...
- Page 3 Inner Power 2 Locks Connection Directly connect 2 electronic locks to the door station and use the Camera power to supply the locks. There are 2 separate unlock icons on Monitor for opening each lock. Note that the 2 locks should be the same safety type. 1 2 3 1 2 3 Jumper position in 1-2...
-
Page 4: Electronic Specifications
Mounting Without Rain Cover 160-165cm Mounting With Rain Cover 160-165cm Electronic Specifications Lock Power supply: 12Vdc, 500mA(supplied by system) Power Consumtion: 1W in standby, 12W in working Video signal: 75 ohm CCIR NO, COM exchange contact: Max. 48V dc 1.5A Unlocking time: 1 to 9 seconds, set by Monitor Working temperature:...
