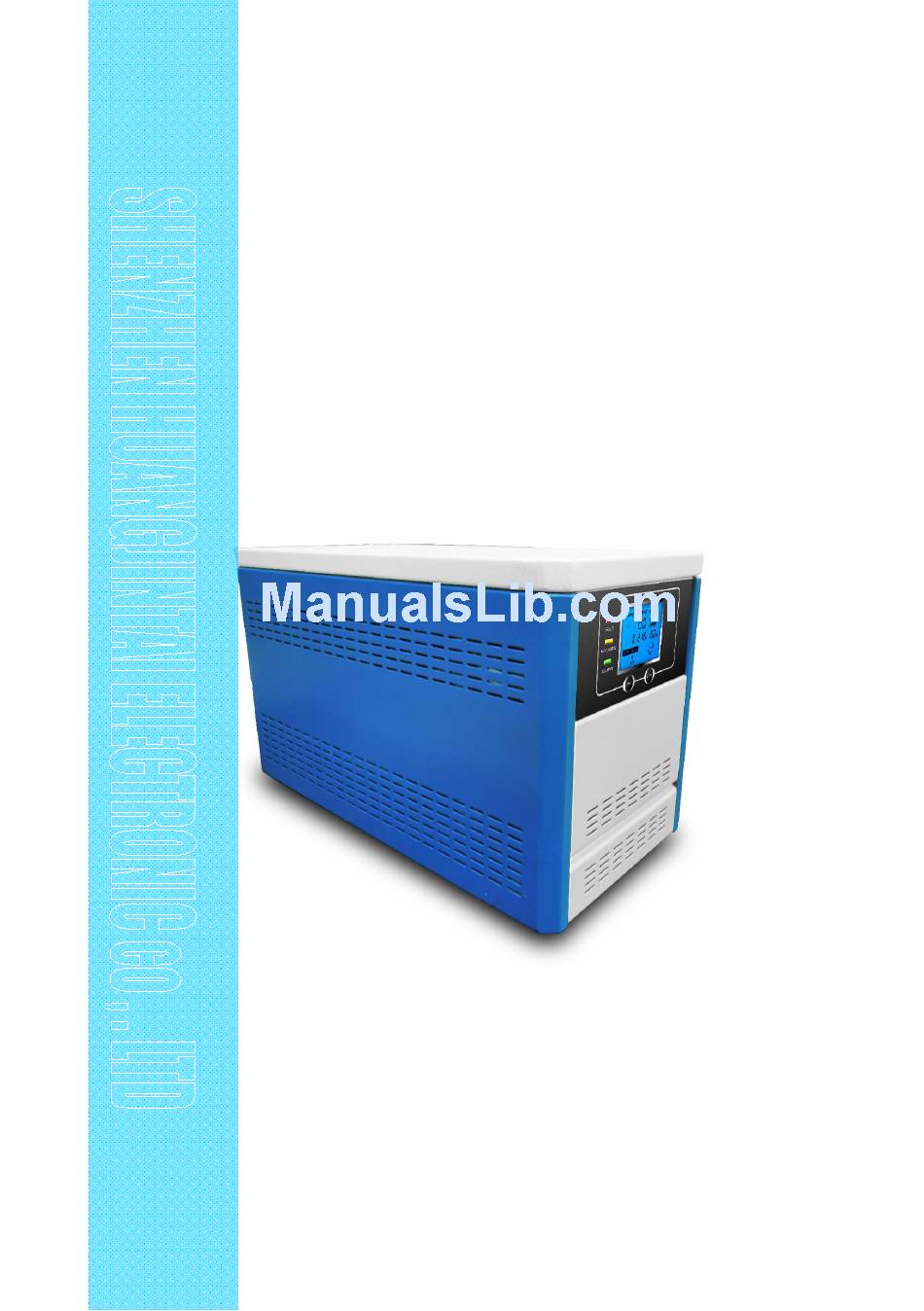

- Page 1 Off-Grid Solar Inverter with Controller User’s Manual NK-GP600 Shenzhen Huangjintai Electronic Co., Ltd Issue date: Nov.16,2012...
-
Page 2: Table Of Contents
NK-GP600 User’s Manual Contents 1、 Introduction……………………..……〔3〕 2、 Product components………...…..….〔3〕 3、 Warning………………………..…..…〔4〕 4、 Operation Instruction……………..…〔5〕 5、 Technical Parameters……………..〔6〕 6、 Warranty…………………….…..〔9〕 Shenzhen Huangjintai Electronic Co.Ltd 11/16/2012... -
Page 3: Product Introduction
NK-GP600 User’s Manual ※ Product Introduction This off-grid solar system is one the most advanced inverter integrated with solar controller inside, the output of which is standard pure sine wave. It adopts CPU control technique and achieves the free communication between inverter module and control module. -
Page 4: Warning
Keep it away from children, use it cautiously, risk of electrical shock Before using your NK-GP600, read the user's manual carefully and operate it correctly. Don't expose the inverter in rain, snow or spray. keep it away from potential source of flammable... -
Page 5: Operation Instruction
NK-GP600 User’s Manual ※ Operation Instruction The installer should have knowledge and experience in stalling electrical equipment ■ Installation Steps 1、 Check and confirm all accessories are included. 2、 Place this equipment at flat and stable platform in a dry &... -
Page 6: Technical Parameters
NK-GP600 User’s Manual ■ Turn Off Press OFF button, and the equipment will be shut down. ※ Technical Parameters ■ Input Features： DC voltage range: DC10V-DC15V Over voltage protection: DC16±0.5V Over voltage recovery: DC15.4±0.2V Low voltage protection: DC10±0.5V Low voltage recovery:DC12.5±0.2V AC input voltage:AC145±5V- AC275±5V... -
Page 7: Protection Features
NK-GP600 User’s Manual ■ Charging Features Battery type：Maintenance free lead-acid battery Battery Voltage:12V DC Charging current:15A Charing time: 8h ≥90%（80A maintenance free lead-acid battery） Floating charge voltage: 13.8VDC±0.3V Over-charge voltage: 14.4V AC input voltage: 145VAC±5V-275VAC±5V ■ Protection Features DC low voltage protection: DC10±0.5V DC over voltage protection: DC16±0.5V... - Page 8 NK-GP600 User’s Manual the inverter mode intelligently. The solar will provide power to the load directly and charge to the battery meantime. If the solar energy is insufficient, both the solar energy and battery will supply power to the loads automatically.
-
Page 9: Warranty
Quality Certificate：1 pc Warranty Card ：1 pc ※ Warranty Your NK-GP600 has one year limited warranty from the date of purchase. This limited warranty does not cover problems caused by incorrect operation, self dismantling or modification. We offer free replacement service to the defective product within 7 days from the date of purchase, except for the force majeure or non-artificial factors.
