Summary of Contents for Xiamen Antai New Energy Antai Rail?
Page 1

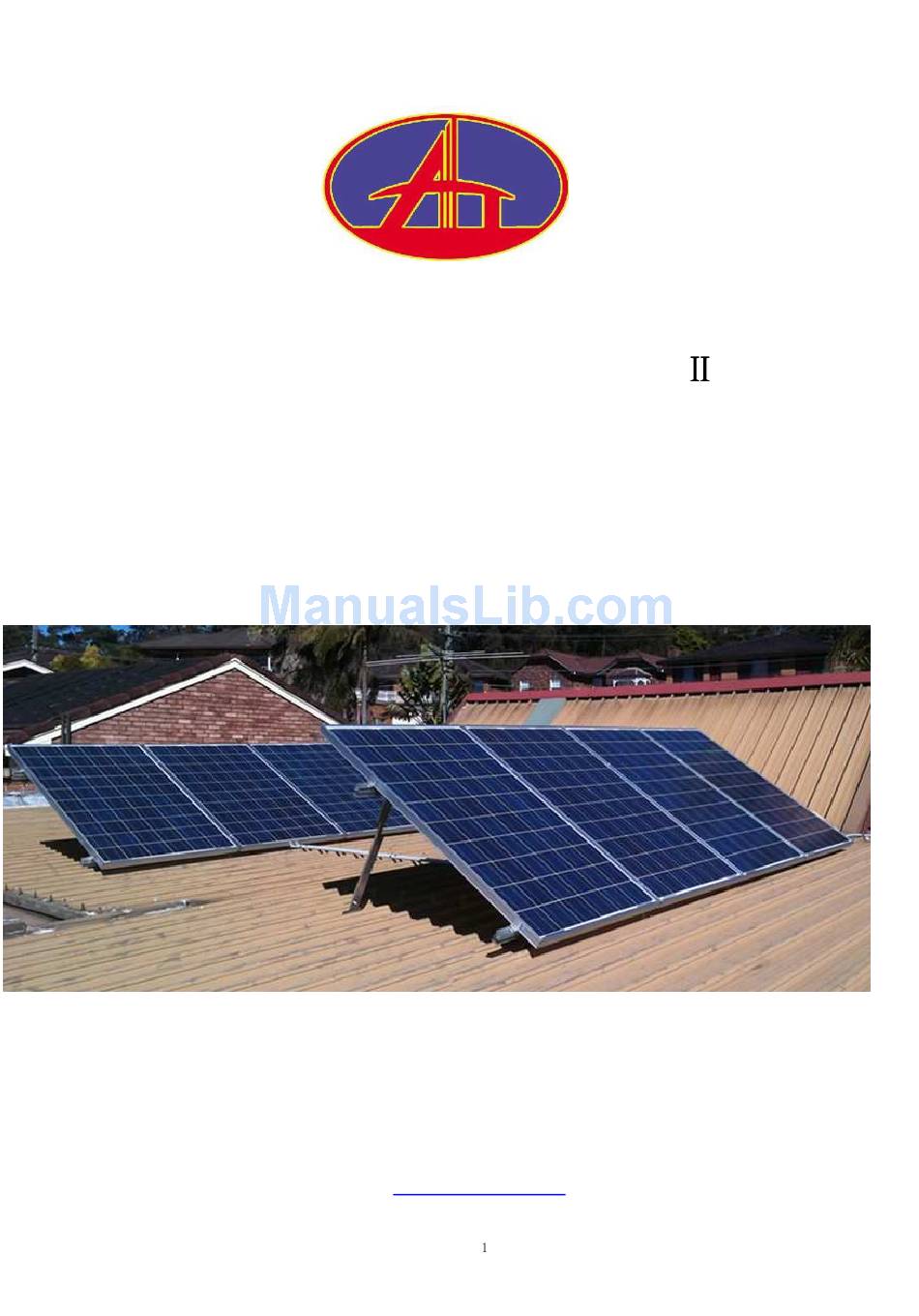

Xiamen Antai New Energy Tech.Co., Ltd Installation Manual—Antai Rail Solar Mounting System (Flat Roof Solution) Version 1.1 Office Add: 508#, North Tower, Guangxia Building Huli Torch Hi-tech Zone, Xiamen, China Factory Add: Guanshan Industrial Park Changtai County, Zhangzhou, China Tel: 86-592-3852509...
Page 2
Installation site: pitched roof Roof Slope: up to 45° Wind load: To AS Code1170.2-2002 PV module: Framed Module orientation: vertical Support rail: extruded aluminum—Antai Rail Color: natural Roof cladding: suitable for most types of cladding Module widths: Maximum 1.2m Module lengths: Maximum 2.0m...
Page 3
I. Components List Overview of system components Part name picture Part name picture Antai Rail- Fix Foot Adjustable Leg Splice Strut Inter Clamp End Clamp (with (with T-module) T-module) hexagon socket bolt T-module M8*12/30/50/70 Klamp Lock Klamp Lock 406 Note: The quantity of requested components depends on the system you ordered.
Page 4
II. Planning the Module Area 1. Number of modules in the vertical direction × module height (please check also the installation manual of the manufacturer of the solar panel) 2. Number of module in horizontal direction× (module width+17mm)+32mm 3. Horizontal spacing of the Fix Foot up to 2m 4.
Page 5
Figure 3.1 Wind Regions Flat Roof Maximum Fixing Spacing Table—Antai Rail Fixed to flat roof with minimum of 2 x 12 gauge (5.5mm Min. diameter, 14 TPI and 10 TPI for fixing to steel and timber respectively) screw through to 1.2mm Min. BMT steel or 50mm Min. embedment into timber Wind Region to AS.1170.2-2002...
Page 6
III. Installation Instruction 1. Determine the positions of the Fix Foot according to your plans and the fixing spacing table on the previous page. Shim the Fix Foot with rubber. Fix the Fix Foot to the rafter using 2*12g screws as notes in the fixing table.
Page 7
4. Put the U Bracket into the Front Fix Foot .It is recommended to mount them just a bit tight, so it could be adjusted in the mounting and fasten completely. Fix the U Bracket with the Rail by T module use M8×30mm bolt.
Page 8
8. Fix the L Bracket with the Leg tube by using M8×50mm bolt. 9. Fix the Bracket with the basic rail by T module use M8×30mm bolt. 10. If you need, to connect multiple rails together, slide the splices on the rear side of the pre-assembled rails halfway to the side.
Page 9
12. Place the solar module on the rails, slide the end clamp tightly against the solar module and fasten tightly using the Allen bolt. 13. Cross-section through the end clamp when installation step12 has been correctly performed. 14. Slide the pre-assembled inter clamp into the rails from above, place it firmly against the module and fasten loosely.
Page 10
Allen key. 17. Leg Strut and fix foot can be adjusted. 18.AnTai rail grounding system Antai Solar Mounting Rack Compliance to AS Code 1170...
Page 11
V. Warranty 10 year limited Product Warranty, 5 year limited Finish Warranty Antai Solar Ltd warrants to the original purchaser (“Purchaser”) of product(s) that it manufactures (“Product”) at the original installation site that the Product shall be free from defects in material and workmanship for a period of ten (10) years, except for the anodized finish, which finish shall be free from visible peeling, or cracking or chalking under normal atmospheric conditions for a period of five (5) years, from the earlier of 1) the date when the installation of the Product is completed, or...
