- Page 1 I2R GSU-600 Wireless Modem User Guide I2R GSU-600 Wireless Modem User Guide...
-
Page 2: Safety Information
I2R GSU-600 Wireless Modem User Guide 1. Safety information Radio device have limitations in the vicinity of electronic devices: Switch the Modem off when you are in a hospital or near medical devices like pacemakers. The Modem may interfere with the operation of these devices. -
Page 3: Table Of Contents
I2R GSU-600 Wireless Modem User Guide 2. Contents 1. Safety information............................2 2. Contents............................... 3 3. Overview ..............................4 3.1 Top View ............................4 3.2 Bottom View ............................. 4 4. Product description............................5 4.1 Highlights ............................6 5. Features ............................... 7 5.1 Product data............................ -
Page 4: Overview

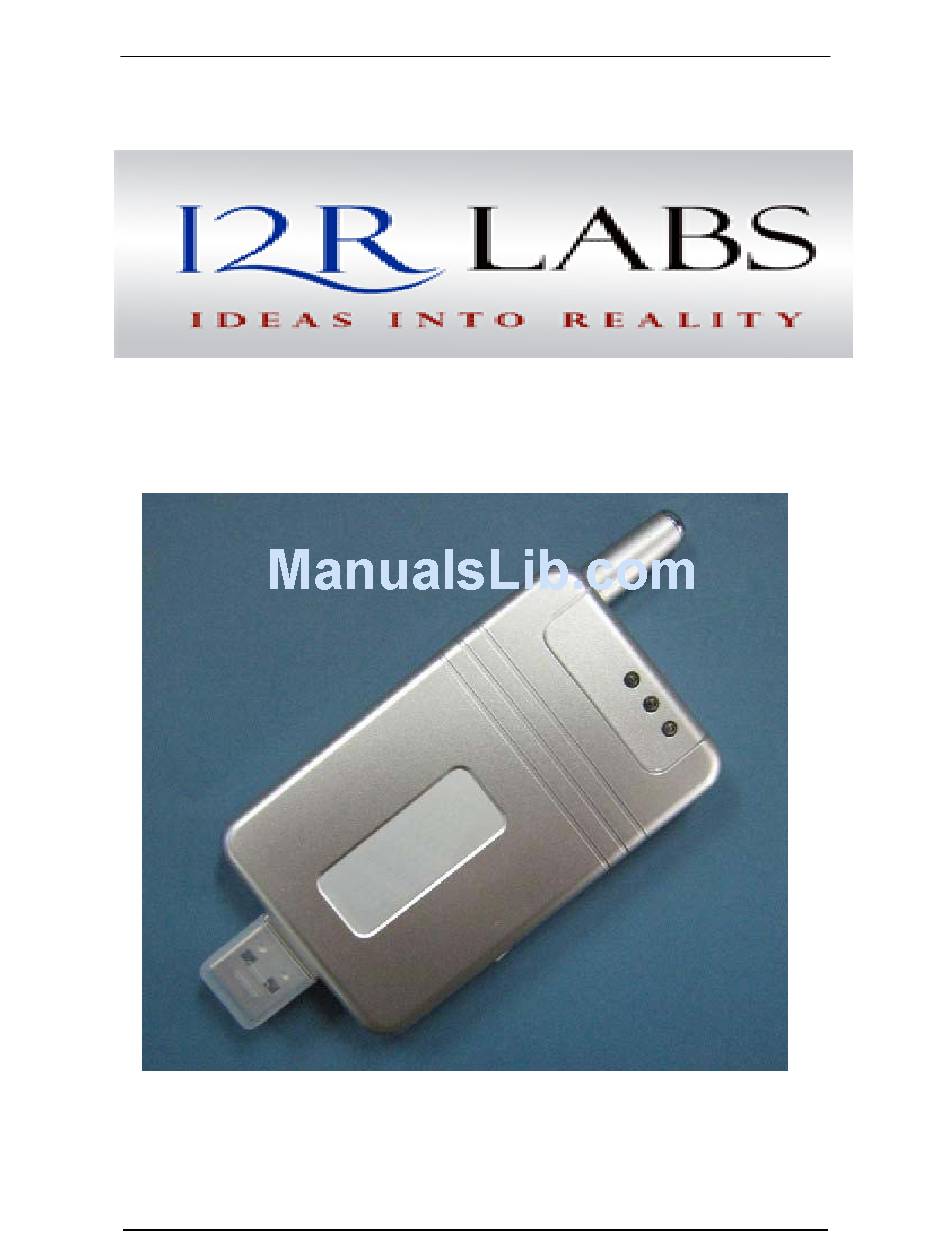

I2R GSU-600 Wireless Modem User Guide 3. Overview 3.1 Top View Figure 1: Top view of the modem 3.2 Bottom View Figure2: Bottom view of the modem... -
Page 5: Product Description
I2R GSU-600 Wireless Modem User Guide 4. Product description is the wireless modem with USB interface that bases upon the SIM600 I2R GSU-600 module. Designed for global market, is a Quad-band GSM/GPRS modem with integrated EDGE technology that works on GSM850，EGSM900, DCS1800 and PCS1900. -
Page 6: Highlights
I2R GSU-600 Wireless Modem User Guide 4.1 Highlights Quad-band GSM850/EGSM900/DCS1800/PCS1900 Support GSM/GPRS/EDGE Coding schemes: CS1~4; MCS1~9 Data, voice and SMS Easy to integrate LED display Wide input voltage range Highly compact, light and powerful USB interface: USB specification 2.0 compliant full-speed... -
Page 7: Features
I2R GSU-600 Wireless Modem User Guide 5. Features 5.1 Product data Quad-band GSM850/E GSM900/DCS1800/PCS1900 Certified in accordance with GSM phase 2/2+ Output performance: GSM/GPRS: Class4(2W) for GSM900 Class1(1W) for DCS1800/PCS1900 EDGE: Class E2 (0.5W) for GSM900 Class E2 (0.4W) for DCS1800/PCS1900 Control via AT commands through USB interface Dimensions: 109×46×14mm... -
Page 8: Audio
I2R GSU-600 Wireless Modem User Guide 5.2 Audio Half rate (HR) Full rate (FR) Enhanced full rate (EFR) Echo cancellation Noise reduction 5.3 SMS Point-to-point MT and MO SMS cell broadcast Text and PDU mode 5.4 Data CSD up to 14.4kbps... -
Page 9: Installation
I2R GSU-600 Wireless Modem User Guide 6. Installation 6.1 Package contents I2R GSU-600 Wireless Modem CD (I2R GSU-600 User Guide and driver) USB extender cord Headset (Optional) Figure 3: Package contents 6.2 Installation information Install the modem driver software following the procedure defined in our software installation user guide. - Page 10 I2R GSU-600 Wireless Modem User Guide Connect the modem and USB port with the USB extender cord（see note）. Then the modem is powered on from the USB ports NOTE: The extender cord is a three ports unit, port 1 and port 2 are together for the...
- Page 11 I2R GSU-600 Wireless Modem User Guide We do not recommend inserting only port 1 to the PC side to start up the modem (see figure 6), in this way , the modem can not work steadily in the case of heavy load during data transmitting, since only one USB port can not afford so much current, please refer to chapter 7.
-
Page 12: Peripheral And Interface Description
I2R GSU-600 Wireless Modem User Guide 7. Peripheral and interface description The following interfaces are available on the Modem: Status indicator lights USB interface Headset connector SIM card holder Antenna RF test interface Reset key 7.1 Status indicators The modem has three led lights to indicate the modem status... -
Page 13: Usb Interface
I2R GSU-600 Wireless Modem User Guide Name Light State Modem State Power on Light1 Power off Glitter:64ms On/ 800ms Off Searching for network Light2 Glitter:64ms On/ 5000ms Off Found network Glitter:64ms On/ 300ms Off Data transmission No SIM card or invalid SIM... -
Page 14: Headset Connector
I2R GSU-600 Wireless Modem User Guide 7.3 Headset connector The handset is connected via a 3-pin Mini socket. The audio interface can be configured by AT commands. Figure 10: Headset interface... -
Page 15: Sim Card Holder
I2R GSU-600 Wireless Modem User Guide 7.4 SIM card holder The connector is intended for 3V & 1.8V SIM cards in accordance with GSM11.12 phase 2 to operate the Modem. The SIM card must be inserted into the card holder to put the Modem into the norm operation. -
Page 16: Antenna
I2R GSU-600 Wireless Modem User Guide SIM card pin assignments: Signal Pin No. Input/Output Description Parameter GND 1 × Gnd × Input/Output Input Ri≥1MΩ I/O 3 In put/Output Output Rо=220Ω interface Output Ro=220Ω RST 5 Output Reset signal R0=220 Ω... -
Page 17: Reset Key
I2R GSU-600 Wireless Modem User Guide Figure 13: RF test interface 7.7 Reset key A reset key is designed for upgrade the firmware Figure 14: Reset key ... -
Page 18: Current Consumption
I2R GSU-600 Wireless Modem User Guide 8. C urrent Consumption The current consumption is listed in the following table: State Conditions Units Idle Net ork attached, idle 28 36 45 mA GSM850/GSM900, PCL=5 Voice Call GSM1800/1900, PCL=0 GSM900, PCL=5 4 Rx, 1 Tx... -
Page 19: Mechanics
I2R GSU-600 Wireless Modem User Guide 9. Mechanics 9.1 Top View Figure 15: Modem top view 9.2 Side View Figure 16: modem side view ... -
Page 20: Bottom View
I2R GSU-600 Wireless Modem User Guide 9.3 Bottom View Figure 17: modem botto m view... -
Page 21: At Command Control
I2R GSU-600 Wireless Modem User Guide 10. AT command control The Modem is controlled and programmed by means of AT commands. The AT commands structure corresponds to the SIM module used. To obtain the AT commands or for more help, please contact our FAE.
