Seagull HL888HA Instruction Manual

Seagull hl888ha blood pressure monitor
Hide thumbs Also See for HL888HA:
Table of Contents

Advertisement

Quick Links

See also: Manual
HL888HA
AUTOMATIC INFLATION
BLOOD PRESSURE MONITOR
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Seagull HL888HA

Summary of Contents for Seagull HL888HA

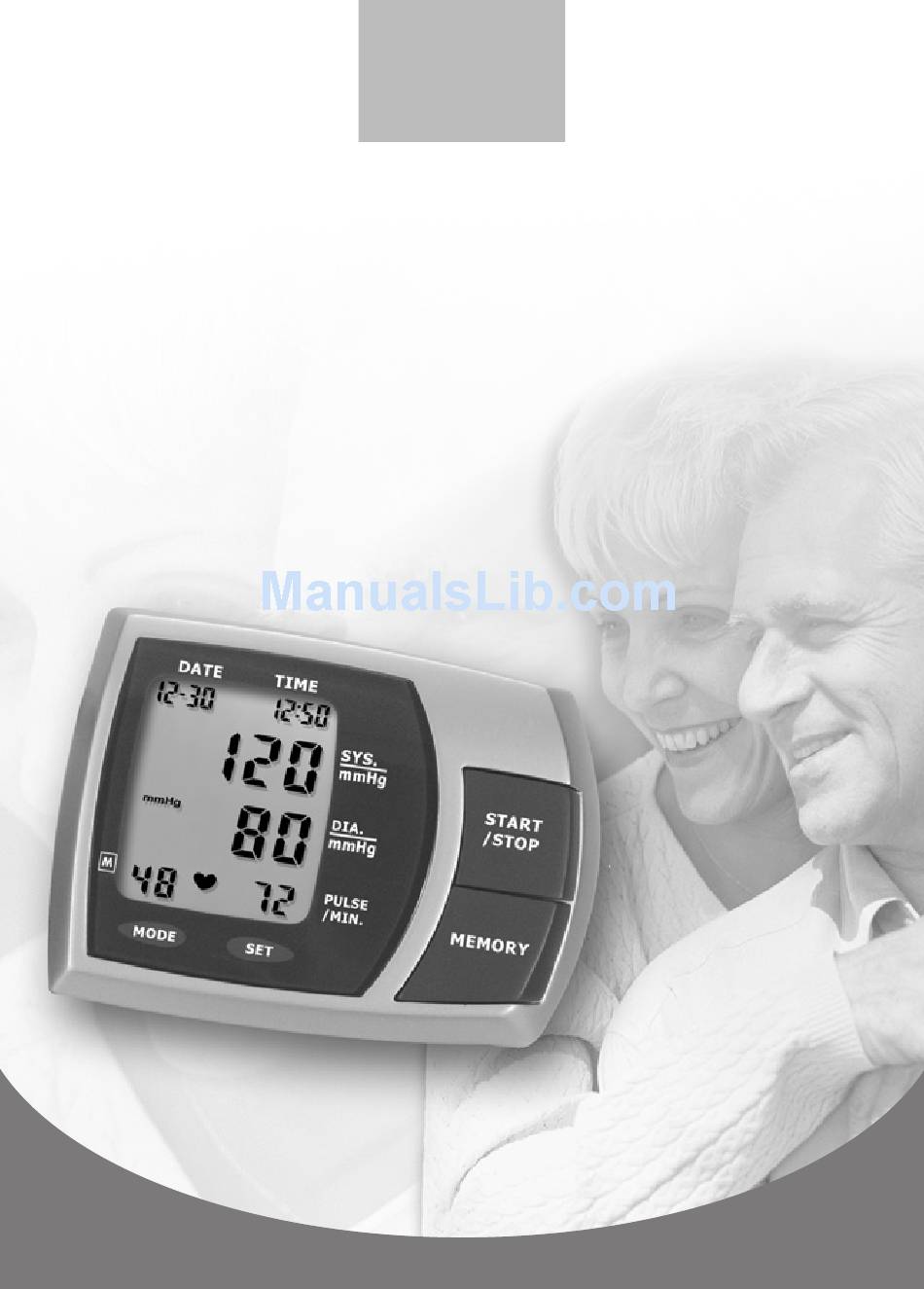

  • Page 1 HL888HA AUTOMATIC INFLATION BLOOD PRESSURE MONITOR Instruction Manual...

  • Page 2: Table Of Contents

    Contents 1. What is blood pressure?..........3 2. Why is it useful to measure blood pressure at home?..3 3. Important information before use of the unit....5 4. Device description............6 5. Changing batteries............8 6. Attaching arm cuff............8 7. Description of display symbols........10 8.

  • Page 3: Medical Disclaimer

    If you have or suspect that you have a medical problem, promptly consult your healthcare provider. Model number: HL888HA Arm Type Blood Pressure Monitor Intended Usage: Measures human's Systolic blood pressure, Diastolic blood pressure and heart pulse on upper arm by oscillometric measurement method.

  • Page 4: What Is Blood Pressure

    What is blood pressure ? Blood pressure is the pressure or the force of blood flowing against the walls of the arteries. Blood pressure is constantly changing during the course of the cardiac cycle. Systolic blood pressure is the highest pressure in the cycle. Diastolic blood pressure is the lowest pressure in the cycle.
  • Page 5 Why is it useful to measure blood pressure at home ? New W.H.O blood pressure classifications Standards for assessing high or low blood pressure without regard to age have been established by the World Health Organization (WHO) as shown in the chart. Variations in blood pressure Individual blood pressures vary greatly on a daily and seasonal basis.

  • Page 6: Important Information Before Use Of The Unit

    Important information before use of the unit Please rest for at least 5~10 minutes before taking the measurement. To allow your blood vessels to return to the condition prior to taking the measurement, please wait at least 3~5 minutes between measurements. You may need to adjust the wait time according to your personal physiological situation.

  • Page 7: Device Description

    Device Description A. Name of the parts 1. LCD DISPLAY 2. AIR PLUG 3. ARM CUFF 4. AIR JACK 5. START/STOP BUTTON 6. RECALL MEMORY BUTTON 7. SET BUTTON 8. MODE BUTTON 9. (AA)1.5 V x 4 ALKALINE BATTERIES...
  • Page 8 Device Description B. Description of display symbols MONTH DATE HOUR MINUTE SYSTOLIC RATE BLOOD PRESSURE UNIT BATTERY DIASTOLIC WEAK RATE SYMBOL MEASURING ERROR DISPLAY PULSE NUMBER RATE OF MEMORY PULSE SYMBOL...

  • Page 9: Changing Batteries

    Changing batteries Remove the battery cover at the rear side of the unit and insert ALKALINE batteries into the battery compartment as shown, Make sure the polarities + and - are observed. Important notice : Attaching arm cuff Press your brachial artery by two fingers approximately 1 inch above the elbow on the inside of your left arm.
  • Page 10 Attaching arm cuff Pull the cuff so that the top and bottom edges are tightened around your arm. When the cuff is positioned properly, press the Velcro firmly against the pile side of the cuff. Sit on a chair and place your arm on the table so that the cuff is at the same level as your heart.

  • Page 11: Description Of Display Symbols

    Description of display marks Display mark Condition/Cause Corrective action Flashes on the Measurements in LCD screen when progress. Do not pulse is detected move or talk. during measure- pulse mark ment. Appears when the Replace all four battery voltage is batteries with new excessively low or ones.

  • Page 12: How To Measure

    How to measure 1. Inserting 4 pieces "AA" Alkaline batteries in position: a. Open battery cover b. Refer to the picture in positioning batteries c. All segments will appear on the display in 3 seconds. d. Display 1 month 1 date, 12 hour 0 minute.
  • Page 13 How to measure 3. Steps to take blood pressure measurement: a. Wrap the cuff around the arm ( Refer to "Attaching pressure cuff at chapter 6") b. Sit upright on the chair to have correct posture. (Refer to Correct Posture in Taking Blood Pressure as "Attaching pressure cuff at chapter 6") c.
  • Page 14 How to measure 4. Storing , recalling and erasing measurement data : a. Storing data: After each blood pressure measurement, the Systolic pressure, Diastolic pressure, Pulse rate and the time & date of specific day will be automatically stored. The memory holds the latest 48 measurement data.

  • Page 15: Maintenance

    How to measure 5. To change batteries: When " " show up on the display, the battery is weak. Take out all four batteries and put in 4 pcs of new Alkaline batteries. All batteries used must be the same type. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries.

  • Page 16: How To Prevent Malfunction

    To Prevent Malfunction Do not in any way twist the arm cuff Do not start the start measurement when the arm cuff is not wrapped around the arm. Do not attempt to disassemble or change any parts of the monitor including the cuff. Do not drop the product or put it through strong impact.

  • Page 17: Specifications ( As The First Page )

    To Prevent Malfunction Method of measurement Oscillometric Model Number HL888HA Range of measurement Pressure 0 ~ 300 mmHg Pulse 40 ~ 199 beats/minute Accuracy Pressure +/- 3 mmHg Pulse +/- 5% Max Inflation Deluxe Automatic Exhaust Automatic exhaust valve Display...
  • Page 18 Note This blood pressure monitor complies with the EC Directive and bears the CE mark 0197 This blood pressure monitor also complies with mainly following standards (included but not limited): Safety standard: EN 60601-1 Medical electrical equipment part 1: General requirements for safety EMC standard: EN 60601-1-2 Medical electrical equipment part 1-2:...
  • Page 19 Note BF Classification: - Internally powered equipment - BF type applied part - IPX0 - Not suitable for use in presence of flammable anesthetic mixture with air or with Oxygen or nitrous oxide - Continuous operation with short-time loading To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near a mobile phone or microwave oven.
  • Page 20 Blood Pressure Diary Date Time Systolic/Diastolic Pulse...
  • Page 21 Blood Pressure Diary Date Time Systolic/Diastolic Pulse...
  • Page 22 Blood Pressure Diary Date Time Systolic/Diastolic Pulse...
  • Page 23 Blood Pressure Diary Date Time Systolic/Diastolic Pulse...
  • Page 24 www.healthandlife.net Health P/N: xxxxxxxxx Rev.A-a 2009504 L i f e & HEALTH & LIFE CO., LTD. The Art of Invention...
