We appreciate your purchase of a TAKEX flame sensor.
Please read this Instruction Manual carefully for correct and effective use.
Please note : This sensor is designed to detect flames and to initiate an alarm ; it is not a fire-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive
surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
1
PRODUCT DESCRIPTION
Flame sensor FS-5000E immediately detects ultraviolet rays contained in flames and activates the external output.
It can be installed either indoors or outdoors. By selecting the set up from the 8 levels that is suitable to the environment
where the sensor is installed, it will reduce the possibility of false detections of other kinds of ultraviolet rays.
Also there are many convenient functions such as Output Time Set Up, Day/Night Time Discernment Function, and Alarm
Memory Function. It can be used widely as early detector of incendiary fire, smoking in prohibited areas etc.
This sensor is not fire-alarm device.
2

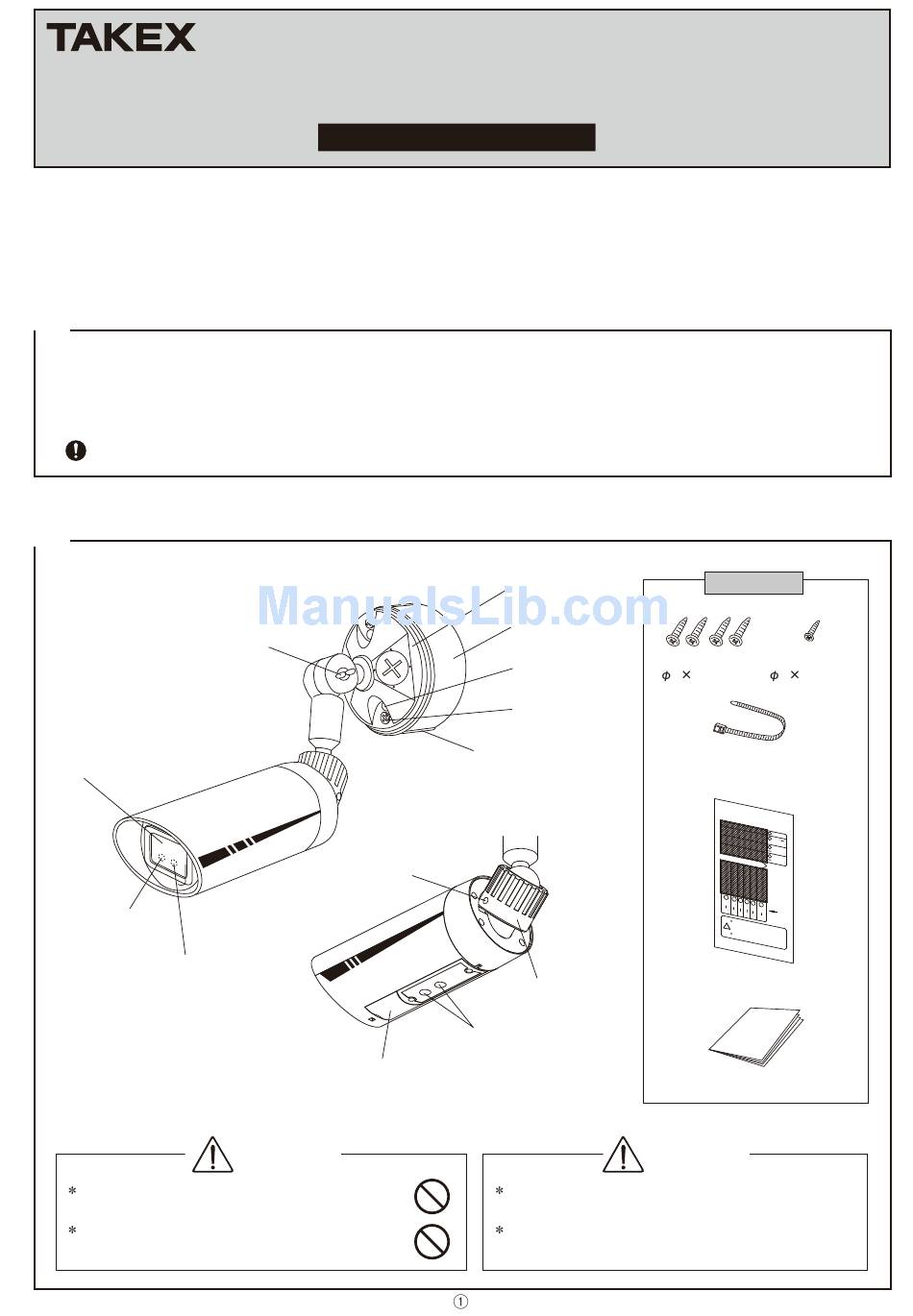

PARTS DESCRIPTION
Detection
window
Operation
LED (red)
Memory indication
LED (yellow)
Follow the voltage of the indicated power supply.
lncorrect voltage may cause fire, electric shock, etc.
Do not connect equipment that exceeds the indicated
output capacity. It may cause fire.
FLAME SENSOR
FS-5000E
Instruction Manual
This sensor will provide long and dependable service when properly installed.
Bolt
Screw
Adjustment box
CAUTION
Mounting base
Mounting box
Push rivet
Screw
Wiring hole
Ball lock
Adjustment volume
Do not install in locations that cannot withstand the
weight of this product. It may fall and cause an accident.
Do not disassemble or modify this product. It may cause
fire, electric shock, etc.
Accessories
Tapping screw
Tapping screw
6 30 (4 pcs.)
4 8 (1 pc.)
Combining band
(1 pc.)
A R E A
M A S K
S E A L
V E R T
IC A L
A
0
&U PP
ER
B
0
Do wn
30
C
Do wn
30
Do wn
50
D
Do wn
H O R IZ
50
O N T A
Do wn
60
L
D e te ct
io n
w in d o
w
1
2
3
3
40
2
20
1
0
S ym m
0
20
e tr y
50
40
40
20
20
40
50
D o n o
t to u ch
d e te ct
!
th e
io n w in
b a re h
d o w
a n d e d
S e e In
.
st ru ct
io n M
a n u a l.
91 35 -33
Area mask seal (1 pc.)
Instruction manual
CAUTION
Advertisement
Table of Contents
Summary of Contents for Takex FS-5000E
-
Page 1: Product Description
Please note : This sensor is designed to detect flames and to initiate an alarm ; it is not a fire-preventing device. TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance. - Page 2 It will not detect smoke or heat. flame or when none of the "possible causes of false alarm" TAKEX is not responsible for damage, injury or losses caused by listed below are present, etc. fire, accident, calamity, natural disasters (including inductive...
-
Page 3: Detection Area
DETECTION AREA 1. Detection Area The upper detection area is limited to avoid sun ray influence and other unexpected detectable objects remotely located. The detection distance depends on the size and time of flaming. The bigger and longer continuous flame is more apt to be detected. The smaller and shorter the flame continues, the narrower the detection area gets. -
Page 4: Installation
WIRING (1) Attention Turn off power when installing. Hot line work will cause electric shock Wiring distance and damage. Lead wiring is required. Follow the proper way. Power supply Size of wire used The wiring lead is contained in the mounting base. Take off the screw, mounting base, and mounting box when installing. -
Page 5: Operation And Function
OPERATION AND FUNCTION (1) Operation The operation LED (red) will light and start output when the sensor detects flame (ultraviolet ray) for the set up time (1 sec., 6 secs., 15 secs., 30 secs.,) and moreover when the environment is darker than the [operation mode] set up. In case it still keeps flaming, it will confinue the above operation LED (red) lighting and output. -
Page 6: Operation Check
Environment monitoring function Alarm Memory Function This function enables identification of individual sensors in This function monitors the strength of nuisance by ultraviolet multiple sensor configuration. in installed environment to check whether there is a cause of false alarm. After raising an alarm, the memory indication LED (yellow) blinks for 3 minutes and then lights for 47 minutes. -
Page 7: Troubleshooting
If the battery is not changed, the sensor may not operate. SPECIFICATIONS FLAME SENSOR PRODUCT NAME FS-5000E MODEL NO. Ultraviolet rays detection (Detected wave length <185 to 260nm>) DETECTION SYSTEM 33ft. (10m) [Gas Flame of Lighter in front of sensor : approx. : 2.75”(7cm)] Distance 100ft. -
Page 8: External Dimensions
Limited Warranty : TAKEX products are warranted to be free from defects in material and workmanship for 12 months from original date of shipment. Our warranty does not cover damage or failure caused by natural disasters, abuse, misuse, abnormal usage, faulty installation, improper maintenance or any repairs other than those provided by TAKEX.
