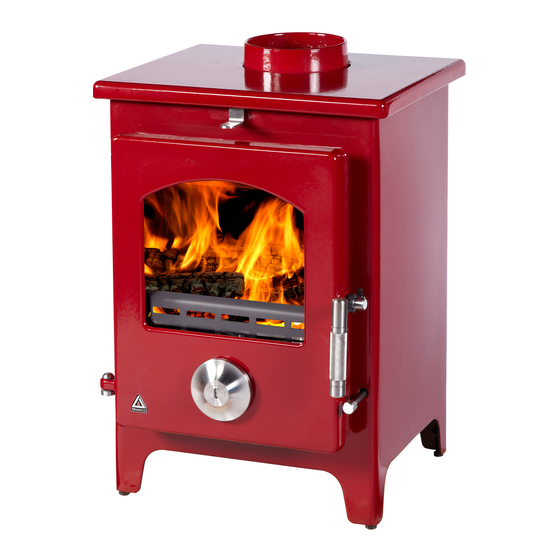

Trianco Newton Stoves Operation, Installation, Commissioning & Servicing Instructions

Trianco Newton Stoves Operation, Installation, Commissioning & Servicing Instructions

8kw space heating stove with boiler

Advertisement

Newton Multi Fuel
8kW Space Heating Stove With Boiler
OPERATION, INSTALLATION,
COMMISSIONING & SERVICING
INSTRUCTIONS
Please read these instructions carefully before installing,
Commissioning and using this appliance.
TO BE RETAINED BY THE HOUSEHOLDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Newton Stoves and is the answer not in the manual?

Questions and answers

Summary of Contents for Trianco Newton Stoves

  • Page 1 Newton Multi Fuel 8kW Space Heating Stove With Boiler OPERATION, INSTALLATION, COMMISSIONING & SERVICING INSTRUCTIONS Please read these instructions carefully before installing, Commissioning and using this appliance. TO BE RETAINED BY THE HOUSEHOLDER...
  • Page 2 HEALTH AND SAFETY INFORMATION FOR THE USER, INSTALLER AND SERVICE ENGINEER Under the Consumer Protection Act 1987 and the Health and Safety at Work Act 1974, it is a requirement to provide information on substances hazardous to health (COSHH Regulations 1998). TR Engineering takes every reasonable care to ensure that its products are designed and constructed to meet these safety requirements when the products are properly installed and used.
  • Page 3: Table Of Contents

    CONTENTS Page no. Important Notes Operation Using the stove 5 - 6 Recommended fuels 7 - 8 Troubleshooting and maintenance After-sales advice Installation Regulations / Health & safety / Preparation Siting Technical details Chimneys / flues 12 - 13 Air supply Fuel conversion Commissioning Servicing...
  • Page 4: Important Notes

    IMPORTANT USER NOTES CO Alarms:- Building regulations require that whenever a new or replacement fixed solid fuel or wood/biomass appliance is installed in a dwelling a carbon monoxide alarm must be fitted in the same room as the appliance. Further guidance on the installation of the carbon monoxide alarm is available in BS EN 50292:2002 and from the alarm manufacturer’s instructions.
  • Page 5: Operation

    INTRODUCTION OPERATION The Newton Multi-fuel stove has been designed and Before using the stove, check that the chimney is clear constructed to give years of trouble-free domestic space and has been confirmed for soundness. Operate the stove heating. These instructions are provided to assist you in at low outputs for the first few days for glue and paint obtaining the best performance with the least trouble and curing;...
  • Page 6  The highest burning rate is achieved by opening the air If the door is closed too early, small explosions can regulator wheel to maximum. Excess ash formation may force smoke through the door seals or air inlet into indicate over firing. the room being heated.
  • Page 7: Recommended Fuels

    The stove should be allowed to burn at maximum output with closed heating stoves. Bituminous coal briquettes for around 30 minutes per day; this will help prevent may be used, but petroleum coke must not. creosote build-up. Wood burning – types of wood Disposal of ashes Wood logs and peat blocks may be used, but only outside The periodic removal of ashes will be required;...
  • Page 8 Wood burning creosote build-up Flue draught Wood combustion is never 100% complete, wood smoke The flue must operate under pressure that is, there always contains some unburned material. A little of this should be a constant "pull" up the chimney to allow the will condense on a cool surface, leaving a dark brown or hot flue gases to escape safely.
  • Page 9: After-Sales Advice

    AFTER-SALES SERVICE INFORMATION A qualified field service engineer is available to attend a Important: breakdown occurring during the stove's guarantee period. Invoices for attendance and repair work by any third The stove must be made available for attendance during party will not be accepted unless authorised in advance normal working hours, Monday to Friday.
  • Page 10: Installation

    INSTALLATION Siting Regulations Before installation, ensure the building has a load bearing rating sufficient for the stove's weight. Suitable measures The Newton Multi fuel must be installed by a competent (e.g. a load distributing plate) should be taken if person, preferably HETAS registered. Follow the inadequate.
  • Page 11: Technical Details

    Fig 3 TECHNICAL SPECIFICATION Smokeless Fuel Wood Smokeless solid fuel for closed Seasoned wood with <20% Recommended Fuels appliances Moisture content Recommended Refueling Interval 4 hours 1 hour Nominal Output 7.7 kW 8.3 kW Efficiency 67.0% 67.2% Weight (empty) 93 kg 93 kg Dimensions –...
  • Page 12: Chimneys / Flues

    All dimensions in mm Fig 4...
  • Page 13 Chimney 150mm and its dimension should not narrow to less than the size of the outlet socket of the stove at any point. For correct operation of the stove, the height of the chimney from its base should not be less than 4.5m and it After deciding whether to use the top or rear exit on the should terminate above the roof in accordance with stove, fit the flue socket plate and blanking plates in the...
  • Page 14: Air Supply

    Air supply COMMISSIONING  A permanent, unobstructed air vent is required. It must Ensure all parts are correctly fitted, and that the communicate directly with the outside or an adjacent stove is set for the correct fuel. room which itself has a permanent air vent. The vent ...
  • Page 15: Servicing

    SERVICING  Every year, the stove should be serviced and the chimney Clean the throat plate, bottom grate and front plate swept. Always use a qualified engineer. The best time is with a wire brush. Use a soft brush for the firebricks. just after the end of the heating season, when the stove is ...
  • Page 16 PLUMBING B) Cause condensation to form on the inside of the stove boiler and cause premature failure of the stove. Please read these notes prior to installing your stove: C) Create a cold flue/chimney and the associated A boiler stove will have a lower combustion temperature condensation/tar problems.
  • Page 17 Typical 2 pipe central heating circuit Fig 9 Fig 10 Typical 4 pipe central heating circuit...
  • Page 18 The following information should be provided upon installation of the appliance for householder reference: Installation Engineer: Company: Company Address: Company Tel. No:...
  • Page 20 Sheffield, S35 2PH. Tel: (0114) 2572300 Fax: (0114) 2571419 www.trianco.co.uk Copyright in this brochure and the drawings and illustrations contained within are vested in TR Engineering Ltd and neither the brochure or any part thereof may be reproduced without prior written consent.
