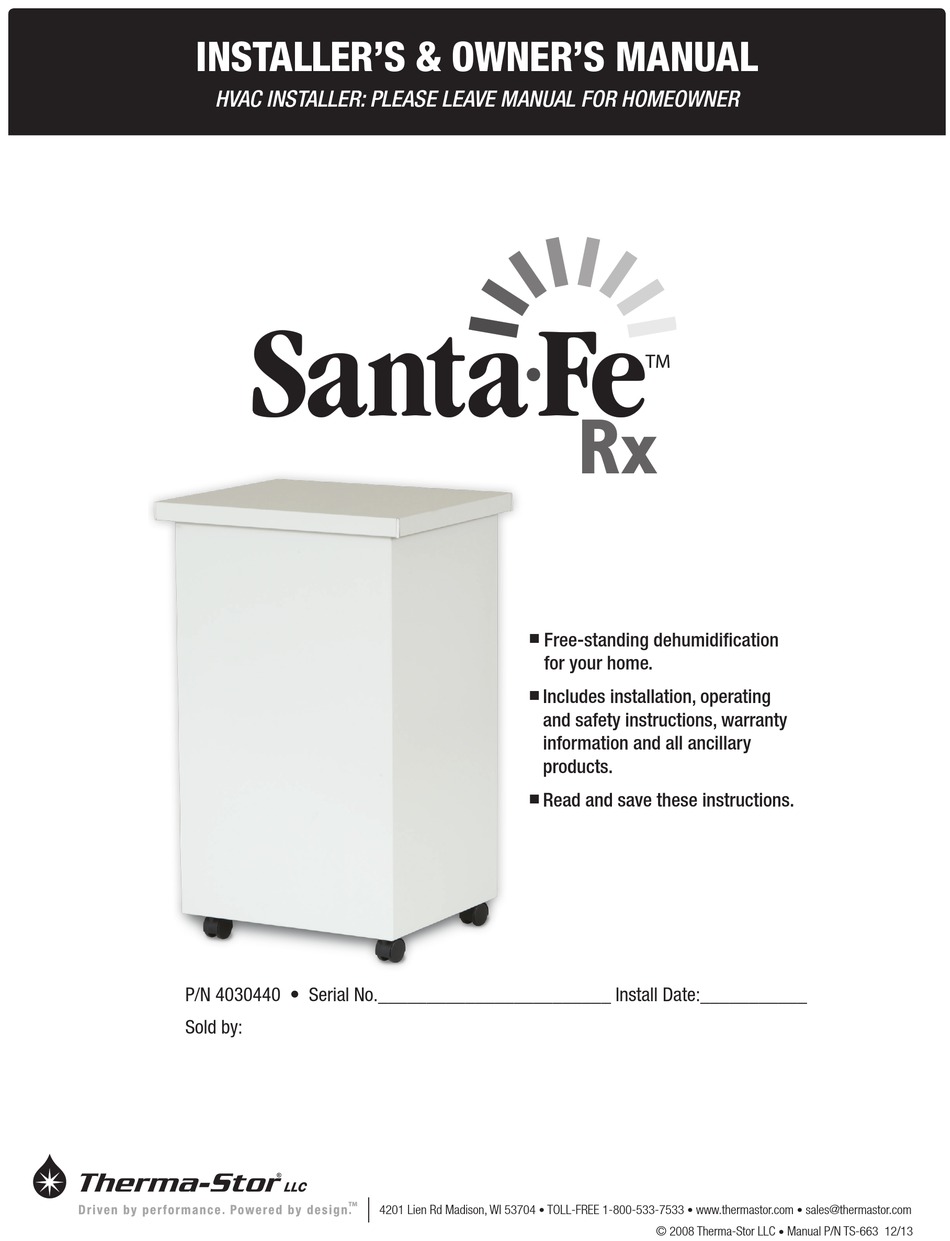

INSTALLER'S & OWNER'S MANUAL
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER
P/N 4030440 • Serial No.________________________ Install Date:___________
Sold by:
For small usage:
Free-standing dehumidification
n
for your home.
Includes installation, operating
n
and safety instructions, warranty
information and all ancillary
products.
Read and save these instructions.
n
4201 Lien Rd Madison, WI 53704
TOLL-FREE 1-800-533-7533
•
Rx
Rx
www.thermastor.com
•
© 2008 Therma-Stor LLC
sales@thermastor.com
•
Manual P/N TS-663 12/13
•
Advertisement
Table of Contents
Related Manuals for Santa Fe Rx 4030440
Summary of Contents for Santa Fe Rx 4030440
- Page 1 Includes installation, operating and safety instructions, warranty information and all ancillary products. Read and save these instructions. P/N 4030440 • Serial No.________________________ Install Date:___________ Sold by: 4201 Lien Rd Madison, WI 53704 TOLL-FREE 1-800-533-7533 www.thermastor.com sales@thermastor.com •...
-
Page 2: Table Of Contents
Read the installation, operation and maintenance instructions carefully before installing and using this unit. Proper adherence to these instructions is essential to obtain maximum benefit from your Santa Fe Rx Dehumidifier. Santa Fe Rx Installer’s & Owner’s Manual... -
Page 3: Installation
Santa Fe Rx: humidity control to lower RH levels will NOT increase the unit’s 1. The Santa Fe Rx is most effective if it is centrally located in the dehumidification rate, it will simply run longer to reduce the area’s space to be dehumidified. -
Page 4: A Filter Options
5.2 Technical Description microns or larger that pass through it. Actual filter size is 19.38" The Santa Fe Rx uses a refrigeration system similar to an air wide x 30.75" high x 3.75" deep. These filters can be tested for conditioner’s to remove heat and moisture from incoming air, and... -
Page 5: Troubleshooting
These contaminants must be carefully removed otherwise 5. Remove the cabinet (6 screws). even small residues will attack replacement compressor motors 6. Disconnect the blower leads: black from the black wire at wire and cause failures. Santa Fe Rx Installer’s & Owner’s Manual... -
Page 6: B Replacing A Compressor-Nonburn Out
It is an automatically reset control; it will close if the pressure rises to 60 PSIG. It’s primary function is to prevent damage to the compressor if a leak develops in the refrigeration system. Santa Fe Rx Installer’s & Owner’s Manual... -
Page 7: Wiring Diagram
SANTA FE Rx WIRING DIAGRAM REV. PART NO. Made in U.S.A. 4023857 Therma-Stor LLC, Madison, WI 53708 • 800-533-7533 www.thermastor.com Santa Fe Rx Installer’s & Owner’s Manual... -
Page 8: Service Parts List
Label, Wiring Diagram (not shown) 4028231 Capillary Tube 4023868 Metal Top (not shown) 4023604 Caster, Swivel, 2" 4029508 Low Pressure Control 4028226 Condenser Coil 1970010 Relay, 25A 4029567 Compressor 4025560 Rocker Switch For Fan Santa Fe Rx Installer’s & Owner’s Manual... -
Page 9: Filter Frame Assembly
SANTA FE Rx FILTER FRAME ASSEMBLY This kit attaches to the back of the Santa Fe Rx. The back is the Filter Test side where the air comes out of the lower section. The optional 95% efficiency and HEPA filters have long lives when prefitered by the standard pleated inlet filter;... -
Page 10: Set-Up Instructions
5. Blower switch is set in the off position at the factory. See manual Manual. for blower operation options. How to prepare the Santa Fe Rx for operation 6. Install the filter (as shown in Figure). Air flow arrow must point 1. Locate the unit per the manual. -
Page 11: Warranty
Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants Customer Responsibilities. As a further condition to obtaining as follows: (i) the Santa Fe Rx dehumidifier (“Product”) will be free warranty coverage hereunder, the Customer must send a valid of material defects in workmanship or materials for a period of one warranty claim to Therma-Stor such that Therma-Stor receives (2) year (“Two-Year Warranty”) following the date of initial purchase... - Page 12 1-800-533-7533 www.Santa-Fe-Products.com...
