Summary of Contents for GefenTV GTV-VOLCONT

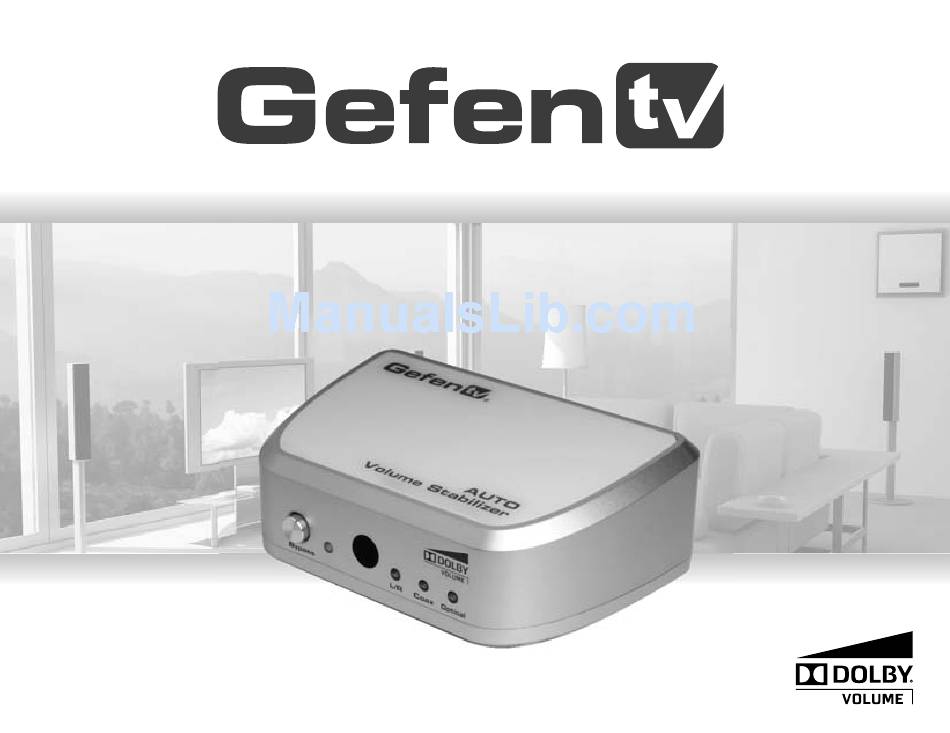

- Page 1 Auto Volume Stabilizer GTV-VOLCONT User Manual...
- Page 2 Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. GefenTV Auto Volume Stabilizer is a trademark of Gefen LLC Manufactured under license from Dolby Laboratories.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting and operating the Auto Volume Stabilizer Auto Volume Stabilizer Remote Description Specifi cations Warranty... -
Page 4: Introduction
GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. We invite you to explore our distinct product line and hope you fi nd your solutions. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFENTV AUTO VOLUME STABILIZER • GefenTV Auto Volume Stabilizer will use Dolby Volume technology to adjust volume automatically. It is best used for TV programming where the level of sound rises and falls to an unacceptable level. -
Page 6: Features
FEATURES Features • Dolby Volume certifi ed • Prevents fl uctuations in audio volume using Dolby Volume technology • Accepts and outputs 2-channel analog audio • Accepts and outputs 2- channel TOSLINK and S/PDIF digital audio • Boosts low and high-frequency content dynamically •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS Bypass Button Input Select Button Used to place the unit in Bypass Mode, Used to select between L/R audio, Coax, and allowing the signal to pass through Optical inputs unmodifi ed. Optical (TOSLINK) Input Bypass LED Connect an Optical cable from this port to the Indicated the current state of the unit. -
Page 9: Connecting And Operating The Auto Volume Stabilizer
GefenTV Auto Volume Stabilizer to the A/V equipment (e.g. display) Connect the included 5V DC power adapter to the power receptacle on the rear of GefenTV Auto Volume Stabilizer. The LED next to the BYPASS button will turn red. This indicates that the unit is in Standby Mode. -
Page 10: Auto Volume Stabilizer Remote Description
AUTO VOLUME STABILIZER REMOTE DESCRIPTION Power On/Off Bypass Select Input Insert Battery Underneath... -
Page 11: Specifi Cations
SPECIFICATIONS Input (analog) ......................1x RCA-type connector Input (digital) ....................1x SPDIF RCA-type connector Input (digital) ....................1x TOSLINK optical connector Output ........................1x RCA-type connector Output ......................1x SPDIF RCA-type connector Output ......................1x TOSLINK optical connector Power supply .............................5V DC Power Consumption (max) ........................5W Accepts ....................
