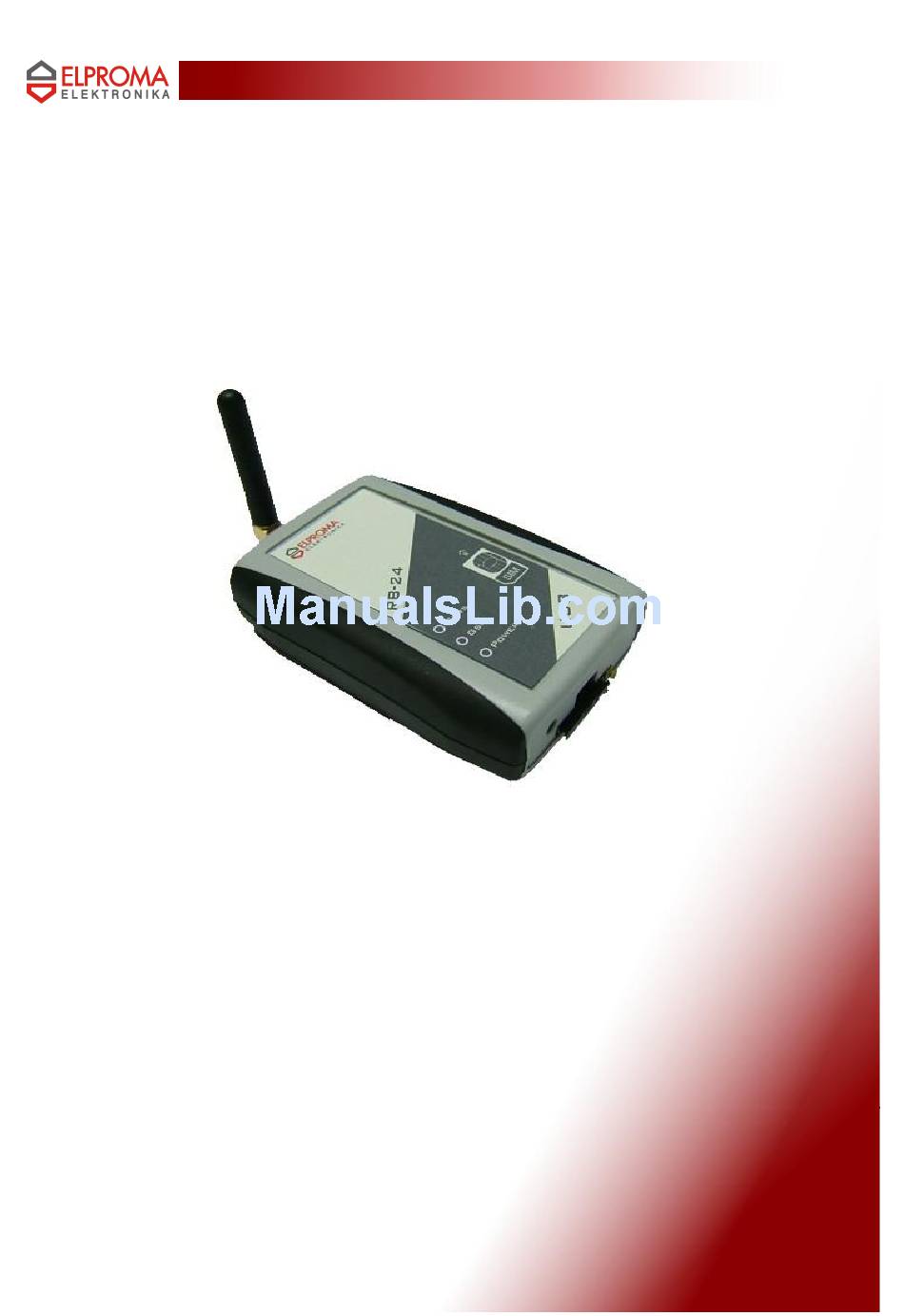

- Page 1 Modem RB-24 USB / RS232 User’s Manual v.1.0.1...
- Page 2 Page 2...
- Page 3 ATTENTION SWITCH ON SAFELY Do not switch the modem on when wireless devices use is prohibited, or when it may cause interference or danger. INTERFERENCE All wireless modems may be susceptible to interference, which could affect performance. SWITCH OFF IN HOSPITALS Follow any restrictions.
- Page 4 WELCOME This document will provide you with the instructions how to install and use modem “RB 24” and its software. RB24 terminal is powered by Motorola’s G24. It features multiple configurations, including USB, Bluetooth and RS232. RB24 RS232 is a small terminal-modem powered by Motorola G24 embedded engine.
-
Page 5: Package Contents
1. PACKAGE CONTENTS Modem RB-24 is supplied to clients in carton with all contents, which are needed for connection to PC and normal work: 1) carton; 2) modem RB-24; 3) RS-232 connecting cable (only RB24 RS232); 4) “USB A mini USB B” connecting cable;... -
Page 6: Technical Information
2. Technical information 2.1. Modem features. GSM / GPRS / EDGE / CSD / SMS / FAX modem GSM 850 / 900 / 1800 / 1900 / E-GSM Functions: EDGE (Mult-slot class 10, max BR downlink 236,8 Kb/s) GPRS (Multi-slot class 10, max BR downlink 85,6 Kb/s) FAX (3 group 1 class) 9600bit/s SMS (AT commands ETSI 07.05 &... - Page 7 2.3. Weight and dimensions. Weight 100 g Length 95 mm Width 65 mm Depth 30 mm Page 7...
-
Page 8: Software Setup
3. Software setup 3.1. Modem Selection Window While launching GPRS Control, you will be asked to select a modem which you currently want to use. Remember that your modem must be actually connected to the PC. Page 8... - Page 9 3.2. PIN/PUK Section. After the first launch of the application it is essential to enter a PIN code (Personal Identification Number). This action has to be repeated every time the program is launched or the PIN code can be saved by checking “Store PIN”: With this option chosen the code will not be required further on once it was entered before.
- Page 10 3.4. Main settings. GPRS Control has the capability of changing modems it Operates with without the necessity of exiting from the application. Just select one of the modems available in the system and remember that it has to be connected to your PC (RB24 RS232 and Bluetooth version can be detected by the Windows XP although it is not actually plugged in).
- Page 11 3.4. Internet Section. The following instructions will help you establish your Initial connection to the Internet. The purpose of GPRS Control is to set up a modem connection and establish a communication link between your modem and a remote modem that is attached to the Internet.
- Page 12 On the left side there are three buttons helping you launch Your default Internet Browser, default Mail Client or create e-mail message: If you don't have any connections created you have to configure a new one by pressing “New connection” button. On the first screen it is necessary to fill a text box with a connection name which identifies the connection you are configuring.
- Page 13 3.5. SMS Section. To start using GPRS Control's SMS capabilities you must first open the SMS Inbox and Outbox by selecting a node in the three view on the left side and consequently expanding the whole tree To display all the received messages click on the Inbox. Messages will be listed with their descriptions: sender’s telephone number and a status (unread, read).
- Page 14 A big advantage of GPRS Control is that you don’t have to check manually whether you received any new messages – you will be informed about it each time a new message arrives by a short report shown on the status strip at the bottom of the window: The Outbox stores SMs which are to be send.
- Page 15 3.6. Phone Section. In order to have GPRS Control software running to its full potential you should connect a headset to your RB24 USB or Bluetooth Modem (in RB24 RS232 this option is not available). From then on you are able to set up a single call and accept or reject an incoming calls.
- Page 16 To disconnect press the red button. GPRS Control informs about an incoming call by playing a ringing tone and displaying a message on the status strip. Such message can contain a description of the caller if there is an entry in the phone book corresponding to the caller’s telephone number.
- Page 17 3.6. Phone Book. While using phone and SMS capabilities of the GPRS Control, instead of entering telephone numbers manually it is sometimes better to use a phone book. You can do this by clicking on phone book button: On the first time it takes a while to copy all the entries from the modem and SIM card memory.
- Page 18 Please note that there is an option to choose the memory (modemor SIM card) where you want the new entry to be saved on If you find looking up a particular entry difficult, you can make use of a phone book search tool. Just enter the name describing an entry in the “Name”...
- Page 19 3.6. Update Section. We are putting a lot of effort to create high standard products which would meet our client’s expectations. To fully satisfy our customers we are constantly improving and developing our software taking under consideration their suggestions and bug reports To check for an update of GPRS Control press the button under the caption with the current version.
- Page 20 Important Notes If you receive an error “The maximum baud rate for the device is 115200. Parameter name: baudRate.“ as shown below: when trying to establish or disconnect an internet connection, the most likely cause is that you have an old Bluetooth stack or driver attached to your Bluetooth Radio device.
