Universal Innovations MANHATTAN User Manual

Dear Customer,
We tried to achieve two targets when developing this product.
The rst was to produce the best quality heater on the market.
The second was to produce the most cost-e ective heater. We
feel that we have achieved these two objectives however we
would be delighted to hear from you if you have any comments.
Thank you for purchasing one of the products in our range. We
wish you many enjoyable warm hours.
Yours Sincerely
Chairman

GUARANTEE

The Manhattan gas stove is made by Universal Innovations. It is made to
an exacting quality standard and is covered by the following guarantee:
THIS PRODUCT IS FULLY GUARANTEED FOR 2 YEARS,
REGARDING PROPER USE.
This guarantee does not a ect your statutory rights in any way.
HELPLINE Dublin Ireland
00 353 1 2873797 or at www.uigroup.ie
IF YOU NEED ANY ASSISTANCE PLEASE DO NOT HESITATE TO CONTACT US
DIRECTLY AT THE FACTORY. DO NOT BRING GOODS BACK TO PLACE OF
PURCHASE.

USER INSTRUCTIONS

Read these instructions before using the appliance.
When lighting for the rst time, burn outdoors for 4 hours minimum to cure the synthetic coals. (The
coals give o an odour when curing).
The appliance must be installed & used in accordance with the regulations, which are currently in force.
The heater should be positioned on a level surface. Only use in a well ventilated area.
The minimum room size when using this appliance is 64 cubic metres with a minimum ventilation of
80 cm squared area.
To fi t a Butane Gas Regulator:
Attach regulator to end of hose and secure with hose clip.
Note: for ease of tting hose, lubricate ribbed nipple of regulator with a soap solution.
To fi t a Butane Gas Cylinder:
(Ensure that the area is free from any unprotected combustible material or substance)
1. The changing and connection of LPG cylinders must be undertaken in a ame free atmosphere.
2. Attach the regulator to the new cylinder. Ensure that the hose is not twisted or damaged in any way.
3. Use gas cylinders with a gas capacity of 7-15kgs.
4. In order to remove the regulator you must ensure that the regulator is in the "o " position.

Before lighting:

1. Inspect the hose assembly. If the hose is cut or shows signs of excessive wear, or is leaking it must be
replaced prior to operation of the heater.
2. Ensure the heater is positioned with a minimum clearance above and beside
of 0.6 metres from ammable materials both vertically and horizontally.
3. Ensure that the glass panel is closed securely.

To Light Heater:

1. Fit battery type AA provided into ignition button ("+" side up). See Fig.1.
Remove battery during periods of non-use to prevent battery leak.
2. Turn on gas supply at gas cylinder regulator.
3. Push control knob down and turn the control knob to the
at the same time, press sparker button to light the pilot.
4. If there is no spark check the battery type AA is correctly tted. (the pilot ame can be viewed at the
right hand side of the coal bed).
5. If pilot does not light turn control dial to
continuously hold down the control knob as you may cause a build up of gas.
6. Once the pilot is lit hold down the control dial for at least 10 seconds until the main burner lights.
Operate the re between the high and
7. If the pilot and main burner do not stay lit on releasing the control knob, turn the control knob to
the ignition position and repeat steps 3 to 4.
8. The is a pilot setting only.

To Turn Off Heater:

1. Turn the control knob to position.
2. Turn o the gas at the cylinder regulator valve.
NOTE:
The pilot light will remain alight until the cylinder regulator is turned o .
3. Disconnect the regulator from the cylinder when the heater is not in use.
4. Remember to remove battery during periods of non-use to prevent battery leak.

Important:

Read all of the instruction Manual before using this appliance . This appliance must
be installed in accordance with such regulations as are in force. Installation to be carried out by a
competent person.
The guard (glass door) on this appliance is to prevent risk of re or injury from burns and no part of it
should be permanently removed. IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN OR
THE INFIRM. For the full protection of young children or the in rm, we recommend a reguard
conforming to BS 8423 be tted.
position and
position. Wait one minute and repeat step 3. Do not
low ame settings as required.
M
ANHATTAN

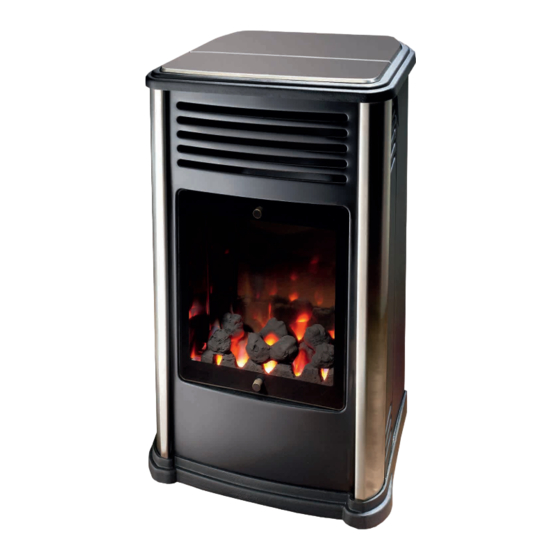

3kw Portable Gas Fire

User Manual

SAFETY INSTRUCTIONS

Do not:
Attempt to use the heater in high rise ats, basements, bathrooms or bedrooms.
Do not:
Use any other gas except Butane.
Do not:
Attempt to clean the heater until it is turned o and fully cooled.
Do not:
Use naked ame to detect suspected gas leaks.
Do not:
Allow children or pets to play near the heater.
Do not:
Twist the exible gas hose.
Do not:
Touch the glass panel or front and sides of the unit while the heater is operating.
Do not:
Use in leisure vehicles such as caravans and auto caravans.
Do not:
Position the appliance close to walls, furniture, hangings, net curtains, bed linen and other
in ammable materials as this would result in the risk of re.
In the event of a gas leak. ie. If you smell gas, turn o the cylinder valve. Disconnect the cylinder, take
it outdoors and contact a competent service technician.
Warning:
Never attempt to light the unit if the hose is loose or damaged in any way. Also never attempt to light
the unit if you have reason to believe that the unit may be leaking gas. In the event of a gas leak turn
o the gas supply at the cylinder and have the unit fully checked by a competent person in accordance
with the instructions enclosed. We recommend servicing at the start of every heating season.
Should you need to change the gas bottle, con rm that the gas supply is turned o at the cylinder and
that there are no sources of ignition near before proceeding.
Do:
Place heater on a at, level and solid surface at all times.
Do:
Leak test the unit after long periods of storage.
Do:
Wait for 3 minutes before relighting, if the burner ame becomes extinguished during use.
Do:
Ensure that all naked ames are extinguished before tting a new cylinder.
Do:
Store gas cylinders outdoor, above ground level in a safe and secure environment.
Do:
Make sure that the gas supply at the gas cylinder is turned o after use.
Do:
Ensure that servicing of the unit is carried out by a competent person in accordance with the
instructions enclosed.
Do:
Allow the unit to cool down for one hour before touching the front or sides.
Always:
Follow any safety instructions supplied with gas cylinders.
Always:
Keep unit well away from glass doors and windows to ensure no possibility of heat build up
and damage.
Always:
We recommend servicing once a year or after a prolonged period of non-use.
Always:
Ensure that there is no blockage of air ow. For example sooting and poor burning can be
caused by dirt, insects, cobwebs, blocking the air ow to/in the burner.

Cleaning:

Abrasive cleaners are not to be used. Clean unit with a damp cloth when fully cooled.

Gas Cylinders:

This unit is designed for use with a 7kg or 15kg (UK) and 11.4kg gas cylinder (Eire).
Do Not Bring Goods Back To Place Of Purchase.
For help, contact the our website www.uigroup.ie or our factory helpline.
Helpline hours: 9am - 5pm Monday to Friday. Ph: (00 353) (1) 2873797.
