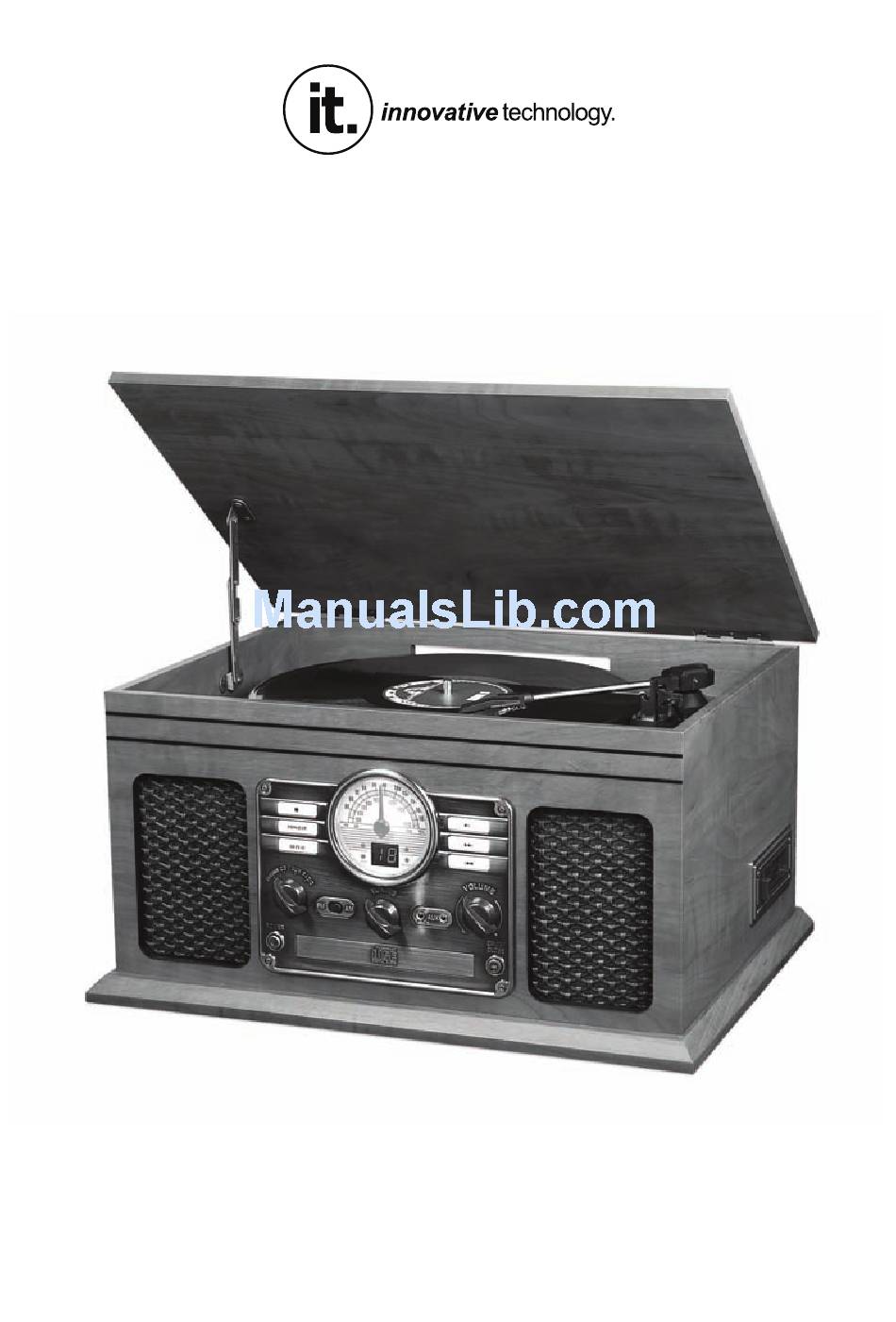

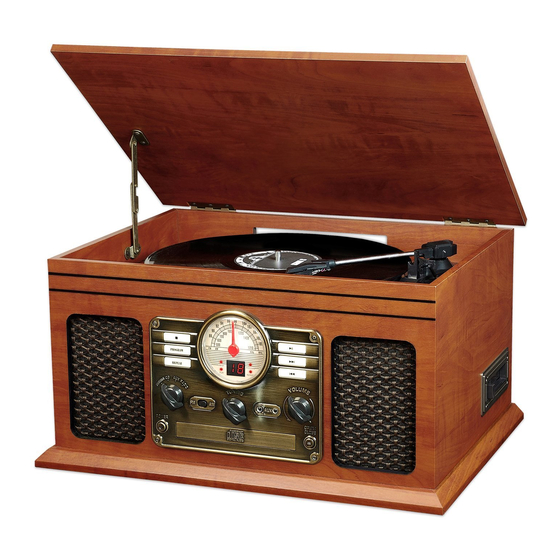

- Page 1 5-in-1 Nostalgic Entertainment Center Model: ITVS-200 Instruction Manual PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING AND KEEP IT FOR FUTURE REFERENCE.
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead within an The exclamation point within an equilateral CAUTION: TO PREVENT equilateral triangle is intended to alert the triangle is intended to alert the user to the user to the presence of uninsulated RISK OF ELECTRIC SHOCK, presence of important operating and...
-
Page 3: Table Of Contents
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. -
Page 4: Before Using The Unit
BEFORE USING THE UNIT Read this before attempting any operations • As the unit may become warm during operation, always leave sufficient space around the unit for ventilation. • The voltage supplied to the unit should match the voltage as printed on the rear panel. -
Page 5: Compact Discs
COMPACT DISCS Discs which can be played on this unit: • Conventional audio CD • Properly finalized CD-R and CD-RW discs • Always place the disc on the disc tray with the label side up. (Compact discs can be played or recorded only on one side.) •... -
Page 6: Cassette Tapes
CASSETTE TAPES Tape Selection: • Metal and chrome (cobalt) tapes have identification holes. Tape Handling: • Use your finger or a pencil to turn the cassette tape’s hub and take up any slack tape. • Avoid touching the tape. Fingerprints attract dust and dirt. •... -
Page 7: How To Replace The Stylus
HOW TO REPLACE THE STYLUS The stylus should last about 50 hours under normal use. However, it is recommended that the stylus be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus may damage the record. Wear and tear on the stylus will be accelerated when playing 78 RPM records. -
Page 8: How To Open/Close The Turntable Cover
HOW TO OPEN/CLOSE THE TURNTABLE COVER To Open: 1. Lift the turntable cover all the way up until it stops. 2. Lower the cover slowly until the latch engages. If the latch does not engage, pull the lower bar by hand. 3. -
Page 9: Unit Functions
UNIT FUNCTIONS V N L M T SPEAKERS (STEREO) MUSIC SKIP Skip tracks in CD mode. FUNCTION KNOB BAND Rotate the knob to select PHONO, CD, AUX or RADIO. Select AM/FM in RADIO mode. TUNING KNOB EARPHONE JACK Tune to a radio station in RADIO mode. POWER DISPLAY PANEL TAPE OPERATION BUTTON... -
Page 10: Listening To A Cd
LISTENING TO A CD 1. Turn the unit ON by pressing the POWER button. 2. Set the FUNCTION KNOB (PHONO/CD/AUX/RADIO) to CD. “--” blinks for a few seconds. When no disc is loaded, “no” appears on the display. 3. Press the OPEN/CLOSE button ( ). 4. - Page 11 LISTENING TO A CD (CONTINUED) To suspend playback temporarily (PAUSE mode) • Press the PLAY/PAUSE button ( ) during playback. Playback stops at the current position, and the track number blinks in the display. • To resume playback, press the PLAY/PAUSE button ( ) again. To STOP playback •...
-
Page 12: Listening To An Auxiliary Source
LISTENING TO AN AUXILIARY SOURCE Playing via 3.5mm AUX-IN Jack on the Front of Unit: 1. Turn the unit ON by pressing the POWER button 2. Set the FUNCTION KNOB (PHONO/CD/AUX/RADIO) to the AUX position. 3. Connect the 3.5mm aux-in cable (included) into the 3.5mm AUX-IN Jack to play an external audio source, such as CD player, tablet, MP3 player, etc. - Page 13 LISTENING TO A RECORD (CONTINUED) 9. Raise the CUE LEVER to lift the TONE ARM off the tone arm support. 10. Move the TONE ARM gently to the edge of the record (or the starting point of a track). The turntable will begin to turn. 11.
-
Page 14: Listening To The Radio
LISTENING TO THE RADIO 1. Turn the unit ON by pressing the POWER button. 2. Set the FUNCTION KNOB (PHONO/CD/AUX/RADIO) to the RADIO position. 3. Select AM or FM using the band switch. 4. Turn the TUNING KNOB to tune to a station. 5. - Page 15 LISTENING TO A CASSETTE TAPE (CONTINUED) 4. Turn the VOLUME KNOB to adjust the volume. To stop playback and eject the tape: Push the TAPE OPERATION BUTTON all the way in until the tape is ejected. To stop playback, you must eject the tape. To fast forward: During playback, lightly press and hold the TAPE OPERATION BUTTON.
-
Page 16: Troubleshooting
TROUBLESHOOTING If you experience any problems with the unit, please take a moment to look through this guide and see if you can solve the problem yourself before you call your dealer. General No power: • Check the connection to the AC power source. Make sure the AC source is not a switched outlet and if it is, turn the switch on. -
Page 17: Specifications
TROUBLESHOOTING (CONTINUED) Cassette Tape Player The button does not work: • Insert a cassette tape securely. Sound is distorted or noisy: • Clean and demagnetize the heads. • Use normal tape. If normal operation cannot be obtained, unplug the power cord from the outlet and plug it again. - Page 18 Wow and Flutter ..........less than O.15% (WDT) Cartridge type..........Ceramic Stereo Cartridge Stylus............... ITRRS-300 Speaker System Section Unit ..............1-way Impedance............4 ohms General Power Requirements ........AC 120V/60Hz Power Consumption........20W Dimensions (W x H x D)........460 X 250 X 340 mm Standard Accessories Owner's Manual x 1 Aux-In Cable x 1...
- Page 19 • USD$16.00, for items $100.00 and up. (Price Paid Per Unit) • Shipping fees are non-refundable to be payable to Innovative Technology Electronics Corp. (for handling and return shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting from a purchaser’s failure to provide any / all of the necessary information.
- Page 20 Made in China.
