Summary of Contents for Replay XD RePower 2200

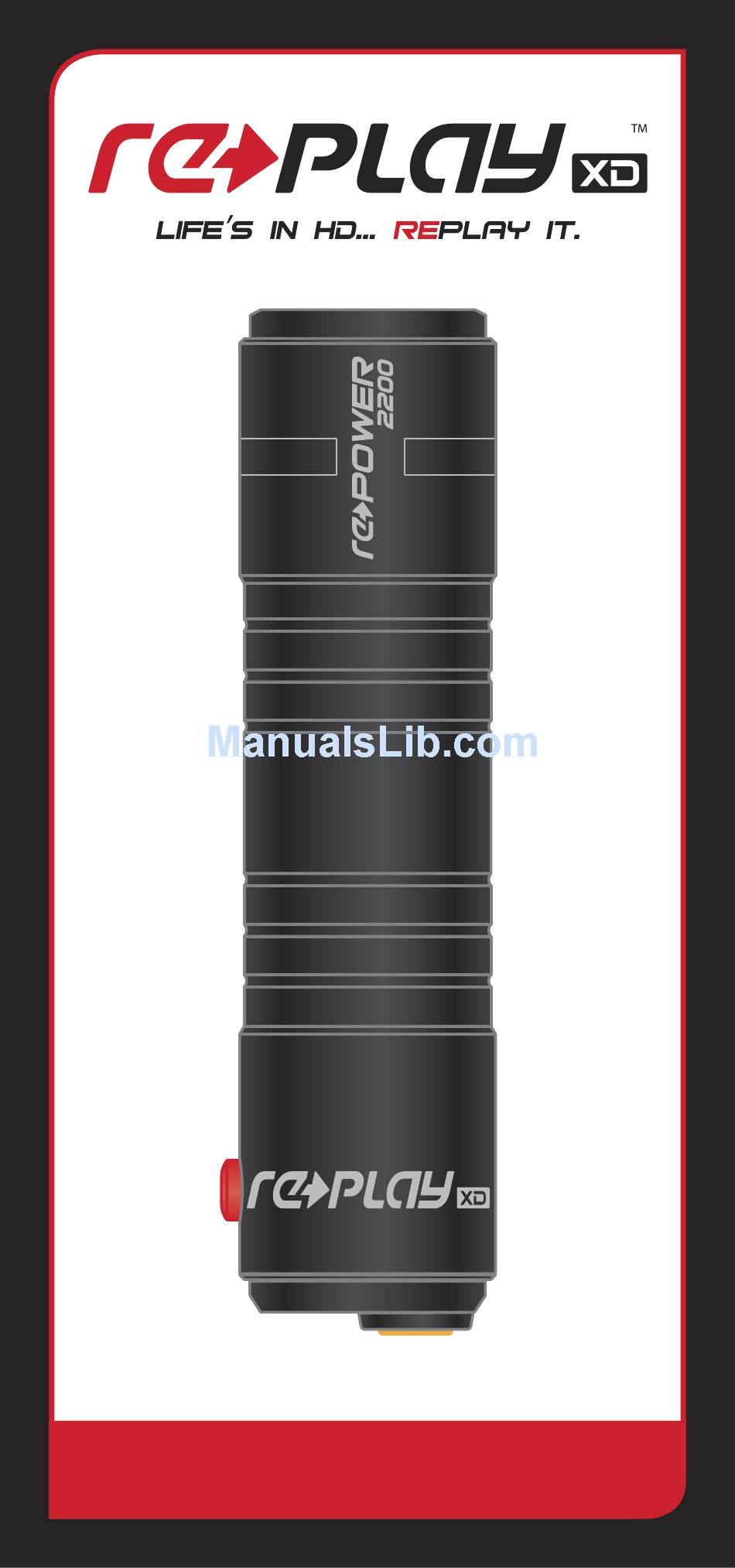

- Page 1 U S E R G U I D E...
- Page 3 5V/1A Replay XD RePower 2200 mAh Battery Pack (A) Power On/Off (B) Mini USB 8-pin connector DC 5V Input (C) 2.5mm threaded DC jack DC 5V 1A Output (D) Charging blue, green, red LED (E) Power On/Off LED O R I E N TAT I O N...
- Page 4 2. Plug a Replay XD1080 Mini USB 8-pin cable into the RePower 2200 5V IN USB port (B). 3. Plug the opposite end into a Replay XD power adapter, car charger, or a PC/Mac USB 2.0 port. 4. The battery status LED will illuminate and cycle through blue, green, and red (D) to tell you it’s...
-
Page 5: Operation
5V/1A 1. Insert the male 2.5mm threaded DC jack from one of the Replay XD DC HW Battery kits into the DC 5V 1A Output port (C) and gently screw it on and tighten lightly. 2. Make sure the other side of the HW Battery kit is securely attached to your camera. -
Page 6: Power Status
5V/1A 1. When the RePower 2200 is powered on, the charge status LED (D) will illuminate. BLUE - FULL 100% Charge GREEN - 50% Charge or less RED - 10% Charge or less P O W E R S TAT U S... -
Page 7: Specifications
Replay XD RePower 2200 mAh Battery Pack OUTPUT POWER: DC 5V / 1A BATTERY TYPE: Li-ion cell 18650-2200 mAh CHARGE VOLTAGE: CHARGE CURRENT: CHARGE INPUT: Mini USB 8-pin connector DC OUTPUT: 2.5mm threaded DC jack CONTROL KEY: Power Button LED INDICATOR:... -
Page 8: S A Fe T Y & U S Ag E
Replay XD RePower 2200 battery. Do not use the Replay XD RePower 2200 battery if it has been damaged—for example, if Replay XD RePower 2200 battery is cracked, punctured, or damaged by water. -
Page 9: Warranty
STABLE IMAGING SOLUTIONS, LLC. LIMITED WARRANTY WHAT THE WARRANTY COVERS Stable Imaging Solutions, LLC. (SIS) warrants for 180 days from the date of purchase of product it will be free from defects in material and workmanship. WHAT IT DOES NOT COVER This warranty does not cover damage due to: •... - Page 10 • All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders. Replay XD , Replay XD RePower 2200 is a product of Stable Imaging Solutions, ® LLC. in California. www.Replayxd.com ©2012 Stable Imaging Solutions, LLC., Replay XD All rights reserved.
- Page 11 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 Replay XD a fine brand of Stable Imaging Solutions, LLC. Sales & Technical Support: Phone: 1-805-480-9800 Sales: sales@replayxd.com Support: support@replayxd.com Office & Administration: Monday–Friday, 8am–5pm (PST) Corporate Address: Stable Imaging Solutions, LLC. 3709 Old Conejo Road Newbury Park, CA 91320...
