AV TOOL CSC-1600HD Operation Manual

Video scaler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATIONS MANUAL
CSC-1600HD Video Scaler

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-1600HD and is the answer not in the manual?

Questions and answers

Related Manuals for AV TOOL CSC-1600HD

Summary of Contents for AV TOOL CSC-1600HD

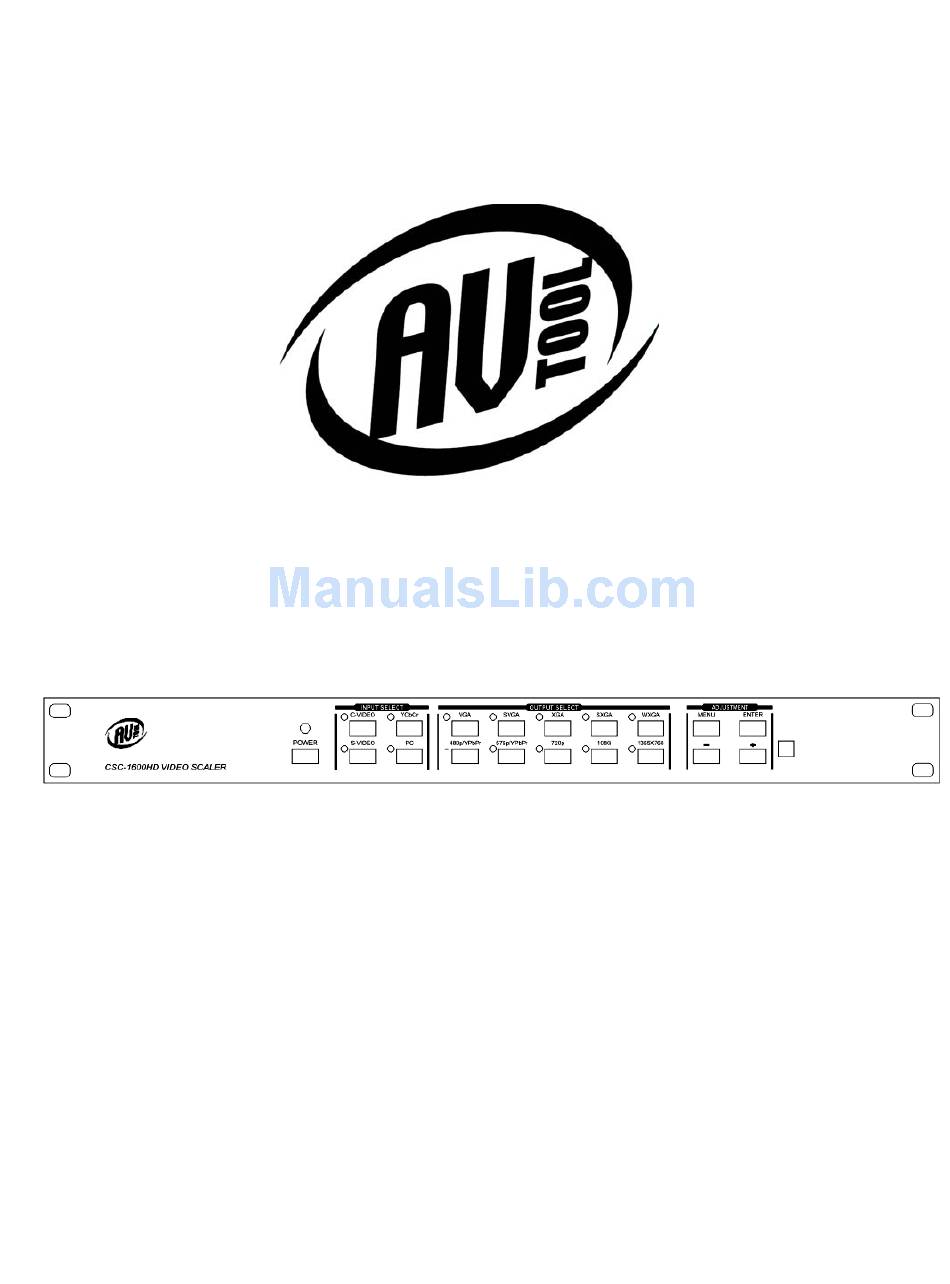

  • Page 1 OPERATIONS MANUAL CSC-1600HD Video Scaler...

  • Page 3: Table Of Contents

    Table Of Contents Section Page INTRODUCTION …………………………………………………………………...4 Getting the Best Results………………………………………………………...4 SPECIFICATIONS………………………………………………………………… 5 CHECKING THE PACKAGE CONTENTS……………………………………… 5 CONNECTING THE HARDWARE……………………………………………….. 6 Rack Mounting…………………………………………………………………... 6 Connecting the Video Inputs…………………………………………………… 6 Connecting the Video Output………………………………………………….. 6 Connecting the AC Power……………………………………………………… 6 FRONT PANEL CONTROLS…………..………………………………………….

  • Page 4: Introduction

    Our Static Picture Detector uses a simple field merging technique to perform de-interlacing and it is very beneficial for static images or scenes with very little or no motion. The CSC-1600HD employs a high quality Comb Filter Decoder for maximum picture quality.

  • Page 5: Specifications

    CSC-1600HD SPECIFICATIONS Input Signals PC/HD Input (Bypass Only) RGBHV or YPbPr via HD-15F Connector Input Video Standard NTSC 3.58, NTSC 4.43, PAL-B/G/I/D, PAL-N, PAL-M, SECAM Input Video Adjustments Brightness, Contrast, Color Saturation, Tint (NTSC), Sharpness Composite Video Input via BNC Connector...

  • Page 6: Connecting The Hardware

    CONNECTING THE HARDWARE The first step is to connect a video source to the input of the Video Scaler and to connect its output to a display device. Below is a drawing of the CSC-1600HD rear panel. Rack Mounting The CSC-1600HD unit is mountable in a standard 19” (1RU) EIA rack assembly. Desktop versions can be converted to rackmount versions by changing the unit’s front panel.

  • Page 7: Front Panel Controls

    FRONT PANEL CONTROLS The CSC-1600HD is controlled via Front Panel Push Buttons, Infrared Remote Control or RS-232. Front Panel LED’s and an On Screen Display provide status indications. The following drawing shows the Control Buttons and LED Indicators. Input Selection...

  • Page 8: Adjsutments Available Via The Menu

    Navigating the Menu Structure Pressing the MENU button calls up an OSD, which will be visible at the CSC-1600HD’s scaled output. The upper text block is a Status Line and indicates which Video Input is selected, the Output Resolution selected and Vertical Refresh Rate selected. The lower text block has four lines, labeled Video Adjustment, Vertical Frequency Adjustment, OSD Display and Output Terminal.

  • Page 9: Vertical Freq Adjust

    Vertical Freq Adjust Many of the Output Resolutions have multiple Vertical Refresh Rate possibilities. First choose the desired Output Resolution by pressing the desired button in the OUTPUT SELECT section on the front panel. Then, press MENU, choose the Vertical Freq Adjust section and press ENTER.

  • Page 10: Infrared Control

    RS-232 CONTROL OF THE CSC-1600HD VIDEO SCALER The Video Input selection and signal parameter settings for the CSC-1600HD can also be controlled via an external control system by using the RS-232 port on the unit. information for this control method is required, beyond the scope of the instructions provided in this section, please contact TV One Technical Support.
  • Page 11 Code Comment ‘PW’+0 POWER power off (standby) ‘PW’+1 power on (normal) ‘IN’+0 Composite video ‘IN’+1 INPUT S-video ‘IN’+2 YCbCr ‘IN’+3 PC bypass ‘JA’+0 JACK HD-15 (D-Sub) ‘JA’+1 ‘OU’+0 ‘OU’+1 OUTPUT 480p ‘OU’+2 SVGA ‘OU’+3 ‘OU’+4 SXGA ‘OU’+5 576p ‘OU’+6 720p ‘OU’+7 1080i ‘OU’+8...
  • Page 12 ‘IN’+2 YCbCr ‘IN’+3 PC bypass ‘JA’+0 JACK HD-15 (D-Sub) ‘JA’+1 ‘OU’+0 ‘OU’+1 OUTPUT 480p ‘OU’+2 SVGA ‘OU’+3 ‘OU’+4 SXGA ‘OU’+5 576p ‘OU’+6 720p ‘OU’+7 1080i ‘OU’+8 WXGA ‘OU’+9 1365x768 ‘DI’+0 DISPLAY osd display OFF ‘DI’+1 osd display ON ‘BR’+value brightness value –...

  • Page 13: Troubleshooting

    TROUBLESHOOTING If the recommended actions listed below do not result in satisfactory operation, please consult your Dealer or contact the AV Toolbox Technical Support Department directly by phone at 859-282-7303 or by email at tech@tvone.com. Problem Possible Solution No picture on If the Video Scaler’s Power Switch in ON, but no LED’s are illuminated, the output check that the proper AC Power Cord is properly connected.

  • Page 14: Warranty/Liability Policy

    WARRANTY POLICY LIMITED WARRANTY – AV Toolbox’s parent company, TV One, warrants the original purchaser that the equipment it sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in TV One's opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge.

  • Page 15: Regulatory Compliance

    REGULATORY COMPLIANCE The Video Scaler has been tested for compliance with: FCC Class A and CE The Power Supply has been tested for compliance with: UL, CSA and CE CONTACT INFORMATION AV Toolbox Phone 859-647-1077 1350 Jamike Drive Toll Free 800-235-3280 Erlanger, KY 41018 Fax 859-282-8225 www.avtoolbox.com...
  • Page 16 AV Toolbox 1350 Jamike Drive Erlanger, KY 41018 www.avtoolbox.com Phone 859-647-1077 Toll Free 800-235-3280 Fax 859-282-8225 Email sales@avtoolbox...
