Summary of Contents for Datalux LMV-XG12

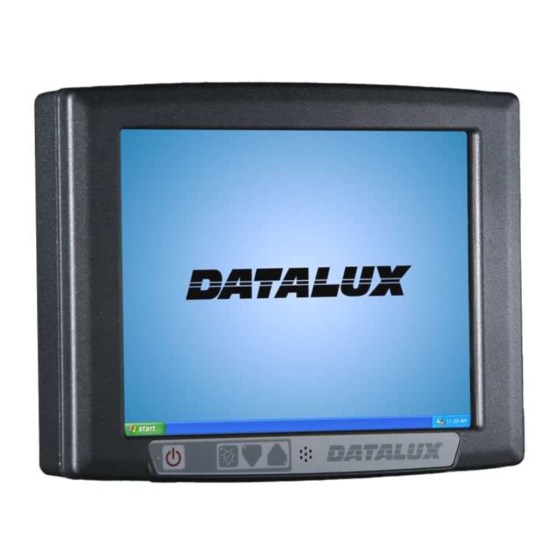

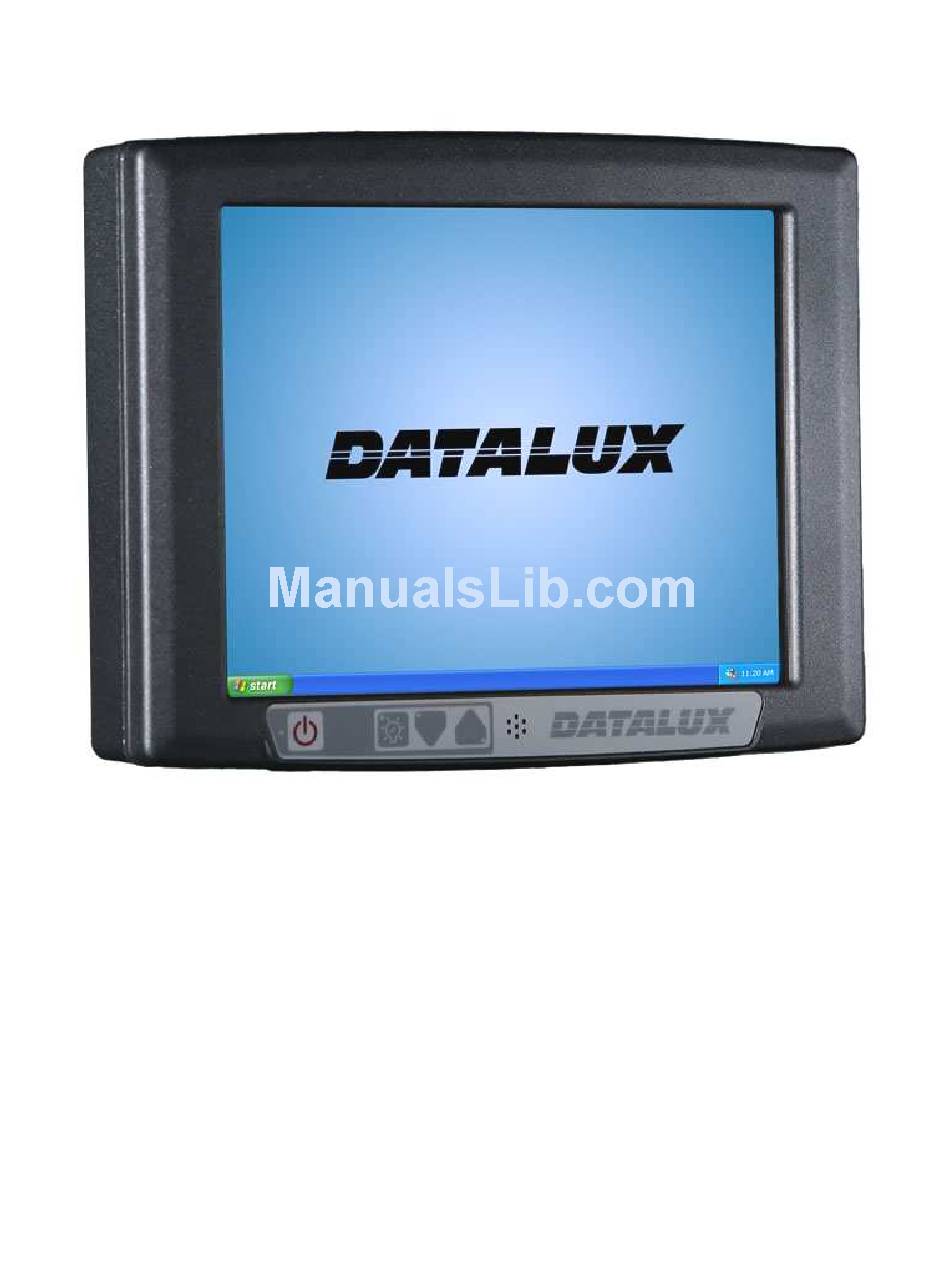

- Page 1 Datalux Corporation 12.1” Monitor Product Models LMV-XG12-xxx & LMV-XG12i-xxx Operation Manual...
-
Page 2: Table Of Contents
Datalux LMV-XG12 & LMV-XG12i - Operation Manual Datalux Corporation assumes no responsibility for any errors or omissions that may be present in • this document. Datalux Corporation reserves the right to make changes to this product. Datalux LMV-XG12 and LMV-XG12i are registered tradem arks o f Datalux Corporation. -
Page 3: Overview
Datalux LMV-XG12 & LMV-XG12i - Operation Manual Overview The Datalux LMV-XG12 orLMV-XG12i 12.1” monitor product is specifically engineered fo r demanding environments, including embedded equipment and industrial environments, as well as automobile and public safety. The end-user has unique control over the presentation of images in the monitor and how it is used. -
Page 4: Options And Accessories
Datalux LMV-XG12 & LMV-XG12i - Operation Manual Back of LMV-XG12 or LMV-XG12i Options and Accessories Several options and accessories are availabl e fo r the LMV-XG12 or LMV-XG12i monitor product: Serial version (no USB port available). • Capacitive or Resistive 5-wire touch screen. -
Page 5: Connect Your Monitor To A Power Supply
Datalux recommends your test of the unit be done promptly since the warranty period begins upon shipment from Datalux. In the event that you encounter problems or if the unit was damaged in shipment or you have been sent the wrong configuration, please refer to the Service and Support manual that was sent with this unit. -
Page 6: Hardware Subsystems
Serial Version Some older video monitor applications may require a serial version of the LMV-XG12 or LMV-XG12i monitor. This is available through Datalux Sales. If the serial version is ordered, the USB functionality is not available. Mounting... -
Page 7: Operation
Therefore, if an en closed unit is on, it will remain on whenever power is available - if the power glitches or turns off, you will not have to turn the LMV-XG12/LMV-XG12i on. -
Page 8: Rear Of Unit Controls
Datalux LMV-XG12 & LMV-XG12i - Operation Manual The following are indicators of state: Power Applied, Unit Turned Off (Power LED is Amber). Power On with Video Signal NOTE: LED brightness will be reduced along with the brightness of the LCD backlight. -
Page 9: Touchscreen Operation
Touchscreen Operation Touchscreen control If chosen as an option, the LMV-XG12 or LMV-XG12i, have a high quality 5-wire touchscreen. The monitor has a fully integrated USB touchscreen controller built in. This controller makes use of drivers contained on the CD-ROM that shipped with the monitor. The drivers are also available at the Datalux website. -
Page 10: Available Modes And Resolutions
The Service and Support Manual that came with your LMV-XG12 or LMV-XG12i monitor explains how to get help should a problem arise with your Datalux product. An explanation of the Warranty as well as Datalux’s Standard Terms and Conditions are also contained in the Service and Support Manual. If you cannot find the manual, it is available from our website at www.datalux.com... -
Page 11: Appendix A - Technical Specifications
- LMV-XG12i luminance without touchscreen (protective AR glass) to be 900cd/m - LMV-XG12 version is XGA resolution (1024 x 768 pixels). - LMV-XG12 luminance without touchscreen (protective AR glass) to be 350cd/m - Touchscreen option is resistive or capacitive (superior 5-wire construction only).
