Summary of Contents for Kanaan KN40543

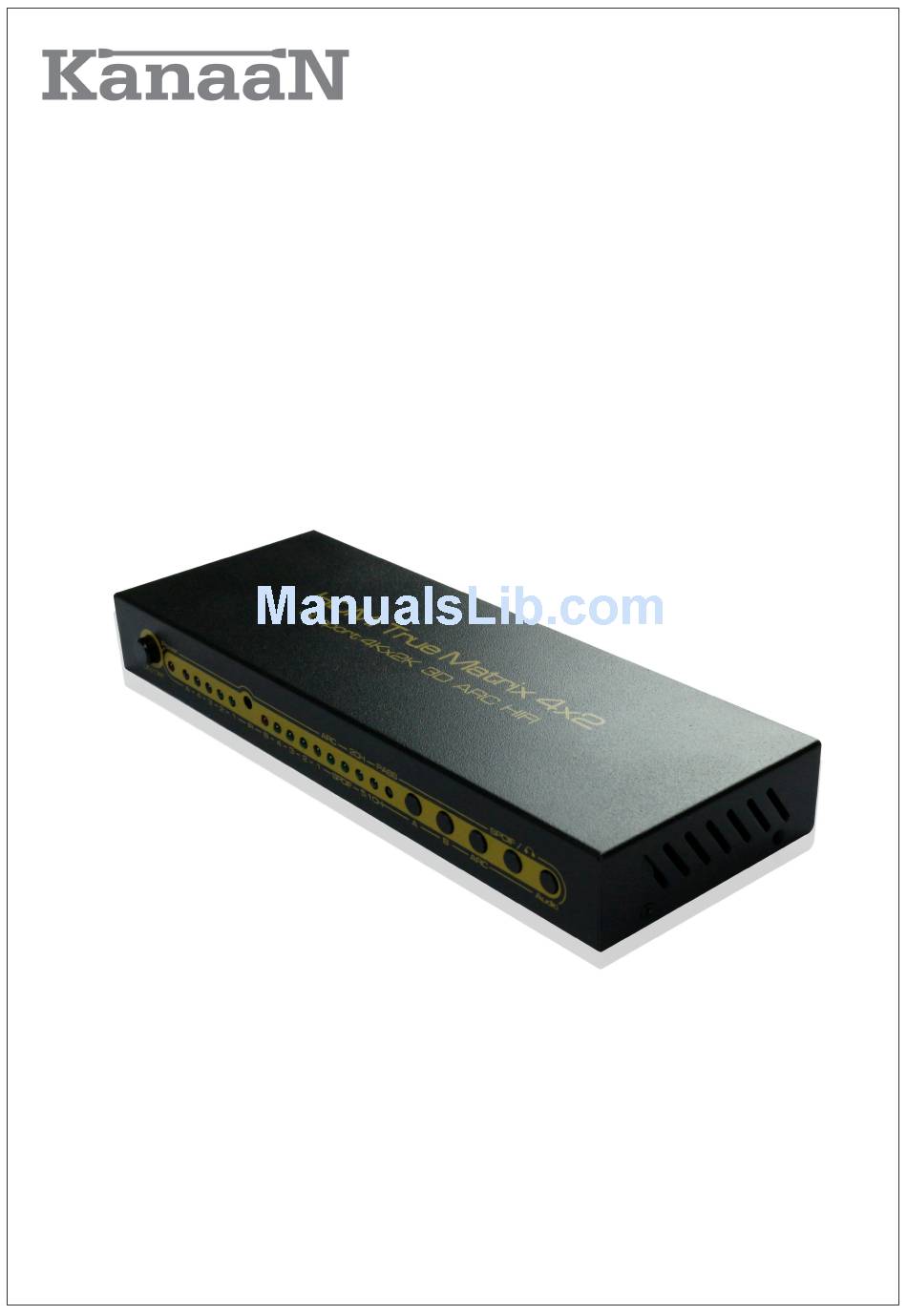

- Page 1 User's Manual 4x2 Matrix Switch for HDMI 4K*2K Product number: KN40543...

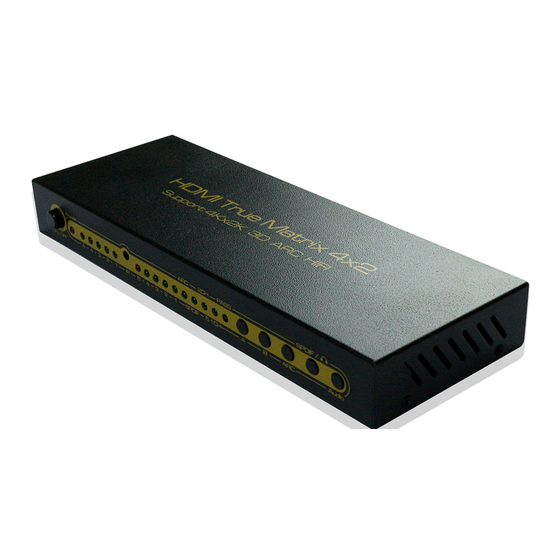

- Page 2 Dear customer, This 4x2 HDMI Matrix Switch from our brand KanaaN is specially designed for either home or professional application. It enables you to connect multiple HDMI devices to two display devices without having to change any cables for usage. One input signal can even be displayed on two displays at the same time.
-
Page 3: Package Contents
Before attempting to use this device, please check the packaging and make sure the following items are contained in the package: Number of Name Note Pieces KanaaN 4x2 HDMI 4K*2K Matrix Switch DC 5V/1A, plug type depending on Power Adapter target country Remote control... -
Page 4: Connection And Operation
380 g CONNECTION AND OPERATION Step 1: Connect your devices and displays to the KanaaN Matrix Switch. Please note, that the separate audio out will only transmit audio from HDMI out A. HDMI input 1 is the only one to process MHL signals from smartphones etc. - Page 5 PANEL AND LABELS Front: ON/OFF: Switch to turn on and off POWER: Status LED A: HDMI out A status LED A (1-4): Status of inputs allocated to output A IR: Infrared receiver B: HDMI out B status LED ...
-
Page 7: Troubleshooting
TROUBLE SHOOTING Please check the connection carefully before turning on the device. Please make sure, that all cables are connected properly and the channels are switched on according to the connected cables. Problem Possible Cause/Possible Solution Is the power LED on? (check power supply) No image ... -
Page 8: Safety Notes
Problem Possible Cause/Possible Solution Unplug HDM cables and plug again. Has the plastic strap been removed? Remote control is not working Is the remote controls battery low? If the problems cannot be solved, please don't hesitate to contact us. SAFETY NOTES ... - Page 9 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 10 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE LEICKE GmbH Dohnanyistr. 28 04103 Leipzig Germany Web: www.leicke.com Mail: info@leicke.com...
