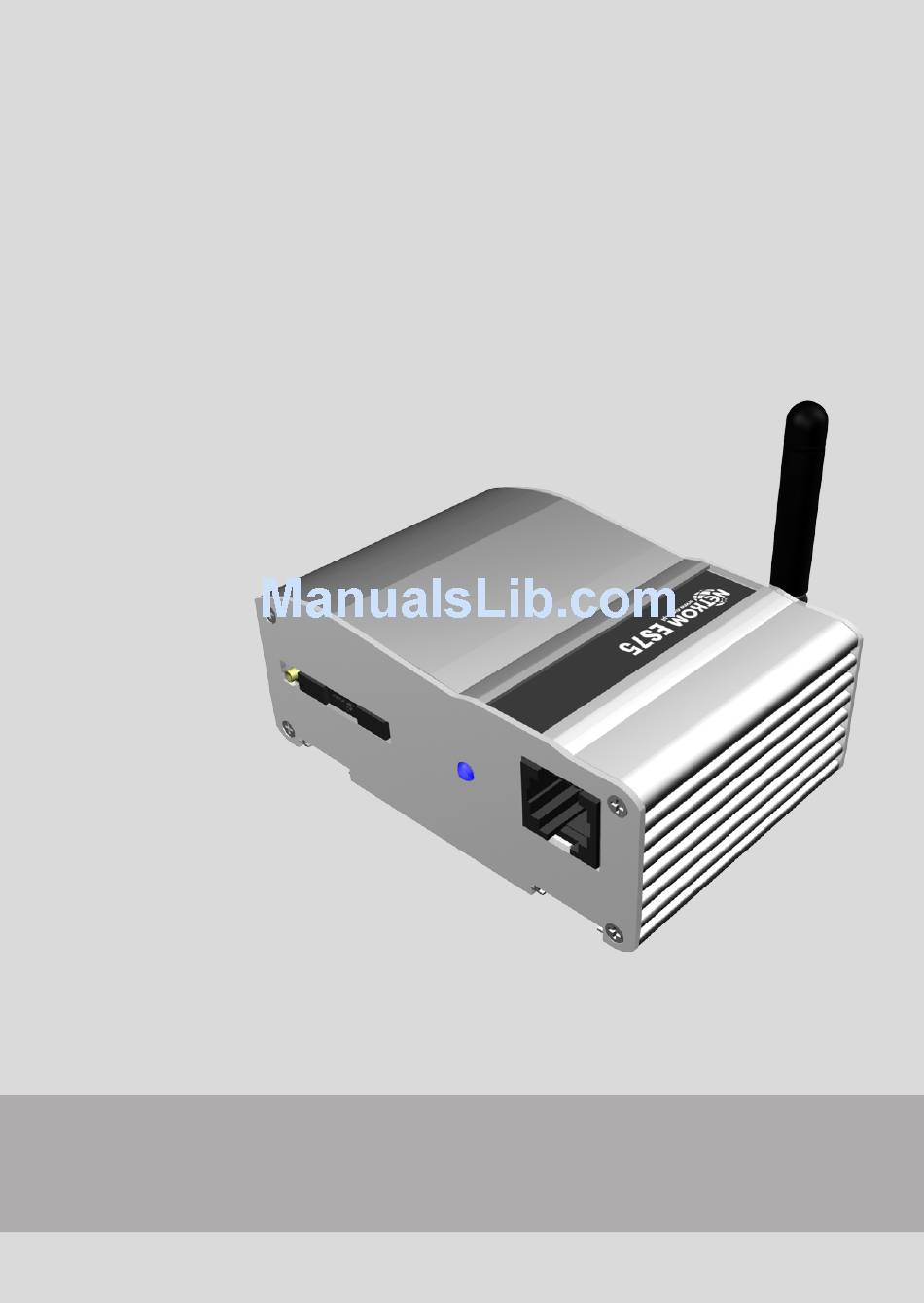

Netkom ES75 Terminal
User Guide
Cinterion
wireless modules by
embedded
Copyright © Netkom Sp. z o.o. All rights reserved
www.nwm.pl
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the ES75 and is the answer not in the manual?
Ask a question
Questions and answers
Subscribe to Our Youtube Channel
Summary of Contents for NETkom ES75
Page 1
Netkom ES75 Terminal User Guide Cinterion wireless modules by embedded Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 3: Safety Information
These have been tested and shown to work well with the Terminal. However, the warranty does not cover these accessories. The warranty does not apply in the event of improper use. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 4: Table Of Contents
Antenna connector SMA ......19 RS232 interface ........21 Mini USB interface........24 Switching on modem ....... 25 Startup ..............25 Switching off ........... 26 Operating states / LED........28 POWER DOWN ........29 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 5
Standby Netkom ES75 terminal ....30 Data Transfer Netkom ES75 terminal ..30 AT command control ........31 Maintenance tips ........32 Certification ..........32 Certification / maintenance......32 Contact ..............34 Headquarters ..........34 Distributors ..........34 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 6: Front View
Overview Front view SIM card Plug-in LED display holder power Rear view Antenna RS232 interface connector (9-pin D-Sub) miniUSB connector Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 7: Product Description
All the external interfaces of the modem are integrated permanently in the housing. The plug-in connections are standardised and suitable for use under vibration. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 8: Highlights
SIM application tool kit Applications • Fleet management • Teleservice • Security systems • Telematics • Telemetry • Remote monitoring • Remote meter reading • Vending machines • Mobile office Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 9: Highlights
Certification • R&TTE approval • GCF approval • Point-to-point MT and MO • SMS cell broadcast • Text and PDU mode • Transmission of SMS alternatively over CSD or GPRS Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 10: Data
Antenna connector SMA • RS232 interface (V.24/V.28 on the Sub-D socket) • Mini USB 2.0 interface Accessories • Antenna GSM • Power supply units • RS232 cables • USB cables Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 11: Package Contents / Scope Of Delivery
3 m. • Your supplier will be pleased to provide you with a detailed technical description and technical support for the SIEMENS modem. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 12: Plug-In Power Supply Unit
(+8 V ... +30 V) via the supply unit power supply connectors. Two additional control lines are used for switching the modem on/off (resetting). The connection is implemented by a 6-pin Mini-Western connector. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 13
Either activate the DTR control line via the RS232 interface • Or connect IGT_IN to +. This connection has already been set up in the specified plug-in power supply unit. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 14
Connect a fast 1.25 A fuse to the supply line of the positive supply voltage for general protection of the modem, see “Safety and installation information” on page 11. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 15
ETS 300-342-1 • Immunity RF common mode 0.15 – 80 MHz in accordance with ETS 300-342-1 • Transients and surges in a vehicular environment • Voltages dips and interruptior Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 16
Make sure that there is no voltage applied to the modem. Operate the eject mechanism (yellow pin next to the card holder) to open the card holder by pressing it down with a pen, for example. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 17
Interface description Insert the SIM card in the SIM card holder and push it back into the housing. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 18
The card can only be replaced when the GSM engine is in the POWER DOWN state. Interference immunity Electrostatic discharge requirements in accordance with ETS 300-342-1 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 19: Antenna Connector Sma
The connection is implemented as a 50 Ω SMA coaxial jack. Antenna connector Outer Inner Purpose of the connectors/connections Signal name Description Inner RF input/output Outer X Frame connection Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 20
(cable is >3 m) • Surge immunity requirements not specified • Electrostatic discharge requirements in accordance with ETS 300-342-1 • Immunity RF common mode 0.15 – 80 MHz in accordance with ETS 300-342-1 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 21: Rs232 Interface
GSM/GPRS engine by means of AT cellular commands. The RS232 interface is implemented as a 9-pin D-Sub socket with a screw fitting. RS232 interface – 9-pin D-Sub Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 22
> 5 V low < –5 V Use and operation In order to control the modem and transfer data, the customer application (e.g. host computer) is connected via the RS232 cable. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 23
• Surge immunity requirements not specified • Electrostatic discharge requirements in accordance with ETS 300-342-1 • Immunity RF common mode 0.15 – 80 MHz in accordance with ETS 300-342-1 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 24: Mini Usb Interface
USB interface is implemented as a 5-pin mini USB socket. 1 2 3 4 5 Signal name Description Parameters VBUS 4,75 < VBUS < 5,25 V Data + Data - not connected 4 Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 25: Switching On Modem
VBAT, a transistor switch generates the IGT ignition signal with a delay of approx. 100 ms for the GSM/GPRS module. Only then is it switched on. (It exits the POWER DOWN operating state.) Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 26: Switching Off
In this case, the GSM/GPRS module signs off before the watchdog condition results in the specific switching off of the supply voltages. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 27
This corresponds to a direct, unannounced disconnection of the operating voltage. In the application you can switch off or reset the module without interrupting the input voltage supply. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 28: Operating States / Led
PIN is entered (via PC) or • no GSM or GPRS network is available STANDBY GPRS Flashes slowly Network (Contex (2 times) activated) Data-Transfer flicker (flashes fast during the data transfer) Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 29: Power Down
• When the modem (module) is shut down by means of AT commands (e.g. sleep mode). • When the external reset line is active. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 30: Network Search
GPRS data transfer in progress. Power consumption depends on network Netkom ES75 ter- settings (e.g. power control level), minal uplink / downlink data rates and GPRS configuration (e.g. used multislot settings). Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 31: At Command Control
The modem is controlled and programmed by means of AT commands. The AT command structure corresponds to the MC75 module used. The AT commands can be obtained from the ICM WM home page: www.siemens.com/wm. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 32: Maintenance Tips
Do not bend or scratch the SIM card or expose it to static electricity. • Wipe the terminal housing with a moist or antistatic cloth. Do not use a chemical cleaning agent. Copyright © Netkom Sp. z o.o. All rights reserved www.nwm.pl...
Page 34: Contact
Contact Headquarters Netkom Sp. z o.o. ul. Siedlanka 54, 37-300 Lezajsk,POLAND tel. +48 (17) 242 73 77 mail: biuro@nwm.pl www.netkom.biz.pl info@nwm.pl www.nwm.pl Netkom Sp. z o.o. ul. Jednosci Narodowej 45B, 50-260 Wroclaw, POLAND tel. +48 71 78 22 630 Distributors...
