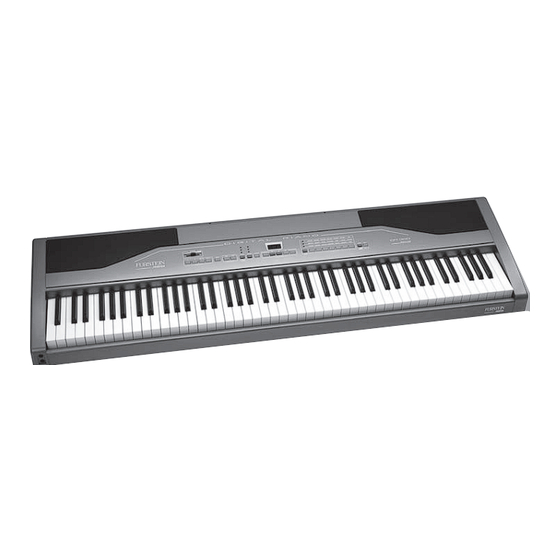

Furstein DP 300 User Manual

Digital piano
Hide thumbs
Table of Contents

Advertisement

Quick Links

DP 300
USER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Furstein DP 300

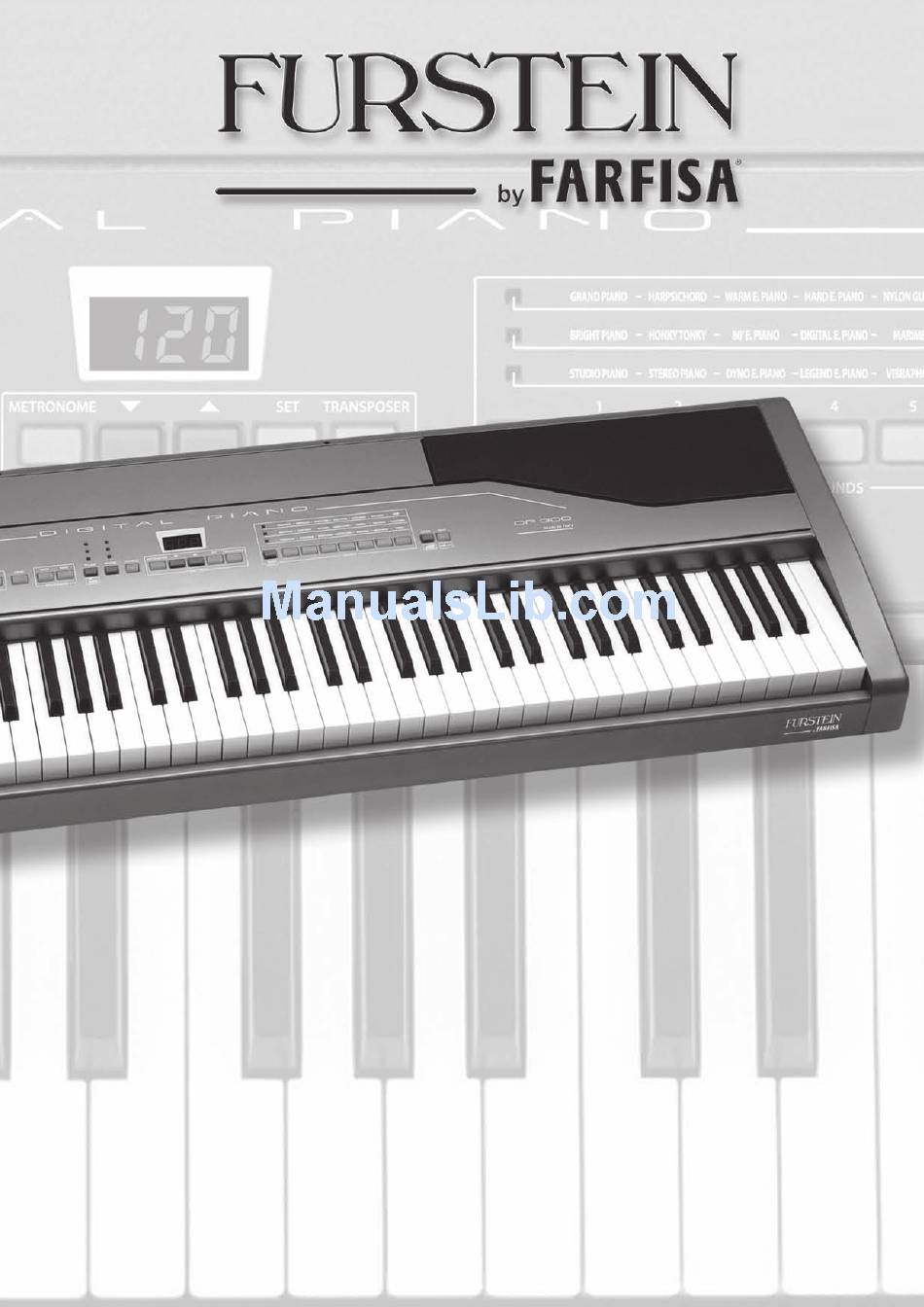

  • Page 1 DP 300 USER’S MANUAL...

  • Page 3: Table Of Contents

    Thank you and congratulations for having chosen this Digital Piano. For its correct use, please read this guide before use and keep the manual for future consultation. Instrument identification DP 300 MODEL For any communication, always quote the model (DP 300) reported at the bottom RATING of the instrument. 13.5V SER. N°.

  • Page 4: Technical Features

    1.Technical features KEYBOARD: 88 keys with “hammer action” DEMO: 7 Demonstrative songs TOUCH: immediate exclusion and restoration AMPLIFICATION: Stereo 15 + 15 watt (RMS) - Two of touch-sensitivity (Dynamic) on 4 high-efficiency Ø 100 mm loud levels speakers - Sound system: Bass Reflex AC/DC ADAPTER: Input Vdc= 13,5 V / I = 3,25 A POLYPHONY:...

  • Page 5: Accessory Upon Request

    3.Accessory upon request CN 230: Console 4.Music stand Insert the music stand in the appropriate holes.

  • Page 6: Warnings

    5.Warnings When using electric products, it is necessary to follow certain basic precautions, including: 1. Carefully read the manual before using the instrument. 2. The presence of an adult is required when the instrument is used by children. 3. Do not use the instrument near water like, for example, near a washbasin, a swimming pool, on a wet surface, etc. 4.

  • Page 7: Power Supply

    6.Power supply The power supply is supplied by the provided AC/DC ADS 1332 adapter (V = 13.5Vdc / I = 3.25 A) central positive. Such equipment is compliance with the national and international Standards on electrical safety. Insert the jack in the DC 13,5V socket.

  • Page 8: Sockets

    7.Sockets POWER - To switch the instrument on and off. INPUT DC 13.5 V - Allows powering the instrument by means of an AC/DC adapter. LINE OUT (LEFT/STEREO - RIGHT) - Mono audio output of the left and right channels for connection to an external amplification. The LEFT/STEREO output, by inserting a STEREO connector, allows detecting both LEFT and RIGHT signals.

  • Page 9: Control Panel

    9.Control panel 11 12 15 16 8. METRONOME to activate or deactivate the time 1. VOLUME for the adjustment of the general tapped by the Metronome volume 9. FUNCTIONS to select or set the various parameters 2. SEQUENCER A/B to select the A and/or B track of the Sequencer (recorder) 10.

  • Page 10: Use Instructions

    10.Use instructions Switch on/off The instrument is switched on by moving the switch to “ I “ and is switched off by moving it to “ O “. The switch is on the back of the instrument. The 3 digit display indicates which is the speed of the METRONOME.
  • Page 11 U s e i n s t r u c t i o n s Press the SPLIT button; LED light on. The division point upon switch-on is G3 (Sol3). The Split or division point of the keyboard can be amended as follows: keep the SPLIT button pressed and, simultaneously, press a key on the keyboard.

  • Page 12: Combination Of Two Sounds (Dual)

    U s e i n s t r u c t i o n s Sound combination - Dual Mode It is possible to simultaneously play two sounds on the entire keyboard range. In this way, it is possible to simulate a “dual melody” or combine two similar voices to create an acoustically deeper sound.

  • Page 13: The Effects

    U s e i n s t r u c t i o n s The effects The sounds can be enhanced by adding Reverb and Chorus effects. Reverberation It is possible to select 3 types of reverberation: Room 1, Room 2 and Hall and also set the depth that can vary from 0 to 20.

  • Page 14: How To Set The Divisions Of The Metronome

    U s e i n s t r u c t i o n s 32 - 60 Table of the TIMES 60 - 66 indicative for the 66 - 76 76 - 108 METRONOME 108 - 120 120 - 168 168 - 200 200 - 250 How to set the divisions of the metronome...

  • Page 15: How To Record Another Two Songs

    U s e i n s t r u c t i o n s How to record another two songs Act on the SET control, the display indicates which is the song recorded first. Using the control, it is possible to select meaning Song 1, Song 2 and Song 3.

  • Page 16: Special Functions (Set)

    U s e i n s t r u c t i o n s Special Functions (SET) It is possible to configure certain special functions by repeatedly pressing the SET control. 1. Selection of the three songs of the Sequencer Upon first pressing of the SET control the LED light switches on and the display show to indicate that the first song of the Sequencer is selected.

  • Page 17: Connection To A Computer

    11.Connection to a computer The DP 300 Digital piano is equipped with a USB-MIDI socket for connection to a personal computer. Connection is carried out using a USB cable (not included) as shown in the figure: USB Port USB Port...

  • Page 18: Midi Connection

    The initials MIDI is the abbreviation of “Musical Instrument Digital Interface” and represents a standard for the transmission of data via cable to another electronic musical instrument. Connect a MIDI cable (not included) between the MIDI OUT socket of the DP 300 and the MIDI IN socket of another musical equipment.

  • Page 19: Problem Solving

    14.Trouble shooting guide Problem Cause/Corrective action When it is switched on, no sounds are heard when the keys Check the main volume and if the headphones are are pressed connected The headphones are inserted in the Phones socket: disconnect it. Noise when using the mobile telephone Avoid having the mobile telephone near the piano.

  • Page 20: Midi Implementation Chart

    16.Midi implementation chart MIDI DESCRIPTION TIBI- MESSAGE LITY note ON #kk(1-127), velocity vv(1-127). vv=0 MIDI means NOTE OFF MIDI vv is don’t care. i f i ) s t Maximum swing is +/- 1 tone (power-up). Can be changed using «...
  • Page 21 M i d i i m p l e m e n t a t i o n c h a r t MIDI TIBI- MESSAGE LITY RPN 0001H BnH 65H 00H 64H 01H 06H vv Fine tuning in cents (vv=00 - 100, vv=40H 0, vv=7FH +100 MIDI RPN 0002H BnH 65H 00H 64H 02H 06H vv...
  • Page 22 M i d i i m p l e m e n t a t i o n c h a r t MIDI MESSAGE TIBI- LITY SYSEX F0H 41H 00H 42H 12H 40H 01H 3DH vv xx SYSEX F0H 41H 00H 42H 12H 40H 01H 3EH vv xx SYSEX F0H 41H 00H 42H 12H 40H 1pH 40H v1 v2 Scale tuning, p is part (0H to FH), v1 to v12 are 12 semi-tones tuning...
  • Page 23 M i d i i m p l e m e n t a t i o n c h a r t MIDI MESSAGE TIBI- LITY SYSEX F0H 41H 00H 42H 12H 40H 2pH 22H vv xx CAF Amplitude control (-100%-+100%) (default=40H) SYSEX F0H 41H 00H 42H 12H 40H 2pH 24H vv xx CAF lfo1 pitch depth (0-600 cents) (default=0AH)
  • Page 24 GB/USA - READ AND KEEP THIS MANUAL FOR FUTURE REFERENCE. F - LIRE ET CONSERVER CE MANUEL POUR LE RENDRE ACCESSIBLE POUR DE FUTURES CONSULTATIONS. D - DIESES HANDBUCH AUFMERKSAM DURCHLESEN UND ZUM NACHSCHLAGEN AUFBEWAHREN. E - LEA Y CONSERVE EL PRESENTE MANUAL PARA FUTURAS CONSULTAS. I - LEGGERE E CONSERVARE IL PRESENTE MANUALE PER FUTURE CONSULTAZIONI.
