Summary of Contents for Rock Island Equipment PowerFish’n Pro PF-100

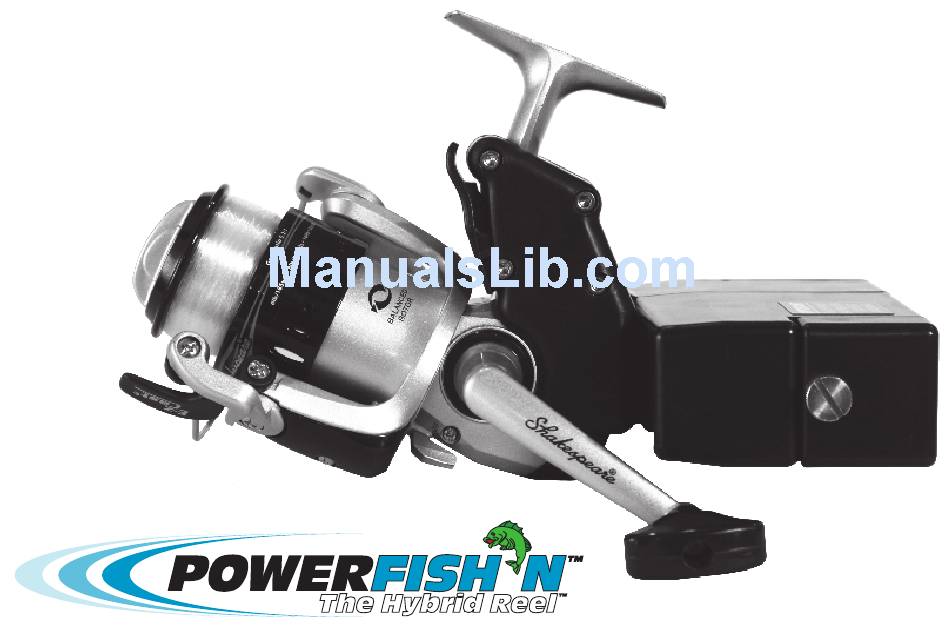

- Page 1 OWNER’S MANUAL Spinning Reel PF-100...
- Page 2 Thank you for selecting the Rock Island Equipment Co. PowerFish’n Pro PF-100, a unique fresh water Shakespeare reel fitted with a powerful, quiet, electric motor. You can hand crank the line or retrieve the line with the power trigger. Your choice. It lets you fish longer without getting tired and helps you enjoy fishing even more.
- Page 3 getting to know your reel Reel Seat Power Trigger Drag Adjustment Knob Line Clip Spool E-Z Cast Bail Lever Battery Cover Bail Arm Selective Anti-Reverse Switch Handle Always leave in the “on” position Your PowerFish’n reel is for close-to-the- surface fishing. Use in a boat or on the shore by the water.
-
Page 4: Installing Batteries
INSTALLING BATTERIES Your PowerFish’n reel uses 4 AA batteries. For standard batteries, always use Alkaline which yield 16 – 20 hours of use. We recommend Ni-MH (Nickel Metal Hydride) rechargeable batteries which provide higher torque and up to 80 hours of use. Never use Lithium batteries as they may cause fire. IMPORTANT: Always remove batteries after each use to avoid damage. - Page 5 SETTING THE DRAG NOTE: The selective anti-reverse switch on the bottom of the reel must always be in the “on” position. The drag knob sets the spool tension, which allows a fish to pull out the line under tension. Turning the drag knob clockwise increases tension, while rotating it counter clockwise decreases tension.
- Page 6 USING YOUR REEL 1. Hold rod with reel under rod. Placing your thumb along the top of the rod aids in casting and control accuracy. 2. Pick up the line with the tip of your index finger. 3. Open the bail wire using the E-Z Cast bail lever or with a light downward movement until it is in the position shown for casting.
-
Page 7: Power Trigger
POWER TRIGGER To activate your reel’s power assist feature, press the power trigger. As long as the power trigger is being pressed, the reel will automatically windup the line. When you release the power trigger, the reel will stop. The fish can be played using the power trigger or by using the hand crank to reel in the excess line when the fish comes towards you. - Page 8 CARE & LUBRICATION Your new PowerFish’n reel is designed to provide years of dependable service, but as with all precision instruments, some care is required. Periodically use a light machine oil to lubricate the line roller, the main shaft where it comes out of the reel, and all moving parts of the bail and handle.
- Page 9 filling the spool with line Take advantage of your electric reel to easily fill your spool with line. (1) Open the bail and tie line to the spool. (2) Turn the reel handle forward to close the bail. (3) Keep the line under tension with your fingers while pressing the power trigger to spool the line onto the reel.
-
Page 10: Tips And Tricks
tips & tricks There are many artificial baits on the market for game fish. They can be classified into specific types of lures. The most popular baits are as follows: Spinners - These baits are easily identified by a revolving, whirling blade. When drawn through the water, these baits not only attract by motion, but send out vibrations. - Page 11 Your PowerFish’n PF-100 is carefully manufactured by Rock Island Equipment Co. in East Moline, IL, USA, to provide you with many years of fishing enjoyment. This reel has a limited one-year warranty. For more complete warranty information, visit www.powerfishn.com. “PowerFish’n” and “Rock Island” are trademarks of Innovative Imagineering, East Moline, IL 61244. Patents Pending.
- Page 12 Rock Islan d Manufactured by Equipment Company, East Moline, IL 61244 PF100-OM-1209...
