CineMonitorHD
Evolution
Operator Manual
Rev 2.0
June 2011
751TS0027

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CineMonitorHD6 SBL Evolution and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Transvideo CineMonitorHD6 SBL Evolution

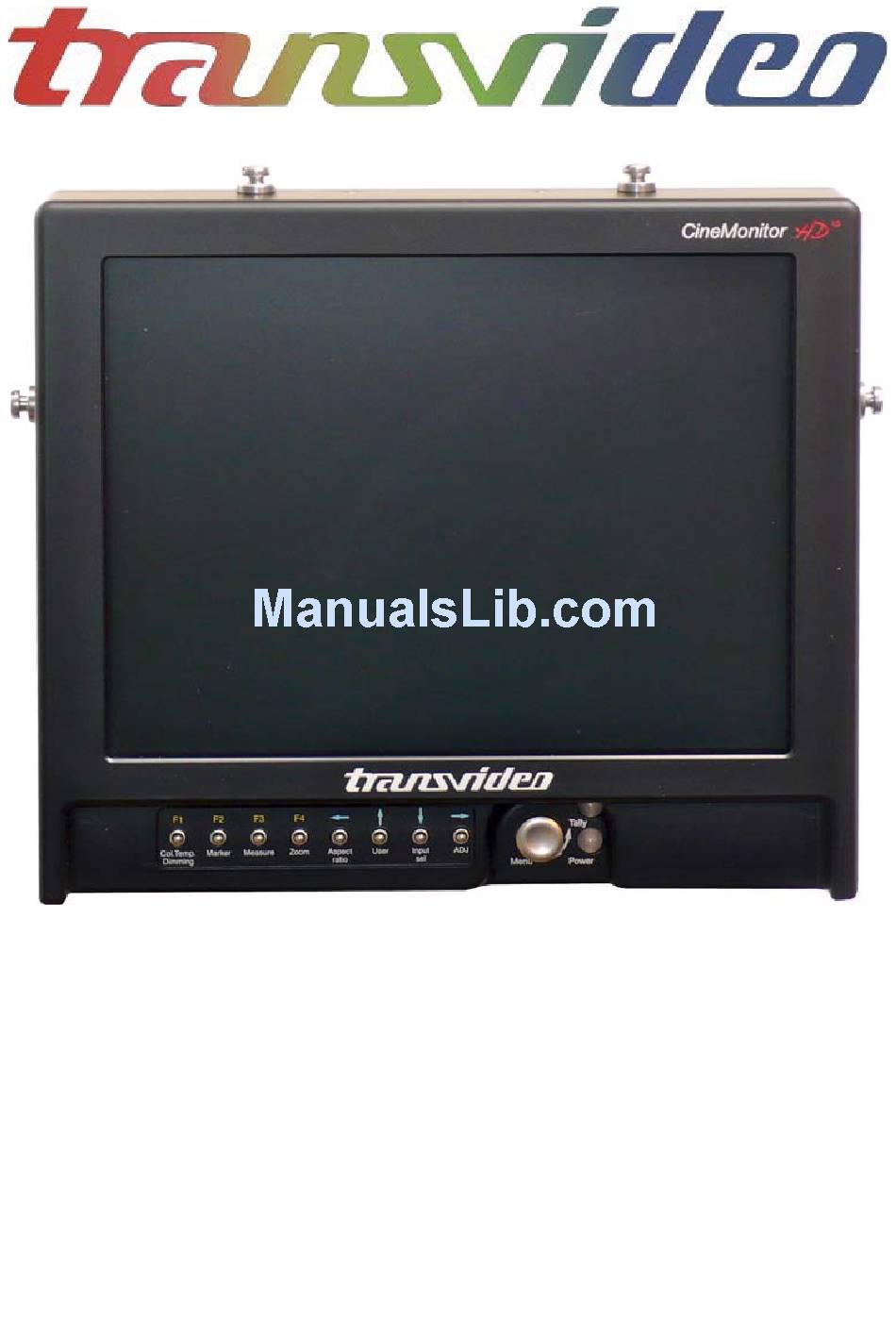

  • Page 1 CineMonitorHD Evolution Operator Manual Rev 2.0 June 2011 751TS0027...
  • Page 2: About

    BOUT This Operator Manual describes the use of the Transvideo CineMonitorHD Evolution family. The first CineMonitor has been introduced to the Film Industry during year 1995. The CineMonitorHD Evolution is our latest contribution to the Digital Cinematography world, including advanced decision tools for the HD world.
  • Page 3: Warning & Caution

    In no event shall Transvideo S.A. or its local representatives be liable to a user, technician or third party for any loss of income or any damage of any kind resulting from the use of or work on the said equipment.
  • Page 4: Table Of Contents

    ABLE OF ONTENT ............................2 BOUT & C ........................3 ARNING AUTION ........................4 ABLE OF ONTENT ..........................7 NTRODUCTION Condensed Operating Instructions.................. 7 Unpacking and Inspection....................7 Safety Inspection ........................ 7 Product Overview........................ 8 Installation.......................... 10 Power Requirements ......................11 ..........................
  • Page 5 ABLE OF ONTENT DISPLAY MODE ......................... 23 COLOR ............................. 23 GREEN * ............................23 B/W..............................24 BLUE CHECK ........................24 COLORIMETRY........................24 MANUAL ............................24 D56 CALIBRATED ........................... 24 D65 CALIBRATED ........................... 24 CURVES ..........................24 LOG C .............................. 24 LOG F ...............................
  • Page 6 ABLE OF ONTENT Updating your CineMonitorHD Evolution..............38 Calibration .......................... 39 Product Return ........................39 ......................... 41 PECIFICATIONS Common Characteristics ....................41 Connections ........................42 List of Standards per Input....................43 Specific Characteristics ....................43 ................45 RANSVIDEO QUIPMENT IMITED ARRANTY CineMonitorHD Evolution...
  • Page 7: Introduction

    A bad quality or wrong-wired cable may damage this equipment or other equipment attached to it and/or create interferences. Transvideo offers high quality cables for cameras, power supplies and other equipment. Contact Transvideo S.A. or its local representative in case of need.
  • Page 8: Product Overview

    NTRODUCTION The video cable must be adapted for carrying HD SDI signals. Proper 75 Ω connectors must be used. Always check the connector before plugging a cable to your monitor. The CineMonitorHD Evolution needs to be in a ventilated area for a proper cooling. Prolonged use in confined environment without ventilation can damage the monitor.
  • Page 9 NTRODUCTION Figure 1: CineMonitorHD8 Evolution front Figure 2: CineMonitorHD8 Evolution back Operator Manual Rev 2.0 Page 9...
  • Page 10: Installation

    The CineMonitorHD Evolution must be securely mounted on the camera or on its location of use. Transvideo manufactures high quality brackets and accessories for the comfort of use and security for the equipment and user. Please contact Transvideo S.A. or its local representative in case of need or visit www.transvideo.eu.
  • Page 11: Power Requirements

    ② One or several optional slides can be attached to the sides, back or top of the monitor. 2 x M4 screws attach the slides. Several Transvideo’s accessories can be mounting on it; this mounting system is generic for Transvideo since 1990.
  • Page 13: Operation

    PERATION Sart-Up & Power The ON/OFF Switch is on the back of the monitor. The product needs a certain time to reach its nominal brightness. This time can vary with the temperature. When using the optional Battery Holder, the switch of the battery holder overpasses the switch of the monitor.
  • Page 14: Using The Rotating Knob

    PERATION Using the rotating knob The menu knob is a rotating encoder with a push function. It is used to access and navigate in the menus, adjust some parameter values, validate and exit functions by turning or pushing it. Pushing the knob gives access to the menu structure while rotating the knob enables to navigate between the menu items.
  • Page 15: Direct Functions

    IRECT UNCTIONS Colorimetry Temperature Dimming Switches between 3 color calibration modes: FULL BRIGHT: Maximum brightness and power consumption, the color calibration is deactivated. STANDARD CALIBRATED: Standard mode, the brightness (100Nits) and white point are calibrated according to the settings of MENU / COLORIMETRY. USER SET: Turning the rotating knob adjusts the brightness from 10 to 100% while color calibration is preserved.
  • Page 16: Measure (Waveform, Histogram, Vectorscope)

    IRECT UNCTIONS Measure (Waveform, Histogram, Vectorscope) Displays the measurement tools selected in the sub functions F1…F3: F1: WAVEFORM F2: HISTOGRAM F3: VECTORscope The brightness of the reticule and of the spot as well as the background transparency in overlay mode (for waveform and vectoscope) can be adjusted in MENU / TOOLS / MEASUREMENT.
  • Page 17 IRECT UNCTIONS F3: FRAME Displays Y, R, G, B in frame mode (or sweep mode). The content of one frame/picture is displayed. Pressing the Measure key gives the possibility to adjust the size of the waveform by using the rotating knob (3 sizes available). Operator Manual Rev 2.0 Page 17...
  • Page 18: Histogram

    IRECT UNCTIONS Histogram Selecting "F2: HISTOGRAM" displays directly the representation. One short press on the knob exits measurement menu. Then press Measure key gives the possibility to adjust the scale of the histogram by using the rotating knob. Vectorscope Selecting "F3: VECTOR" displays directly the representation in overlay mode. CineMonitorHD Evolution Page 18...
  • Page 19: Zoom

    IRECT UNCTIONS Zoom Displays the HD picture in full resolution mode (pixel to pixel). Depending of the input format, the magnification ratio can be different. Displays the SD picture in full screen. In this case there is an important magnification ratio applied to the original picture. The resultant picture includes created pixels and lines and cannot be considered as a proof.
  • Page 20: User

    IRECT UNCTIONS User User configurable input. This key gives access to the function pre-selected in the following sub menus: First page: F1: STATUS Displays the status of the monitor and the input voltage from the power supply or the battery. F2: FOCUS * Activates the Focus Helper function as programmed in MENU / TOOLS / FOCUS HELPER.
  • Page 21: Input Selection (Input Sel)

    IRECT UNCTIONS Input Selection (Input Sel) Switches between video inputs. At selection, the video standard is displayed. When no signal is detected, displays "NO SYNC". Sub menu allows the selection of the active inputs. Pressing F1…F4 activates or not the selected input. An active input is highlighted in orange, an inactive in white.
  • Page 23: Menu Functions

    GREEN * Display the picture in green color only. TINT and SATURATION are not working in this mode. This mode has been invented by Transvideo in 1990 and is used since this time in Film ∗ & Night Vision systems.
  • Page 24: B/W

    UNCTIONS Displays the picture with 256 gray levels. TINT and SATURATION are not working in this mode. BLUE CHECK Sets the monitor in BLUE ONLY mode. This mode is used to calibrate the monitor with an incident color bar. COLORIMETRY MANUAL Allows the manual adjustment of RGB gain (from 0 to 2, nominal 1.00) and offset of the black (-127mV to + 126mV, nominal 0 mV).
  • Page 25: Log F

    UNCTIONS LOG F Adjusts the response of the monitor to a LOG F signal. The standard EI (Exposure Index) is set to 200. It is possible to adjust the EI to 100, 125, 160, 200, 250, 320, 400, 500, 640, 800. PANALOG Adjusts the response of the monitor to a PANALOG signal.
  • Page 26: Tools

    UNCTIONS TOOLS The tools make the richness of the CineMonitorHD Evolution. AUDIO Displays the SDI embedded audio presence and a bargraph showing one audio pair on the 8 possible pairs. AUDIO: ON/OFF Activates or deactivates the function CHANNEL PAIR: X Selection of the pair displayed on the bargraph with the rotating knob.
  • Page 27: Focus Helper

    UNCTIONS MODULE: ON/OFF Activates or deactivates the function ZONE: OP+ASSIT / ASSIST / OFF * The COOKE 5/I is able to light the focus and iris scales on the operator and/or the assistant side. Selection of the lighted zones OPERATOR + ASSISTANT or ASSISTANT ONLY BRIGHTNESS * Adjusts the brightness of the LEDs on a COOKE 5/I lens UNIT...
  • Page 28: Frameline

    This option enables to display a virtual horizon on the screen. IMPORTANT: HORIZON is an optional function. It must be ordered with the product or can be implemented by return to Transvideo headquarters. Contact Transvideo S.A. or its local representative in case of need. SENSOR Toggles between INTERNAL and BETZ virtual horizons.
  • Page 29: Limits

    In BETZ position the user must connect an external electronic bubble designed by Betz ∗ Tools. A specific cable is needed to power and remote the bubble through J001 connector. Transvideo do not support this third party equipment. http://www.betz-tools.com/monitor_electronic-bubble.php LIMITS The limits menu is a very important item of the CineMonitorHD Evolution family.
  • Page 30 UNCTIONS BLACK CLIPPING Sets the low clipping level (Black). Adjustment goes from -6.9 IRE to 36 IRE The lower value is limited by the MIN LEVEL setting. All information below the limit will be displayed blue on the waveform and dark blue on the underexposed zone on the picture (if the Black Limits are activated).
  • Page 31: Measurements

    UNCTIONS MEASUREMENTS Allows different settings for the video measurement tools. The settings apply to all video measurement tools except the histrogram, which represents always the full picture. SIGNAL UNIT Selects the signal measurement unit. IRE (default unit) or BINARY SIGNAL ANALYSIS Selects 8 bits if the SIGNAL is 8 bits.
  • Page 32: Tally

    UNCTIONS TALLY The Tally is activated via the GPI connector J002 (pins 1 to 4, adjustable in MENU / TECHNICAL / GPI) or through the ACCessory LEMO8 connector. LEMO ACTIVE LOW/HIGH Sets the state for TALLY ON through the Lemo8. LED ON/OFF Activates or deactivates the TALLY LED on the front panel.
  • Page 33: Range: Standard / Extended

    UNCTIONS MONITOR REVERSE AUTO REVERSE Returns the picture, tools and menus Makes a MONITOR REVERSE automatically if the horizontally and vertically monitor is up side down AUTO FLIP REVERSE Returns the picture automatically (vertical axis only) if the monitor is up side down RANGE: STANDARD / EXTENDED Selects the range depending of the camera.
  • Page 34: Technical

    UNCTIONS TECHNICAL CVBS STD SELECT * Sets the video composite standard detection. AUTO DETECT default value PAL BGHID NTSC 3.58 NTSC * Sets NTSC standards: NTSC Japan (black 0 IRE) NTSC US (black 7.5 IRE) ACCESSORY * Sets the accessory input: COMPONENT RGB (HD/SD RGB signal with composite synchronization on G) COMPONENT YPrPb (HD/SD YPrPb signal with composite synchronization on Y) CVBS (Composite)
  • Page 35: Voltage Alarm

    UNCTIONS VOLTAGE ALARM VOLTAGE DISPLAY: ON/OFF Displays constantly the input voltage from the power supply or the battery. VOLTAGE ALARM LEVEL Sets the threshold voltage from 10VDC to 36VDC. Under this voltage an alert can be displayed on screen. VOLATAGE ALARM DISPLAY When activated the battery pictogram is displayed in red if the voltage of the power supply goes under the threshold setting.
  • Page 36: Preset

    UNCTIONS PRESET Sets the default values in the setting registers. PRESET does not erase the user presets. PRESET ALL INPUTS Presets the active input and other inputs of the monitor. PRESET SELECTED INPUT Presets the active input only CineMonitorHD Evolution Page 36...
  • Page 37: Service

    RANSVIDEO QUIPMENT IMITED ARRANTY Transvideo S.A. warranty on the equipment described in this manual. For repairs contact Transvideo S.A. or its local representative or use the RAN procedure in the chapter "S & M ", section "Product Return". ERVICE AINTENANCE...
  • Page 38: Hardware, Software And Firmware

    An update package is a .zip file that contains softwares and firmwares that are compatible each other. It can be downloaded on our website for registered users by visiting www.transvideo.eu/support. You can also ask it directly to your local Transvideo representative.
  • Page 39: Calibration

    Log in to our website using your user Or contact us by: account and visit the Support section Email service@transvideo.eu www.transvideo.eu/support +33 2 3260 1479 +33 2 3232 2761 You will need to provide part number & serial number (found on the back of your product) and to briefly describe the reason for the return.
  • Page 40 & M ERVICE AINTENANCE ② Then send the product to the following address: TRANSVIDEO RAN # _ _ _ _ _ _ _ ZI - Rue Francois Arago 27130 Verneuil sur Avre France User is responsible for shipping and insurance of the equipment as well as for any damage that may occur during transit.
  • Page 41: Specifications

    PECIFICATIONS Common Characteristics Supported HD standards * 480p / 576p 720p 1080p, 1080i, 1080psf Supported SD standards * NTSC-M / NTSC-J / NTSC-443 PAL-M / PAL-BG / PAL-N SECAM SD SDI 525 / 625 Display mode Color Picture resolution Depends of the standard Display type AMLCD Color calibration...
  • Page 42: Connections

    PECIFICATIONS Connections Video inputs & outputs 1 x HD/SD SDI in (BNC) 1 x HD/SD SDI Rclk out (BNC) 1 x CVBS in (BNC) 1 x CVBS out (BNC) 1 x ACC (Lemo8) 1 x mini HDMI in Power In / XLR4 XLR4 connector (-1, +4) 10 –...
  • Page 43: List Of Standards Per Input

    & M ERVICE AINTENANCE List of Standards per Input HD SDI 1280x720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M) 1280x720p @ 50, 59.94, 60 Hz (SMPTE 296M) (SMPTE 292M) 1920x1080i @ 50, 59.94, 60 Hz (SMPTE 274M) 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) SD SDI 720x487i @ 60 Hz (SD SDI 525 - SMPTE 125M)
  • Page 44 PECIFICATIONS 8" HD Monitor / 8" HD Monitor SuperBright Dimensions 215 x 183 x 62 mm (l x h x d) 8.46 x 7.20 x 2.44 inches Weight 1710g, 3.8lbs / 1690g, 3.7lbs Power Consumption 20W / 22W Max 500:1 / 900:1 Contrast ration ±85°...
  • Page 45: Transvideo Equipment Limited Warranty

    (shipping charges apply). Non- Transvideo brand peripheral equipment and software which may be distributed with Transvideo products are sold “AS IS” without warranty of any kind by Transvideo, including any implied warranty regarding merchantability or fitness for a particular purpose.
  • Page 46 This warranty does not cover units sold to military operations or avionics. These uses are covered only by such specific warranty as Transvideo may issue with such sales. This Limited Warranty does not apply to accessories or consumables for the product, which are sold “AS IS”, without warranty of any kind by Transvideo.
  • Page 47 OTES Operator Manual Rev 2.0 Page 47...
  • Page 48 TRANSVIDEO S.A. Zone Industrielle F-27135 Verneuil sur Avre Tel +33 2 3232 2761 Fax +33 2 32 601479 Email info@transvideo.fr http://www.transvideo.eu http://www.transvideointl.com Rev 2.0 June 2011 751TS0027...
