Summary of Contents for Skymaster DCX 10

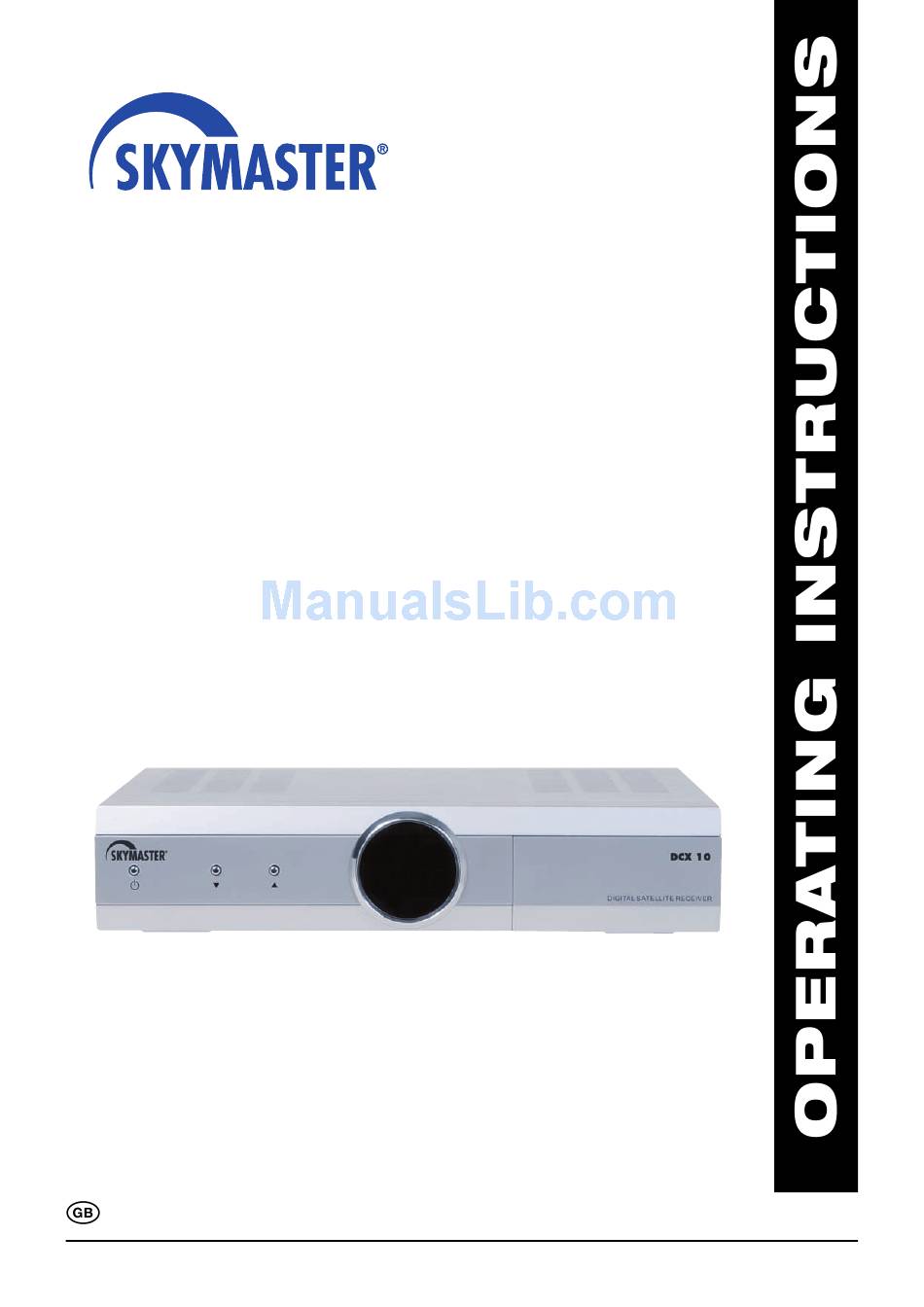

- Page 1 Digital Satellite Receiver DCX 10 39730...
- Page 2 DCX 10 AC3/SURROUND DISH 230 V...
-
Page 4: Table Of Contents
The SKYMASTER ® DCX 10 is designed to receive uncoded digital TV, but can also receive coded channels if a respective Cryptoworks smart card is used. Please note that a satellite system suitable for digital use is required for SKYMASTER ®... -
Page 5: Safety Information
ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. Hiermit erklärt SM Electronic GmbH, dass sich Artikel-Nr. 39730 in Übereinstimmung mit den grundlegenden Anforderungen und den anderen rele- vanten Vorschriften der Richtlinien 89/336/EWG und 73/23/EWG befindet. -
Page 6: Configuration And Operation
5. Configuration and Operation 5.1 Prior to Configuration Information: A menu is a text field which appears on the TV screen. Selectable menu options are usually colour highlighted. Options which are not colour highlighted cannot be altered or set. The options and settings of most menus are explained at the bottom of your TV screen. -
Page 7: Antenna Setup
5. Configuration and Operation 5.2.2 Antenna Setup Select the option “Antenna Setup” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. A value can be set for these items: “SAT”, “LNB Frequency”, “22kHz Tone”, “DiSEqC”, “LNB Power”... -
Page 8: Motor Control
5. Configuration and Operation Motor Control It is possible to select various factory-set satellites under the menu item “Satellite”. The preset transponders are displayed in the following order under “Transponder”: Transponder Number, Frequency, Polarity (V or H) and Symbolrate. It is possible to change the position of your motor via the “Move” function. Use the left and right-hand arrow buttons for this task. -
Page 9: Channel Search
5. Configuration and Operation 5.2.3 Channel Search Select the option “Channel Search” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. A value can be set for these items: “Satellite“, “Tune Method”, “Transponder”, “Frequency”, “Symbolrate”, “Polarity”, “FEC”, “Function”... -
Page 10: Setup Lock/Pin
5. Configuration and Operation 5.2.4 Setup LOCK/PIN Select the option “Setup Lock/PIN” in the “Setup Menu” and press the OK button. A window with the following menu items appears on the screen. Subsequently carry out the setting for “Menu Lock”. It is possible to change your PIN under the menu item “Change Password”. -
Page 11: Setup Via The Main Menu
5. Configuration and Operation 5.3 Setup via the Main Menu It is possible to access the following menu options via the main menu: “Program Guide”, “Sort Programs”, “Language”, “Edit Channels”, “Scramble System”, “About Version”. • Press the MENU button. • Scroll up and down the list via the CH buttons. -
Page 12: Sort Programs
5. Configuration and Operation 5.3.2 Sort Programs Select the option “Sort Programs” in the “Main Menu” and press the OK button. The following window appears on the screen: It is now possible to access the channels which have been sorted alphabetically. •... - Page 13 5. Configuration and Operation - Select favourites Use the CH / , Vol buttons and the OK button to select the respective channel in the favourite column. Then use the CH buttons and the OK button to allocate the channel in the category overview which has just appeared.
-
Page 14: Scramble System
5. Configuration and Operation 5.3.5 Scramble System Use your receiver to enjoy not only free-to-air programs but also ones coded with Cryptoworks (if you possess a smart card from a program provider). Select the option “Scramble Systems” in the “Main Menu” and press the OK button. The following window appears on the screen (only works if a smart card has been inserted into the card slot): General Card Information It is possible to see the following current card information under the menu item “General Card... -
Page 15: Directly Accessible Information
5. Configuration and Operation 5.4 Directly Accessible Information 5.4.1 Program Specific Data Press the INFO button to receive information about the current program. Information about the current program appears. Press the INFO button again to receive more detailed information (only functions if the channel provides the respective information). - Channel list for TV/radio Press the TV/Radio button to access the channel list while watching a program. - Page 16 5. Configuration and Operation - Favourites List Press the FAV button while watching TV or listening to the radio to access a list with your favourite channels or stations (TV or radio). If favourite channels/stations have not been entered into a respective list (see above), there will be no reaction on the screen.
-
Page 17: Troubleshooting
6. Troubleshooting There can be various reasons for problems during device operation. Please observe the following information when troubleshooting. Problem Possible Reason Remedy Front LED display does not light up. Mains plug not connected. Connect the plug to the mains socket correctly. No picture or sound. -
Page 18: Performance Features
(A) 0900 400 222 (€ 0,64/Min.) Monday to Sunday from 8.00 - 22.00 Uhr SM ELECTRONIC GmbH Waldweg 2 D-22145 Stapelfeld/Braak Internet: www.skymaster.de E-Mail: info@sm-electronic.de Subject to technical changes ASTRA, EUTELSAT, TÜRKSAT, DiSEqC and Skymaster are registered trademarks. GB 16... - Page 19 GB 17...
- Page 20 9903973002-BDA-GB-09/2005...
