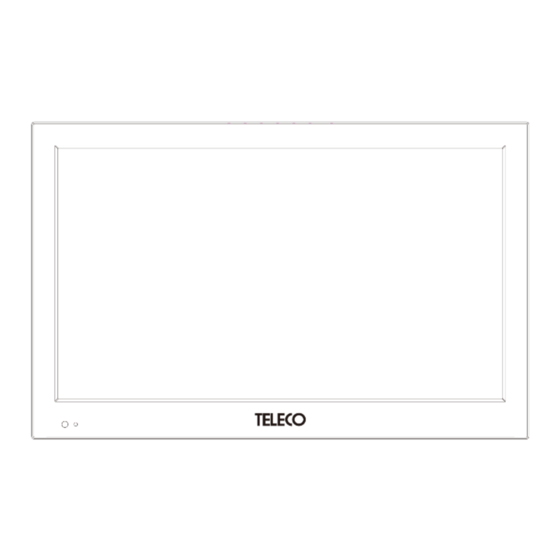

Teleco TY2/19D Instruction Manual

With built-in dvb-t/s2/dvd
Hide thumbs
Table of Contents

Advertisement

Quick Links

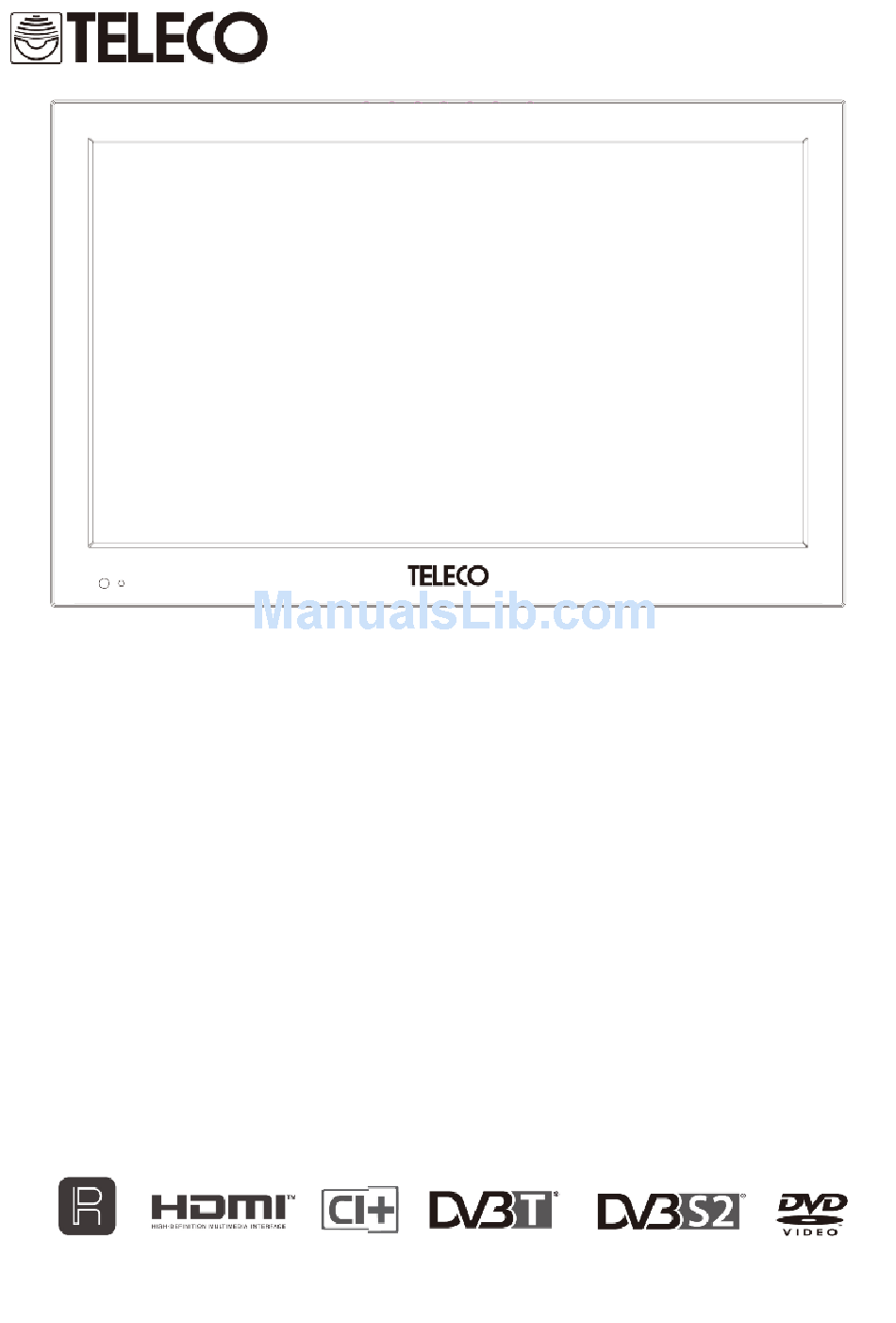

GB-1
INSTRUCTION MANUAL
TY2/19D
TY2/22D
with built in DVB-T/S2/DVD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY2/19D and is the answer not in the manual?

Questions and answers

Summary of Contents for Teleco TY2/19D

  • Page 1 GB-1 INSTRUCTION MANUAL TY2/19D TY2/22D with built in DVB-T/S2/DVD...

  • Page 3: Safety Warnings

    LED TV with built in DVB-T/S2/DVD SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE Take note of the following safety information which appears on the back of this TV. CAUTION! TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVERS OR SCREWS. NO USER SERVICEABLE PARTS INSIDE.

  • Page 4: Table Of Contents

    Contents • Safety Warnings .....................1 • Contents ......................... 2 • Chapter 1 Introducing the LED TV Package Contents...................... 3 LED TV Controls......................4 LED TV Connections....................5 Remote Control.......................… 6 • Chapter 2 Installing the LED TV Wall Mounting......................7 Preparing your LED TV for use …................

  • Page 5: Chapter 1 Introducing The Led Tv

    Chapter 1 Introducing the LED TV INTRODUCTION Thank you for purchasing this LED TV with DVD Player which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product but please take the time to read these instructions carefully: they have been written to ensure you get the very best from your purchase.

  • Page 6: Led Tv Controls

    LED TV controls Front/Top/Right View and Controls The LED light indicates when the LED TV is on. Infrared Receiver SYMBOL DESCRIPTION STANDBY BUTTON, Turns the LED TV on / sets it to standby mode. INPUT BUTTON, Used to select from among different input signal sources.

  • Page 7: Led Tv Connections

    LED TV connections Left/Right Side Bottom View and sockets DESCRIPTION 1 12 V DC in Connect the DC power lead to this socket. 2 USB in Connects to USB device. 3 HDMI in Connects to devices with HDMI interface 4 PC in Connects to a PC or other devices with a VGA interface.

  • Page 8: Remote Control

    Remote Control • Turns the TV on / sets it to standby • Auto-adjusts the picture on the TV in PC mode. mode. Loads/ejects disc in DVD mode • Switches between different preset picture modes. • Mutes / restores TV sound. •...

  • Page 9: Chapter 2 Installing The Led Tv

    Chapter 2 Installing the LED TV Wall Mounting How to remove the TV Stand If you would prefer to mount your new TV on a wall instead of on the base, please remove the TV stand and follow the instructions included in the wall mounting kit (not included). Read all the instructions before proceeding with stand removal.

  • Page 10: Preparing Your Led Tv For Use

    Preparing your LED TV for use How to set up the TV Use an antenna cable to connect the RF signal to the LED TV RF IN terminal (refer to page 9). Connect one end of the DC source unit to the back of the TV, and the other end of the DC source unit to the power source.

  • Page 11: Connecting A Tv Cable Or An Antenna

    LED TV Connecting a TV Cable, Antenna or Dish For information on connection procedures refer to the owner’s manuals of any external devices. When connecting external devices do not connect any AC power leads to mains power sockets until all other connections are completed.

  • Page 12: Connecting External Devices

    Connecting External Devices Right Side View of TV Bottom Side View of TV Mass Storage Device VGA AUDIO cable VGA Cable A/V EQUIPMENT SCART Cable Left Side View of TV HEADPHONES mini AV Cable DVD PLAYER mini component Cable TV CABLE BOX SATELLITE RECEIVER Mass Storage Device AV RECEIVER...
  • Page 13 PC to the PC AUDIO IN sockets on the LED TV. The best resolution for this TV is as follows: 1360 pixels (horizontal) x 768 pixels (vertical) - TY2/19D 1920 pixels (horizontal) x 1080 pixels (vertical) - TY2/22D If the PC is set to auto-idle after a set time, then the TV may also enter standby mode due to no input signal being detected.

  • Page 14: Using The Ci Plus Slot

    Using the CI Plus Slot How to connect a CI (Common Interface) plus card CARD FACE FRONT NOTE: The Conditional Access Module (CAM) does not come with the TV set. It can only be obtained when you subscribe to service providers like PayTV or other service providers When you use the CI plus slot for the first time there CI (Common Interface) slot...

  • Page 15: Installation Guide Setup

    Installation Guide Setup When you switch on the TV for first time, the DVB-T Auto Installation menu appears on the screen. Press to select Home Mode and press GREEN to go to the Next Page to select the Country, Language and Auto Power Off settings; lastly, select the Auto Search type to start the tuning program. You can press EXIT to quit the screen or press RED to go to the Previous Page to re-select the previous setting.

  • Page 16: Chapter 3 Using The Tv Features

    Chapter 3 Using the TV Features Basic operation Selecting the input source Selecting an input signal source You can select an input signal source by pressing the INPUT button on the TV control panel: press it and the onscreen display menu shows the diagram illustrated below. Then press the CH+/CH- buttons on the control panel or the UP/DOWN buttons on your remote control to choose an input signal source.

  • Page 17: Basic Tv Operation

    Customising TV Operation Basic TV operation Program Guide MENU (only available in DVB-T): Allows you to customise the Program Guide menu. Press the EPG button to display the Electronic Program Guide information menu. Use the NAVIGATION buttons to highlight an individual EPG item. Press the UP/DOWN buttons to select an item.
  • Page 18 Customising TV operation Basic TV operation Selecting the Media Source If a USB device is connected you can select the Media source from the input menu. Photo/Music/Movie/e-Book playback Press the LEFT/RIGHT button to toggle among the Photo, Music, Movie, and e-Book browsers. Select the USB disk and partition.

  • Page 19: Customising The Picture Settings

    Customising TV operation Menu Operation All functions can be operated via the remote control or operated partially via the keyboard. The main menu is controlled via the MENU, OK and EXIT buttons. Use the MENU button to open the menu or go to a higher level. There are five main menu pages on the DVB-T system: Picture, Sound, Channel, Feature, Setup.

  • Page 20: Customising The Sound Settings

    Customising TV Operation Customising the Sound Settings Sound MENU: Allows you to customise the sound options and effects. The Sound Setup menu includes the following options: Sound Mode Allows selection of the following sound enhancement options: *User/Standard/Movie/Music/Speech *User: allows your preferred Bass/Treble settings to be adjusted and saved. Bass Controls the relative intensity of lower-pitched sound in User mode.

  • Page 21: Customising The Channel Settings

    Customising TV operation Customising the Channel Settings Channel MENU: Allows you to search, edit and label channels. The Channel menu includes the following options: Channel Management Allows you to Delete, Rename, Swap, Lock and Skip channels. Select the programs to be locked, deleted or skipped and press the RED, GREEN or YELLOW button to mark them as follows.

  • Page 22: Customising The Feature Settings

    Customising TV operation Customising the Feature Settings Feature MENU: Allows you to set up a variety of features: Lock, Language, Clock, Sleep Timer, Auto Power Off, Hearing Impaired, CI Info and PVR/Timeshift. The Feature menu includes the following options: Lock Lock Channel: Allows channel to be locked: a password is required.
  • Page 23 Customising TV operation Customising the Feature Settings The PVR/Timeshift submenu includes the following options: Record File Format: Allows user to select the recording file format, either TS (Transport Stream) or PS (Program Stream). The difference lies in bit error compatibility. *This option may not be available on some TV models. Partition Select: Allows user to view the partitions connected to the system and the Total Size and Free Size of the partition.

  • Page 24: Customising The Setup Settings

    Customising TV operation Customising the Setup Settings Setup MENU: Allows you to set up a variety of features: OSD Timer, Auto SCART, PC Setup, Blue Screen, Home Mode, Reset TV Setting, Software Upgrade. The Setup menu includes the following options: OSD Timer Sets up OSD Timer (i.e.
  • Page 25 Remote control with S2 input source • Turns the TV on and sets it to standby. • Mutes / restores TV sound. • Switches between different preset picture modes. • Displays current TV status info, TV • Switches between different preset Channel, input source, etc.

  • Page 26: S2 Basic Functions

    Customising TV operation S2 Basic Functions Program information Press the D.DISP button once to display a banner on the screen; press the button again while the banner is still displayed and it will show detailed channel information such as Channel, Satellite, Transponder, PID, Signal Intensity and Signal Quality. Favourite List If you press FAV on the remote control while outside the menu, the favourite group list will be displayed on the...

  • Page 27: Customising S2 Edit Channel Settings

    Customising TV operation Customising S2 Edit Channel Settings Press the DVB-S2 DVD SETUP/EXIT button to access the S2 menu. Edit Channel MENU Allows you to operate the TV Channel List, Radio Channel List or Delete All functions. The Edit Channel menu includes the following options: TV Channel List Radio Channel List Press the corresponding buttons to display the FAV list, Lock, Skip, Move or Edit the desired Channel.

  • Page 28: Customising S2 Installation And Game Settings

    Customising TV operation Customising S2 Installation and Game Settings Installation MENU Allows you to set up a variety of features: Antenna Connection, Satellite List, Antenna Setup, Single Satellite Search, Multi Satellite Search, TP List. The Installation menu includes the following options: Antenna Connection You can select the antenna connection mode LNB1 of Fixed Antenna or Motor-driven Antenna.

  • Page 29: Customising S2 System Setup Settings

    Customising TV operation Customising S2 System Setup Settings System Setup MENU Allows you to set up a variety of features: Language, TV System, Display Setting, Local Time Setting, Timer Setting, Parental Lock, OSD Setting, Favorite, Other. The System Setup menu includes the following options: Language You can set the OSD Language, First Audio Language, Second Audio Language and Teletext Language.

  • Page 30: Customising S2 Tool And Rec Settings

    Customising TV operation Customising S2 Tools and Rec Settings Tools MENU Allows you to set up a variety of features: Information, Factory Setting, S/W Upgrade by OTA, Common Interface, Upgrade By USB, Dump data to USB, Media Player and Remove USB device safely. The Tools menu includes the following options: Information: You can display the DVB-S2 SW version and date, including bootloader, HDCPKey, maincode, seecode, Radioback, bootup_logo, cipluskey, defaultdb and userdb.

  • Page 31: Using The Dvd Features

    Chapter 4 Using The DVD Features OPERATING THE DVD PLAYER Inserting a Disc Place a compatible DVD disc into the disc slot ensuring that the DVD is inserted correctly. The disc will be loaded automatically. The TV reads the disc and displays the opening menu. If there is no disc placed in the disc slot in DVD mode, ‘No Disc’...
  • Page 32 Remote control with DVD input source • Loads / ejects disc in DVD mode. • Turns the TV on and sets it to standby. • Switches between different preset • Mutes / restores TV sound. picture modes. • Switches between different preset •...

  • Page 33: Customising Dvd Operation

    Customising DVD Operation Basic Operation Playing DVDs When you load a DVD it will start to play automatically and pause upon the DVD menu appearing on the screen. This enables you to select from various play options such as different subtitles, trailer and language options.
  • Page 34 Customising DVD Operation Basic operation Subtitles (DVD etc.) Some DVD discs contain subtitles in several languages. To access the subtitles press the SUB-T button repeatedly to step through the available subtitle languages until the desired language is found. The subtitle in the selected language appears shortly after selection.
  • Page 35 Customising DVD Operation Basic Operation Title/Chapter/Track/Time Display (DVD/CD etc.) The time display function is used to display the current elapsed time/remaining time. The display box is shown at the top of the screen. Press the D.DISP button repeatedly to cycle through the elapsed/remaining time information.
  • Page 36 Customising DVD Operation Basic Operation Program The program function can be used to play your DVD titles and chapters/CD tracks/files in a pre-programmed order. A sequence of up to twenty items (2 pages) can be set. An item can be set more than once. It is not necessary to program all the slots in the sequence. 1.
  • Page 37 Customising DVD Operation Basic Operation Slow motion (DVD) - While playing the disc, you may use the slow motion function. There are 4 slow motion speeds. Press the SLOW button to toggle between the different speeds (1/2, 1/4, 1/8, 1/16, Play). To resume normal playback while in slow motion mode just press PLAY/PAUSE.

  • Page 38: Customising Dvd Function General Setup

    Customising DVD Operation DVD Function General setup SYSTEM SETUP The DVD SETUP menu allows you to adjust and control the TV while playing DVDs, Audio CDs, and Photo CDs. To access the DVD SETUP menus, press the DVD SETUP button. Press the UP/DOWN buttons to access the different menus and available options.
  • Page 39 Customising DVD Operation DVD Function General setup Audio Setup Page Speaker Setup Downmix -To mix 5.1 channels down to two channels choose between LT/RT and Stereo. LT/RT: the sound experience will be like a movie theatre if the original movie disc was encoded in Pro Logic Dolby Digital format.
  • Page 40 Customising DVD Operation DVD Function General setup Preference Page TV Type Allows you to select one of three standard TV types: PAL/MULTI/NTSC. Audio There are 8 languages. Press the UP/DOWN buttons to toggle between them. The available languages are: English/French/Spanish/Portuguese/Italian/German/Dutch/Greek. NOTE: If the selected language is not included in your DVD disc content, the default language of the disc will automatically be selected.

  • Page 41: Troubleshooting

    Troubleshooting To assist in locating possible faults use the help guide below. TROUBLESHOOTING No picture, no sound. Check that TV is correctly plugged in. Check the TV is connected to a suitable power source. Check the power supply is turned on. No picture.

  • Page 42: Specifications

    Specifications The specifications of the television you have purchased may vary from those stated in this table due to technical innovations. TY2/19D TY2/22D Size 18.5” 21.5” Picture system Audio system Display resolution 1366x768 1920x1080 Speaker 3W+3W I/O port HDMIx2 PC / VGA+PC Audio...

  • Page 43: Ce (Eu) Certification

    CONFORMITY CERTIFICATE The manufacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: TY2/19D, TY2/22D which are the subject of this certificate, conform to the following norms: EN 55013: 2001 + A1: 2003 + A2: 2006...
  • Page 44 1_08_2013...

This manual is also suitable for:

Ty2/22d
