ANTHRACITE COAL STOVE

RS-96S

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the RS-96S and is the answer not in the manual?

Questions and answers

Summary of Contents for Allegheny RS-96S

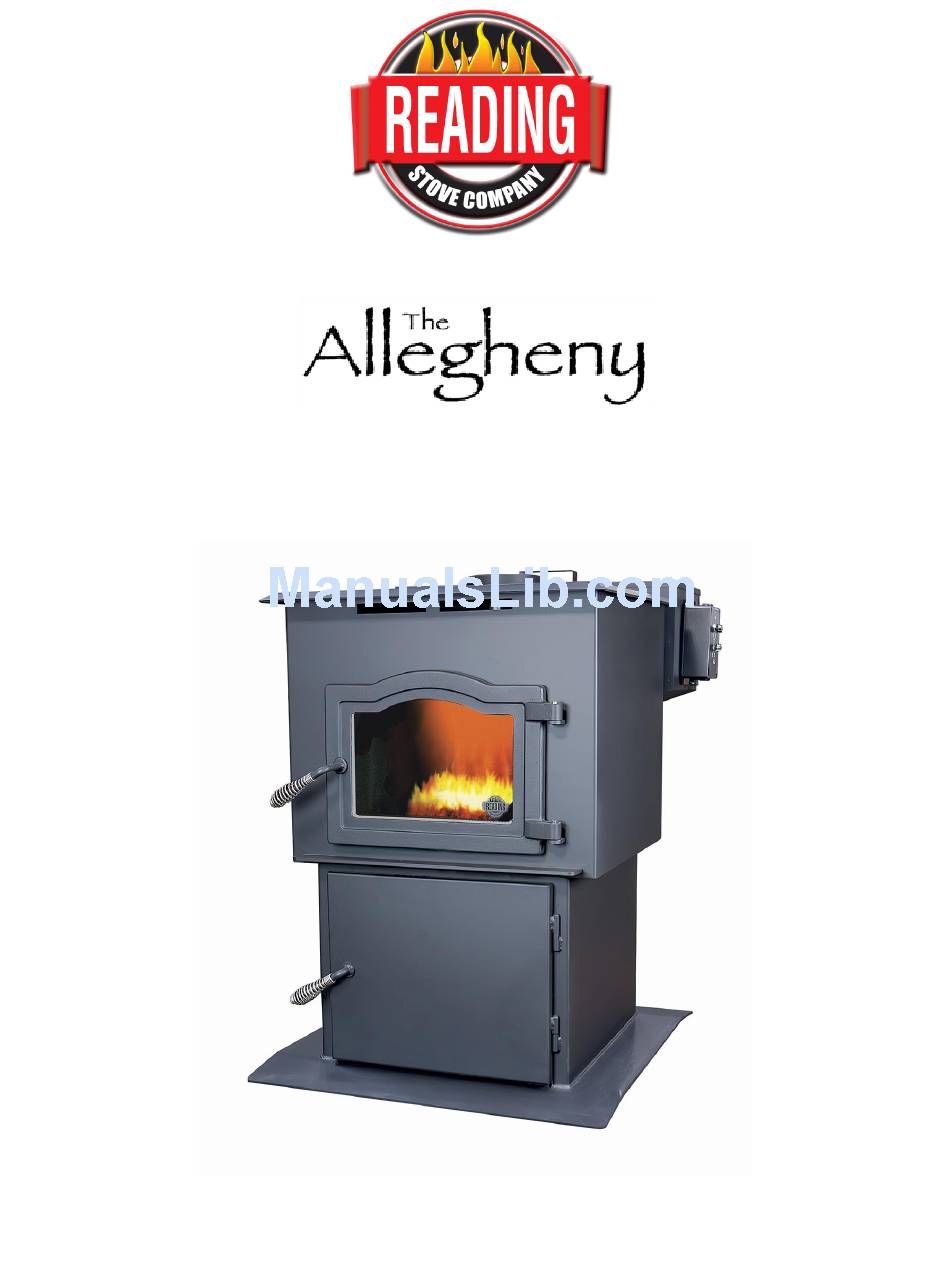

Page 1 ANTHRACITE COAL STOVE RS-96S OWNER’S MANUAL...
Page 2: Table Of Contents
Allegheny RS-96S Table of Content Section 1: Caution and Safety Notice………………………….…..3 Section 2: Clearance and Dimensions………………………….…..4 Section 3: Flue System/Direct Vent/Power Vent.……………….….5 Section 4: Floor and Wall Protection………………………….…..11 Section 5: Installation and Placement………………………..….12 Section 6: Operating Instructions………………………………..13 Section 7: Proper Draft…………………………………………..15 Section 8: Maintenance and Care…………………………………16...
Page 3: Section 1: Caution And Safety Notice
Reading Stove Company stoves are NOT approved for use in manufactured homes. The Allegheny is equipped with a 455 CFM Blower which plugs into the Fan Limit Switch located at the bottom rear of the stove. The Fan Limit Switch controls the operation of the Convection Blower via a sensor inserted into the air chamber/plenum on the side of the stove.
Page 4: Section 2: Clearance And Dimensions
Allegheny RS-96S FUEL: Premium Reading Anthracite Company Rice or Buck-Sized Coal. Contact your dealer or coal supplier for proper selection. THIS STOVE IS APPROVED TO BURN ANTHRACITE COAL ONLY. Section 2: Clearance and Dimensions Website: www.ReadingStove.com Facebook & Twitter: @ReadingStove...
Page 5: Section 3: Flue System/Direct Vent/Power Vent
Allegheny RS-96S Section 3: Flue System/Direct Vent/Power Vent WARNING: DO NOT connect this stove to a flue system serving another heating appliance. Also, stoker stoves must always be installed with a BAROMETRIC DAMPER. A damper is available from your dealer.
Page 6 Allegheny RS-96S Draft Control: The draft control regulates the draft condition and prevents excessive draft. WARNING: Do not defeat or tamper with Fume Switch circuit. Do not defeat the free operation of the Draft Control door. SETUP AND ADJUSTMENT - The amount of draft is not controlled and is limited by the counterweight setting of the Draft Control.
Page 7 Allegheny RS-96S DIRECT VENT ARRANGEMENT – REAR VENT: DIRECT VENT ARRANGEMENT – TOP VENT: Website: www.ReadingStove.com Facebook & Twitter: @ReadingStove...
Page 8 Allegheny RS-96S BACK VIEW OF ALLEGHENY: Website: www.ReadingStove.com Facebook & Twitter: @ReadingStove...
Page 9 Allegheny RS-96S SIDE VIEW OF ALLEGHENY: Website: www.ReadingStove.com Facebook & Twitter: @ReadingStove...
Page 10 Allegheny RS-96S DIRECT VENT INSTALLATION LOCATIONS Location of the termination of venting systems should be installed in accordance with the National Solid Fuel UL Code 1482, manufacturer’s recommendations and/or local codes which are applicable. See requirements below or refer to installation location, Diagram A, for typical locations.
Page 11: Section 4: Floor And Wall Protection
Allegheny RS-96S Section 4: Floor and Wall Protection Position your stove on an approved non-combustible floor protector. If the base floor is constructed of combustible material such as hardwood, carpet, or linoleum, floor protection MUST be placed between the unit and the combustible material.
Page 12: Section 5: Installation And Placement
Allegheny RS-96S Definitions: Thermal conductance = C = (hr.) (ft2) (°F) (m2)(°K) Thermal conductivity = k = (Btu) (inch) = (hr.) (ft2) (°F) (m) (°K) (hr.) (ft.) (°F) Thermal resistance = R = (ft2) (hr.) (°F) = (m2) (°K) The methods and parts to be employed for installing the room heater at reduced clearances (i.e. optional shields, etc.)
Page 13: Section 6: Operating Instructions
Allegheny RS-96S D: BAROMETRIC DAMPER A BAROMETRIC DAMPER must always be installed properly in conjunction with a stoker stove. Dampers are available through dealers or plumbing/heating distributors. E: ELECTRICAL Caution should be exercised when routing of power supply cords. All power supply cords should be kept away from unit to prevent damage.
Page 14 Allegheny RS-96S C: TEMPERATURE CONTROL AND FIRE ADJUSTING Reading Stove Company recommends using an approved thermostat to regulate the stoves operation and heat output. An approved thermostat will provide the most comfortable and efficient way to operate a coal stove. Refer to the individual operational manuals for Pel-Trol or Reading Stove Company Thermostat for operational instructions.
Page 15: Section 7: Proper Draft
Allegheny RS-96S D: BURN TIME How long can a coal stove run on a full hopper of coal? The length of time a coal stove can burn unattended will vary. Burning 60 to 80 pounds per day in the middle of the heating season is quite possible. Early fall or late spring less.
Page 16: Section 8: Maintenance And Care
Allegheny RS-96S 1. Air leak in stove or chimney. (Cleanout doors commonly used at the bottom of chimneys must not leak.) 2. Stove door gaskets are faulty or doors are not closed tightly. 3. Stovepipe, stovepipe outlet, or chimney partially or fully blocked.
Page 17 Allegheny RS-96S Remove all ashes, loose FLY ASH and clean the inside of the stove walls with a wire brush and a vacuum. Coating the inside of the stove with baking soda will help in absorbing moisture and neutralizing acidic reaction to dampness.
Page 18: Section 9: Warranty Information
Allegheny RS-96S E. BLOWER ASSEMBLY: Convection Blowers require yearly maintenance. Refer to the Manufacturers Owner’s Manual for proper maintenance and the use of proper lubricating oil. FAILURE TO MAINTAIN CONVECTION BLOWERS WILL CAUSE MOTORS TO FAIL NOTE: This registration information must be on file with Reading Stove Company for this warranty to be valid.
Page 19 Allegheny RS-96S SERVICE LABOR RESPONSIBILITY: In furnishing replacement parts, Reading Stove Company assumes no responsibility for any labor expenses, for service removal or reinstallation. If defective in material or workmanship, and if removed by the owner within the warranty period, Reading Stove Company will, at its opinion, repair or replace the product as described below.
Page 20 Pottsville, Pennsylvania that provides fuel for coal stoves. The Allegheny RS-96S Coal Stove is designed to burn Premium Reading Anthracite Company Rice or Buck-Sized Coal. See your local dealer or coal supplier to purchase reliable coal from the Famous Reading Anthracite today! If they don’t carry our product, ask them to!
Page 21: Section 10: Warranty Registration Form
Section 10: Warranty Registration Form Allegheny RS-96S Purchased by (Name):__________________________________________________ Address:_____________________________________________________________ City:____________________________ State:_____________ Zip:________ Telephone:___________________________________________________________ Email: (Optional)______________________________________________________ DEALER INFORMATION Purchased from (Dealer):________________________________________________ Address:_____________________________________________________________ City:____________________________ State:_____________ Zip:________ UNIT INFORMATION Purchase Date:________________________________________________________ Serial Number:________________________________________________________ This registration information must be on file for the warranty to be valid.
Page 22 This Page Intentionally Left Blank...
Page 23: Section 11: Satisfaction Survey
Section 11: Satisfaction Survey In an effort to improve our customer service and products, please fill out the below survey and return it with your Warranty Registration Form to Reading Stove Company, P.O. Box 1200, Pottsville, PA 17901 within thirty (30) days from the date of purchase.
Page 24 6. Will this product replace another type of heating source? □ Wood □ Wood Pellets □ Electricity □ Propane □ Natural Gas □ Oil 7. How would you rate your Reading Stove Company Authorized Dealer? □ Excellent □ Very Good □...
