Summary of Contents for Uchida Yoko F-45N

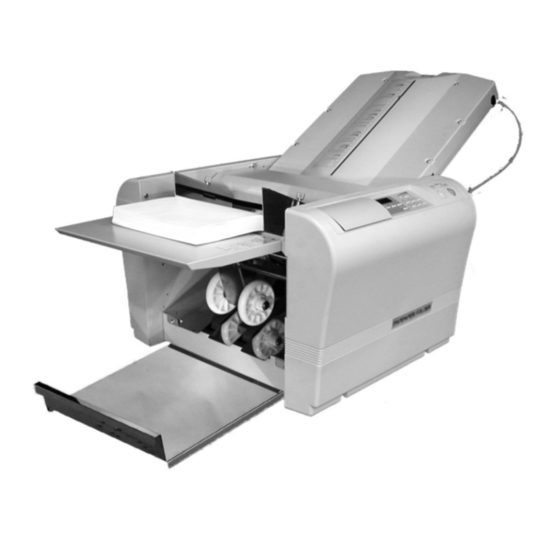

- Page 1 OPERATION MANUAL Paper Folder F-45N/F-43N Read this Operation Manual before using this machine. Keep...
- Page 2 the Operation Manual with care in a fixed storage place so that it may be available whenever required. November 22, 2001...
-
Page 3: Safety Instructions
Safety Instructions Definition of Symbols and Notes In this manual following names and signs stand for possible dangers. Danger This Symbol stands for immediate danger threatening the life and health of persons. Disregarding these instructions may cause severe damage to health and even serious injuries. - Page 4 Caution Do not let hairs, a necktie, or necklace hang above the drive of the machine. Doing so may cause an injury. Do not put the machine on an unstable place such as a shaky stand and a slant floor. Doing so may cause the machine to drop or fall down, causin g an injury.
-
Page 5: Table Of Contents
Introduction Thank you very much for purchasing the Paper Folder F-45N/F-43N. This machine enables users to achieve greater efficiency in clerical work by releasing them from paper-folding work that has manually been performed in the past. Please read this Operation Manual carefully before using this machine. - Page 6 (B) Fine Adjustment..................... 16 Fine Adjustment for Table 1..................17 Fine Adjustment for Table 2..................18 (9) Storage.......................... 19 (A) Storage......................... 19 (B) Cancellation of storage ................... 20 (C) Cancellation of total storage ..................21...
-
Page 7: Introduction
Skew adjustment memory, paper jam detector, four-digit counter with addition/subtraction modes, and automatic paper size detector (A3, B4, A4, A5, B6 and B5 sizes) Storing special fold data for outer norm paper: three kinds (F-45N only) Additional functions: Paper ejection roller position selective automatically in 3 steps (F-45N... -
Page 8: Accessories
(2) Accessories Make sure that the following accessories are included in the package after opening it. Contact your dealer immediately if there are missing accessories. Accessories Number Figure Table 1 Table 2 Power cord Right 1 Paper support auxiliary paper feed guide, right and left Left 1 Machine cover... -
Page 9: Part Name
(3) Part Name (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) Number Name Number Name Roller cover (11) Paper feed table Left side cover (12) Table 2 Paper feed roller (13) Right side cover Paper guide (14) Paper feed table lever (F-43N only) Auxiliary feed table (15) Table 1 socket... - Page 10 Table 1 (19) Circuit breaker (10) Control panel...
-
Page 11: Designation And Functions Of Operation Panel
Paper ejection roller move lamp (only for F-45N). (17) Paper length input mode lamp It is on when paper length is input (only for F-45N). (18) Counter input mode lamp It lights when reduction is indicated on the counter. (19) Paper size input mode lamp It lights when paper size is indicated. -
Page 12: Indication Of The Counter
(5) Indication of the Counter (A) Addition Counter The number indicated on the counter increases by one each time a sheet of paper is folded. Press the Select key and select the Counter Input Mode Lamp Press the Clear/Reset key and reset the number at zero (0). -
Page 13: Preparation
(6) Preparation Install Table 1 and 2 at the machine. Insert the front notched part of Table 1 into the stud (1) of the machine and drop its rear notched part on the stud. (2). Insert the plug into the connector (3). - Page 14 Insert the power cord into the outlet. Caution: Be sure to undo before use. Do not use any power cord other than provided as an accessory. The shape of outlet differs according to the country. Insert the power cord into the inlet. When the power switch is on, the stoppers of Table 1 and 2 move to the origin.
-
Page 15: How To Use
(7) How to Use (A) Standard Folding of Standard-size Paper ? F-45N How to perform standard folding of standard-paper ª After the power switch is on… Set the standard-size paper. Loosen the paper guide setscrew and set the paper guide to fit the width of the paper. - Page 16 Selecting of folding type: One of the six folding types (Single, Gate, Letter, Zigzag, Double, Parallel Fold-out) can be selected. Press the desired folding type key. Example: Single folding using A3 size paper. Test folding: If the Test key is pressed, two sheets will be folded without counting.
-
Page 17: (B) Standard Folding Of Non-Standard-Size Paper
Press the Select key and select the Paper Length Input Mode. (F-45N) Input the paper length using the Numerical keys. (F-45N) Setting the paper ejection roller. ? F-45N Select the paper ejection roller move mode using the Select key. - Page 18 Set the designated position using the +/– key. Indication Standard- B4, A4 B5,A5, B6 size paper Non-standard-size paper Setting the designated position Setting the paper ejection roller: ? F-43N It moves to the position to fit the paper size. Advice Concerning positioning of the paper size and the paper ejection roller, refer to “Roller position indication”...
-
Page 19: (C) Cross Folding
(C) Cross Folding Cross folding refers to performing the double parallel, letter, or other types of folds for the sheets of paper folded using the single folding method. Cross folding can be used if, for example, the sheet of A3-size paper folded using the double parallel folding method is still too large to be enclosed in envelope. -
Page 20: Adjustment
(8) Adjustment (A) Slant Adjustment If the folding position is slanted because the edges of the paper are slanted or for other reasons, it can be adjusted using the slant adjustment knob. (B) Fine Adjustment Move the stopper using the stopper fine adjustment knob. -
Page 21: Fine Adjustment For Table 1
Fine Adjustment for Table 1 Direction to turn the Table 1 Fold type Plane (A) fine adjustment knob Single Table 1 is not used folding Long Gate folding Short Long Letter folding Short Long Zigzag folding Short Long Double parallel folding Short Long... -
Page 22: Fine Adjustment For Table 2
Fine Adjustment for Table 2 Direction to turn the Table 2 Fold type Plane (B) fine adjustment knob Long Single folding Short Long Gate folding Short Long Letter folding Short Long Zigzag folding Short Long Double parallel folding Short Long Fold-out folding Short... -
Page 23: Storage
(9) Storage (A) Storage ? F-45N Storage of folding result can be input in the Memory 1/2/3 key and the Fold type key. What can be stored is the positions of the Table 1 and 2 stoppers, the position of the paper ejection roller and folding speed. -
Page 24: (B) Cancellation Of Storage
(B) Cancellation of storage Cancel the storage input in the key. Point: The machine will be enabled to perform standard folding set by the manufacturer. Select the key in which the storage is to be cancelled. Point: The lamp of the key in which the storage is input flashes. Keep pressing the Clear/Reset key and release immediately when the alarm rings once. -
Page 25: (C) Cancellation Of Total Storage
(C) Cancellation of total storage Cancel all storage input in all the keys. Point: The machine will be enabled to perform standard folding set by the manufacturer. Keep pressing the Clear/Reset key and release immediately when the alarm rings twice. The lamp of the key of which the storage has been cancelled will light.
