Summary of Contents for Meg MEG5151

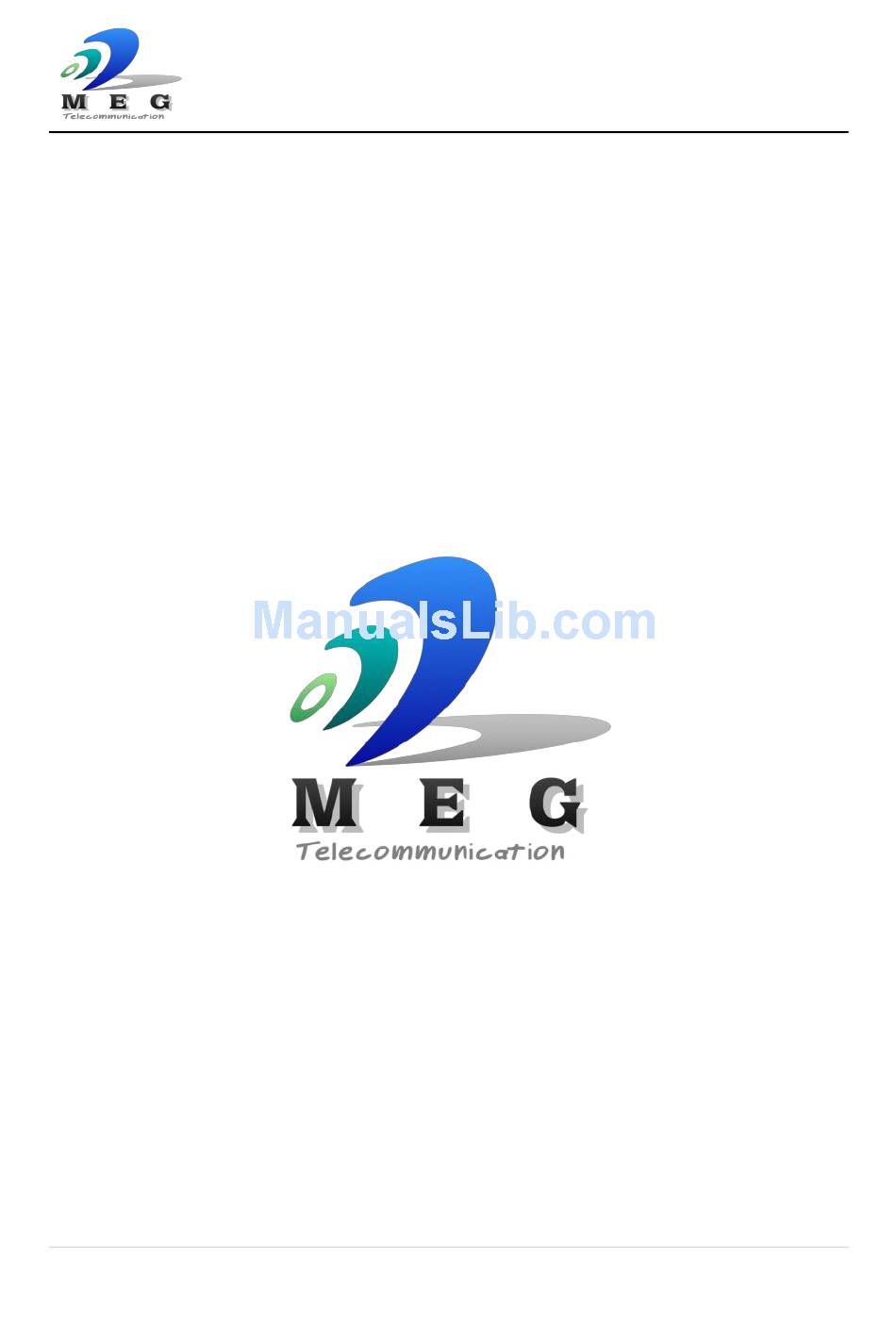

- Page 1 MEG5151 Handheld Reference Guide UHF HANDHELD READER Instruction Manual MEG 5151 P a g e...
- Page 2 MEG5151 Handheld Reference Guide P a g e...
- Page 3 MEG5151 Handheld Reference Guide Description H series handheld RFID reader (also known as portable reader for its light to carry character) bases on the high frequency ARM hardware & runs on common WinCE 6.0 OS software platform. With build-in Barcode Scanning Module, UHF RFID system, GPRS & Wi-Fi Module and etc modules.
- Page 4 MEG5151 Handheld Reference Guide 6. UHF RFID System: High read/write performance from 0 to1 m adjustable range; 7. Barcode scanning Module: Use Symol Module with stable & creditable performance 8. Rugged construction for dust & water-proof 9. Guarantee Period ：12 Months after delivery；...
- Page 5 MEG5151 Handheld Reference Guide 1D Laser Scanner (Symbol SE955) Optical resolution: 0.005 in. minimum element width Roll: ±35° (vertical) Pitch angle: ±65° (normal) Skew tolerance: ±50° (normal) Ambient light: Sunlight: 10,000ft.candles (107,640Lux) Artificial light: 450ft.candles (4,844Lux) Scan rate: 50±6 scans/sec (bidirectional) Scan angle: 46.5°...
-
Page 6: Physical Characteristics
MEG5151 Handheld Reference Guide Physical characteristics Dimensions: 186.5 (L) mm * 75 (W )mm * 51 (H) mm (with standard battery) 186.5 (L) mm * 75 (W) mm * 58.9 (H) mm (with extended battery) Weight: 1000g Screen: 3.2” QVGA backlight TFT-LCD, 65K colors. 240 x 320... - Page 7 MEG5151 Handheld Reference Guide Wireless Optional Network (WWAN): GPRS/GSM (900MHz/1,800MHz WIFI: IEEE802.11b (with a transmission rate of 11m/s) and IEEE802.11g (with a transmission rate of 54 m/s). GPS Module (Optional) Module: u-blox NEO-5 Performance:32-channel acquisition engine Accessories USB sync/data cable: 2PCS...
