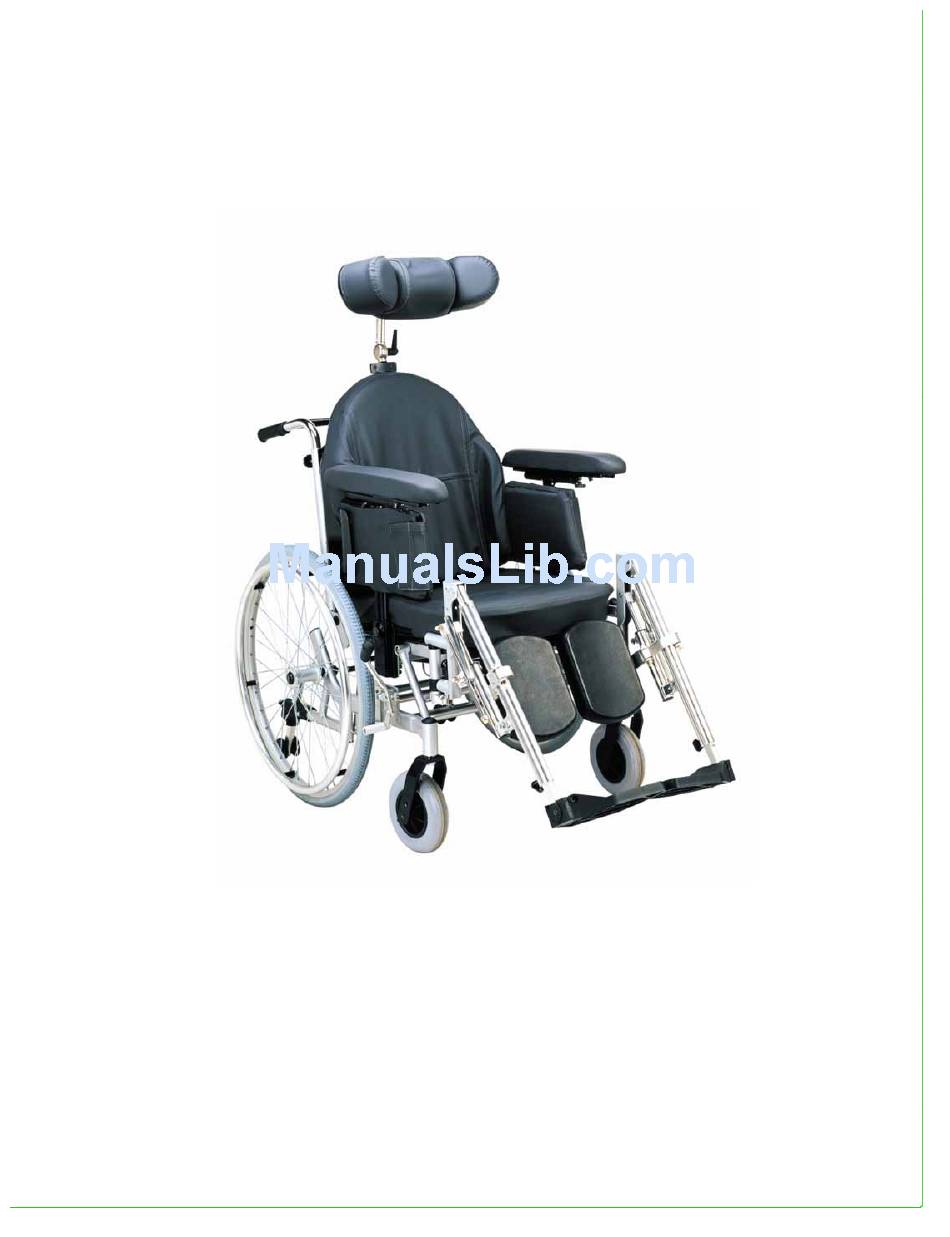

  • Page 1 Relax Tilt in Space Wheelchair User Manual...
  • Page 2 The engineering and construction of this wheelchair have been designed to provide maximum safety. Users may put themselves at risk by improperly using their wheelchairs. For your own safety, the following rules must absolutely be observed. Unprofessional or erroneous adaptation or adjustment work could increase the risk of accidents.
  • Page 3: Wheel Locks

    Handling The backrest can be swung for- wards to enable transportation. First remove the safety pin. Secure the backrest so that it can- not accidentally fall, then fold the backrest forwards. Caution! The backrest must be secured/held before releasing it. To get the backrest back into the upright position, fold the backrest up and engage the bracket and securing pin.
  • Page 4: Anti-Tip Tubes

    Rear Wheel Removal & Re-fitting The rear wheels are fitted with a quick-release axle. The wheels can be removed and put back on with- out using tools. To remove a wheel, simply depress the centre (black) quick- release button and pull the rear wheel off. CAUTION! Hold the quick-release button on the axle depressed when putting the wheel back on.
  • Page 5 The Backrest The upholstered backrest (1) will allow you to sit for long periods of time, with side support. To remove upholstery pull it upwards and forwards. The cushion is held by Velcro and can also be removed. The cover can be wiped with a cloth soaked with detergent or disinfectant complying with the CE mark.
  • Page 6: Seat Depth Adjustment

    Seating The comfortable seat cushion allows you to be seated for a long period of time. The cushion is held in place by Velcro and can also be removed. The cover can be washed (see the instructions on the cushion). Seat Depth Adjustment After loosening the screws (1) underneath the seat pan, (with an allen key) the seat depth can be set to...
  • Page 7: Adjustable Footplates

    Headrest The headrest can be raised, moved sideward and moved horizontally both forwards and backwards. Height adjustment: Pull the release knob (1) and set the desired height. Make sure that the release knob is always correctly engaged. Horizontal adjustment: Open the release lever (2), set the desired position and pull the release lever firmly again.
  • Page 8: Use And Transport

    Height-adjustable Armrest & Sideguard The armrest can be height adjusted or removed as follows. Push the silver button (1) and adjust the armrest (2) to the desired height. Always check that the armrests are correctly engaged. You can set the armrest depth after loosening the hand knob (3).
  • Page 9 Climbing over a pavement Climbing a pavement forward: Note: this technique is recommended only for expert wheelchair users. - Bring the wheelchair close to the pavement curb. - Balance the wheelchair on the rear wheels in such a way to raise the castors and go over the curb. Push the rear wheels while leaning your body forward.
  • Page 10 Slopes Make sure to follow the instructions below, when going up or down a slope, to avoid the risk of tipping over. Do not change direction while driving up/down a slope. Push the wheelchair in a straight line when going both uphill or downhill.
  • Page 11: Troubleshooting

    • Check to make sure all bolts are secure; tighten if necessary • Apply small amount of oil to moving parts REPAIRS AND SERVICE For all repairs and service to the wheelchair please contact Aidacare on 1300 133 120 to find your closest store. REPLACEMENT PARTS Aidacare stock replacement parts for the Relax Wheelchair.
