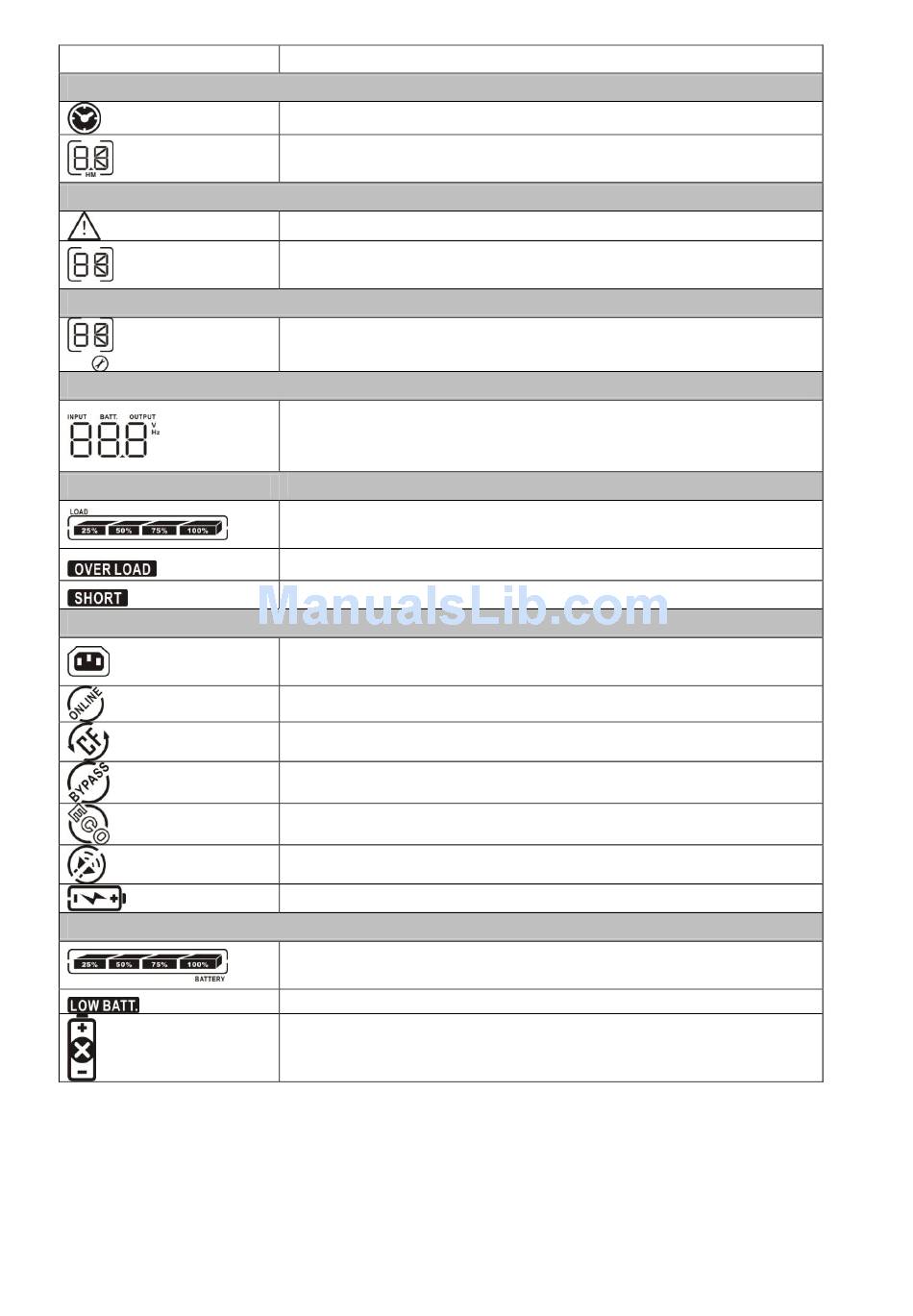

Display
Backup time information
Warning & Fault information
Setting Operation
Input/Output & Battery information
Load information
UPS status

Battery information

INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
Hot Line Tel: +33 (0)2 40 76 15 82 – fax: +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 12 AA 59 203 06
Function
Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours, M: minute
Indicates that the warning and fault occurs.
Indicates the warning and fault codes, and the codes are
listed in details in 3-5 section.
Indicates the setting operation.
Indicates the output/input voltage, output/input frequency,
and battery voltage.
V: voltage, Hz: frequency
Indicates the load level by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuited.
Indicates that programmable management outlets are
working.
Indicates the UPS working in line mode.
Indicates the UPS is working in converter mode.
Indicates the UPS is working in bypass mode.
Indicates the UPS powers the output directly from the mains
Indicates that the UPS alarm is disabled.
Indicates the battery charger is working.
Indicates the Battery level by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates low battery.
Indicates there is something wrong with battery.
