Cat5 Reach DVI
Quick Setup Guide
Thank you for purchasing Raritan's Cat5 Reach DVI KVM extender. This product can locate the user up to 3,000 feet
(900 meters) apart from a computer, server, KVM switch, or an audio/video device like the TV or DVD player.
This Quick Setup Guide explains how to install and configure the Cat5 Reach DVI. For additional information on any
aspect of Cat5 Reach DVI, see Cat5 Reach DVI help, which can be accessed from the Product Support
(http://www.raritan.com/support) section of Raritan's website.
Package Contents
Unpack the components. If anything is missing or damaged,
contact the local dealer or Raritan Technical Support for help.
Items
C5R-DVI-TX transmitter
C5R-DVI-RX receiver
DVI cable
DC 5V 2A power adapter
DVI-I to VGA adapter*
1.8-meter audio/microphone cable
1.8-meter infrared (IR) receiver cable
1.8-meter infrared (IR) blaster cable
1.8-meter USB-B to USB-A adapter cable
Rackmount kit
Quick Setup Guide
Warranty card
*Note: The included DVI-I to VGA adapters are used with the
C5R-DVI-TX transmitter, NOT the C5R-DVI-RX receiver. You
need to purchase Raritan's DVI-D to VGA converter cable
(CVT-DVI-VGA) in order to connect a VGA monitor to the
receiver.
QS Rule
Product Overview
This section describes the ports or components implemented
on the Cat5 Reach DVI transmitter and receiver.
Cat5 Reach DVI QSG
QSG-Cat5ReachDVI-0B-v1.0-E  255-80-0029-00 RoHS

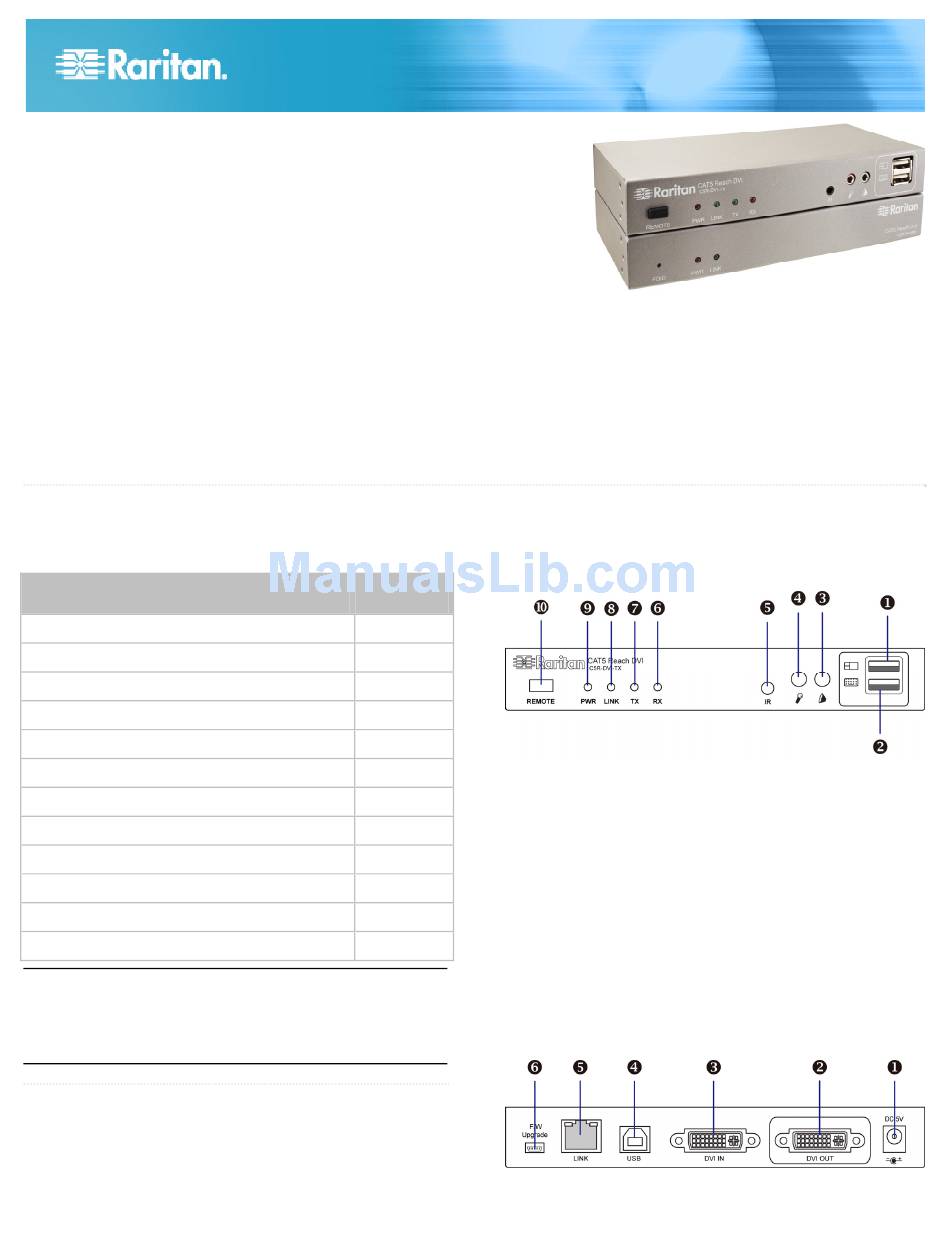

Cat5 Reach DVI Transmitter
Front View
Quantity
1
1
1
2
2
1
1. Local USB Mouse Port
2. Local USB Keyboard Port
1
3. Audio In (connected to PC)
1
4. Microphone (connected to PC)
1
5. IR Jack
1
6. RX LED
7. TX LED
1
8. LINK LED
1
9. Power LED
10. REMOTE button (for enabling/disabling the remote
console)
Rear View
1. Power Input
1
