GTO Residential Series Installation Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

WIRELESS
I N S T A L L A T I O N M A N U A L
Mounting
Thank you for purchasing the GTO Driveway Alarm. Please read the directions carefully and completely
before installing.
How it works:
The Transmitter - Sensor:
The operating voltage for the transmitter is 3V from two alkaline 'AA Size' batteries (not included) inside
the transmitter. In cold weather lithium-alkaline batteries will perform best. There is no power switch for
this unit. Once the batteries are installed, the unit starts to function.
at the mounting location to ensure proper calibration of the sensor. You should install the batteries at the location by removing the
transmitter cover and then replacing it.
400 ft. (at 433MHz). The range may vary depending on environmental conditions such as RF interference,
topography and construction of the building.
The Receiver:
The receiver is powered by an external power adaptor (AC120V 60Hz / DC 12V 100 mA). A rotary switch
controls the alert buzzer's volume on the receiver. There are three LEDs on the front panel of the cabinet,
representing power (red), visitor alert (green) and low battery (red). A "RESET" button on the front panel is
used to clear the alert LED after it has registered passing vehicles.
For more information on GTO's full line of automatic gate openers and access controls visit our web site at www.gtoinc.com
Driveway Alarm
Transmitter
Receiver
post
Transformer
Sensor
The approximate transmitting range from the transmitter to the receiver is

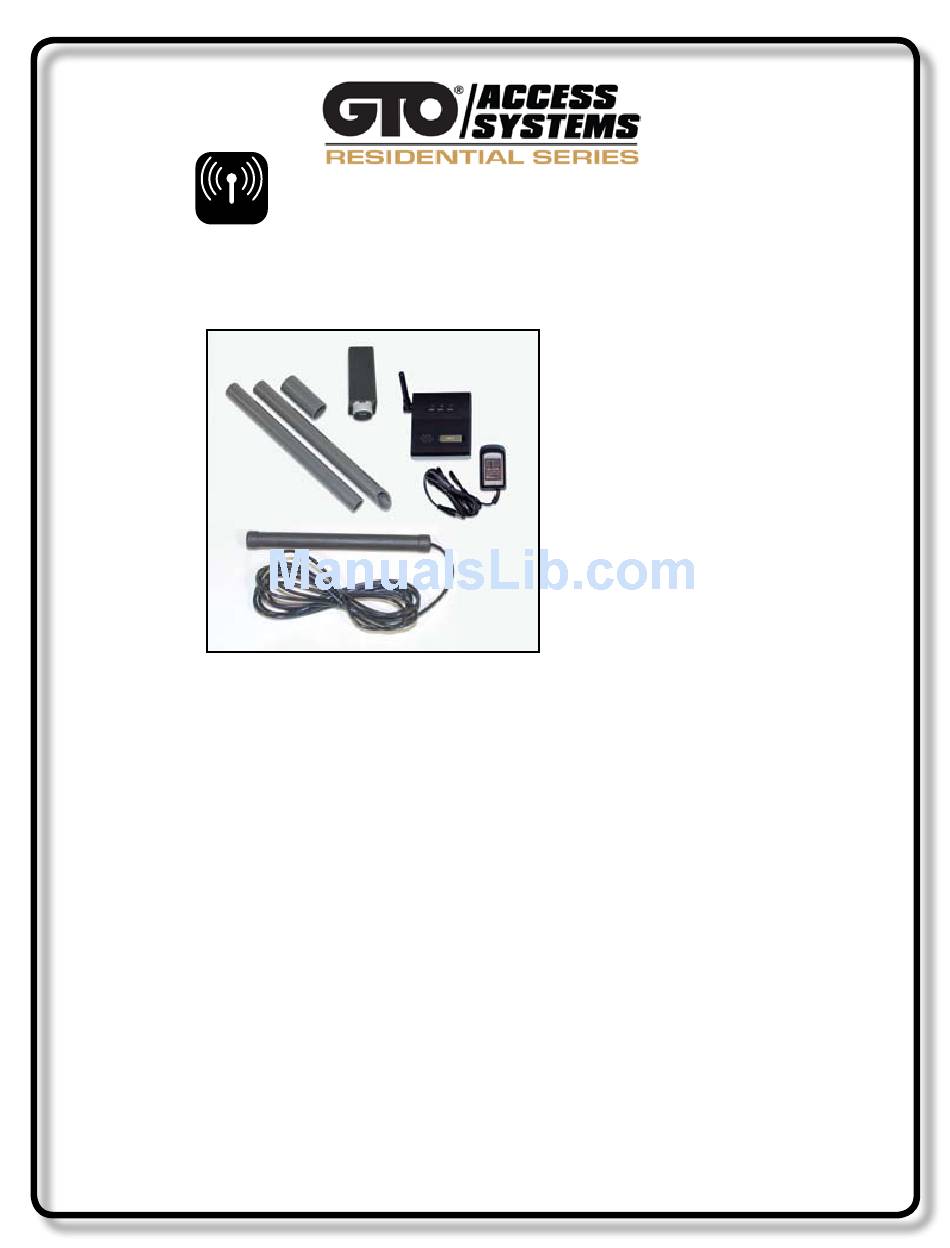

Kit Includes:
• Transmitter Module
• Sensor
• Receiver
• Transformer
• Mounting post (3 pieces)
• Installation manual
IMPORTANT: Batteries should be installed
Rev. 1/06/10 • Printed in China for GTO, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Residential Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GTO Residential Series

  • Page 1 LED after it has registered passing vehicles. For more information on GTO's full line of automatic gate openers and access controls visit our web site at www.gtoinc.com Rev. 1/06/10 • Printed in China for GTO, Inc.

  • Page 2: Installation Overview

    • Locate the SENSOR away from general moving traffic to prevent unwanted activation. Remember that the SENSOR detects MAGNETIC DISTURBANCES caused by a vehicle’s mass and velocity. • Range distance is approximate and will vary due to outside interference, type of soil, vehicle mass, speed, etc. • It is recommended that you run the Signal Cable inside PVC conduit to prevent accidental damage. • Do not run the Signal Cable in conduit with other wires such as AC power or other control wires. • The SIGNAL CABLE CANNOT BE SPLICED. If you need more wire, contact the GTO Sales Department at 1-800-543-GATE (4283). D r i v e w a y A l a r m...

  • Page 3: Sensor Placement

    Sensor Placement HOUSE or BUILDING Determining Sensor Location where RECEIVER is located 400’ Max Wireless IMPORTANT: Clear an area 25 feet in all directions of metal tools, toys and automobiles, to prevent magnetic disturbance during testing and installation. • Determine the optimum location for the SENSOR using the information found in “Installation Overview.”...

  • Page 4: Installing Transmitter Batteries

    Installing Transmitter Batteries IMPORTANT: “AA” batteries must be installed at the site where the TRANSMITTER will be located to ensure proper calibration of the transmitter. • Temporarily place TRANSMITTER on the mounting post in ground. • With TRANSMITTER in desired location install two (2) “AA” batteries. Insert “AA” Batteries Placing Receiver and Testing System Receiver Placement • Place the indoor RECEIVER in a convenient location that is approximately 3 ft.

  • Page 5: Sensitivity Adjustment

    Permanently Install Sensor and Transmitter • Once the system is tested and working, remove the batteries and permanently install the SENSOR, SIGNAL CABLE and TRANSMITTER. • Bury the SENSOR approximately 10”-12” deep, flat Transmitter approximately and parallel, next to the driveway. 12 inches above ground • Dig a narrow trench or slit from the SENSOR to the TRANSMITTER location using a flat spade or other tool. The wire from the SENSOR to the TRANSMITTER should be at least six inches deep to avoid possible damage from edgers, or lawn aerators. • Secure the Transmitter Module on the supplied 3 piece Bury Sensor 10-12 inches deep flat and parallel to driveway...

  • Page 6: Troubleshooting

    Trouble Shooting System not detecting vehicles: • Are the DIP switches on the indoor and outdoor units both set the same? • Is the sensor installed close to driveway as shown? • Is the distance to the base unit well within max range? Remember that foliage, trees, and buildings in the line from transmitter to indoor unit will reduce the Up to 400 foot range transmitting range. from transmitter to receiver • Metal buildings such as mobile homes can block the Senses vehicles and...
  • Page 7 • Consult the dealer or an experienced radio/TV technician for help. Limited One Year Warranty GTO, Inc., gate openers and accessories are covered under warranty by the manufacturer against defects in materials and manufacturer workmanship for a period of one (1) year from date of purchase, provided the recommended installation procedures have been followed.
