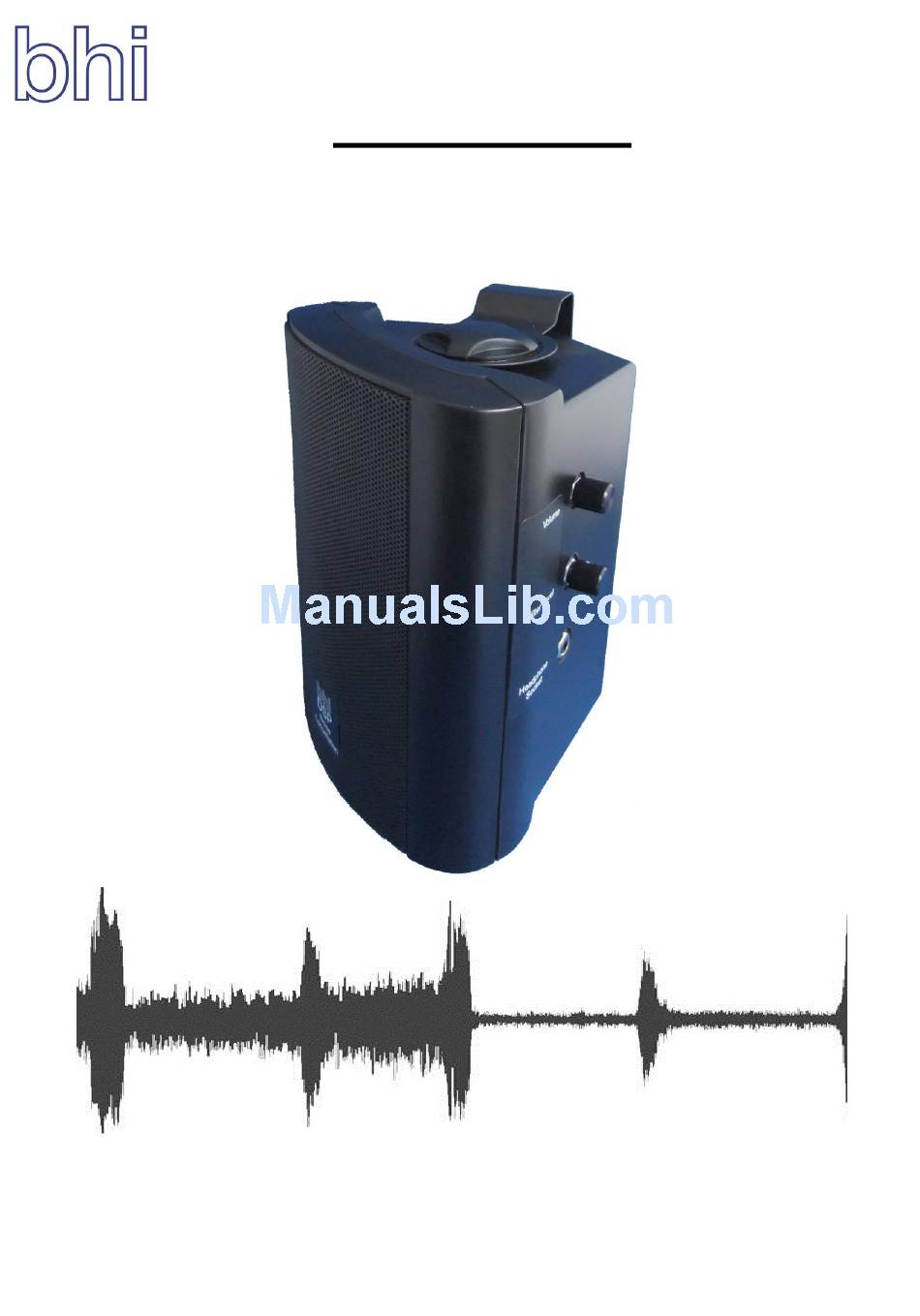

Page 1: User Manual
DESKTOP Amplified DSP noise cancelling base station speaker User Manual bhi Ltd DSP noise cancellation products for radio and voice communications 2067 Manual iss C... -
Page 2: Table Of Contents
Furthermore, bhi Ltd reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of bhi Ltd to notify any person of such revision or changes. -
Page 3: Introduction
The DESKTOP speaker comprises a 4” bass driver and a 1” tweeter unit, with an amplified bhi DSP noise cancelling unit capable of producing up to 10Watts audio (peak). The speaker requires an audio input signal of between 160mV and 1.6mV peak-to-peak for line... -
Page 4: Installation
DESKTOP speaker. Connect the audio lead to your radio, and then connect the other end to the relevant input connection on the rear of the DESKTOP speaker. Connect the 1030-FPL fused DC power lead supplied to a power supply capable of providing 12 - 18VDC @ 2A (2.5A peak), or connect a suitable DC power supply. -
Page 5: Speaker Operation
LED will flash when the volume control is pressed). Sleep Mode The DESKTOP speaker has a built in sleep mode feature whereby it will be put into standby mode when there is no signal present after approx 60 minutes. This is indicated by falling tones. -
Page 6: Specification
threshold, the red LED will flash continuously. Reducing the audio input level will bring the speaker back in to normal operation. Specification DC Power Connector type 2.1mm DC power jack (centre positive) Input voltage 12 to 18 Volts DC Input current 10mA standby (typical) 125mA active (no signal) 2.5A peak... -
Page 7: 11. Troubleshooting/Faqs
Order code: DESKTOP_FEET - Set of 3 Rubber feet for the DESKTOP speaker (2 x 16mm and 1 x 6mm). 16mm feet fit next to the front plastic feet and the 6mm fits onto the metal bracket. -
Page 8: Bhi Support
This is caused by the DSP processor and is normal. When a signal is applied you should not be able to hear this in the speaker. 12. bhi Support Every Desk Top “Noise Away” noise eliminating speaker comes with a 12 month guarantee against defective materials and workmanship.
