Summary of Contents for BFCMA Wood Burning & Multi Fuel Appliances

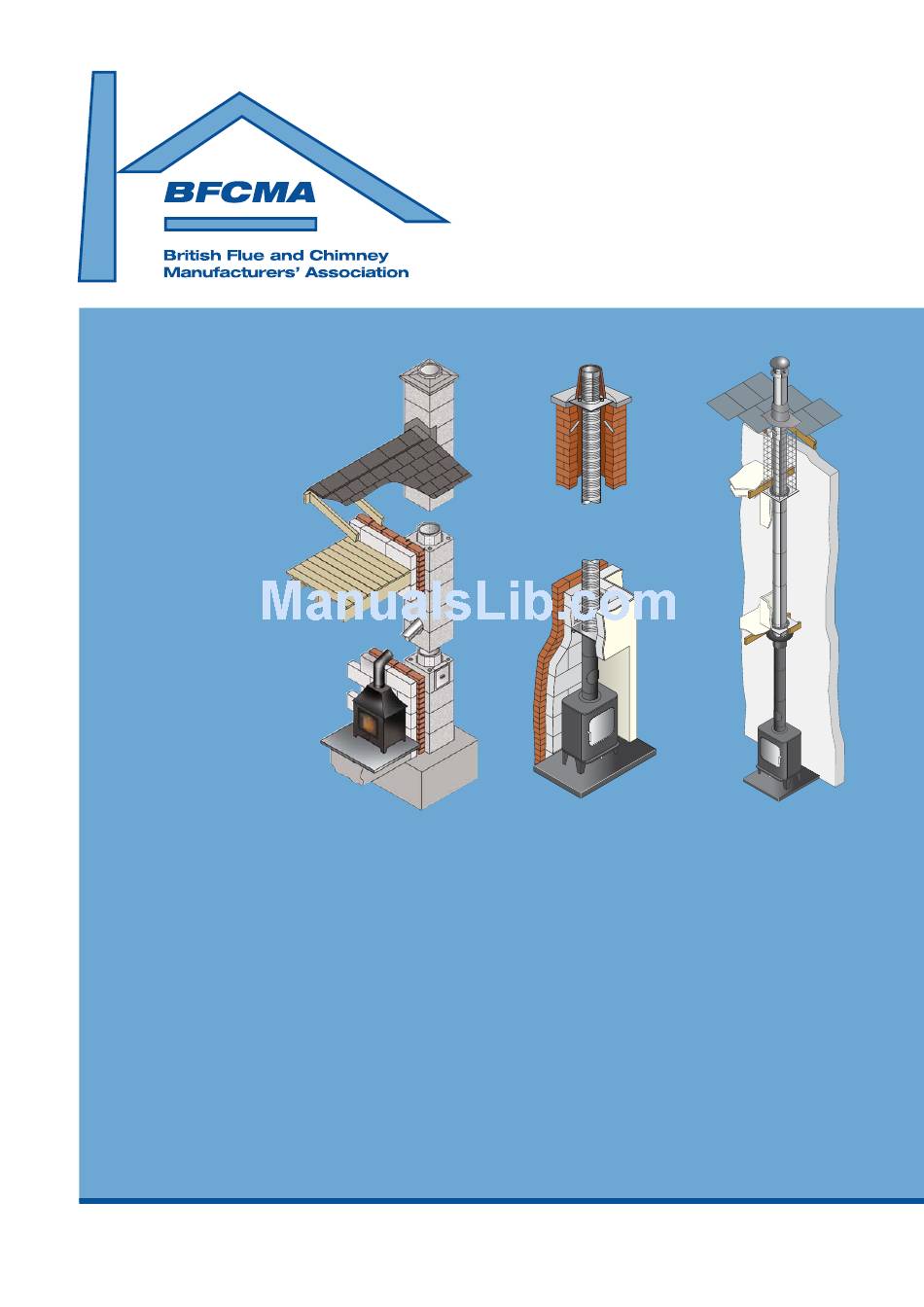

- Page 1 Installation Guidelines for Wood Burning & Multi Fuel Appliances www.bfcma.co.uk...
- Page 2 Wood Burning & Multi Fuel Stoves Connecting Flue Pipe The stove should be connected to the flue using vitreous enamel or 1mm thick single wall stainless steel pipe. Twin wall flue Adaptor Flexible Liner Vitreous enamel or single wall connecting flue pipe Adaptor Offset no greater than 45˚...
- Page 3 Wood Burning & Multi Fuel Stoves Existing Chimneys Relining an existing chimney with twin wall flexible liner Different terminal options Top Insert available including clay chimney pot as shown Top Clamp or a range of stainless This item is used in conjunction steel terminals.
- Page 4 Wood Burning & Multi Fuel Stoves Existing Chimneys Relining an existing chimney with single wall liner. Tapered Terminal If the 0.6mm thick liner has been tested in accordance with BSEN1856 part 2 then it may be used. If not then 1mm single wall liner must be used.
- Page 5 Wood Burning & Multi Fuel Stoves New Chimneys Stainless Steel Terminal Flashing Roof Support Protective Wire Mesh (required in loft space) Firestop Plate Combustible Shaft Twin Wall Flue Support plate Firestop plate Stove Pipe Connector Connecting Flue Pipe or Vitreous Enamel Internal Twin Wall Stainless Steel Chimney System for Stove...
-
Page 6: Chimney Systems
Wood Burning & Multi Fuel Stoves Clay Concrete & Pumice Capping for Sand/cement - Chimney Systems rendered stack flaunching Lead flashing Structural timber 2 x casing 40mm from outside ties at maximum All joints sealed of chimney or 200mm intervals of Capping for with flue jointing from inside of flue liner... - Page 7 Wood Burning & Multi Fuel Stoves Clay Concrete & Pumice - Chimney Systems Chimney block 400 x 400 x 330mm Support block and adaptor for connection to flue pipe Suitable lintels to support chimney stack Single wall Concrete or connecting flue brick coping Expansion plate Glass fronted insert fire...
- Page 8 Wood Burning & Multi Fuel Stoves Clay Concrete & Pumice - Chimney Systems Concrete or brick coping Expansion plate Chimney tray required Corbel to support external finish (block or brick) High grade ceramic Holes to facilitate liner jointed with high reinforcement bars temperature sealant where necessary...
- Page 9 Wood Burning & Multi Fuel Stoves Clay Concrete & Pumice - Liners Continue to build chimney as in free standing stove Support block and adaptor for connection to flue pipe Sand/cement flaunching Cast in situ slab around flue liner or to support chimney chimney pot Glass fronted...
- Page 10 Open Fires Clay Concrete & Pumice - Liners Terminated with chimney pot Sand/cement flaunching Chimney tray and flashing Joints sealed with suitable flue jointing compound Standard flue liners with socket uppermost Voids filled with suitable insulating material Suitable lintel Firechest Firebrick lining Pumice Liners with Preformed...
- Page 11 Open Fires Clay Concrete & Pumice - Chimney Systems Staggered joints between casings and flue block Capping for rendered stack Sand/cement flaunching Firechest complete with damper Firebrick lining inside firechest Built on suitable foundation Firechest Seal joints corbel to complete brick stack Flue liners Inner flue blocks with...
- Page 12 Wood Burning & Multi Fuel Appliances Chimney Fan System Installations show are by way of illustration only. Manufacturer's installation instructions should always be consulted before installation. Drawings courtesy of Exodraft...
- Page 13 Examples of Terminals Examples of Stainless Steel Terminals, Birdguards & Anti-Downdraught Terminals Birdguard Raincap Solid Fuel Anti-Downdraught fitted to Chimney Pot fitted to Chimney Pot fitted to Chimney Pot (with or without mesh) Pot Hanger Birdguard Pot Hanger Anti-Downdraught Pot Hanger fitted to Twin Wall Flexible Liner fitted to Twin Wall Flexible Liner fitted to Twin Wall Flexible Liner...
- Page 14 50 Nasmyth Road, Ash Grove Pipe Works, Southfield Industrial Estate, Elland, Glenrothes, Fife, West Yorkshire, KY6 2SD, HX5 9JA, T: 01592 771199 T: 01422 372 833 F: 01592 771135 F: 01422 370 900 E: info@jrf-chimney-spec.co.uk E: martin@wtknowles.co.uk www.jrf-chimney-spec.co.uk www.wtknowles.co.uk www.bfcma.co.uk www.bfcma.co.uk...
