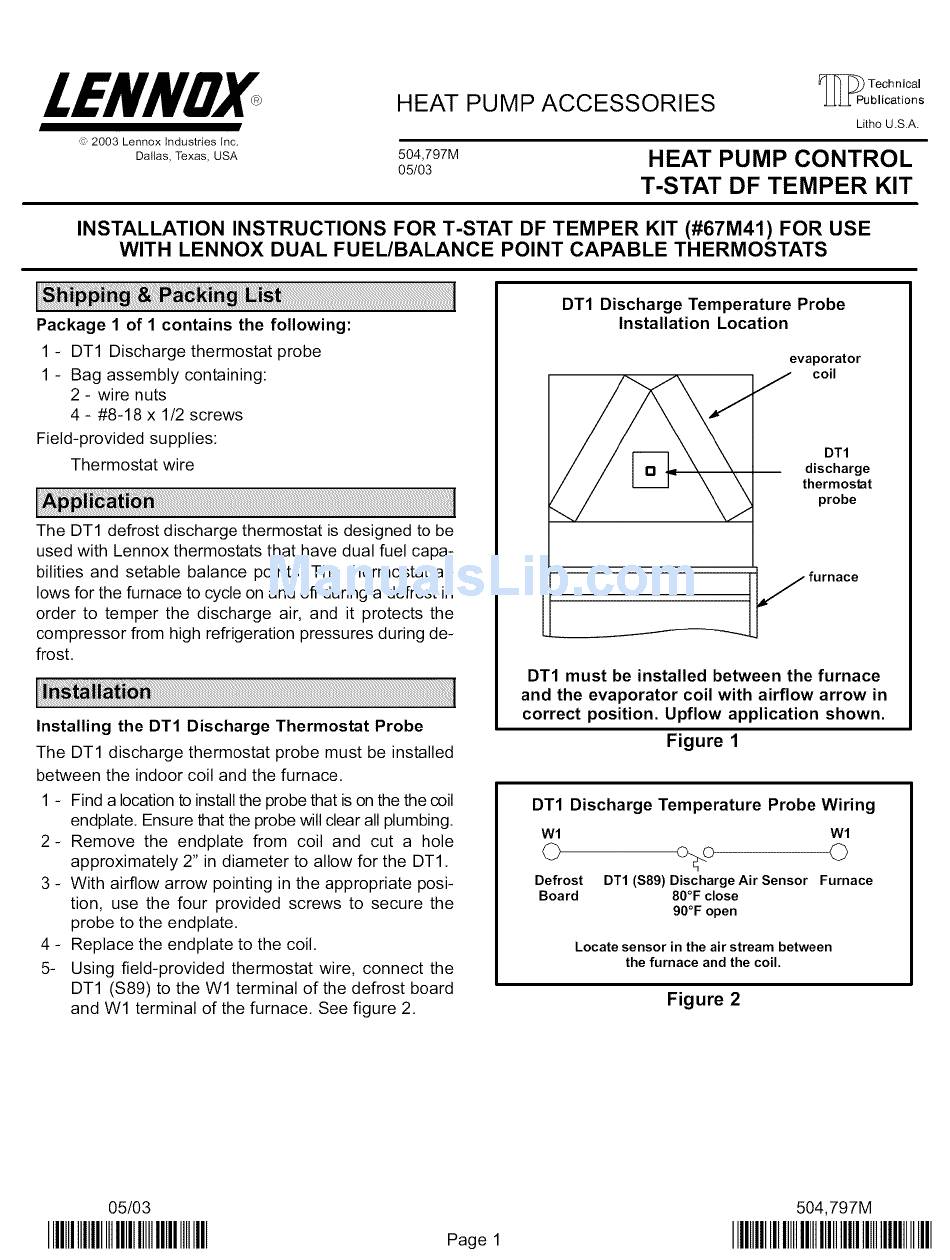

LENNOX
,1,_ 2003 Lennox industries Inc,
Dallas, Texas, USA
HEAT PUMP ACCESSORIES
TeOh n i cal
blications
Litho U.S.A.
504,797M
05/03
HEAT PUMP CONTROL
T-STAT DF TEMPER
KIT
INSTALLATION
INSTRUCTIONS
FOR T-STAT DF TEMPER
KIT (#67M41)
FOR USE
WITH LENNOX
DUAL FUEL/BALANCE
POINT CAPABLE
THERMOSTATS
Package 1 of 1 contains the following:
1 - DT1 Discharge thermostat probe
1 - Bag assembly containing:
2 - wire nuts
4- #8-18 x 1/2 screws
Field-provided supplies:
Thermostat wire
The DT1 defrost discharge thermostat is designed to be
used with Lennox thermostats that have dual fuel capa-
bilities and setable balance points, The thermostat al-
lows for the furnace to cycle on and off during a defrost in
order to temper the discharge air, and it protects the
compressor from high refrigeration pressures during de-
frost,
Installing the DT1 Discharge Thermostat Probe
The DT1 discharge thermostat probe must be installed
between the indoor coil and the furnace,
1 - Find a location to install the probe that is on the the coil
endplate, Ensure that the probe will clear all plumbing.
2- Remove the endplate from coil and cut a hole
approximately 2" in diameter to allow for the DT1,
3 - With airflow arrow pointing in the appropriate posi-
tion, use the four provided screws to secure the
probe to the endplate,
4 - Replace the endplate to the coil,
5- Using field-provided
thermostat wire, connect the
DT1 ($89) to the W1 terminal of the defrost board
and W1 terminal of the furnace, See figure 2,
DT1 Discharge Temperature
Probe
Installation
Location
evaporator
coil
DT1
discharge
thermostat
probe
DT1 must be installed between the furnace
and the evaporator coil with airflow arrow in
correct position. Upflow application shown.
Figure
1
DT1 Discharge Temperature
Probe Wiring
W1
W1
0
o%0
0
Defrost
DT1 (589) Discharge Air Sensor
Furnace
Board
80°F close
90°F open
Locate sensor in the air stream between
the furnace and the coil.
Figure
2
05/03
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
Page 1
504,797M
IIIIIIIII
III 11111
IIIII 11111111111
II I III
