Summary of Contents for cam SX50

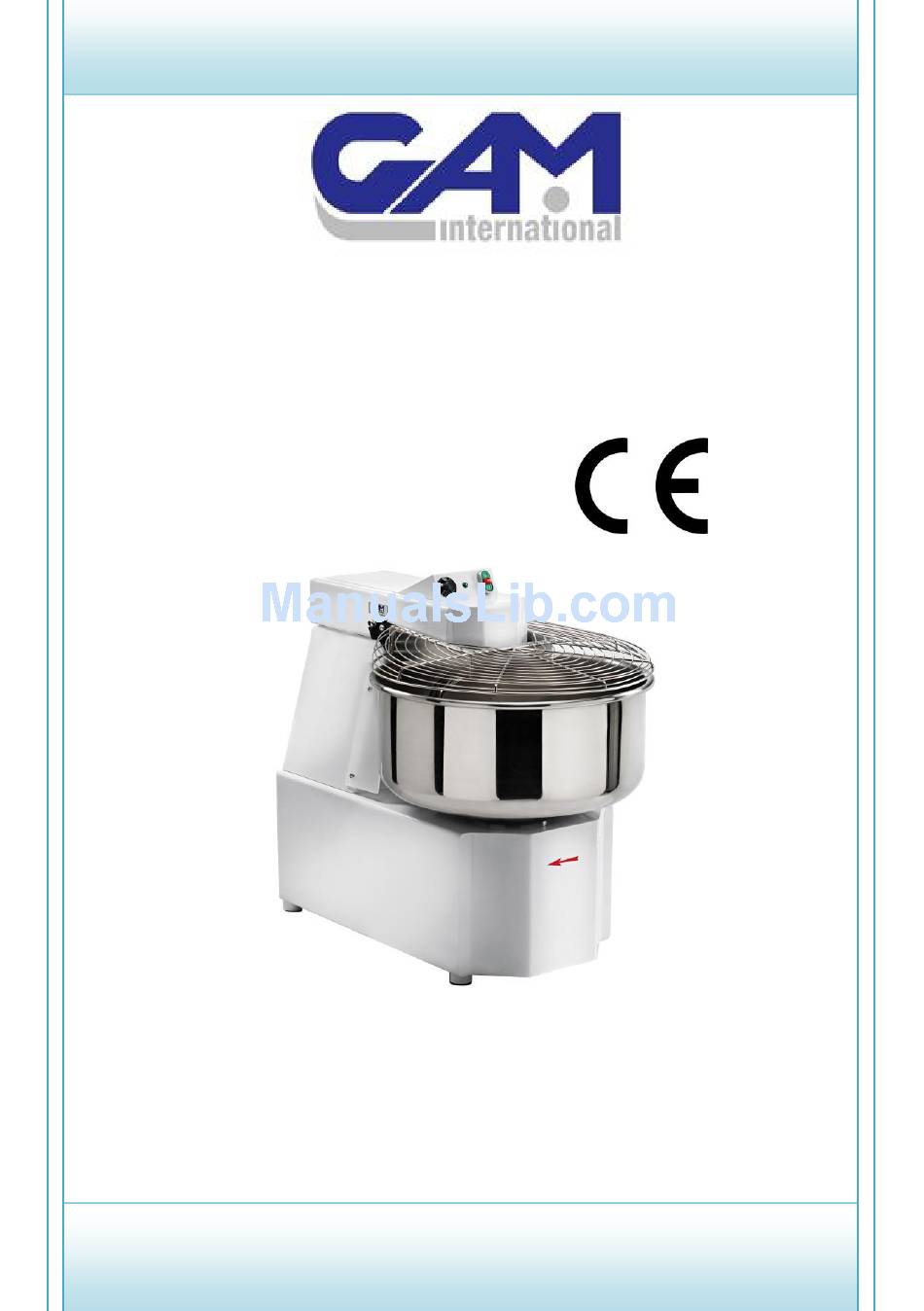

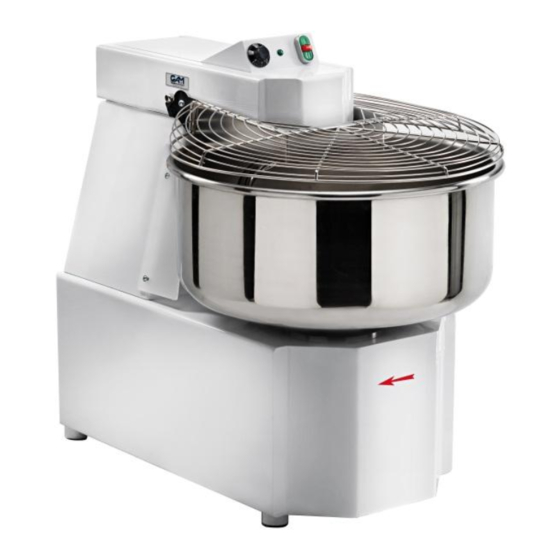

- Page 1 SPIRAL KNEADING MACHINE Models: SX50-SX60-TSX50-TSX60 TSVX50-TSVX60 INSTALLATION OPERATING AND MAINTENANCE ISTRUCTIONS...
- Page 2 INTRODUCTION READ THIS ENTIRE MANUAL BEFORE UNPACKING AND INSTALLING THIS PRODUCT. Dear client, Thank you for choosing a quality product manufactured by us. Our expert production follows the guiding principle of the strictest quality control of each component so as to guarantee that our products will function efficiently far into the future. The mechanical, electrical, and electronic parts were designed and manufactured to guarantee reliability and high-quality functioning.
-
Page 3: Table Of Contents
SPIRAL KNEADING MACHINE - SX / TXS / TSVX GENERAL TABLE OF CONTENTS Section 1: General information - Instructions 1.1 - Introduction and safety recommendations 1.1.1 - Residual risks 1.2 - Machine data and use 1.2.1 - Application sectors 1.3 - EC Declaration of Conformity 1.4 - Technical specifications 1.4.1 - Sound level 1.4.2 - Productivity... -
Page 4: Introduction And Safety Recommendations
SECTION 1 GENERAL INFORMATION - INSTRUCTIONS 1.1 Introduction and safety recommendations These operating and maintenance instructions are intended to operators and qualified personnel for the correct use of the machine. In order to facilitate understanding of the content of this manual, we provide a list of terms and symbols used: Definition - Symbol Description... -
Page 5: Residual Risks
SPIRAL KNEADING MACHINE - SX / TXS / TSVX 1.1.1 Residual risks In compliance with section 1.7.3 “Warning of residual risks” of the Machine Directive 89/392 and subsequent amendments, if the protections applied, also in compliance with the aforementioned Directive, do not observe the following recommendations regarding: clothing that must be used (with no loose parts and/or accessories hanging down from the body);... -
Page 6: Ec Declaration Of Conformity
1.2.1 Application sectors All the models are suitable to be used in the field of handmade or professional products, therefore, they can be used in: Kitchens of restaurants, communities, canteens, pizza houses, etc. In bakeries or pasta factories. Wherever it is necessary to prepare flour dough. 1.3 EC Declaration of Conformity Ed.1/2012 Rev.0... -
Page 7: Technical Specifications
SPIRAL KNEADING MACHINE - SX / TXS / TSVX 1.4 Technical specifications External Bowl Packages Gears Weight Model measuremen capacity dimensions motors in (Kg) ts (mm) (mm) (mm) oil bath L x P x H 53 lt 45 kg L x P x H SX 50 530x940x930 Ø500x300... -
Page 8: Sound Level
Full load noise 67dB(A). Half load noise 61dB(A). 1.4.2 Productivity Model Maximum productive capacity per cycle SX50 ± 45 Kg di impasto SX60 ± 64 Kg di impasto TSX50/TSVX50 ± 45 Kg di impasto TSX60/TSVX60 ± 64 Kg di impasto Adding water or other kinds of ingredients to the partially kneaded dough inside the bowl has to be gradual, following the proportion: about 2 Kg of flour for every litre of liquid. -
Page 9: Machine Description
SPIRAL KNEADING MACHINE - SX / TXS / TSVX 1.5 Machine description The machine consist mainly of the following groups: Base; Mixing bowl; Cover; Release lever; Push button control panel (1 or 2 speed); Column. 1.6 Packaging and standard equipment In order to avoid any damage during handling or transport, the machines are supplied with: Type of packaging... -
Page 10: Safety Devices
Protective wrapping of semi-rigid expanded Internal stability and anti-shock polystyrene shaped to the machine protection The packaging of all the models is secured to a wooden support (pallet) so that they can be perfectly handled with lifting means/transport. The standard equipment of all the models consists of the following: An operations and maintenance instructions manual A catalogue of spare parts with exploded diagram Warranty Certificate... - Page 11 SPIRAL KNEADING MACHINE - SX / TXS / TSVX 1.7.1 Safety devices of the electrical equipment – Wiring diagram The electrical circuits of the machine, the wiring diagram, the buttons, the switches and the selectors are all designed and manufactured in conformity with the specific standards To preserve safety: The electrical system that supplies the auxiliary circuits is powered by a low...
-
Page 12: Operator Safety
1.7.3 Operator safety The operators must: reach the age foreseen by the social laws, have good general competence and manual ability for coordination and be precise; have received proper technical and practical preparation (training) from an skilled operator; be aware of the dangers that derive from an improper use of the machine or from carrying out the prescriptions of this manual in a different way;... - Page 13 SPIRAL KNEADING MACHINE - SX / TXS / TSVX Remove the upper cover of the cardboard packaging. Take away the anti-static PVC bag and the expanded polystyrene. Unscrew the “L” elements around the machine. Open the packaging completely and introduce the ropes and the lifting belts under the bedplate, towards both ends (make sure the capacity of the ropes are adequate for the weight of the machine).
-
Page 14: Position In Place
2.2 Position in place To position the machine in place proceed as follows: Step Action Place the machine in a suitable area protected against atmospheric agents; considering the size and the space necessary for the containers of raw and finished materials. Check that there is an electricity distribution system in the area suitable to provide the machine with the required power. -
Page 15: Technical Information Reserved To The Qualified Installer
SPIRAL KNEADING MACHINE - SX / TXS / TSVX All the components and materials necessary to perform the installation must: be done in full compliance with the laws in force and abide by the dictates of the low voltage directive and the electromagnetic compatibility directive in force. The installation technician must: Step Action... - Page 16 The three-phase motor 400V 50Hz has two flexible wires, each of them consisting of three wires, in three different colours: the three wires of different colours of one of the two straps are short-circuited and segregated at a terminal or at a terminal board; the other three wires are directly connected to the interface card of the machine control panels.
-
Page 17: Controls Descriptions
SPIRAL KNEADING MACHINE - SX / TXS / TSVX SECTION 3 MACHINE USE 3.1 Controls description The electrical control panel is placed in front of the machine in an ergonomic position, next to the mechanical controls and is configured as follows: CONTROL TO 1 SPEED CONTROL TO 2 SPEEDS The green warning light, if ON, indicates that there is voltage. -
Page 18: Machine Start-Up
3.2 Machine start-up Before starting an operating cycle, ensure that the materials that will be used are suitable and available in the quantity needed based on the kind of product that will be produced. This is the correct procedure that the operator must follow to start the machine: Step Action Ensure that the main switch on the switchboard installed near the machine is... -
Page 19: Cleaning The Machine
SPIRAL KNEADING MACHINE - SX / TXS / TSVX Introduce the plug in the socket and turn the main switch on the switchboard to “ON”. Check pre start-up by verifying: mains voltage (green light ON of the control panel of the machine); that the protection cover of the rotating bowl is closed in the right position. - Page 20 3.3 Cleaning the machine It is recommended to clean the machine daily, both for it to be clean and to preserve it over time and ensure proper operation. It is recommended to use odourless non toxic cleaning products and for food use. Do not use abrasive detergents, anti-calcareous detergents, solvents or diluents.
-
Page 21: Regular Maintenance
SPIRAL KNEADING MACHINE - SX / TXS / TSVX Do not wash and/or clean: by spraying water jets on the machine or its components; by immersing the machine in liquids or detergents. 3.4 Regular maintenance If the machine is used as prescribed and indicated in this manual, the adequate manufacture of the mechanical pieces and the choice for suitable materials will allow the machine to operate with no faults and no need for maintenance for many years. -
Page 22: Long Inactivity Periods
It is absolutely forbidden for the user to modify the machine for any reason. The manufacturer shall not be liable for any damages to people, animals, objects or the environment that may derive from: tampering with the machine; installation of non original spare parts; modifications to safety devices and systems;... -
Page 23: List Of Spare Parts
SPIRAL KNEADING MACHINE - SX / TXS / TSVX SECTION 4 SPARE PARTS – ELECTRIC DIAGRAM 4.1 List of spare parts Ed.1/2012 Rev.0... - Page 24 Ed.1/2012 Rev.0...
- Page 25 SPIRAL KNEADING MACHINE - SX / TXS / TSVX Ed.1/2012 Rev.0...
- Page 26 Ed.1/2012 Rev.0...
- Page 27 SPIRAL KNEADING MACHINE - SX / TXS / TSVX Ed.1/2012 Rev.0...
- Page 28 Ed.1/2012 Rev.0...
-
Page 29: Connecting Diagram
SPIRAL KNEADING MACHINE - SX / TXS / TSVX 4.2 Connecting diagram Ed.1/2012 Rev.0... - Page 30 Ed.1/2012 Rev.0...
- Page 31 SPIRAL KNEADING MACHINE - SX / TXS / TSVX Warranty conditions 1) The manufacturer guarantees the operation and the duration of the products it manufactures. These products were built in a professional manner and underwent a functioning test in the manufacturer's workshop according to the specifications listed on the information plate and according to the theoretical normal working conditions.
- Page 32 Ed.1/2012 Rev.0...
