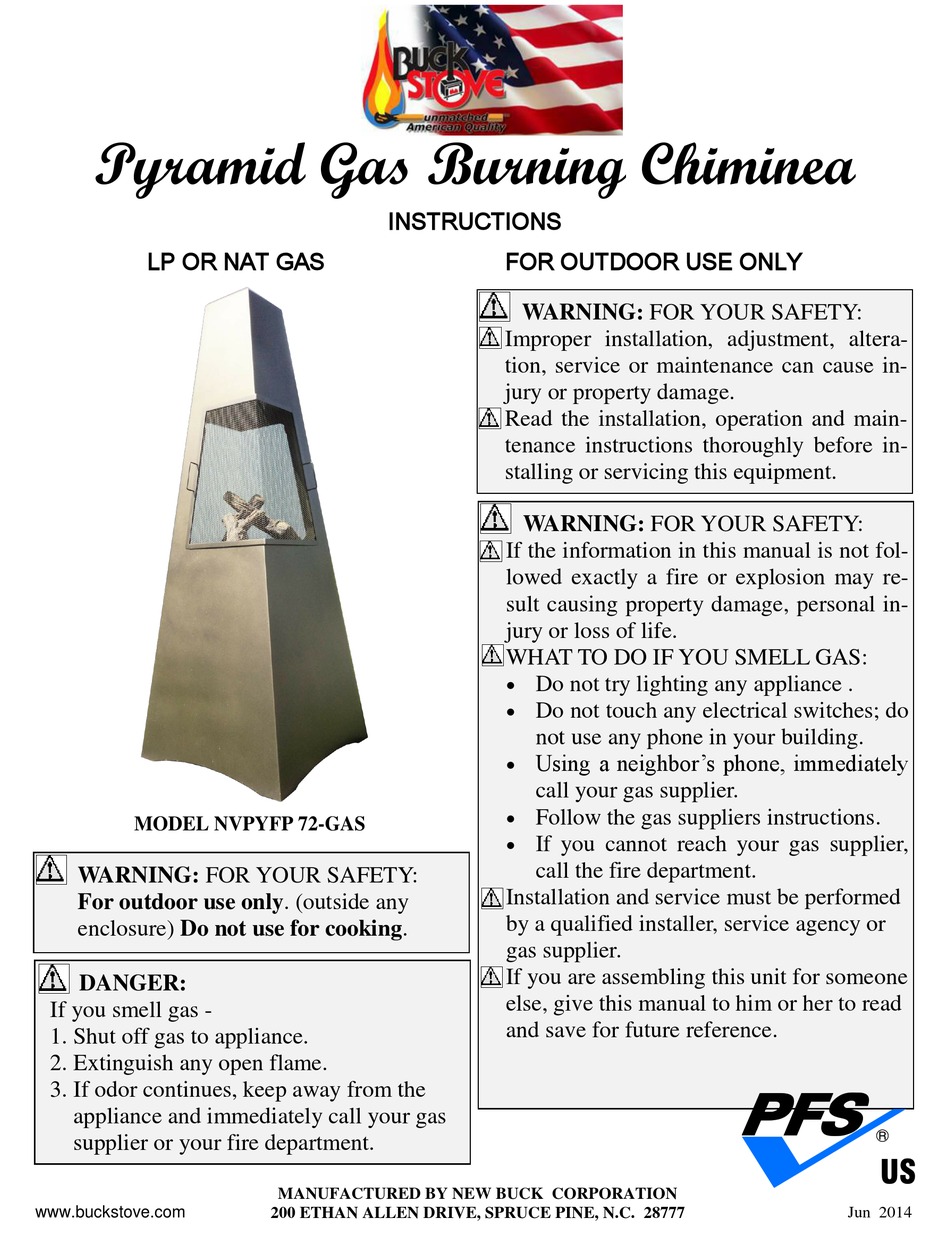

Pyramid Gas Burning Chiminea
LP OR NAT GAS
MODEL NVPYFP 72-GAS
WARNING: FOR YOUR SAFETY:
For outdoor use only. (outside any
enclosure) Do not use for cooking.
DANGER:
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
www.buckstove.com
INSTRUCTIONS
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE, SPRUCE PINE, N.C. 28777
FOR OUTDOOR USE ONLY
WARNING: FOR YOUR SAFETY:
Improper installation, adjustment, altera-
tion, service or maintenance can cause in-
jury or property damage.
Read the installation, operation and main-
tenance instructions thoroughly before in-
stalling or servicing this equipment.
WARNING: FOR YOUR SAFETY:
If the information in this manual is not fol-
lowed exactly a fire or explosion may re-
sult causing property damage, personal in-
jury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Do not try lighting any appliance .
Do not touch any electrical switches; do
not use any phone in your building.
Using a neighbor's phone, immediately
call your gas supplier.
Follow the gas suppliers instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
Jun 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVPYFP 72-GAS and is the answer not in the manual?

Questions and answers

Summary of Contents for BuckMaster NVPYFP 72-GAS

  • Page 1 Using a neighbor’s phone, immediately  call your gas supplier.  Follow the gas suppliers instructions. MODEL NVPYFP 72-GAS  If you cannot reach your gas supplier, call the fire department. WARNING: FOR YOUR SAFETY: Installation and service must be performed For outdoor use only.
  • Page 3: Table Of Contents

    Table Of Contents Page 3-6. Warnings and Dangers for Safety Minimum Clearances to Combustibles 8-9. Installation LP Gas Tank Natural Hard Line Leak Test Checking Burner Connections Checking Tank/Gas Line Connection Installation Logs Log Installation Installation (OPTIONAL) Lava Rocks and Glass Lava Rocks and Glass Installation Installation Front Screen Protectors (Front Screens) Screen Protectors (Front Screens)
  • Page 4 DANGER: Failure to follow the dangers, WARNING; warning and cautions in this manual may This outdoor appliance is safety certified for result in serious bodily injury or death, or in use in the United States only. Do not modify a fire or an explosion causing damage to for use in any other location.
  • Page 5 WARNING: WARNING: LP gas tank needed to operate. Only tanks k. Place dust cap on valve outlet whenever marked “PROPANE” may be used. the LP gas tank is not in use. Only install the type of dust cap on the LP gas tank a.
  • Page 6 WARNING; WARNING: Do not use this appliance near automobiles, Do not use in an explosive atmosphere. trucks, vans or recreational vehicles. Keep outdoor appliance area clear and free from combustible materials, gasoline and Do NOT use this appliance under overhead other flammable vapors and liquids.
  • Page 7 WARNING: WARNING: Storage of this appliance indoors is Children and adults should be alerted to the permissible only if the tank is disconnected, hazards of high surface temperatures and removed from the appliance and properly should stay away to avoid burns or clothing stored outdoors.
  • Page 8: Minimum Clearances To Combustibles

    Minimum Clearance To Combustibles NOTE: Never burn appliance under ( ANY ) combustible material. When placing appliance on combustible material, a 1" minimum non combustible material must be placed between combustible material and appliance See Figure 1. The non combustible material only has to be under the appliance. Minimum clearance of combustible material is 36"...
  • Page 9: Installation

    Installation LP Gas Tank Installation To operate you will need (1) filled standard LP gas tank (20#) with external valve threads. Note: An empty standard LP gas tank weighs approximately 18 lbs. A filled standard LP gas tank weighs approximately 38lbs. Caution: LP gas tank must be properly disconnected and removed prior to moving this appliance.
  • Page 10: Natural Hard Line

    Natural Gas Installation Note: This appliance is not field convertible. It must be ordered from factory with correct valve. This appliance must be installed by a certified Natural Gas Installer. 1. Determine exact location for appliance. 2. Open tank door at bottom appliance. 3.
  • Page 11: Leak Test

    Leak Test Checking for Leaks WARNING: Before using this appliance, make sure you have read, understand and are following all information provided in “Dangers and Warnings” presented on Pages 3-6. Failure to follow those instructions can cause death, serious injury or property damage. Checking Burner Connections Make sure regulator valve and hose connection are securely fastened to burner and tank.
  • Page 12: Installation Logs

    Installation Installing Logs 1. Carefully unpack logs and lava rocks. 2. Place lava rocks inside and outside of burner, level with top of burner. Do not cover any part of burner or on top of pilot shield screen. 3. Use figure 6 to understand log tab numbers on burner. Log tabs may need to be adjusted or bent a little as you install logs, however, DO NOT AJUST LOG TABS WITH LOGS INSTALED ON LOG PEGS.
  • Page 13 7. Place bottom log 3 onto log tab 3. There is one peg in the Y of the log 3. Place the Y of log 3 with peg onto top hole of log 2. See figures 10 and 11. 8. Place bottom log 4 onto log tab 4. The Y of log 4 simply goes in between Y of the log 3. Log 3’s Y simply rests in Y of log 3.
  • Page 14 9. There are 3 small logs, each small log has a number at each end. Place the three small logs onto burner according to the numbers on under side of small logs to corresponding with the number of the log tabs of large logs , See figure 14. Figure 14.
  • Page 15: Installation (Optional) Lava Rocks And Glass

    Installation (OPTIONAL) - Lava Rocks and Glass Installing Lava rocks 1. Carefully unpack (3) lava rocks bags and (1) glass bag. See Figure 15. 2. Place lava rocks inside and outside of burner evenly and level with top of burner. Do not cover any part of burner or on top of pilot shield screen with lava rock.
  • Page 16 Installing Front Screen Protectors Make sure logs or optional lava rocks and glass are in place and unit has been test fired before installing front screen protectors. Place front screens onto unit sliding top screen pins inside front. Lift and rotate bottom screen into position.
  • Page 17: Optional Screen Guard

    Installing Optional Screen Guard Make sure logs or optional lava rocks an glass are in place and unit has been test fired before installing front screen protectors. Place screen guard onto Chiminea by lifting up over top of Chiminea. You may need some help.
  • Page 18: Operating Instructions

    Operating Instructions Lighting Caution: Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. Caution: Do not obstruct the flow of combustion and ventilation air. Caution: Check and clean burner/venturi for insects and insect nests. A clogged venturi can lead to a fire beneath appliance.
  • Page 19: Cleaning And Care

    Cleaning and Care Caution: All cleaning and maintenance should be done when outdoor appliance is cool and with fuel supply disconnected. Caution: Do not enlarge orifices or burner ports when cleaning valves or burner. Notice: This outdoor appliance should be clean and inspected on a regular basis. Notice: Abrasive cleaners will damage product finish.
  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank, turn LP gas tank valve to “OPEN” LP gas tank is low or empty Replace or refill LP gas tank 1.
  • Page 21: Replacement Parts

    Replacement Parts Part # 12" Round Burner Pilot Holder PSPCH005 Pilot Screw PSPCH007 Orifice — LP #44 W/Nut PO44MVORF Orifice — NAT. #27 W/Nut PO27MVORF Compression Nut PH616 Compression Sleeve PH606 3/8 Stainless Tube 12" POT6-12 3/8 Compression to 1/2 NPT 3/8 Flare to 1/2 NPT Valve LP #22700 Valve NAT...
  • Page 23: Limited Warranty

    Limited Warranty 1 Year Limited Warranty TERMS OF YOUR LIMITED WARRANTY: Manufacturer warrants to the original purchaser of product, and to no other person, that is if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship.
