Operator's manual
TruTool S 214
(1A1)
english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruTool S 214 and is the answer not in the manual?

Questions and answers

Related Manuals for Trumpf TruTool S 214

Summary of Contents for Trumpf TruTool S 214

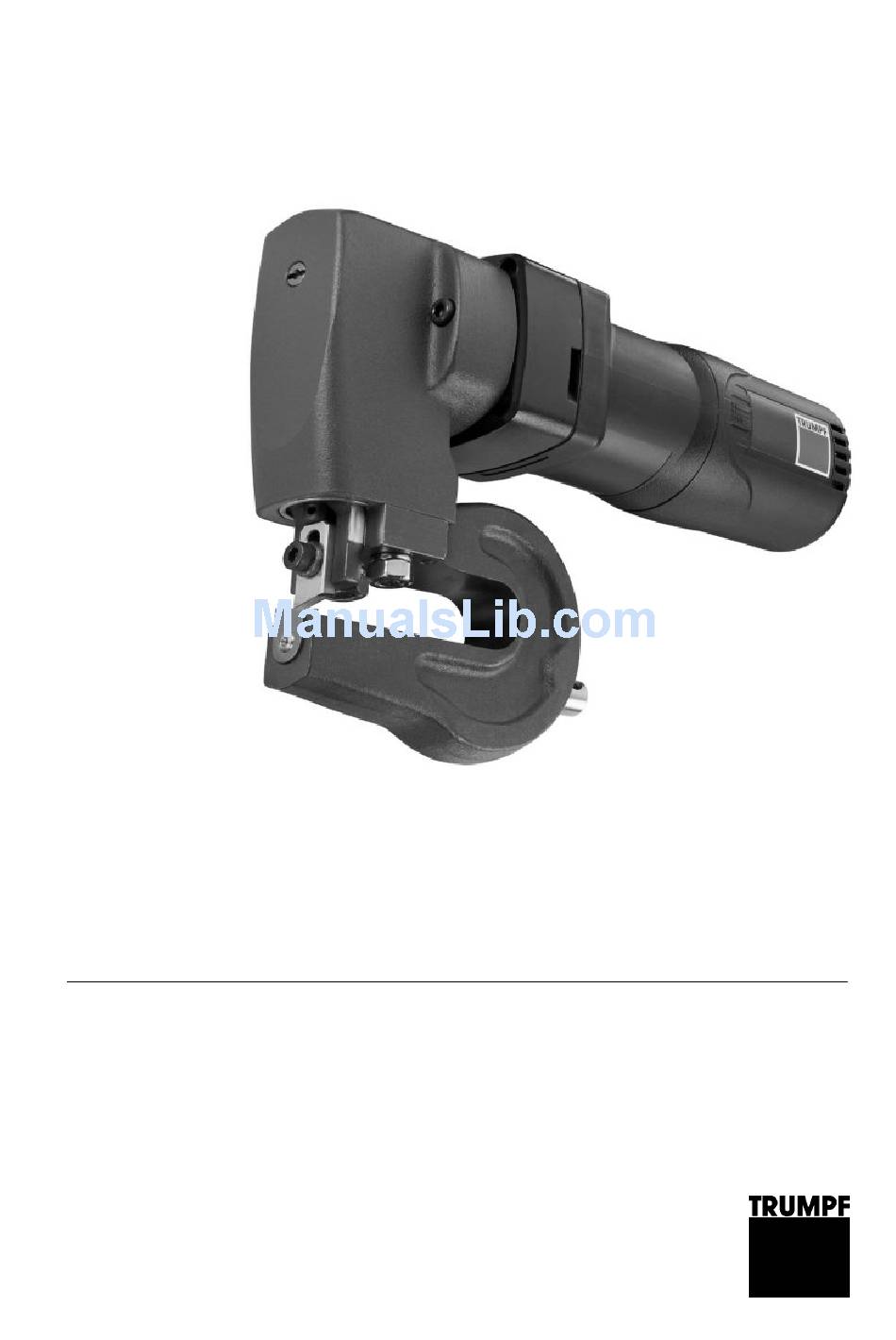

  • Page 1 Operator's manual TruTool S 214 (1A1) english...

  • Page 2: Table Of Contents

    Intended use ................6 Technical data ..............7 Tool assembly..............8 Setting the penetration depth ..........8 Operation ................9 Operating the TruTool S 214 ..........9 Maintenance ..............10 Servicing blades ..............11 Removing moving cutter blades ........11 Regrinding moving cutter blades ........12 Installing moving cutter blades ..........12 Replacing the moving cutter blade ........12...

  • Page 3: Safety

    Safety Read the operator's manual and the general safety rules USA/CAN (material number 1239438, red document) completely before putting the machine into service. Follow precisely the instructions contained therein. Other countries Read the operator's manual and the safety instructions (mate- rial number 125699, red document) completely before putting the machine into service.
  • Page 4 Do not use the power cable to carry the machine. Caution Always lay the electrical cable away from the back of the machine and do not pull it over sharp edges. Have hand-held electrical tools serviced and checked by qualified technicians. Only use original TRUMPF accessories. Safety E532EN_04.DOC...

  • Page 5: Description

    Description Eccentric shaft Moving cutter blade Fixed-blade carrier Adjusting screw Fixed blade On/Off switch Fixing screw Clamping screw TruTool S 214 Fig. 38114 Description E532EN_04.DOC...

  • Page 6: Intended Use

    Only use the machine for the tasks and materials described in "Intended use". Warning The TRUMPF TruTool S 214 trimming shear is an electrical hand- held device used for the following applications: • Shearing off edges on flanged sheets, bodies etc. A minimum distance of 6 mm is kept in the process.

  • Page 7: Technical Data

    Technical data Other countries Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz • Steel, 2.0 mm 2.0 mm 2.0 mm 0.079 in 400 N/mm² • Steel, 1.6 mm 1.6 mm 1.6 mm...

  • Page 8: Tool Assembly

    Tool assembly Setting the penetration depth Eccentric shaft 20 Fixed blade 17 Fixing screw 22 Adjusting screw 19 Moving cutter blade Locking pin Fig. 11366 1. Set the upper dead point by turning the eccentric shaft (5). 2. Undo the fixing screw (17). 3.

  • Page 9: Operation

    Operation Operating the TruTool S 214 Switching on the Shift the On/Off switch forwards. TruTool S 214 Operating the TruTool S 214 Fig. 37870 1. Do not move the machine towards the workpiece until it is at full speed. 2. Machine the material.

  • Page 10: Maintenance

    Maintenance Lethal danger due to electric shock! Pull the plug out of the socket whenever tools have to be replaced and prior to maintenance work at the machine. Danger Damage to property due to blunt tools! Machine overload Check the cutting edge of the blade hourly for wear. Sharp Caution blades cut well and are easier on the machine.

  • Page 11: Servicing Blades

    Servicing blades Lethal danger due to electric shock! Pull the plug out of the socket whenever tools have to be replaced or prior to maintenance work at the machine. Danger Damage to property due to the wrong blade selection! The cutting quality will be severely impaired and the individual tools overloaded.

  • Page 12: Regrinding Moving Cutter Blades

    Regrinding moving cutter blades Grinding gauge Moving cutter blade Fig. 37881 Note The moving cutter blade can be regrinded a total of 5 mm. The minimum total length is 20.5 mm. 1. Ensure sufficient cooling when regrinding. 2. Sharpen the cutting edge with fine oil stone. Note Round off the cutting edges more when machining chrome steel.

  • Page 13: Removing The Fixed Blade

    3. Install a new moving cutter blade. 4. Set the penetration depth. 5. Tighten the fixing screw. Removing the fixed blade 1. Undo the clamping screw (26) with the locking pin. 2. Remove the fixed blade. Regrinding the fixed blade Grinding gauge Fixed blade Fig.

  • Page 14: Installing Fixed Blades

    Installing fixed blades 1. Install the fixed blade. 2. Tighten the fixing screw (26). Replacing fixed blades 1. Undo the clamping screw (26) with the locking pin. 2. Remove the fixed blade. 3. Install a new fixed blade. 4. Set the penetration depth. 5.

  • Page 15: 5.10 Replacing Carbon Brushes

    5.10 Replacing carbon brushes The motor comes to a standstill whenever the carbon brushes are worn out. Have the carbon brushes checked and replaced as required by a qualified specialist. Note Only use original replacement parts and observe the specifications on the type plate.
  • Page 16 Required delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to your TRUMPF representative. Refer to the address list at the end of the document for TRUMPF service addresses. Original accessories and wearing parts...
