USER'S MANUAL
TKM-360P
WOWMabuhay Wireless
www.wowvideoke.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mabuhay TKM-360P and is the answer not in the manual?

Questions and answers

Summary of Contents for WOW! Videoke Mabuhay TKM-360P

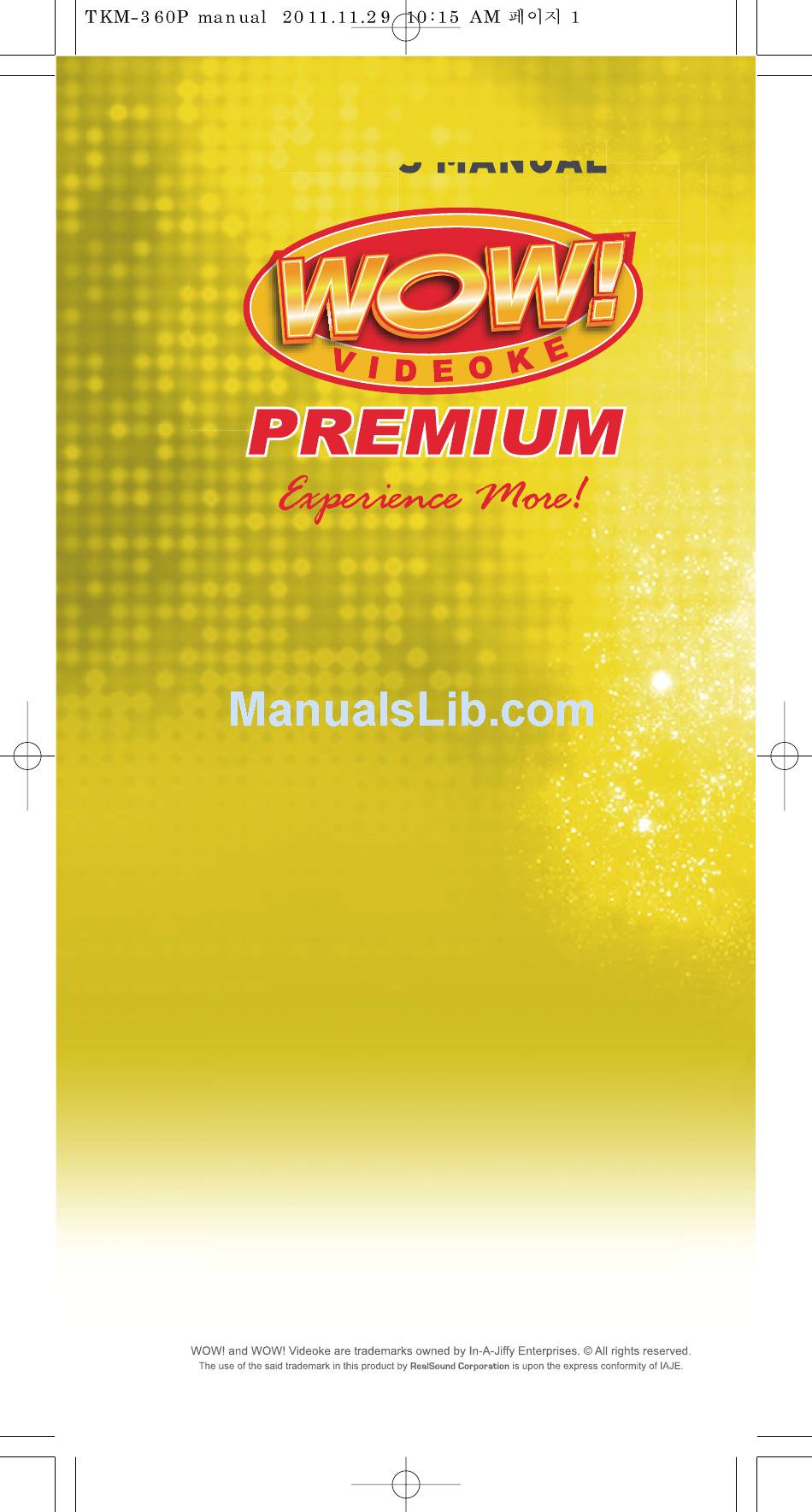

  • Page 1 USER’S MANUAL TKM-360P WOWMabuhay Wireless www.wowvideoke.com...

  • Page 3: Table Of Contents

    FCC DECLARATION OF CONFORMITY Quick Guide - HOT KEY - Channel Setting Introduction How to take care of your WOW Videoke Premium 9-10 Package Contents / Optional Items Nomenclature 11-15 - Main Player - Remocon - Microphone How to operate the WOW Videoke Premium - Power On/O - Installation of song pack Installation Guide...
  • Page 4 Declaration of Conformity Trade Name : TJ media Model : TKM-360P Responsible Party : TJ media co.,Ltd. Address : 640-8 Deungchon-dong, Gangseo-gu, Seoul 157-030, Korea Telephone : 82-2-3663-4700 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Quick Guide

    HOT KEY RANDOM FAVORITE SONG PLAY RECORDING HANDCLAP...

  • Page 6: Channel Setting

    Step2 Channel setting TKM-360P has eight (8) available channels. Please take note that wireless microphones and main player should be on the same channel. In case of channel interference (either one or two of the microphones cannot be detected by the main player), Please follow the step by step instruction below for re-channeling.
  • Page 7 Step2) Wireless Microphone (transmitter) Change by using remote control (point the remote control to the MIC sensor near the switch of n the the microphone) nnot be below ntrol 1) Turn on the Microphone. 2) Press [REC] - Microphone LED will blink once. 3) Press [MENU] button - Microphone LED will turn o .

  • Page 8: Introduction

    WOW Videoke Premium. The WOW Videoke Premium provides various kinds of Moving Picture Background. (Nature, 3D, MTV, K-POP Video) The WOW Videoke Premium provides additional built-in memory space of 64MB, so you can either record songs save pictures to use as background image. WOW Videoke Premium - MTV is original music video with original singer's voice.

  • Page 9: How To Take Care Of Your Wow Videoke Premium

    WOW Videoke Premium WOW Videoke Premium. WOW Videoke Premium. WOW Videoke Premium WOW Videoke Premium” WOW Videoke Premium WOW Videoke Premium WOW Videoke Premium WOW Videoke Premium WOW Videoke Premium. w w w.wow vide oke.com...

  • Page 10: Package Contents / Optional Items

    WOW Videoke Premium WOW Videoke Premium (3P) Songpack :You can buy additional song packs to add to the built-in song selection of your WOWVideoke Premium. An additional song packs will allow you to sing with your loved ones and friends. Wireless MIC : You can add one more wireless microphone.

  • Page 11: Nomenclature

    MIC POWER Switch FRONT MIC 3 input MIC 2 MIC 1 POWER indicator lamp indicator lamp indicator lamp REAR Adaptor input USB input Audio output Video output SIDE SD CARD slot POWER Switch w w w.wow vide oke.com...
  • Page 12 (Remote Control) w w w.wow vide oke.com...

  • Page 13: Power On/O

    (Remote Control) FUNCTION SUBSTANCES POWER Power On/ O . MENU Detail Functions. SONG SEARCH Song search by Title, Artist, Lyrics, Number. NUMBER NUMBER. START START. CANCEL CANCEL. MUSIC NOTE Select the music note display on/o . APPLAUSE Create a mood with applause e ect. Move up, down, left, right in the list or display function.
  • Page 14 (Remote Control) w w w.wow vide oke.com...
  • Page 15 (Microphone) If the microphone does not work even within a short distance from the main Player, the batteries need to be changed. 1.Turn in a counter-clockwise direction to open the cover. 2. Insert the batteries correctly. 3.Turn in a clockwise direction to close the cover. w w w.wow vide oke.com...

  • Page 16: How To Operate The Wow Videoke Premium

    WOW Videoke Premium -WOW Videoke Premium main unit WOW Videoke Premium Please refer to the Installation Guide. -WOW Videoke Premium main unit side WOW Videoke Premium turning o the main player. WOW Videoke Premium POWER WOW Videoke Premium. WOW Videoke Premium WOW Videoke Premium w w w.wow vide oke.com...
  • Page 17 WOW Videoke Premium WOW Videoke Premium MIC3. WOW Premium MIC3. w w w.wow vide oke.com...
  • Page 18 WOW Videoke Premium input w w w.wow vide oke.com...
  • Page 19 WOW Videoke Premium w w w.wow vide oke.com...

  • Page 20: Additional Menu Function & Con Guration Settings

    {START}. WOW Videoke Premium WOW Videoke Premium {RSRV}. Title, Artist and Number {FAVORITE} w w w. wow vide oke.com...
  • Page 21 Recorded songs are stored in the WOW Videoke Premium's built-in memory. The user memory is shared by the recorded songs and the user photos. The total memory is 64MB which is equivalent to 60 minutes of recorded songs. 35 minutes is immediately available while the remaining 25 minutes was used for the pre-loaded user photos and TJ media encoder.

  • Page 22: Sd Card

    SD CARD Caution in using SD CARD Please make sure to insert the SD CARD before to power on the main player. Do not disconnect the SD CARD from the main player while the device in operation. It may cause malfunction of the device or damage on the contents of SD CARD.

  • Page 23: Encoder

    ENCODER What is TJ Media Encoder? TJ Media Encoder is a converting program that provides users to convert their moving pictures or image les to the suitable format for TKM-360P. System Requirements Operating System : Windows XP, Windows Vista Processor : Intel Pentium ll or AMD 233MHz up (Recommendation: Intel Penuium4 or AMD 866MHz up) Memory : 256MB up (Recommendation : 512MB up) HDD : Spare capacity of 100MB up (Recommendation : 1GB up)
  • Page 24 TJ Media Encoder Installation Connect the TKM-360P with PC using USB cable and turn on the power. Directory named “TKM-360P U_M” will be created. Open the“TKM-360P_M”folder and double click the “TJ Media_Encoder.exe” to execute installation. Installation progress [ 1. Program Setup Start] [ 2.Select Destination Location] w w w.wow vide oke.com...
  • Page 25 [ 3.Select Start Menu Folder] [ 4.Select AdditionalTasks ] [ 5.Ready to Install] [ 6.Setup Finished ] w w w.wow vide oke.com...
  • Page 26 Converting moving pictures Double click the TJ Media Encoder icon to start the program. Click [Video]. Click [File Add] to load a le that you want to convert. w w w.wow vide oke.com...
  • Page 27 Converting moving pictures Click [Option] if you want the converted les saved as an another le name and or in di erent location. Click [Convert] to execute converting. After converting is nished, you can check the le in the saving folder (Initial saving folder : My Documents TJMedia) w w w.wow vide oke.com...
  • Page 28 Converting Image les StartTJ Media_Encoder and click [Image]. Click [File Add] to load an image le that you want to convert. w w w.wow vide oke.com...
  • Page 29 Converting Image les Click [Option] to save as an another le name and or in di erent location. You can also spin the direction of the image. Click [Convert] to execute converting. SD CARD manufactures SanDisk Transcend Kingston cd-r king RiDATA 1GB, 2GB, 4GB, 8GB KINGMAX...

  • Page 30: Music Note

    MUSIC NOTE To display the music note, play a song and press {MUSIC NOTE} button in remote control. While music note is displaying, you can change lyrics mode by press {music note} button in remote control. 2976 Built-in Songs are available to display the music notes. (Medley, Event, MTV, MVP, some MIDI songs are not available music note display) w w w.wow vide oke.com...

  • Page 31: Usb Function

    WOW Videoke Premium PC connection ‘TKM-360P U/M’ WOW Videoke Premium Windows XP, 7 O/S. w w w.wow vide oke.com...

  • Page 32: Using Your Photos As Background Image

    Using your photos as background image TKM-360P U/M. WOW Videoke Premium main player on. Press “BGV”button to select “USER” and your photos will be shown. 1MB. You can add approximately 110 images to the main player base on the size of each image is 350KB.

  • Page 33: Troubleshooting Guide

    WOW Videoke Premium WOW Videoke Premium. WOW Videoke Premium a. PressThe {+} Button Of the MIC In The Remote ControlTo Increase The Volume Of the MIC. WOW Videoke Premium WOW Videoke Premium WOW Videoke Premium w w w.wow vide oke.com...

  • Page 34: Q&A - Other

    Enter the menu then [Con g], then enter [TV Set-Up] then select either NTSC or PAL. {RSRV} {RSRV}. w w w.wow vide oke.com...

  • Page 35: Product Speci Cation

    Product Speci cation Item Specs Output 2Vrms Audio Frequency 20Hz - 20KHz Input AC100 - 240V (50-60Hz) Adaptor Output DC12V, 0.5A ~ 1A Video Output 75 1.0Vp-p Input DC12V, 0.5A~1A Consumption(W) Main Station Weight (g) Dimension(WxDxH) 156x116x50 w w w.wow vide oke.com...
