StarLapse Time-Tapse System Simple Operating Instructions

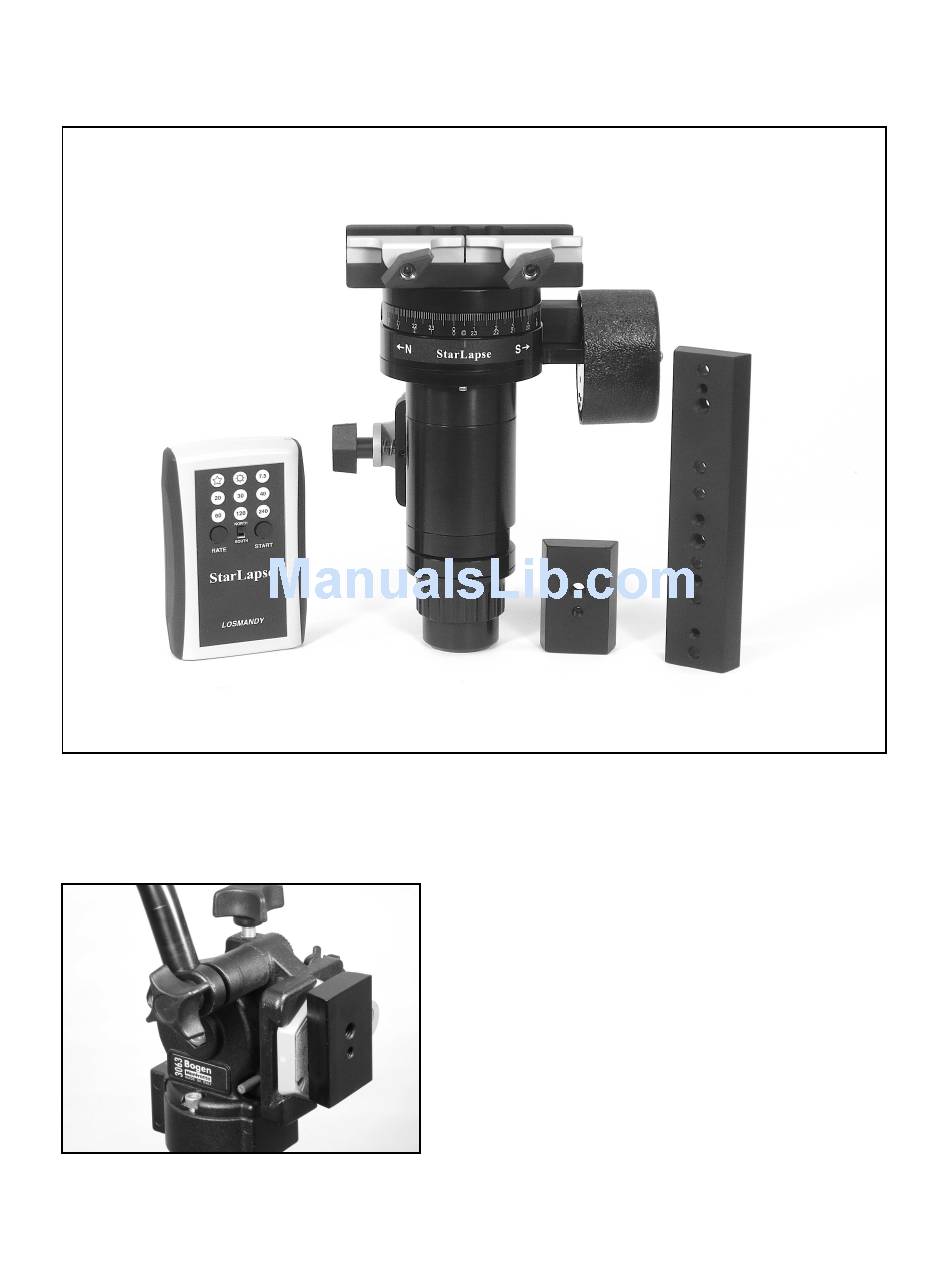

In its basic conﬁguration the StarLapse System can be used to add dynamics to your time-lapse videos.

SIMPLE PAN MODE

The camera will pivot horizontally at the degree-per-hour rate set by the controller. Your tripod head

mounting plate should be set vertically. Use a 90° adapter or adjust the legs if necessary.

StarLapse — Simple Operating Instructions

Using the 1/4-20 or 3/8-16 threaded hole, mount the

small dovetail plate to the tripod head with the narrow

side inward.

Table of Contents

Do you have a question about the Time-Tapse System and is the answer not in the manual?

Page 1 StarLapse — Simple Operating Instructions In its basic conﬁguration the StarLapse System can be used to add dynamics to your time-lapse videos. SIMPLE PAN MODE The camera will pivot horizontally at the degree-per-hour rate set by the controller. Your tripod head mounting plate should be set vertically.
Page 2 StarLapse — Simple Operating Instructions Attach the StarLapse motor assembly to the dovetail making sure to securely tighten the thumb knob. Loosen knurled knob to release the clutch. Point the StarLapse in the desired direction and re-tighten. Mount your camera to the longer dovetail plate using a 1/4-20 socket cap screw.
Page 3 Where AC is available you can use our universal DC power supply (part# ACDC). Circuitry of the StarLapse is regulated to protect the internal electronics, however, the motor is driven directly from the DC input voltage.
Page 4 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Accessories are also available to permit time-lapse TILT motion, celestial tracking, compound movements, and more... Please go to www.losmandy.com for the latest information and demo videos of the StarLapse system.
