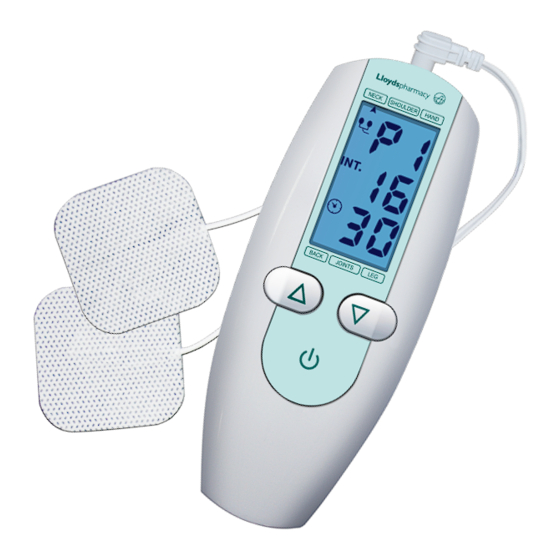

Lloyds Pharmacy TENS LTS2 User Manual

Digital pain reliever
Hide thumbs
Table of Contents

Advertisement

Quick Links

Replacement Gel Pads
Available accessories
Last revised: 15/08/12 V22
TENS Digital Pain
Reliever
User Manual
Model LTS2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TENS LTS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lloyds Pharmacy TENS LTS2

  • Page 1 TENS Digital Pain Reliever Replacement Gel Pads User Manual Available accessories Model LTS2 Last revised: 15/08/12 V22...

  • Page 2: Table Of Contents

    Contents Introduction Thank you for purchasing the Lloydspharmacy TENS Digital Pain Reliever (Model LTS2). Introduction Parts The TENS Digital Pain Reliever is a safe, drug free device which helps to ease aches and Features pains. TENS stands for Transcutaneous Electrical Nerve Stimulation and is recognised as a General Warnings and Safety 7-11 safe method of easing pain.

  • Page 3: Introduction

    Introduction Parts Output socket How does TENS work? TENS works by passing harmless electrical signals into the body from the gel pads. This LCD display eases pain in two ways: TENS Digital Pain Reliever LTS2 • Firstly, it blocks the body’s pain signals which are normally transmitted from the Power supply: DC3.0V, 2xAAA batteries Output: 0~45V (at 500 ohm load) Manufacturer: Shenzhen Dongdixin Technology Co., Ltd.

  • Page 4: Features

    Parts Features LCD DISPLAY • 6 program settings designed to target different areas of the body • 25 output intensities to suit different levels of pain Treatment program • Can be used alongside medication. Please see your GP if you have any concerns with indicator severe or prolonged pain.

  • Page 5: General Warnings And Safety

    General Warnings and Safety General Warnings and Safety Before you start: Is it safe to use TENS Digital Pain Reliever? Please carefully read and understand the following warnings and cautions to ensure the The TENS Digital Pain Reliever is a medical device that has been subject to stringent safe and correct use of the TENS Digital Pain Reliever and to prevent injury.
  • Page 6 General Warnings and Safety General Warnings and Safety • Cancer patients, people with diabetes or epilepsy should seek medical advice from • Do not use on a wet body their consultant, doctor or Lloydspharmacy pharmacist before use • Do not use on stomach muscles within 90 minutes of eating •...

  • Page 7: Using Your Tens Digital Pain Reliever

    General Warnings and Safety Using your TENS Digital Pain Reliever • Do not insert the output cable into any other socket other than the socket of the What can I treat? TENS Digital Pain Reliever as instructed, as this may lead to an electric shock The TENS Digital Pain Reliever can treat many different types of pain.
  • Page 8 Using your TENS Digital Pain Reliever Using your TENS Digital Pain Reliever How to connect the gel pads: Please note: Each gel pad is pre-fixed with a cord-socket and protected by • Never stick the gel pads to each other a transparent film (Figure I).
  • Page 9 Using your TENS Digital Pain Reliever Using your TENS Digital Pain Reliever Turn the TENS Digital Pain Reliever on Starting the treatment and setting the intensity Press the On\Off button [ ] to turn on the TENS Digital Pain Reliever. To start the treatment press the Increase intensity The LCD will light up and the following screen will appear (Figure III).
  • Page 10 Using your TENS Digital Pain Reliever Using your TENS Digital Pain Reliever The Lock indicator symbol [ ] will show on the LCD screen when this is in action Caution: (Figure V). This is a safety feature to prevent accidental changes to your settings. Press •...

  • Page 11: Programs And Gel Pad Positioning

    Programs and Gel Pad Positioning Programs and Gel Pad Positioning Program Options Program Options Gel pad positioning Gel pad positioning Program 1 Shoulder - Alternating modes Program 4 Joints - Deep TENS Place the gel pads on the front and back of the shoulder. Place the gel pads around either side of the knee joint.

  • Page 12: Battery Information

    Battery Information Specifications Model Number: LTS2 Product Name: TENS Digital Pain Reliever Power supply: 3V DC, 2xAAA batteries Frequency: 2Hz~150Hz 1. Insert 2 x AAA (not included) batteries in to the TENS Digital Pain Reliever Pulse Duration: 50us~300us Output Voltage: 0~45V (at 500 ohm load) 2.

  • Page 13: Troubleshooting

    Troubleshooting Troubleshooting Problem Check points Possible solution Problem Check points Possible solution The TENS Digital Pain Are the batteries exhausted? Replace the batteries. The stimulation is Is the intensity too high? Decrease the output intensity. Reliever will not turn uncomfortable. Are the batteries installed Insert the batteries observing Are you operating the TENS Digital...

  • Page 14: Maintenance And Cautions

    Troubleshooting Maintenance and Cautions Problem Check points Possible solution The skin becomes red Are you wearing the gel pads on Re-position the gel pads. If at any and/or you feel a the same site every time? time you feel pain or discomfort stabbing pain.

  • Page 15: Storage

    Storage Disposal • After use, disconnect the output cable and the gel pads, and then store safely and out NOTE: You will find these markings on batteries containing harmful substances: of the reach of children. • Store the TENS Digital Pain Reliever in a cool, well ventilated place. Pb = battery containing lead •...

  • Page 16: Warranty

    Warranty Explanation of Symbols on the TENS Digital Pain Reliever This product is guaranteed for a period of one year from the date of purchase against Follow instructions for use mechanical and electrical manufacturing defects. There are no user serviceable parts inside the instrument.
