Summary of Contents for 8ware 8WD-GS1

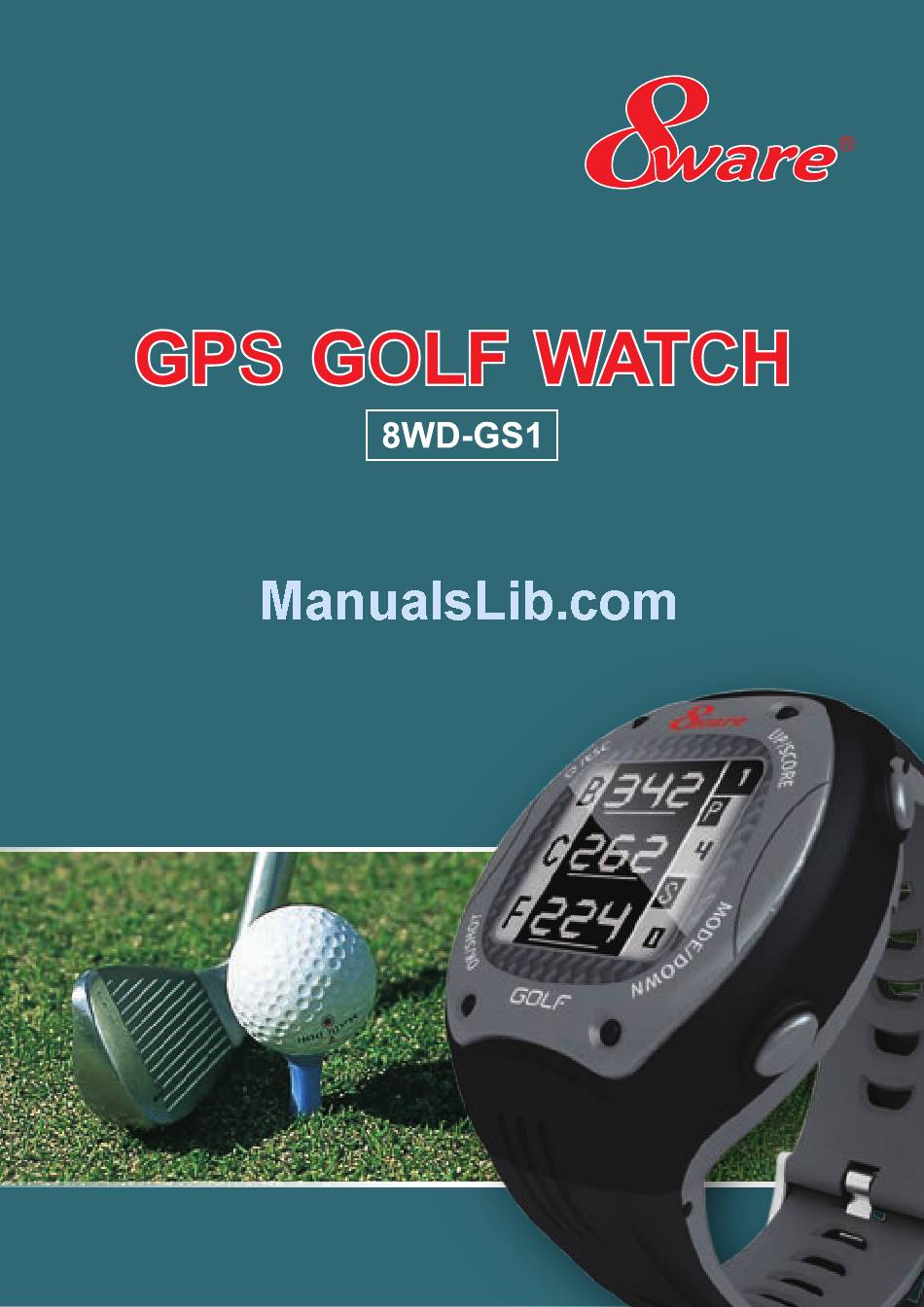

- Page 1 Quick Guide...
-
Page 2: What Is Gps
What is GPS? What is GPS? The Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. -
Page 3: Symbol Explanations
Symbol Explanation Symbol Explanation Symbol Explanations GPS status indicator Solid with 1 bar: 3D x with poor signal Solid with 2 bar: 3D x with good signal Solid with 3 bar: 3D x with strong signal Battery status Pars Number of shot Number of hole The distance from location to Green Back, Center and Front... - Page 4 Screen Pages Explanation Screen Pages Explanation In the Menu page, there are ve pages to choose from: Time Page: This page is for Time of day. Score Page: This page is history of score card. Play Golf Page: This page is for execute Play Golf. Setup Page: This page is setup for device, status check.
- Page 5 Button De nition Button De nition Power/Light/ESC Up/SCORE OK/Shot Down/MODE Button Description Press 2 seconds to turn on/o device. When device is on, quickly press this button will turn on/o the backlight. 1. Power/ Press and hold this button for 10 seconds to do hardware reset if the PLight/ESC system is halted.
- Page 6 GPS Reception Check GPS Reception Check The GPS antenna is located the up side of the device. The antenna needs to face to the sky for a better reception. Position device towards the sky to get the best signal for a 3D x and then for training the device.
- Page 7 Turn your device into a normal watch Turn your device into a normal watch The device can operate under Time Mode up to 10 days. So you can wear it as a normal watch. Follow the bellow procedure to turn the device into a watch: If devices enters standby for 3 minutes, the system will enter into Time Mode.
- Page 8 3. Select Display icon to setup display 4. You can setup the contrast, backlight and night mode in the selected menu. 5. Go to select UNIT. 6. You can set Metric or Yard for distance measurements.
- Page 9 7. In order to record more accurate times, you can set the time zone within this menu. 8. To setup your time zone and daylight saving. Your GPS will auto calibrate the time via GPS. 9. This menu sets the beeper condition. 10.
- Page 10 11. Set language via this icon. Select your preferred language. How to Start Play Golf How to Start Play Golf 1. Select “Play Golf” and press “OK” key to enter. Make sure your device gets a 3D xed and then press OK to go to Courses Selection page. 2.
- Page 11 4. Generally, the play will start with 1st hole. You can also go next/ last for the hole number by pressing “UP” or “Down” button. No. of Hole Pars Shot Distance to Green Front, Center, Back 5. Shot Distance: Long press the “Shot” button for 2 seconds and the distance measure page will appear.
- Page 12 7. MODE: In PLAY GOLF page, long press “MODE” button will enter to Mode page. There are four selection: -Current Time: To show the current time -Hazard: To show the obstructions information between Green. -Sun Rise/ Fall: To show the sun rise and fall information. -L/R Green: To show the left and right Green information.
-
Page 13: How To Upgrade Firmware
Note Note 1. The device will save your score after exiting the PLAY GOLF page. 2. Please ensure the device has a 3D x before Playing Golf. How to check Score 1. Select SCORE menu and press OK. 2. Device can save up to 10 score cards, the oldest score card will be overwritten once the limit has been reached. - Page 14 2. Connect USB cable to device and PC 3. System will detect the device and creates the new storage device.
- Page 15 4. Select the folder “DEVICE FIRMWARE UPGRADE” of the storage device and enter into the folder. 5. Copy and paste the rmware le into here; “DEVICE FIRMWARE UPGRADE” .
- Page 16 6. Remove cable, and power on device. 7. After few minutes, the rmware upgrade process will be done. 8. And then reset the device. Note: Do not interrupt the device while rmware is upgrading! Note: User’s manual, PC Software locates in “Manual” folder, you can install into your PC accordingly and backup in your PC.
