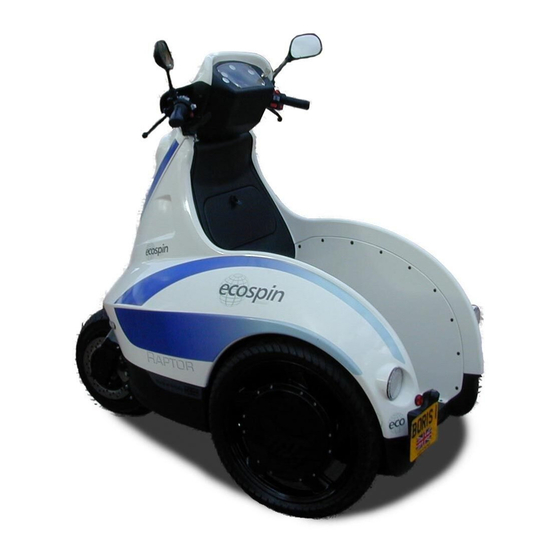

Ecospin Raptor

User Manual

Issue 1.3

Table of Contents

Need help?

Do you have a question about the Raptor and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecospin Raptor

Page 1 Ecospin Raptor User Manual Issue 1.3...
Page 2 Welcome Thank you for choosing the Ecospin Ltd Raptor We hope you enjoy it! This manual will provide everything you need to know to get started Ecospin Raptor User Manual...
Page 3 • It is important to fully discharge and recharge the battery at least once a month, This is to condition the battery and to realign the state of charge meter in the battery packs . Ecospin Raptor User Manual...
Page 4: Important Safety Information
Raptor. also read and fully understand all of the following information. Ecospin Raptor User Manual...
Page 5 Vehicle Components 1. Headlight 2. Emergency/Security light 3. Front Hydraulic Disk Brake 4. Brake Levers 5. Rear Hydraulic Disk Brakes 6. In-Wheel Brushless DC Motor 7. Indicators Ecospin Raptor User Manual...
Page 6 Vehicle Components 1. LCD Display 2. Lockable Glove Box 3. Battery Packs 4. Handlebar Controls 5. Rear Lights/ Brake Lights/ Indicators Ecospin Raptor User Manual...
Page 7 6)Emergency siren tone change bottom button Changes the sirens tone and pattern when icon appears (if fitted) 7)Trip reset When Pressed and held the Trip is reset to 0 8)Start-up/Ignition Key switch Ignition switch insert key and turn to start vehicle Ecospin Raptor User Manual...
Page 8: Instrument Cluster
Siren Tone Indicator (On) (Optional Extra) High (Full) Beam Headlight Right Indicator Signal Speedometer (Mph Or Kmh) Resettable trip odometer Battery Load Meter Odometer Battery warning icon (Green /yellow/red/flashing) Battery Temperature Warning Indicator State of charge meter Ecospin Raptor User Manual...
Page 9 This icon indicates that the Hazards have been activated by Displays the number of Mph/Kmh in a journey since last flashing reset. 5) Siren Tone Indicator (optional Extra) This icon indicates when the siren is activated Ecospin Raptor User Manual...
Page 10 Warning icon displayed temperature extremes are reached 14) State of charge meter This scale indicates the percentage of charge that is left in the battery Pack(s). this is only an estimate based on each battery being equally charged to begin with. Ecospin Raptor User Manual...
Page 11 Left Handle Bar Controls 1) Main Headlights (Up Position Full Beam, Down Position, Dipped beam) 2) Indicator Switch (Middle Button Cancels Indicators) 3) Horn 4) Parking Hand Brake 5) Rear Brake Lever 6) Rear Brake Reservoir Ecospin Raptor User Manual...
Page 12 Parking Hand brake for rear brakes, Application: apply brake lever and slide parking brake retainer out of the way and push pin down then release retainer Release: apply brake and slide retainer out of the pins path until pin clicks up Ecospin Raptor User Manual...
Page 13 Right Handlebar Controls 1) Safety Kill switch 2) Headlight Switch, 3) Start/Ignition Button 4) Siren and lights (If fitted) 5) Reverse button 6) Front Brake Reservoir 7) Front Parking Brake 8) Front Brake Lever 9) Throttle/Accelerator Ecospin Raptor User Manual...
Page 14 To Release: apply brake and slide retainer out of the pins path until pin clicks up Apply Brake using lever Slide Retainer back whilst still applying brake Whilst still applying brake and holding retainer back Push Pin Down The release retainer and brake Ecospin Raptor User Manual...
Page 15 Road Legal versions and Raptor 2.0 model) Parking Hand brake for Front brakes, Application: apply brake lever and push down the pin To Release: Apply the brake by pulling the lever to release the parking brake Brake Lever Ecospin Raptor User Manual...
Page 16 Front Brake Reservoir Contains brake fluid Level indicator through glass eye indicator to show amount of brake fluid in the front brake system Ecospin Raptor User Manual...
Page 17 There is a recheck period when the tag has been removed of around 3 second for the vehicle to disengage drive Ranges may vary from vehicle to vehicle but typically the Lockdown Switch operating range is on the standing plate of the vehicle Lockdown Proximity tag Ecospin Raptor User Manual...
Page 18: Safety Features
• There are a number of other safety features built into the vehicles programming If for any reason an electric stall occurs restart the vehicle by manually turning it on and off allowing a 5 second delay. Ecospin Raptor User Manual...
Page 19 Important Legal Information • All riders of this vehicle must ensure that the vehicle and the rider of the vehicle conform to the laws of the country they are operating in Ecospin Raptor User Manual...
Page 20 • Do not carry items on the vehicle which overhang the outer off the ground however standing towards the back of the boundaries of the vehicle vehicle increases the possibility of this happening. • Never ride your Raptor under the influence of alcohol or drugs Ecospin Raptor User Manual...
Page 21 Please take time to familiarise yourself with the location and Braking: function of the controls and display of the vehicle before The Raptor is equipped with hydraulically operated disc brakes on learning to ride the Raptor the front and rear wheels We advise that all riders of the vehicle check the following •To apply the front brake squeeze the right brake lever...
Page 22 • Always turn the handlebars slowly and smoothly • When driving down hill, be prepared to apply brakes • The Raptor is able to turn or pivot 360° within its own gradually to maintain a safe controllable speed radius, this should only be performed at very low speeds •...
Page 23 • The Raptor has a built in battery recognition system that recognises if they are present and charged. The maximum speed reachable is programmable and can be tailored according to fleet requirements.
Page 24 •Lithium-ion batteries can be charged as often as required •Although the Raptor can take one, two or three battery packs, it is and do not suffer from memory effect that some other essential to prolong the life of the pack (number of chargers it can take during its life span )that they batteries must be used and chemistries .
Page 25 •Each battery pack can be fully charged in approximately 5 hours The Raptor has been designed to be used with as many battery through a regular 13amp household plug socket (times may vary packs as you require in sets, allowing for continuous operation...
Page 26: Battery Information
•The battery drawers must be in the locked position whilst the vehicle is in operation •To lock the battery drawers in position insert the key into the drawer lock (D) and turn 180° counter-clockwise •The key can be removed and carried with the rider, preventing the batteries being removed Ecospin Raptor User Manual...
Page 27 • Ensure that the drawer locking mechanism (D) is in the unlocked position (turn key 180° clockwise) before inserting a battery pack • Once the drawer is fully inserted turn the key to the locked position (180° anti-clockwise) before turning the vehicle on Ecospin Raptor User Manual...
Page 28 • There is also a battery meter tester once pressed the LED lights shall light up indicating the level of power within the Battery Pack (B) Ecospin Raptor User Manual...
Page 29: Battery Charging
LED2 displays Green this shows the Battery is fully charged The charging time can vary on the battery current state of charge but typical charging times are between 3 -5 hours before the battery reaches optimum charge levels. Ecospin Raptor User Manual...
Page 30 • Maintaining a constant speed is more economical than stopping and starting over the same distance Three battery packs (same as two packs) returns up to 42 miles range • Drive conservatively when you require the maximum range from your battery pack Ecospin Raptor User Manual...
Page 31: Glove Box
Glove Box The Raptor has an 11 litre lockable glove box as To open the glove box press the lock button (A) seen below in and gently open the door as seen below Ecospin Raptor User Manual...
Page 32: Specifications
5 hours (with 5 amp charger) Power Train depending on duty cycle Up to 45 miles maximum (three battery Rear wheel drive , 2KW brushless motors packs) depending on duty cycle Curb Weight (Vehicle weight with no batteries) 130 Kg Ecospin Raptor User Manual...
Page 33 This will ensure that the correct parts are fitted to each model The VIN is located at the rear bar on the footplate stamped into the chassis. Location of VIN Number Stamped on Chassis Ecospin Raptor User Manual...
Page 34 (as displayed on the figure to the right) , This displays The VIN Number and the current Ecospin ltd Website. Other information may be added at a later point in time. In...
Page 35 Maintenance The condition of all brakes should be checked at regular intervals , if In doubt please contact your Ecospin Ltd Dealer/Distributor . Tyres Check your tyre pressures. Always maintain a tyre pressure of 26 psi (1.8 bar) in the front tyre and 26 psi (1.8 bar) in the...
Page 36: Fuse Box
(Towards Front) Front of vehicle Horn Indicators Display Lockdown Auxiliary Power The fuse box is located Siren/lights in the roof of the Spare battery cage and can be Rear (Towards Rear) accessed when battery(s) are removed Vehicle Ecospin Raptor User Manual...
Page 37: Vehicle Care
• You can allow the vehicle to air dry after cleaning or use dry environment away from any liquid in wet conditions •Only wash your Raptor by hand using warm water and car • Alternatively we recommend using a soft clean dry cloth shampoo (mild automobile detergent) to dry the vehicle by hand •Use a sponge or soft fabric to clean the vehicle...
Page 38: Warranty Information
Warranty information Only authorised Ecospin engineers are permitted to inspect • Altering the vehicles brakes will void its warranty or repair your vehicle battery, motor, controller, display and • Alter the vehicles tyre size will void warranty chassis due to the inherent risk and technical skill and training required to do so •...
Page 39 • In extreme temperatures of high or low the vehicle will display a warning symbol on the display and will shut itself down to avoid damage if the safe zone temperatures are surpassed • If the vehicle feels unstable/spongy check the tyre pressures Ecospin Raptor User Manual...
Page 40 Ecospin as the manufactures of the Raptor reserve the right without prejudice to change the vehicle specification and technical data contained within this owners manual Ecospin Raptor User Manual...
