37'' LCD TV Color Monitor

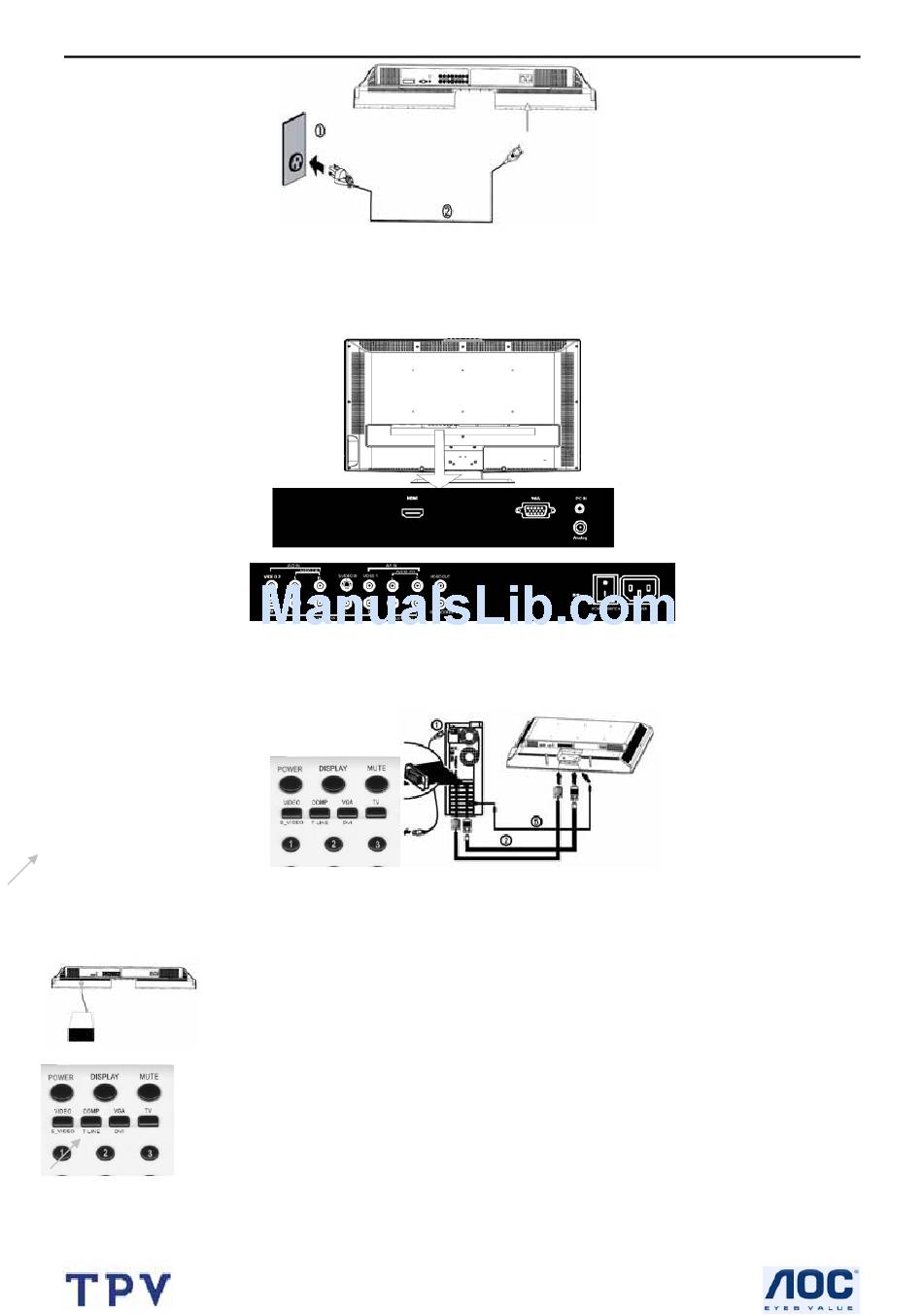

Signal source interface presentation from rear view :
You can connect numerous items of source equipment to your TV. The figure below shows you how to connect
these.
Place the TV on a table with the LCD screen facing down to facilitate easy connection with the external equipment.
Please take precautionary measures to avoid damaging the LCD screen.
Audio 1 Input: Connect the audio signal source (PC, DVD player, Laser Disc player, videocassette recorder or
camcorder) to the Audio Input ports (left and right).
Video 1 Input: Connect the video signal source (PC, DVD player, Laser Disc player, videocassette recorder or
camcorder) to the Video 1 Input interface.
Note: For the connection between the PC and the TV, (see Figure 1) below.
How to connect to the PC mainframe
VGA interface – Connect the VGA signal cable supplied with the TV to the D-sub interface at the rear of the TV as in
Figure 1.
Digital interface – Connect the DVI signal cable to the digital interface at the rear of the TV as in Figure1.
HDMI input
To the HDMI connector you can connect HDMI devices such as a Set Top Box or compatible
DVD-R or DVD player with HDMI export, or DVI-equipped devices like a computer. So you can
display high-definition pictures on this TV in the digital form.
How to use HDMI:
1. Connect one HDMI to the "HDMI" port and connect the other HDMI to device with HDMI export
as left figure
2. Select the HDMI button in the Remote control see right figure)
3. The HDMI connectors allow the following TV and monitor display mod:
SDTV
EDTV
HDTV
VGA
:
HDMI is the leading new standard for Digital video and audio interconnection.
720x576i, 50Hz /720x480i, 60Hz
720x576p 50Hz /640x480p 60Hz
1920x1080i 50/60Hz
1280x720p 50/60Hz
640x480 60Hz
