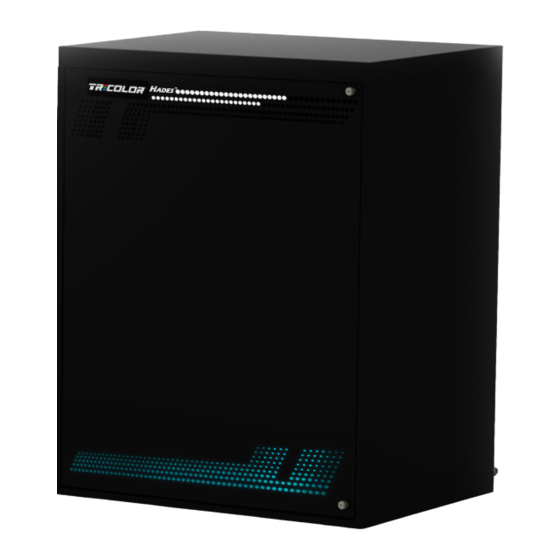

Video-wall Processor

Overview

The Video Wall Processor is a high performance video processing workstation with pure

hardware architecture for spectacular video wall displaying which can be employed in fields

including education and research, government announcement, information publishing,

exhibition and show, controlling and commanding center, security monitoring, etc.

Advanced image processing technologies such as high definition video signal collecting,

real time and high resolution digital image processing ,and advanced three-dimensional

digital filtering are integrated in video-wall processor. Moreover, it also employs large-

capacity, high-speed FPGA and CrossPoint switch to ensure the real-time processing of all

input signal and the consistency of the data, leading to no image delay, discretization, frame

loss, which guarantee excellent video displaying.

Video-wall processor is compatible with a wide variety of input signal formats,

including ,CVBS,YPbPr, VGA, DVI, Dual-link DVI, HDMI, SDI, twisted pair signal,

Table of Contents

Need help?

Do you have a question about the Video-Wall Processor 380 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tricolor Video-Wall Processor 380

Page 1 Video-wall Processor Overview The Video Wall Processor is a high performance video processing workstation with pure hardware architecture for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc. Advanced image processing technologies such as high definition video signal collecting, real time and high resolution digital image processing ,and advanced three-dimensional digital filtering are integrated in video-wall processor.
Page 2: Key Features
optical signal, etc. The output signal of video-wall processor supports DVI-I, twisted pair signal, and optical signal. For DVI-I signal, RGB analogue signal and DVI digital signal can be transmitted concurrently, which means that when video signals displayed on a video- wall, it can also be backup and transmitted to another group of displays simultaneously.
Page 3: Other Functions
Video-Wall processor supports maximum four windows in a single screen allows users to view more video signals with limited screens. The layout of the windows can be configured separately which offers flexibility and convenience. Input Signal Preview All input signals can be previewed in the UI of software before being displayed on the screens.
Page 4 Video-Wall processor employs RRTA( Resolution Real-time Total adaptation) technology in order to support customised resolutions for different groups of screens, in other words the resolution for each group of screens can be configured separately in the software which offers flexibility and convenience for daily application and management . Graphic Cropping and Signal Upscaling The graphics of all input video signals can be freely cropped to remove the black edge.
Page 5: Specifications
occurs to the one of the power source, the redundant power supply will start running automatically to ensure un-interruptible operation. Controlling and Management The Video-Wall processor controlling software allows users to manage and control the processor on PC. It supports Windows2000/XP/Vista/7/8. The Video-Wall processor and controlling PC can be connected by using CAT5/6 cable(TCP/IP) or RS232 cable.
Page 6 Signal Format RGBHV Color Depth 32bits/pixel Horizontal Scanning Ration 15KHz-90KHz Synchronization Separate sync Customised EDID Impedance 75Ω Reference Level 0.7Vp-p Physical Port RGB: 15pins D-sub(DB15/DE- 15F) 3.1.2 Input Port - YPbPr Signal Format Component EIA-770.2-A Maximum Resolution 1920*1080 Color Depth 32bits/pixel Horizontal Scanning Ration 15KHz-90KHz...
Page 7 Signal Format DVI-D digital T.M.D.S. signal in DVI 1.0 Maximum Resolution 1920*1200 Color Depth 32bits/pixel Signal Level T.M.D.S 2.9V-3.3V Customised EDID Impedance 50Ω Maximum Data Rate 4.95Gbps Physical Port 24+5 pins/DVI-I 3.1.4 Input Port - CVBS Standard PAL/NTSC Resolution 480i/576i Impedance 75Ω...
Page 8 3.1.6 Input Port - HDMI Standard HDMI 1.3 Maximum Resolution 1920*1200 HDCP Customised EDID Maximum Data Rate 4.95Gbps Physical Port HDMI Type A 3.1.7 Input Port - Dual-link DVI Signal Format Dual-link DVI Maximum Resolution 4K*4K Impedance 50Ω Customised EDID Maximum Data Rate 9.9Gbps Physical Port...
Page 9: Output Card
3.2 Output Card 3.2.1 Output Port - DVI/VGA Signal Format DVI-I in DVI 1.0 standard Maximum Resolution 1920*1200 Color Depth 32bits/pixel Maximum Transmission 25m(DVI) Distance Physical Port 24+5 pins/DVI-I （Adapter required for VGA output) Signal Level T.M.D.S. 2.9V-3.3V Impedance 50Ω 3.2.2 Output Port - Twisted Pair Signal Format Twisted pair differential signal...
Page 10 Maximum Resolution 1920*1200 Rear-end Device TriF-R1SI Maximum Transmission 10km Distance Physical Port 3.3 Models and Scales Models Features Video-Wall Processor 380 Two windows per screen Video-Wall Processor 580 Four windows per screen Models Scales Dimension (mm) Input Output DVI/VGA/HDMI/SDI/YPbPr/ Dual-link DVI...
Page 11: Operation And Configuration
Models Scales Dimension (mm) Input Output DVI/VGA/HDMI/SDI/YPbPr/ Dual-link DVI Optical/Twisted-pair/CVBS /DisplayPort 440/482(W)*380(D)*175(H) 440/482(W)*380(D)*352.8(H) Video-Wall Processor 440/482(W)*380(D)*619.5(H) 440/482(W)*380(D)*975.1(H) 440/482(W)*380(D)*175(H) 440/482(W)*380(D)*352.8(H) 440/482(W)*380(D)*619.5(H) 440/482(W)*380(D)*886.2(H) 440/482(W)*380(D)*1241.8(H) * means dual-link dvi input cards are only effective in specified input slots 4. User Guide 4.1 Operation and Configuration (1) Operation and connection Double clicking the icon on desktop after the software has been installed.
Page 12: User Administration
The controlling software menu consists of three modules which are the ‘Software Operation’, ‘Basic Operation’, and ‘Tools’. Firstly, clicking ‘Communication Setting’ on the ‘Software Operation’ . The connection configuration window will pop up. If the ‘NET Connection’ has been chose, the default IP address and port number of the processor are ‘192.168.1.65’...
Page 13: Video-Wall Settings
On the pop-up window, the username, password for users to log-in can be configurated. You can also set the level of access by select one item on the ‘Type’ drop list. (3) Video-wall settings Clicking ‘Layout’ on the ‘Software Operation’ to set the video-wall. users can set the output resolution, layout, and the gap between displays for up to 4 groups of video-wall.
Page 14: Channel Mapping
(4) Channel Mapping Clicking the ‘group’ on the ‘Basic Operation’ menu to set the output mapping from logical channel to physical port. (5) Signal Source Setting The signal source list located on the left of the software UI. The icon of each signal source will turns green if input signal has been detected on corresponding channel.
Page 15 OSD: OSD is for character superimposition, user can enter the text which need to be displayed overlaying the video on the textfield. The position of the text overlaying on the video can also be defined by setting values for ‘Horizontal Pos’ and ‘Vertical Pos’. There are three modes of OSD can be chose: Disable OSD Mode: No character superimposition OSD Mode 1: Character superimposition with transparent background OSD Mode 2: Character superimposition with pure colour background...
Page 16 VGA Signal Property User can set the parameters for VGA signal by ‘VGA Signal Property’. VGA <---> YPbPr Selecting the ‘VGA <---> YPbPr’ to choose the signal format of the VGA input channel. Update EDID Users can configurate the EDID of the input port for abnormal resolution. Clicking ‘EDID’ on the ‘Tools’...
Page 17 Click ‘File ---> Open EDID’ to open one current EDID configuration file(.dat), then modify it to create an new file. Click , choose modify mode, choose the first block on ‘Detailed Timings’ menu,...
Page 18 H Active: the horizontal pixels V Active: the vertical pixels Pixel: the refresh rate ( Recommended not to modify) When finish configuration, don’t replace the previous file, save as an new file and save it one the PC. Then right clicking the signal source and click ‘Update EDID’, choose the created file. (6) Window Controlling Select one signal source by clicking the icon, then customise a rectangular zone by mouse dragged with its left button to select a region on the the grey area in UI corresponding to the video-wall,...
Page 19: Test Signal
The processor supports the maximum of 4 windows on a single display. The layer of the windows can be set by right clicking the window and select ‘Top’ and ‘Bottom’. (7) Test Signal Users can test the connection between processor and displays by transmitting the signals of pure colour or grid to the displays.
Page 20: Advanced Settings
Users can load the ‘scenes’ by select one scene on the ‘Scene List’ which located on the left side of the software UI. All the saved scenes can be loaded and displayed on loop by clicking ‘Loop’ on ‘Basic Operation’ (9) Advanced settings...
Page 21 Background image supports users to upload and display high definition background image by clicking HMV260 Background picture on the Basic Operation menu. Click picture to add background image files (.bmp) to the processor. Then choose the uploaded image and the video-wall which used to displaying this image. The image can be displayed full screen or on specified area on video-wall by select the displays.
Page 22: Instruction Set
The preview region is shown on the bottom of the software UI. User can preview the input signal by clicking the “play” button. The input signal can be previewed in a larger window by double clicking it. 5. Instruction set 1.
Page 23: Creating A Window
Screen_ID The video-wall ID Total_line Total lines of one frame Total_pix Total pixel clocking of one line Act_vpos The vertical starting point of the active line Act_vsize Total number of active lines of one frame Act_hpos The horizontal starting point of the active pixel Parameters Act_hsize Total number of active pixel of one line...
Page 24 The horizontal starting pixel of the window on video-wall The horizontal ending pixel of the window on video-wall The vertical starting pixel of the window on video-wall The vertical ending pixel of the window on video-wall WIN_ID_ERR The window ID has already been taken Returning Value NET_OK...
Page 25 Example <icha, 1, 3, 0, 0, 0, 0> To switch the input channel 3 to window 1 as signal source, and no cropping has been processed. 6. Saving the scenes Instruction <save, Scene_id, Wall_id> Format Function To save the current displaying status of the specified video-wall The scene ID (0-39) to save the displaying status(0-22 for 22U and Scene_id above)
Page 26: Closing The Window
Example <Torb,1,0> To set the window 1 to top. 9. Closing all windows Instruction <rset, Screen_ID> Format Function To close all windows on a video-wall Parameters Screen_ID The ID of video-wall on which all the windows need to be closed Examples <rset, 0>...
Page 27 de_top Top starting point de_bottom Bottom Ending point Example <rcpm, 4> To read the parameters of input channel 4 12. Modifying the input channel parameters Instruction <wcpm, SourceChl, contrast, brightness, freq, phase, de_left, de_right, de_top, Format de_bottom> Function To modify the input channel parameters SourceChl The input channel, begins from 1.
Page 28 14. Setting the output displaying mode Instruction <tmod, Screen_ID, Mode, grid, R, G, B> To set the output displaying mode among normal mode, grid mode, and color test Function mode. Screen_ID The video-wall ID Mode 0: normal displaying mode 1:grid mode 2: pure colour mode Parameters Grid The spacing between adjacent lines in grid mode...
Page 29 For example, sending <winf, 0>, the returning could be: <The valid window ID is : hnum is 2 vnum is 2 hgap is 0 vgap is 0 hsize is 1280 vsize is 1024 Returning Value backgroud_pic_en is 1 backgroud_pic_addr is 3072 backgroud_pic_hsize is 1920 backgroud_pic_vsize is 1200 backgroud_pic_hpos is 0...
Page 30 19. Setting the synchronization mode Instruction <smod, Screen_id, sync_mode> Format Function To set the synchronization mode of video-wall Screen_ID The video-wall ID Parameters Sync_mode 0:async mode 1: sync mode 20. Setting the output channel mapping Instruction <ocov, Screen_id, Logic_ch, Phy_ch> Format Function To set the channel mapping of output connection port...
Page 31 Example <mipr,192,168,1,65,0,8,14,0,16,8,255,255,255,0,192,168,1,1,1024,1025> To set the ip as 192.168.1.65, mac address as 00-08-0E-00-10-08, subnet mask as 255.255.255.0, gateway as 192.168.1.1, port number as 1024 and 1025 (only the first one is used). 23. Setting character superimposition Instruction <font, SourceChl, hstart, vstart, Mode, front_color_R, front_color_G, front_color_B, Format back_color_R, back_color_G, back_color_B>...
Page 32: Installation Instruction
25. Returning the time of device Instruction <trea> Format Function Returns the time of the device. Example <trea> <Year : 2012 month : 2 date: 14 day: 2 hour: 17 minute: 44 second: 35> 26. Setting the background image enabling Instruction Format <bken, Screen_id, Bk_en, Flash_base, Pic_hsize, Pic_vsize>...
Page 33: Troubleshooting
6.1 Open the Package Check the device and accessories,including the device、Power cable、ethernet Cable Port line、manual、Warranty card、CD. 6.2 Install the device Insert the power cable to the chassis rear power interface, identifying apparatus according to the rear, access signal.Connect the output device according to the output signs, the number order is from left to right and from top to bottom.
Page 34 The cable is not well connected The signal cable damaged Reason Incorrect color adjustment of the equipment The color tune of the using software is incorrect After the connecting the port, please tighten the screw and prevent the movement caused by pulling Please replace with a good quality VGA line Solution...
Page 35 Video signal has been cropped by the display Reason Inappropriate adjustment to the video on the controlling software Re-adjust the picture location by the controlling software to get the expected effects.
