Summary of Contents for Alarmtec 4.3” Video Door Phone
-
Page 1: User Manual
USER MANUAL 4.3” Video Door Phone... -
Page 2: Table Of Contents
Table of Contents Name and Functions of Each Part ................... 2 Front Part........................2 Rear Part ........................3 Features and Functions ...................... 4 Features ........................4 Main Functions ......................4 Packing Contents ......................... 4 Wiring Diagram ........................5 Installation ..........................6 Installation location .................... -
Page 3: Warning And Caution
WARNING AND CAUTION Please make sure to follow the instructions to prevent any danger or property losses Warning: Death or serious injury are expected Do not disassemble, install, or repair this product on your own accord Do not place the product near a hot or humid place Do not forcibly bend the cord or put a heavy object on the product Do not use water, thinner or a detergent used to wash oil products when you wash the exterior... -
Page 4: Name And Functions Of Each Part

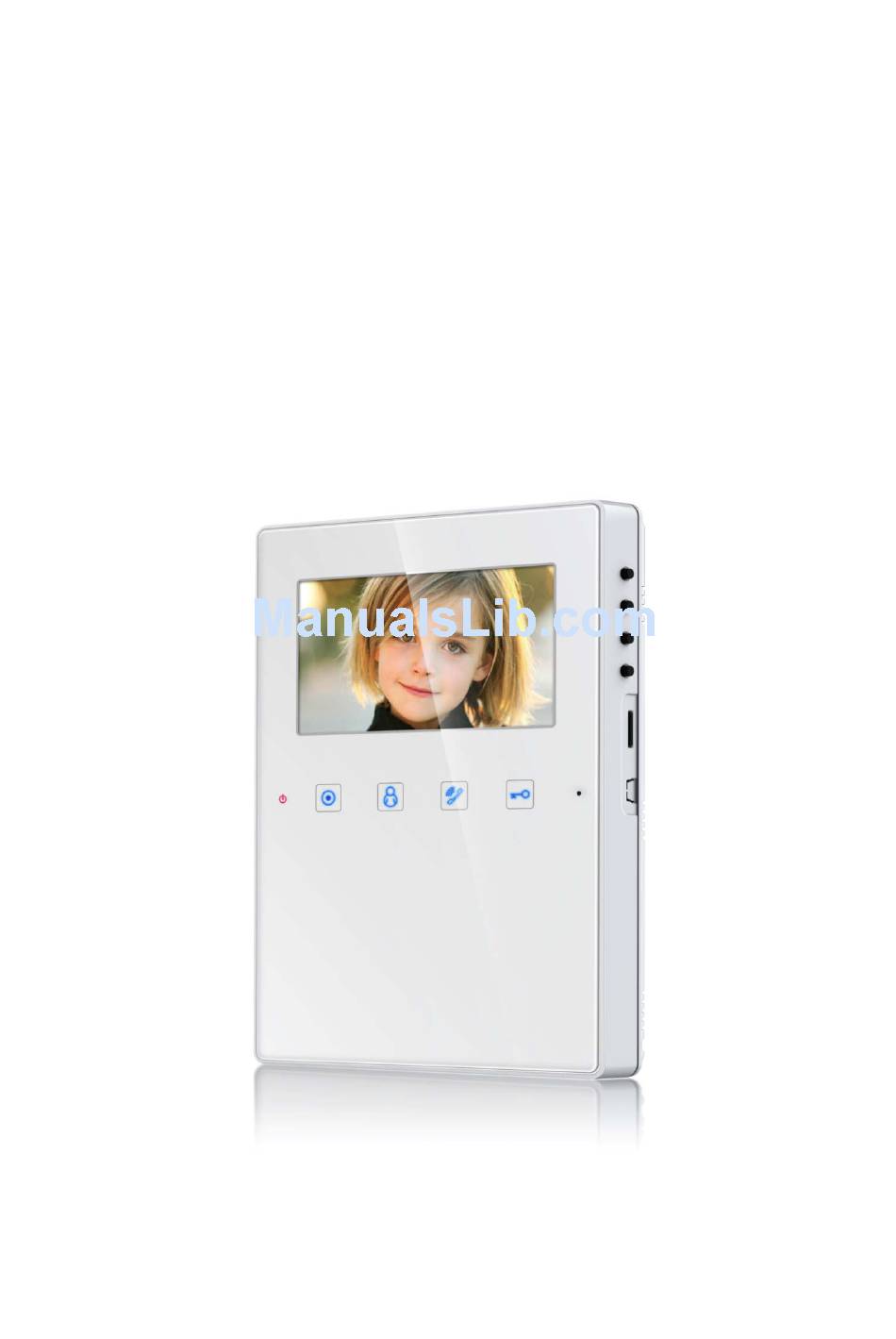

1. Name and Functions of Each Part 1.1 Front Part Part Name Description LCD screen 4.3 inch TFT LCD screen Power Indicator Intercom Button Monitor Button Open Button Button for releasing door Talk Button Button for talking with a visitor Power Switch AC power switch Power Cable... -
Page 5: Rear Part
1.2 Rear Part Part name Description Speaker Connection Audio phone/ door station 1/door station 2/ video Interface extension/DC input 75Ω Switcher Impedance matching for video signal... -
Page 6: Features And Functions
2. Features and Functions 2.1 Features 4.3” Touch button monitor with OSD menu Support 2 door stations, 1 master monitor + 3 extension monitors and 1 audio inter-phone Built-in flash memory: 100 pictures TF card: 100 videos ... -
Page 7: Wiring Diagram
4. Wiring Diagram Please be careful to wiring on polarity. Intercom wiring diagram with one monitor Intercom wiring diagram with master monitor and extensions (pay attention to the impedance matching switch) -
Page 8: Installation
5. Installation 5.1 Installation location Monitor installation location Standard monitor installation height is about 1,500mm where screen center is at eye level; in this case, wall-hanging metal center is 1,450mm above ground level. 5.2 Wire & Monitor Installation 1) Push down the button with screwdriver 2) Put the wire into the hole from the bottom 3) Release the screwdriver 4) Check the fastness of the wire... -
Page 9: Operation Description
6. Operation Description 6.1 Visitor Call When door station calls in, the visitor’s image will be shown on the monitor screen (on-screen duration 35 seconds). Remarks: In [RECORD SET] page, if you select YES in [AUTO RECORD] and select IMAGE in [RECORD MODE], when a door station calls in, monitor will capture picture automatically and show “ENCODED”... -
Page 10: Monitor Function
6.2 Monitor Function When you press the [MONITOR] button in standby mode, the system will enter monitor mode, and will show image from the corresponding door station. Remark: In standby mode, press [MONITOR] button once, the screen will display “CAM1”; press [MONITOR] button again, the screen will display “CAM2”;... -
Page 11: Intercom Function
Press [UP] button to show the next image; press [DOWN] button to show the previous image; press [EXIT] button to turn off the screen. Video Review Enter [RECORD SET] page, select VIDEO in [RECORD MODE], Then in the standby mode, press [UP] button, you can review the captured video clips, starting from the latest one. -
Page 12: Setting Page
Icon Definition: [MASTER] call master monitor call extension 1 monitor [EXT. 1] [EXT. 2] call extension 2 monitor call extension 3 monitor [EXT. 3] call the audio phone [AUDIOPHONE] To set intercom address: please refer to [MENU] [ADDRESS SET]. 6.5 Setting page In standby mode, press [MENU] button enter the menu page: ... - Page 13 enter [DISPLAY] page enter [DATE & TIME] setting page [DEL ALL] pictures/videos copy all images in FALSH to TF card restore to factory settings and set enter [RECORD SET] page language enter [BELL] setting page enter [ADDRESS RESET] page Remarks: ...
-
Page 14: Specifications
7. Specifications Category Specification AC: 100V ~ 240V, 50Hz/60Hz Input power DC: 14.5V Power consumption Max: 9W, standby: 3.5W TFT LCD 4.3 inch digital TFT LCD LCD resolution 480 (RGB) x 272 Connection with door station Support two 4-wire door stations Connection with extension Support 3 extension monitors monitor...
