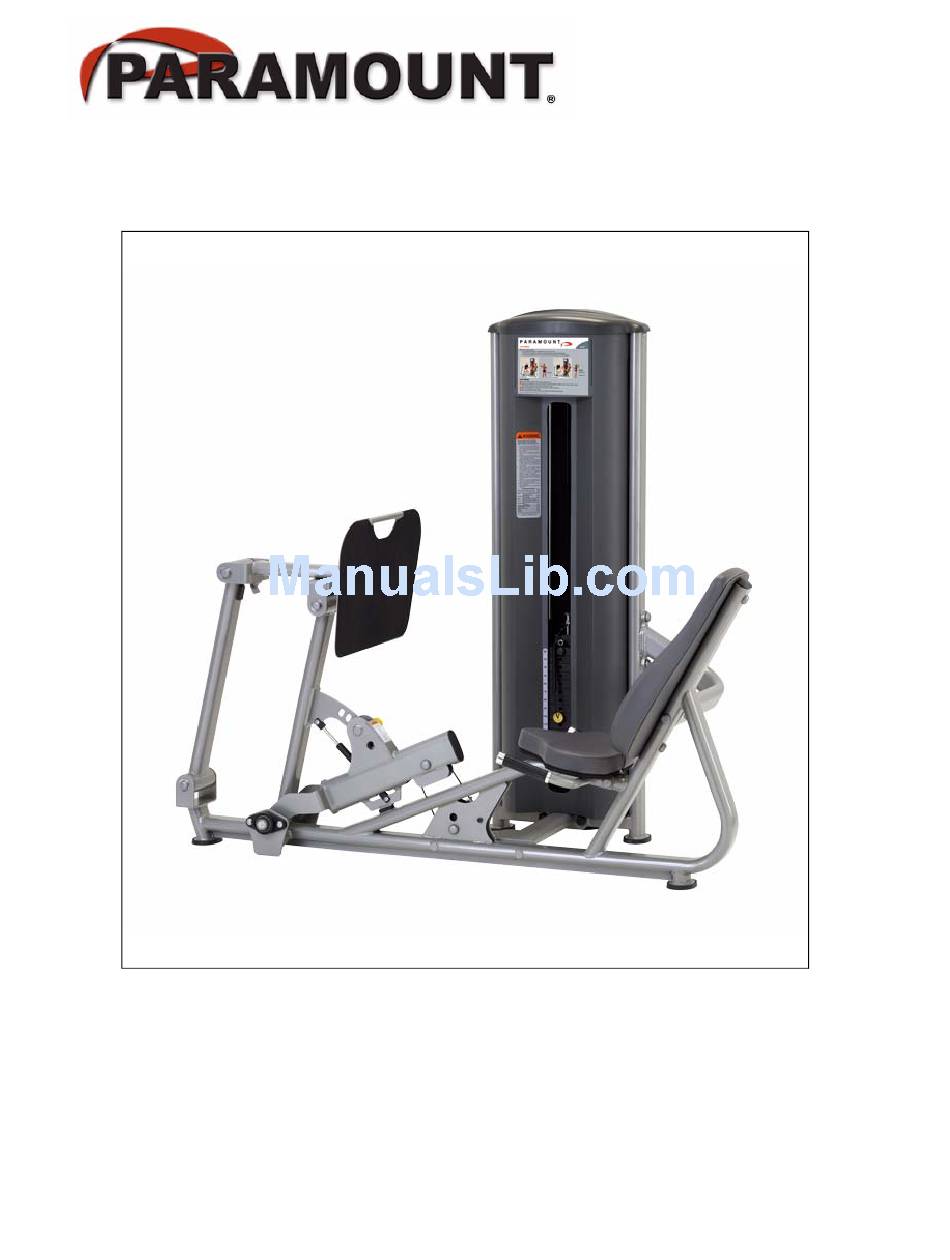

- Page 1 FS-51 RESS SSEMBLY ANUAL AM-FS51 010913...
- Page 2 1-800-721-2121 or 1-323-721-2121 Office hours are Monday-Friday, 7:30 am - 4:30 pm PST Or email us at nasales@paramountfitness.com Thank You for your patronage. Paramount Fitness Corporation 6450 East Bandini Blvd. Los Angeles, CA 90040 IMPORTANT SERIOUS INJURIES TO USERS, BYSTANDERS OR INSTALLERS CAN OCCUR IF THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL ARE NOT FOLLOWED.
-
Page 3: Table Of Contents
ABLE ONTENTS ........................4 AFETY ................ENERAL ARE AND AINTENANCE ................... 8 IMENSIONS AND EIGHT ......................9 REPARATION .................... 10 ARTON ONTENTS .................... 11 ARTON ONTENTS & A NSTALLATION SSEMBLY 1: I ............12 NSTALL THE RESS ABLE 2: A ............. -
Page 4: Safety
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine. - Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
- Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.
- Page 7 13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or Paramount Fitness Corp. at (800)721-2121 or nasales@paramountfitness.com.
-
Page 8: Dimensions And Weight
IMENSIONS AND EIGHT “I ” M ACHINE IMENSIONS 81.5” (207.0 cm) Machine Height: 64.4” (163.5 cm) Maximum user weight: 300 lbs. (136 KG) ACHINE EIGHT AND LOOR OADING EIGHT TACK ONFIGURATION ACHINE WEIGHT PPROXIMATE LOOR OADING 170 lbs. 469 LBS [213 KG] 56 LBS/FT [273 KG/M 250 lbs. -
Page 9: Preparation
REPARATION EQUIRED OOLS Ratchet Wrench and Sockets: 9/16” Wrenches: 1/2”, 9/16”, 3/4”. (or an adjustable crescent wrench). Rubber Mallet Allen wrenches: (included with the machine) Hardware Measurement Guide: BHCS - BUTTON HEAD CAP SCREW SHCS - SOCKET HEAD CAP SCREW FHCS - FLAT HEAD CAP SCREW HHCS - HEX HEAD CAP SCREW MEASURE BOLT... -
Page 10: Box 1 Carton Contents
FS-51 B ARTON ONTENTS QTY. ESCRIPTION FS-CAP-000X TOP UPRIGHT CAP FS-GRD-200X GUIDE ROD FS-SHD-250X REAR SHROUD FS51-SHD-200X FRONT SHROUD FS51-UPR-000X UPRIGHT FRAME FS-BKT-000 GUIDE ROD BRACKET FS-WSB-000 WEIGHT STACK BASE FS51-PAD-100X SEAT PAD, FS-51 FS-PAD-000X BACK PAD... -
Page 11: Box 2 Carton Contents
FS 51 B ARTON ONTENTS QTY. ESCRIPTION FS51-MFR-000X MAINFRAME ASSY FS51-MFR-100X HANDLE, RIGHT FS51-MFR-200X HANDLE, LEFT FS51-MFR-300X REAR BRACE FS51-MFR-400X FOOT PLATE FS51-MFR-500X CONNECTION BRACE FS51-HWR-000X FL-51 HARDWARE BOX FS-SBR-000X SELECTOR BAR... -
Page 12: Tep Nstall The
1: I NSTALL THE RESS ABLE 1. Place the Leg Press frame squarely QTY. ESCRIPTION on the floor. C-450 SCREW, 3/8”-16 X 2-1/2” C-453 SCREW, 3/8”-16 X 2” 2. Route the cable as shown, installing C-683 SHOULDER SCREW, 3/8” X 1-1/2” the associated pulleys and hardware C-754C FLAT WASHER, 3/8”... -
Page 13: Connecting Brace
2: A SSEMBLE THE ONNECTING RACE 1. Route the cable through the QTY. ESCRIPTION attachment piece as shown. C-955A BASE, BOLT COVER, 3/8 FS51-MFR-500X CONNECTION BRACE 2. Loosely assemble ALL hardware C-445 SCREW, 3/8”-16 X 1” and the pulley shown in this step. C-448 SCREW, 3/8”-16 X 1-3/4”... -
Page 14: Upright Frame
3: A SSEMBLE THE PRIGHT RAME QTY. 1. Place the upright frame squarely on ESCRIPTION C-955A BASE, BOLT COVER, 3/8” the floor as shown. FS51-UPR-000X UPRIGHT FRAME 2. Assemble the rubber feet on both C-445 SCREW, 3/8”-16 X 1” the upright and Leg Press frame. S-550 RUBBER FOOT 3. -
Page 15: Rear Brace
4: I NSTALL THE RACE QTY. 1. Position the rear brace as shown. ESCRIPTION C-955A BASE, BOLT COVER, 3/8” 2. Loosely assemble ALL hardware FS51-MFR-300X REAR BRACE shown in this step. C-455 SCREW, 3/8”-16 X 4” 3. After aligning all component edges C-445 SCREW, 3/8”-16 X 1”... -
Page 16: Foot Plate
5: A SSEMBLE THE LATE 1. Position the foot plate as shown. QTY. ESCRIPTION C-766A LOCKNUT, 3/8”-16 2. Loosely assemble ALL hardware C-955A BASE, BOLT COVER, 3/8” shown in this step. FS51-MFR-400X FOOT PLATE 3. After aligning all component edges C-444 SCREW, 3/8”-16 X 3/4”... -
Page 17: Andles
6: A SSEMBLE THE ANDLES QTY. ESCRIPTION 1. Position the handles as shown. C-766A LOCKNUT, 3/8”-16 2. Loosely assemble ALL hardware C-955A BASE, BOLT COVER, 3/8” shown in this step. FS51-MFR-100X HANDLE, RIGHT 3. Do NOT tighten the hardware after FS51-MFR-200X HANDLE, LEFT installation. -
Page 18: Seat Pad
7: A SSEMBLE THE 1. Position the seat pad as shown. QTY. ESCRIPTION C-955A BASE, BOLT COVER, 3/8” 2. Loosely assemble ALL hardware FL51-PAD-100X SEAT PAD shown in this step. C-446 SCREW, 3/8”-16 X 1-1/4” 3. After aligning all component edges C-451 SCREW, 3/8”-16 X 2-3/4”... -
Page 19: Back Pad
8: A SSEMBLE THE QTY. ESCRIPTION 1. Position the seat pad as shown. C-955A BASE, BOLT COVER, 3/8” 2. Loosely assemble ALL hardware FS-PAD-000X BACK PAD shown in this step. C-451 SCREW, 3/8”-16 X 2-3/4” C-754C FLAT WASHER, 3/8” 3. After aligning all component edges C-749 LOCKWASHER, 3/8”... -
Page 20: Upright Pulleys
9: I NSTALL THE PRIGHT ULLEYS QTY. ESCRIPTION 1. Route the cable as shown, installing C-766A LOCKNUT, 3/8”-16 the associated pulleys and hardware B-900 4-1/2” PULLEY as you go along. C-448 SCREW, 3/8”-16 X 1-3/4” 2. Tighten ALL the hardware. C-754C FLAT WASHER, 3/8”... -
Page 21: Weight Stack
10: A SSEMBLE THE EIGHT TACK 1. Route the Low Pulley cable as shown. QTY. ESCRIPTION FS-GRD-200X ASSY, GUIDE ROD 2. Install the pulleys and associated C-445 SCREW, 3/8”-16 X 1” hardware as you go along. D 840 COLLAR, CLAMPING 1” ID 3. -
Page 22: Front Shroud
11: I NSTALL THE RONT HROUD 1. Place the front shroud on the upright QTY. ESCRIPTION FS51-SHD-200X FRONT SHROUD as shown. C-445 SCREW, 3/8”-16 X1” 2. Loosely assemble ALL the hardware C-754C FLAT WASHER, 3/8” shown in this step. C-749 LOCKWASHER, 3/8”... -
Page 23: Rear Shroud
12: I NSTALL THE HROUD QTY. ESCRIPTION 1. Place the lower rear shroud pegs into FS-SHD-250X REAR SHROUD the corresponding holes at the bottom C-444 SCREW, 3/8”-16 X 3/4” of the upright frame. C-754C FLAT WASHER, 3/8” 2. Align the holes in the top shroud C-766A LOCK NUT, 3/8”... -
Page 24: Top Cap
13: I NSTALL THE QTY. ESCRIPTION 1. Assemble the top cap brackets as shown. FS-CAP-000X TOP CAP 1. Lower the top cap on to the top of the C 675D SCREW, 1/4”-20 X 1/2”, BHCS upright. FS-BKT-001 TOP CAP BRACKET 2. -
Page 25: Bolt Caps
14: I NSTALL THE 1. Assemble the plastic bolt caps to cover ESCRIPTION each exposed bolt on the machine. The C-955 BOLT CAP caps will snap on to the bolt cap base installed with the hardware. X 37... -
Page 26: Tack Abel
15: W EIGHT TACK ABEL 1. Select the appropriate weight stack label(s) according to your order. You can install pound labels, kilogram labels, or both. 2. If you ordered a 170 lb. weight stack, use labels: LBL-WSE-01170 (for pounds) LBL-WSM-01170 (for kilograms). 3. -
Page 27: Machine Labels
ACHINE ABELS The following are the Warning labels required for this FS machine. If any of these labels are missing or become damaged, Paramount will replace them free of charge. Note: these labels are not to scale. WARNING WARNING WARNING SERIOUS INJURY CAN OCCUR MAXIMUM ON THIS EQUIPMENT IF THE... -
Page 28: Service
Service representative at 1-800-721-2121 or 1-213-721-2121. Or by E-mail at nasales@paramountfitness.com. Before you call, please have the following information ready. • Model Number: FS-51 LEG PRESS • Serial Number: ________________________ • Date of Installation: ____________________ • A brief description of the problem The serial number is located on the front of the upright frame at the bottom as shown. -
Page 29: Floor
FS B NSTRUCTIONS The machines in this product line were designed and tested to meet the ASTM (American) and EN (European) safety standards for stability (without floor anchors) when the machine is used for it’s intended purpose as designated by the manufacturer. However, Paramount strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability. -
Page 30: Bolting The Machine To The Warranty
AUTHORIZED CORPORATE OFFICER OF PARAMOUNT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY, FROM STATE TO STATE. CONTACT PARAMOUNT FITNESS CORP., 6450 E. BANDINI BLVD., LOS ANGELES, CALIFORNIA 90040-3185, FOR A LIST OF AUTHORIZED DEALERS OR BEFORE RETURNING ANY DEFECTIVE... - Page 32 Paramount Fitness Corporation 6450 E. Bandini Blvd. Los Angeles, CA 90040-3185 Phone: 1-323-721-2121 Fax: 323-724-2000 1-800-721-2121 www.paramountfitness.com...
