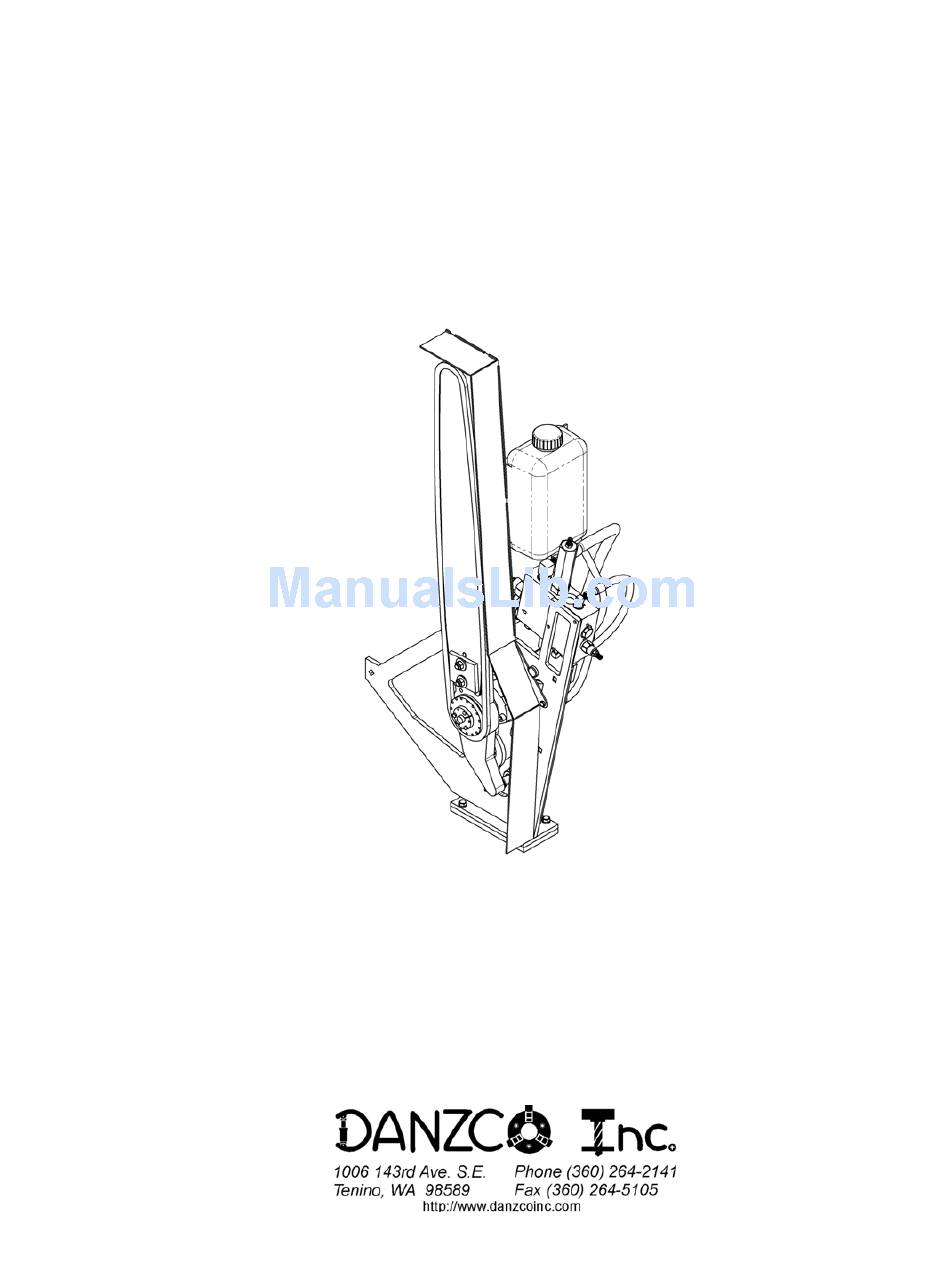

OPERATION AND PARTS MANUAL DH0196 20G Connect and Cut Hydraulic Chain Saw Information subject to change without notice. -
Page 2: Safety Precaution
SAFETY PRECAUTIONS ⇒ The unit you have purchased may require you to install additional guarding to meet State and Federal safety requirements. ⇒ Do not move the log when it is being cut or when the saw is down. This action may damage the bar, chain or other components or could cause bodily harm or injury. -
Page 3: Table Of Contents
Table of Contents Cover page ................................1 Safety Precaution ..............................2 Table of Contents ..............................3 Introduction ................................4 Warranty ................................4 Installation ................................4 Hydraulic Connections ............................5 Chain Tension and Sharpening ..........................6 Sprocket Removal and Replacement ........................6 Feed Control Adjustment ............................ -
Page 4: Introduction
Introduction Thank you for purchasing a Danzco, Inc. product. Our goal is to provide quality products for your job. This manual contains warranty information, installation information, operation instructions, parts ordering information, service contact information. Warranty This Danzco, Inc. product carries a one year or 2000 hour warranty on the Danzco, Inc. designed and built components covering material and workmanship. -
Page 5: Hydraulic Connections
After assembling the components as shown in figure 1, position the saw bar square to the log, at the correct height with clearance between the bar guard and the side of the largest log and weld down solidly (Fig. 4). Fig. -
Page 6: Chain Tension And Sharpening
The return hose can be #8 or 1/2” diameter for the first three feet, if a longer hose is required it must be #12 or 3/4” up to thirty feet. If the total return hose length is greater than thirty three feet #16 or 1” hose should be used. The filter must be rated for 20 GPM plus any additional pump flowing into it. -
Page 7: Feed Control Adjustment
Pry between the Bushing and the Sprocket to get the Bushing off the shaft. Watch that the Drive Key (#4, Fig 7) does not get lost. To install the Sprocket, slide the Sprocket (Fig 7, item 1) over the motor shaft, slide the Bushing (Fig 7, item 2) onto the shaft with the Drive Key (Fig 7, item 4) aligned. -
Page 8: Bar Oil Pump Adjustment
Bar Oil Pump Adjustments The DH0144 bar oil pump (Fig. 9) is a single acting pump that can pump up to 32 cc or 1.08 oz. of bar oil per cycle, enough for about 30 seconds of cutting. There is a hose connected to the feed and motor control valve manifold (Fig. -
Page 9: Operating Instruction
Operating Instructions Before and periodically during operation you must check the bar oil level and chain tension. We recommend using a good quality bar oil of the correct viscosity for your areas operating temperatures. Because of the wide temperature range between winter and summer two different viscosity oils may be required. Tension the chain as described on page 6. -
Page 10: Main Sub Assembly Parts
Main Sub Assemblies ITEM No. QTY. PART No. DESCRIPTION REMARKS DH0066 HARVESTER BAR, 75 CM OREGON 752HSFN114 DH0055 SAW CHAIN, 80 gauge, 89 drive links OREON 18HX DH0130 MAIN FRAME FDTT10 TAPPED WELD DOWN PLATE DH0179 BAR PLATE ASSEMBLY DH0162 FEED CYLINDER ASSEMBLY DH0166 BAR GUARD WELDMENT... -
Page 11: Bar Plate Assembly Parts
DH0179 BAR PLATE ASSEMBLY... -
Page 12: Feed Cylinder Assembly Parts
DH0162 FEED CYLINDER ASSEMBLY... -
Page 13: Bar Oil Pump Assembly Parts
DH0144 BAR OIL PUMP ASSEMBLY... -
Page 14: Feed And Motor Control Manifold Parts
DH0193 FEED and MOTOR CONTROL MANIFOLD... -
Page 15: Bar Oil Tank Assembly Parts
DH0152 BAR OIL TANK ASSEMBLY... -
Page 16: Hose Layout
HOSE LAYOUT ITEM No. QTY. PART No. DESCRIPTION REMARKS DH0199 SAW MOTOR HOSE #8 - 3000 PSI HOSE DH0200 MANIFOLD TO BAR OIL PUMP HOSE #4 - 3000 PSI HOSE DH0180 OIL TANK TO BAR OIL PUMP HOSE #4 - 3000 PSI HOSE DH0181 BAR OIL PUMP TO BAR PLATE HOSE #4 - 3000 PSI HOSE DH0197 CUT HOSE #4 - 3000 PSI HOSE...
