TeeJet Technologies RX610 User Manual

U SER GUI DE
RX610
L1/L2 GPS+L1/L2 GLONASS RECEIVER SMART ANTENNA
with integrated cellular modem for access to wireless RTK corrections
Thank you for choosing TeeJet Technologies' RX610 as your RTK solution. The information and instructions provided are available to enhance
or expand the performance of the RX610. Contact your local dealer for more information or visit www.teejet.com.
Integrated GNSS Design
The RX610 provides an integrated L1/L2 GPS+GLONASS receiver and antenna in a single compact enclosure. Designed to meet or
exceed stringent MIL-STD-810G specifications, the RX610's rugged metal housing ensures high performance even in the most challenging
work environments.
Integrated Cellular Modem
The RX610 comes equipped with an embedded CDMA (Carrier Division Multiple Access) or GPRS/HSDPA/GSM (General Packet
Radio Service / High Speed Downlink Packet Access / Global System for Mobile) radio to allow NTRIP data to be received
over a cellular network. The CDMA radio is Verizon Wireless carrier approved and the GPRS/HSDPA/GSM radio is PTCRB and
GFC certified to ensure optimal operation. An external cellular connector with optional high efficiency antenna provides robust
connections even in poor coverage areas.
Precision Performance
The RX610 features 14 channels for each of L1 and L2 GPS and 12 channels for each of L1 and L2 GLONASS code and phase
tracking. An additional two channels are dedicated for Satellite-Based Augmentation System (WAAS, EGNOS and MSAS)
signals as well as one channel for L-band (OmniSTAR
Multiple Interfaces Deliver Maximum Flexibility
Two NMEA 0183 compatible RS-232 serial ports, one NMEA2000 compatible
CAN port and built-in Bluetooth ensure the RX610 delivers maximum
flexibility. An Emulated Radar ground speed output, a one pulse per
second output (1 PPS) and an event mark input are also provided.
Three daylight readable status LEDs simplify infield diagnoses.
Smooth, Pass-to-Pass Accuracy with
ClearPath® Technology
ClearPath technology is integrated into every RX610 antenna.
ClearPath uses the very accurate carrier phase calculations to
provide ultra smooth positions and excellent pass-to-pass accuracy
for agricultural applications. ClearPath functions autonomously and
with most available corrections services. It will also bridge through short
periods of poor satellite availability. ClearPath's steady, smooth output is
especially well suited for manual guidance and autosteer installations.
B E N E F I T S
• Scalable dual-constellation, dual-frequency performance
• Smooth, consistent positions for pass-to-pass accuracy
• Rugged design for on-machine applications
).
®
F E AT U R E S
• GPS and GLONASS satellite capability
• ClearPath
• Robust power handling for 12 V to 24 V vehicle power
• OmniSTAR
• Integrated cellular modem for access to wireless RTK Network
and AdVance RTK positioning
® ®
compatibility
®

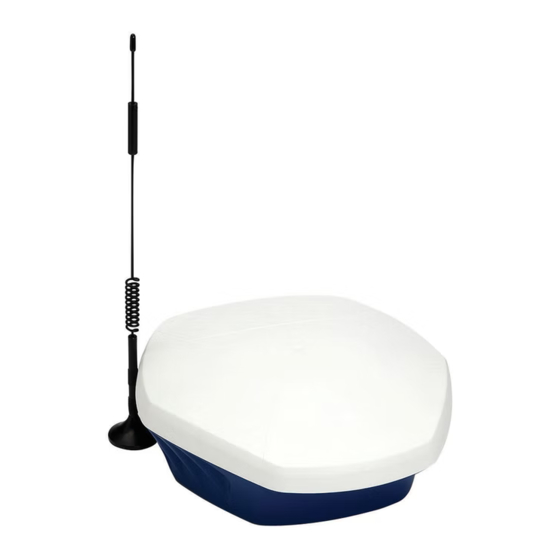

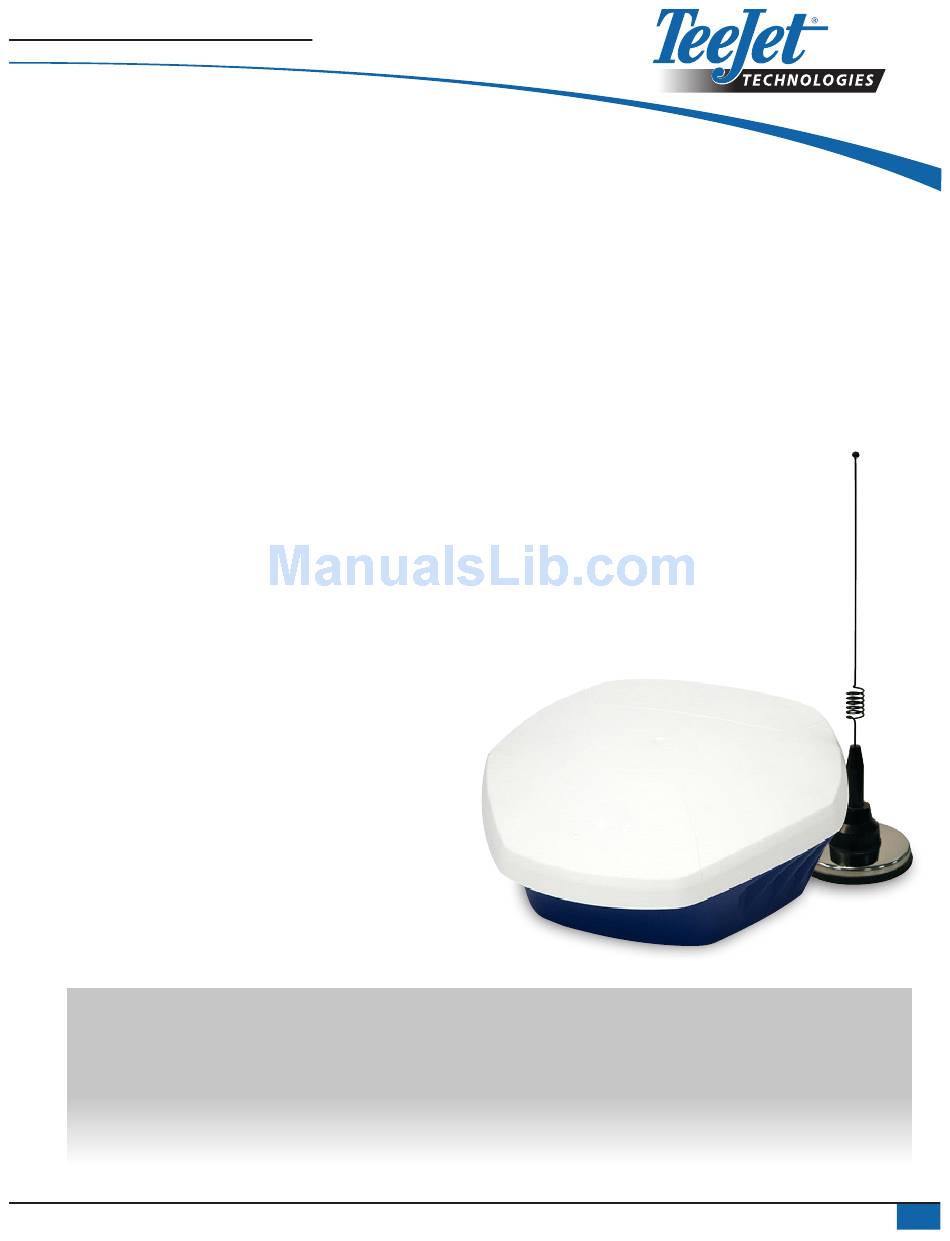

CDMA Whip Antenna shown
