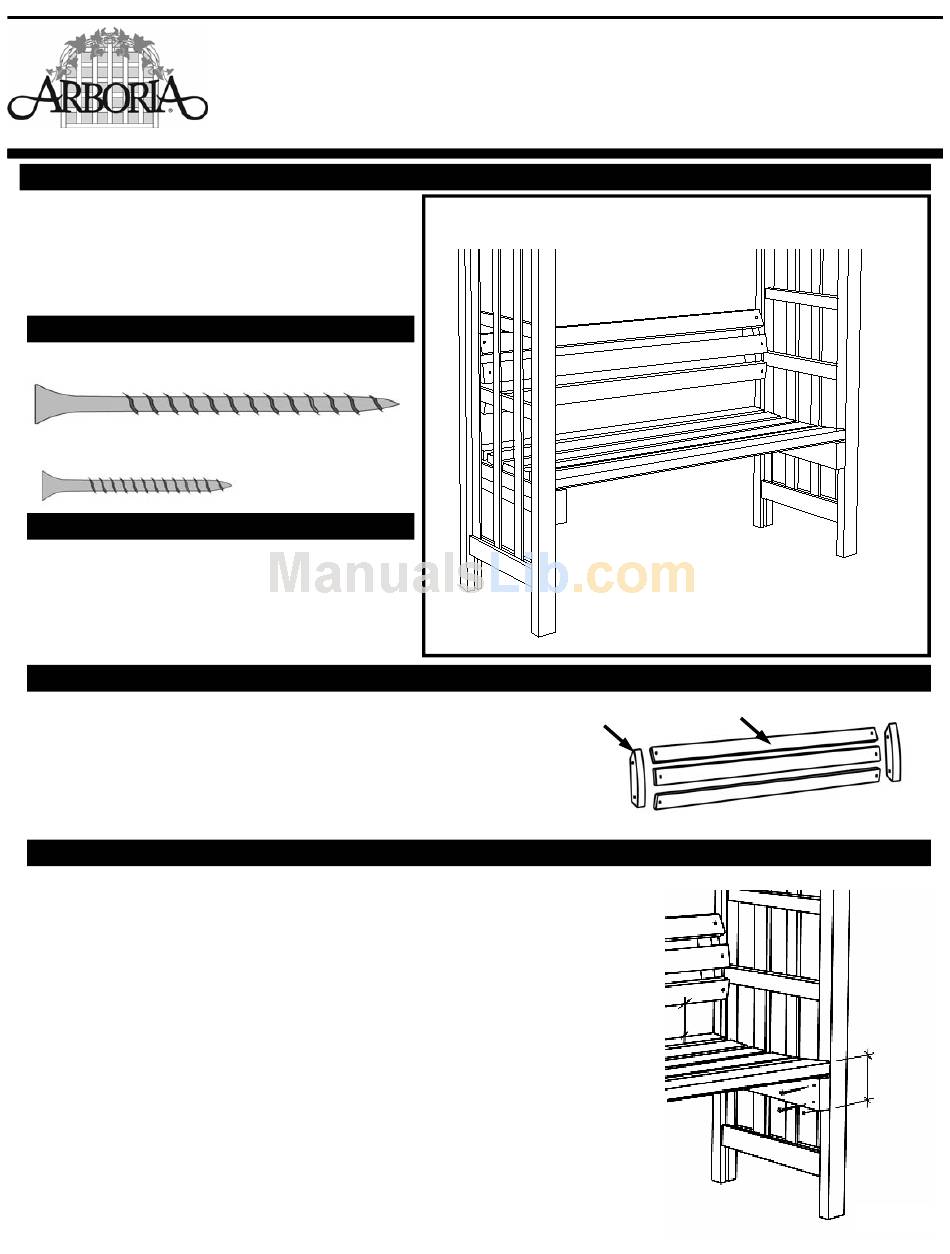

Arboria Seat and Back Assembly Instructions

CHECK BOX FOR THESE CONTENTS

•
Seat assembly
•
Back rails (total 3)
•
Back mounting block (total 2)
•
Screws (total 18)

HARDWARE

3" screw (12)
1 5/8" screw (6)

TOOLS YOU WILL NEED

•
Philips screwdriver (electric driver recommended)
•
Small hammer
•
Tape measure
•
Pencil
•
Four 2" nails

BACK ASSEMBLY

STEP 1

•
Line up the outer rails to the edge of the back block with the narrow
end pointing upward.
•
Secure the outer back rails using the 1 5/8" screws. Center the middle
rail and secure using 1 5/8" screws.

SEAT AND BACK TO ARBOR ASSEMBLY

STEP 2

•
Determine the height you prefer for the bench seat, usually from 16" to 18" above
ground.
•
Deduct 4 3/4" from the height and mark that height on each "leg" of the arbor, this
will locate the bottom of the seat support.
•
Drive nails in each of the arbor posts at the marked places.
•
Rest the seat on the projecting nails, line it up front and back with the arbor posts.
•
Hold the seat firmly to the arbor post and drive 3" screws into all four posts.

STEP 3

•
Position back 4" above seat, use books or blocks to support the back and
steady in place
•
Position outer edge of back blocks flush with the arbor post.
•
Secure the back to arbor using 3" screws.
LWO Corporation, 3841 N. Columbia Blvd., Portland, OR 97217 (503) 286-5372 (800) 459-8718 www.arboria.com
ASSEMBLY INSTRUCTIONS
Arbor Seat and Back
PLEASE READ COMPLETELY BEFORE BEGINNING ASSEMBLY
SEAT AND BACK INSTALLED IN ARBOR
Block narrow end Back rails
4"
4 3/4"
Made in USA 2003
